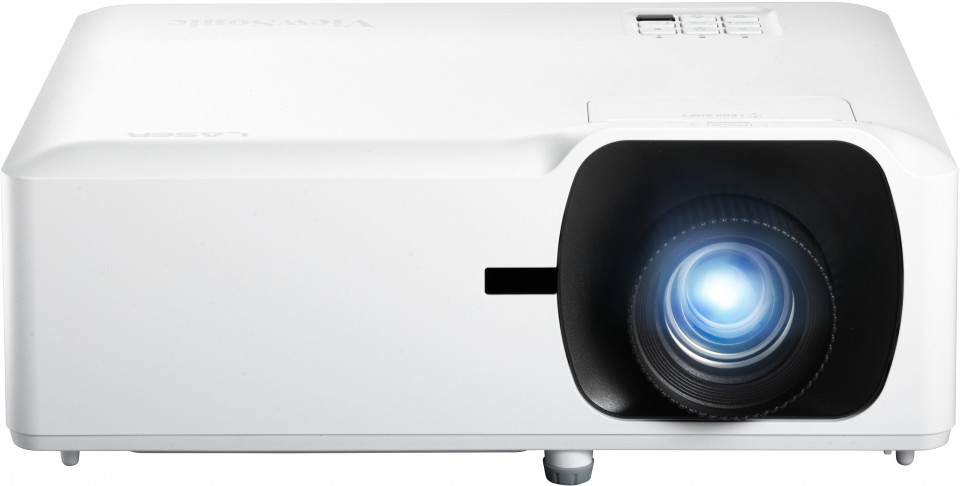

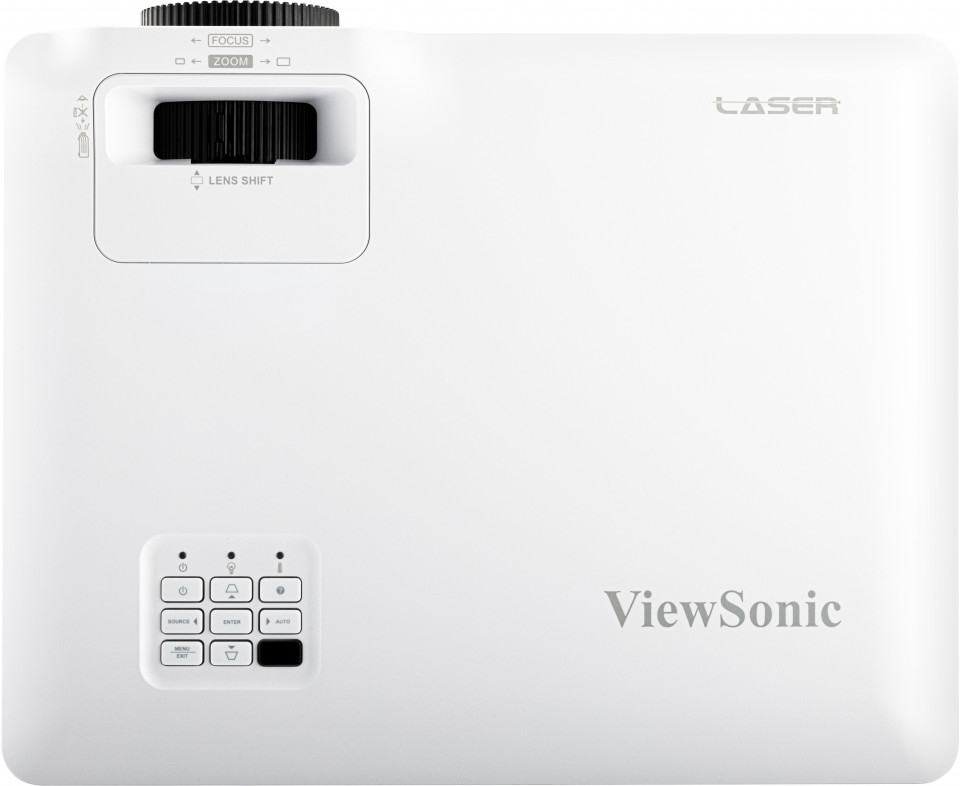

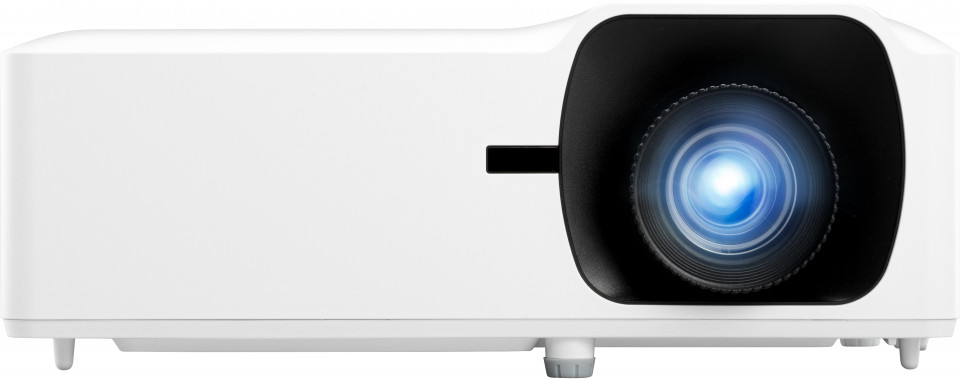

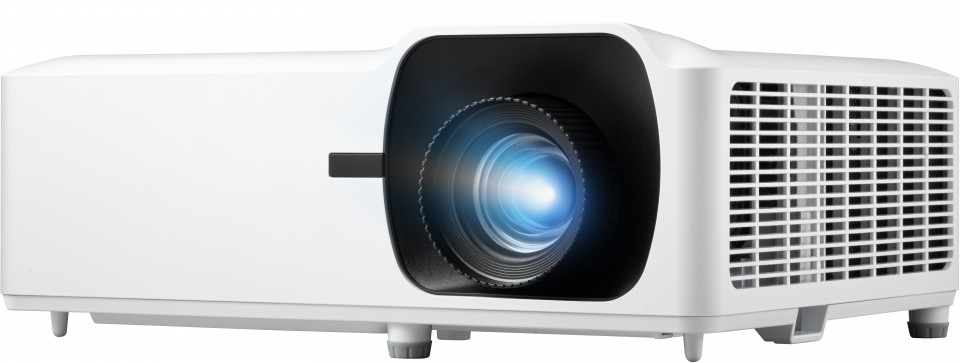

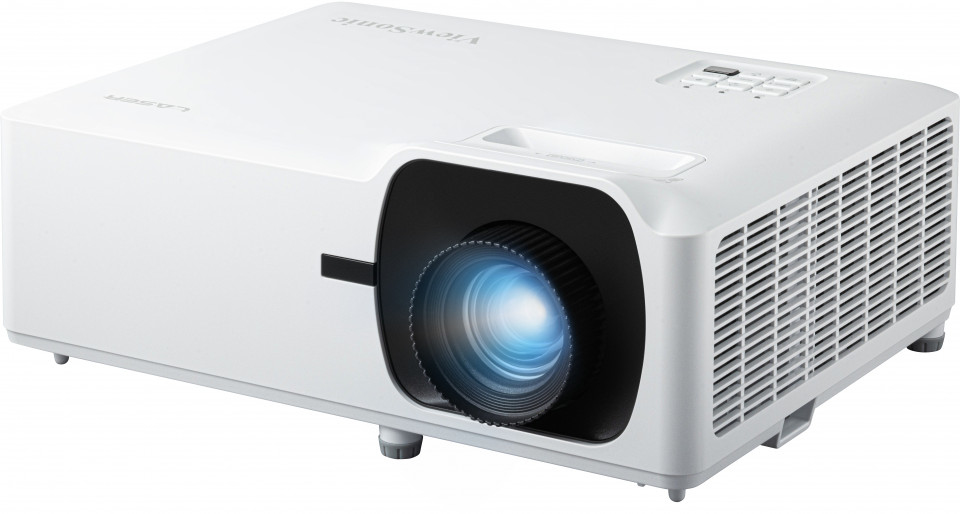

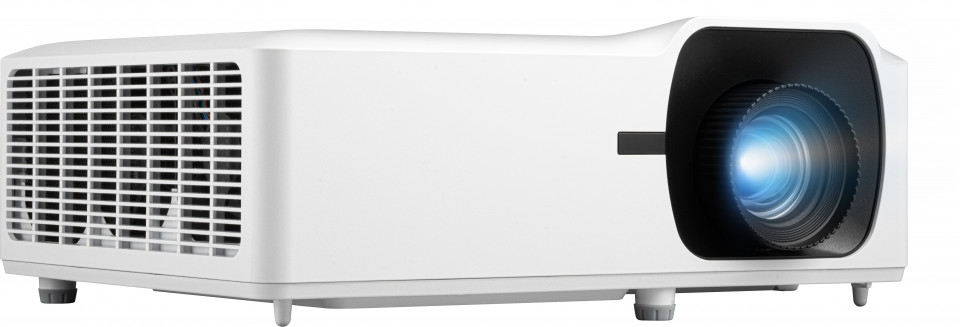

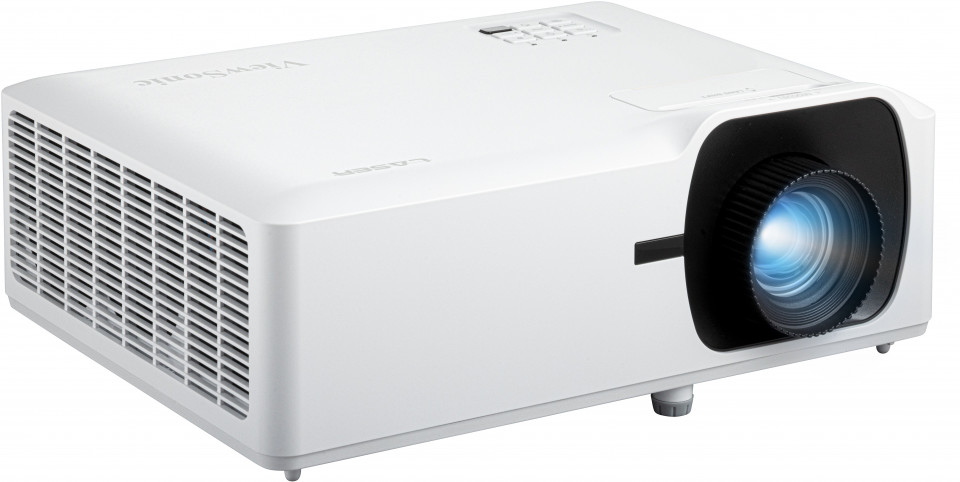

LS751HD data projector Standard throw projector 5000 ANSI lumens 1080p (1920x1080) White
Model LS751HDEAN 766907019940
90 specifications
- Noise32 dB
- TypeStandard throw projector
- Weight5.3 kg
- ColourWhite
- Projector brightness5000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 32 dB
- Type
- Standard throw projector
- Weight
- 5.3 kg
- Colour
- White
- Projector brightness
- 5000 ANSI lumens
- Light source type
- Laser
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- LS751HD
- Part number
- LS751HD
- EAN / UPC
- 766907019940
- Also known as
- Viewsonic LS751HD data projector Standard throw projector 5000 ANSI lumens 1080p (1920x1080) White
Specifications
90 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:9 |
| Smart projector | No |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.93 - 14.88 m |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 20.911 - 32.62 mm |
| Aperture range (F-F) | 2.5 - 3.26 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Digital zoom | 2x |
| Optical zoom | 1.6x |
| Throw ratio | 1.4 - 2.24 |
| Vertical lens shift range | 0 - 18% |
| Offset | 136% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| 3D | No |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |

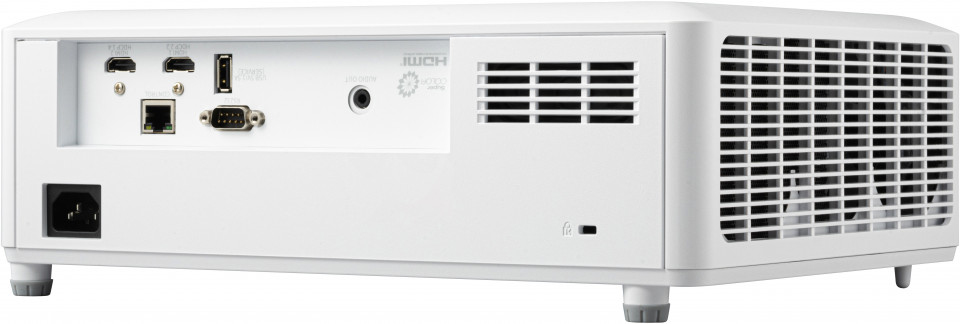

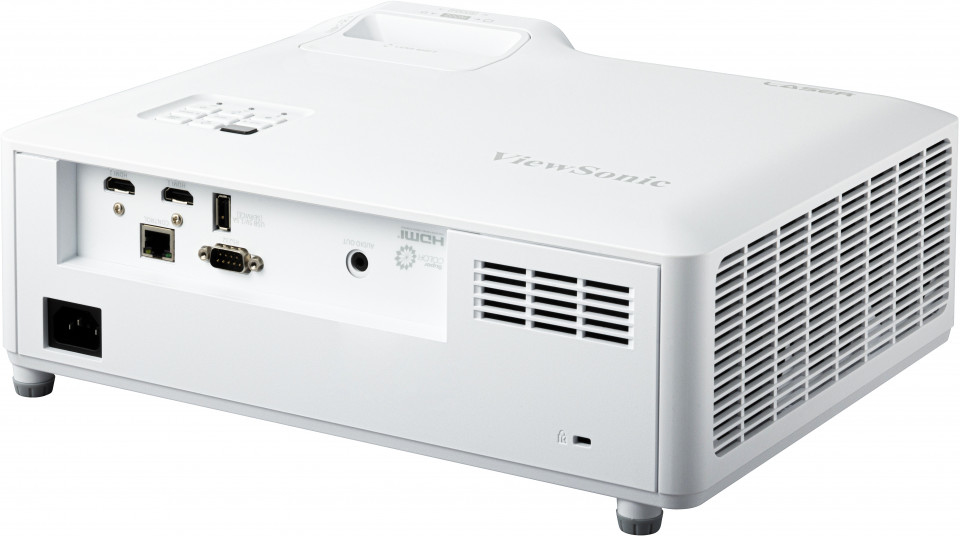

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 2.0 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| Service port type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| Audio (L/R) in | 0 |
| Audio (L/R) out | 0 |
| Serial interface type | RS-232 |
| PC Audio out | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 32 dB |
| Noise level (economic mode) | 29 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 27 |
| HDCP version | 1.4/2.2 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 30 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Business |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 245 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5.3 kg |
| Width | 337 mm |
| Depth | 265 mm |
| Height | 131.5 mm |
| Package width | 496 mm |
| Package depth | 195 mm |
| Package height | 387 mm |
| Package weight | 8.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
Technical details
| Specification | Value |
|---|---|
| Image lag time | 49.9 ms |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 8528620000 |
| Pallet gross height | 2.06 m |
| Pallet gross length | 102 cm |
| Pallet gross width | 122 cm |
| Products per master (outer) case | 1 pc(s) |
