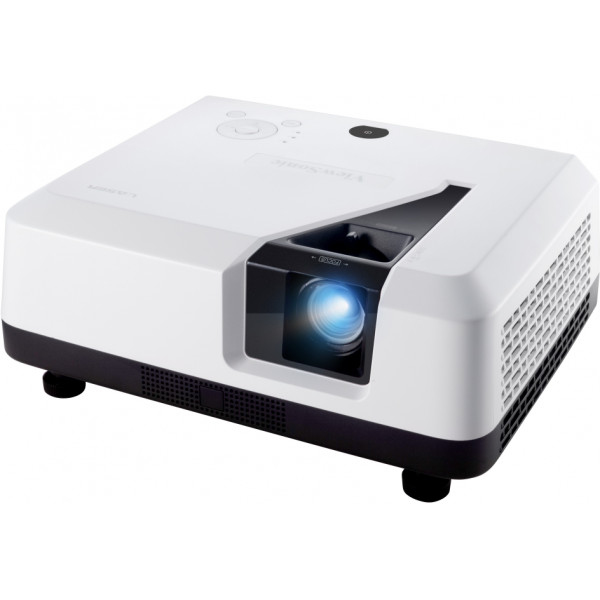

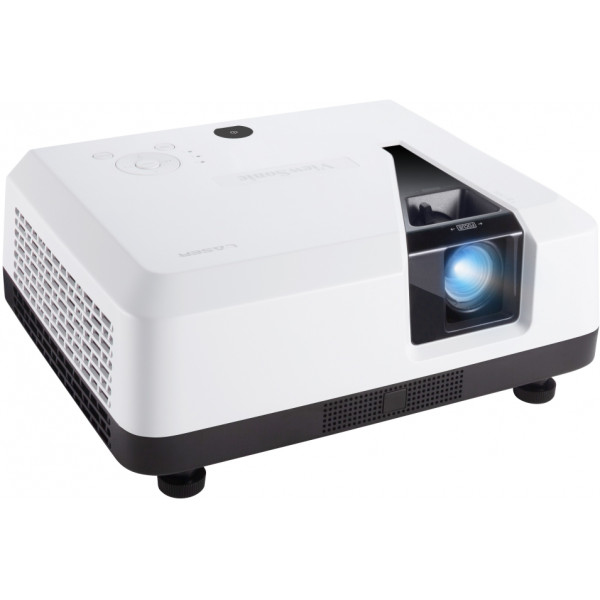

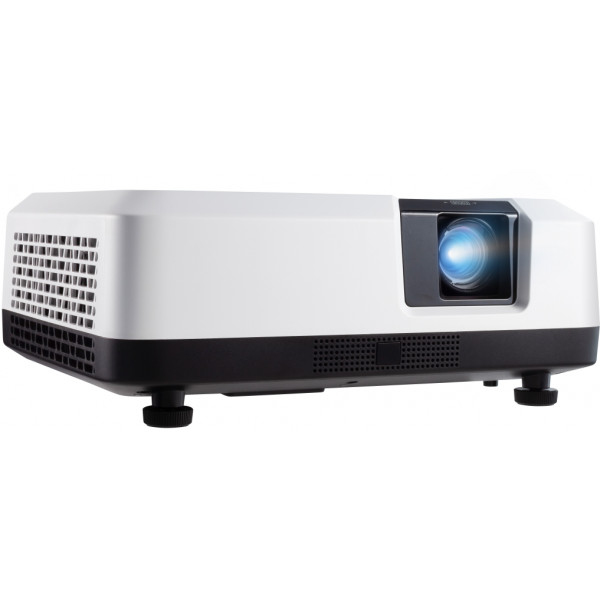

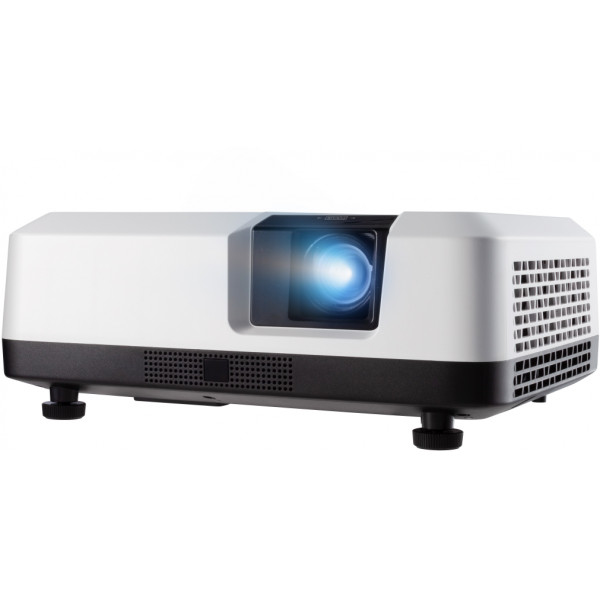

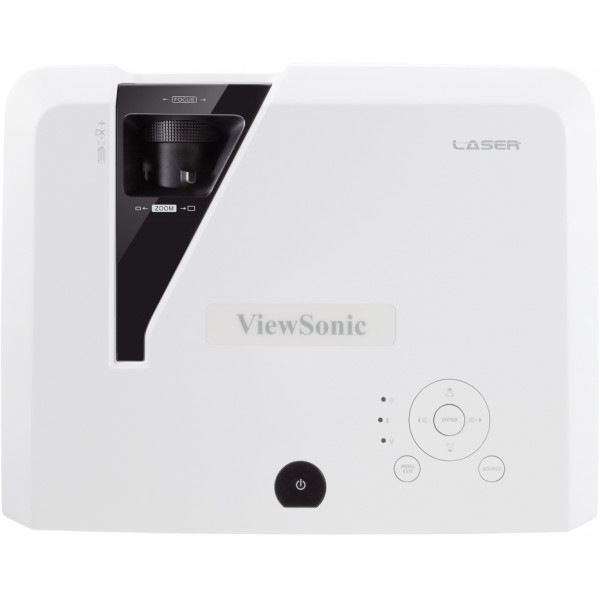

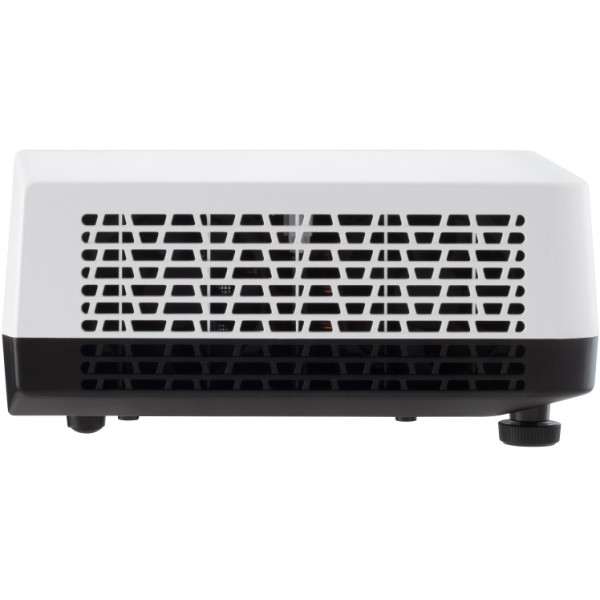

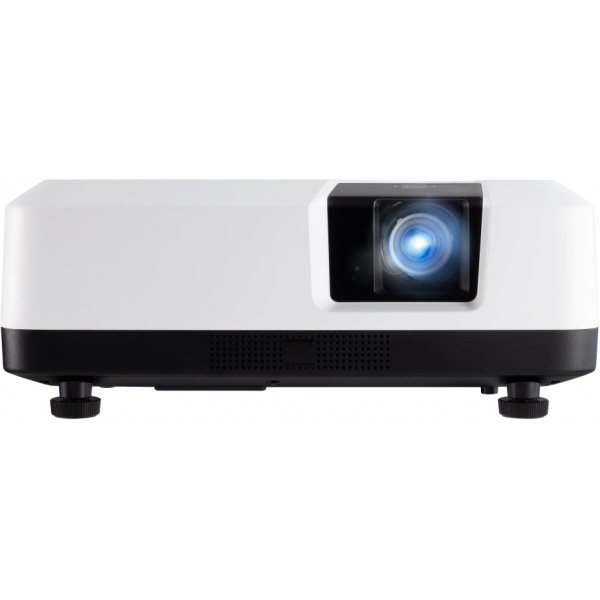

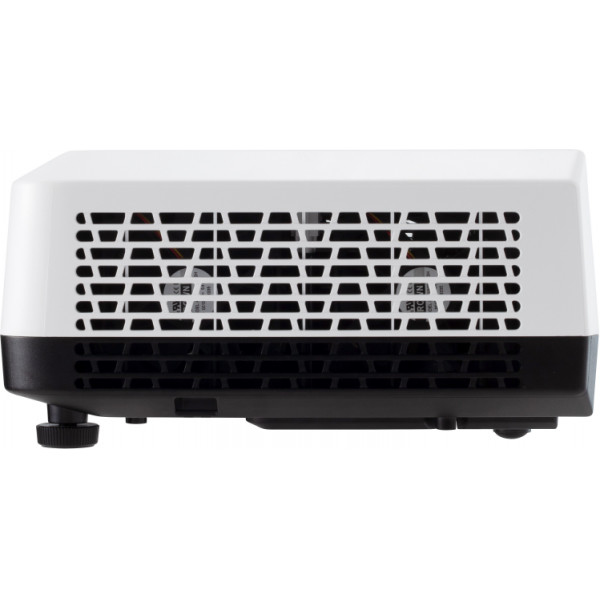

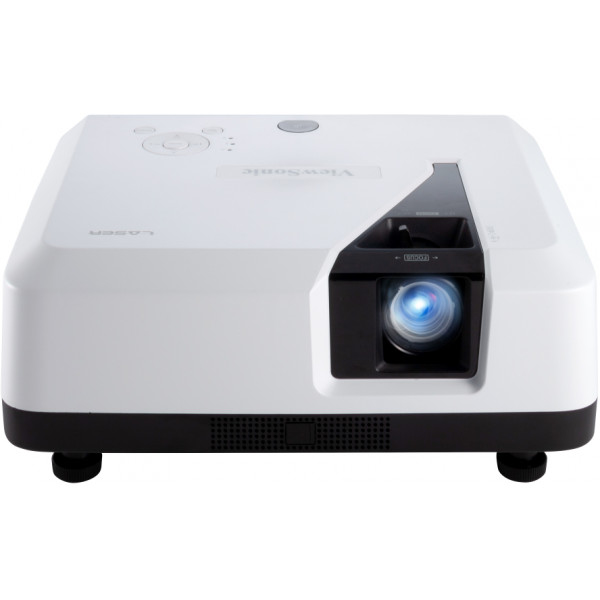

LS700HD data projector Standard throw projector 3500 ANSI lumens DMD 1080p (1920x1080) White
Model LS700HDEAN 766907981216
74 specifications
- Noise34 dB
- TypeStandard throw projector
- Weight6.65 kg
- ColourWhite
- Projector brightness3500 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 34 dB
- Type
- Standard throw projector
- Weight
- 6.65 kg
- Colour
- White
- Projector brightness
- 3500 ANSI lumens
- Light source type
- Laser
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- LS700HD
- Part number
- LS700HD
- EAN / UPC
- 766907981216
- Also known as
- Viewsonic LS700HD data projector Standard throw projector 3500 ANSI lumens DMD 1080p (1920x1080) White
Specifications
74 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3500 ANSI lumens |
| Projection technology | DMD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 3000000:1 |
| Screen size compatibility | 1524 - 7620 mm (60 - 300") |
| Projection distance | 1.5 - 8.79 m |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, horizontal | -40 - 40° |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 12 - 15.6 mm |
| Aperture range (F-F) | 1.9 - 2.49 |
| Zoom capability | Yes |
| Zoom ratio | 2.0:1 |
| Throw ratio | 1.13-1.47 |
| Offset | 100% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 1.4a |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 34 dB |
| Noise level (economic mode) | 30 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 22 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Desktop, Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 260 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.65 kg |
| Width | 396 mm |
| Depth | 314 mm |
| Height | 157 mm |
| Package width | 499 mm |
| Package depth | 402 mm |
| Package height | 261 mm |
| Package weight | 8.45 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
