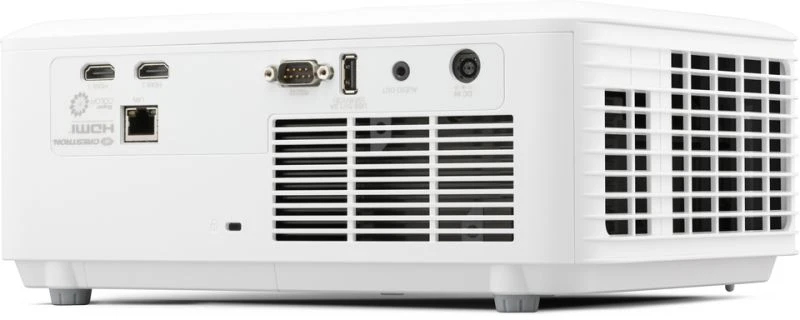

LS630HD data projector Standard throw projector 4000 ANSI lumens 1080p (1920x1080) White
Model LS630HDEAN 766907031287
63 specifications
- Noise32 dB
- TypeStandard throw projector
- Weight3.1 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 32 dB
- Type
- Standard throw projector
- Weight
- 3.1 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Laser
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- LS630HD
- Part number
- LS630HD
- EAN / UPC
- 766907031287
- Also known as
- Viewsonic LS630HD data projector Standard throw projector 4000 ANSI lumens 1080p (1920x1080) White
Specifications
63 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 3000000:1 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.75 - 9.76 m |
| Number of colours | 1.07 billion colours |
| Horizontal synchronization (max) | 102 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, horizontal | +-30° |
| Keystone correction, vertical | +-30° |
| Vertical synchronization (max) | 0.12 kHz |
| Vertical synchronization (min) | 0.024 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 16.90 - 21.61 mm |
| Aperture range (F-F) | 2.43 - 2.78 |
| Zoom capability | Yes |
| Zoom ratio | 0.8 - 2.0:1 |
| Throw ratio | 1.13-1.47 |
| Offset | 132% |
Video
| Specification | Value |
|---|---|
| Digital signal format system | HDTV |
| Full HD | Yes |
| 3D | No |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI version | 1.4 |
| USB 2.0 Type-A ports quantity | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 32 dB |
| Noise level (economic mode) | 27 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 15 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Education |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 175 W |
| Power consumption (standby) | 0.5 W |
| AC adapter output voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.1 kg |
| Width | 286 mm |
| Depth | 216 mm |
| Height | 129 mm |
| Package width | 440 mm |
| Package depth | 185 mm |
| Package height | 340 mm |
| Package weight | 4.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8528620000 |
| Pallet gross height | 2.16 m |
| Pallet gross length | 102 cm |
| Pallet gross width | 122 cm |
| Products per master (outer) case | 1 pc(s) |
