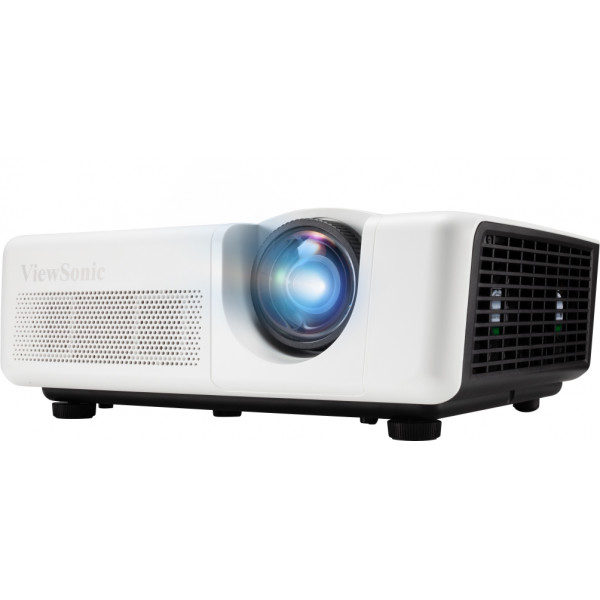

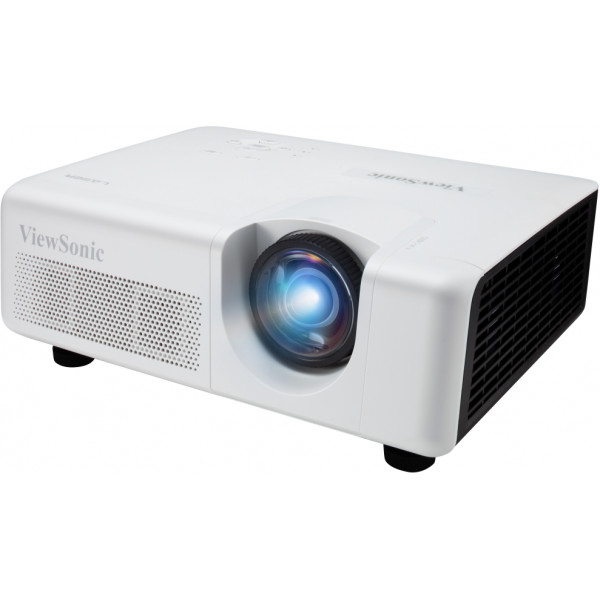

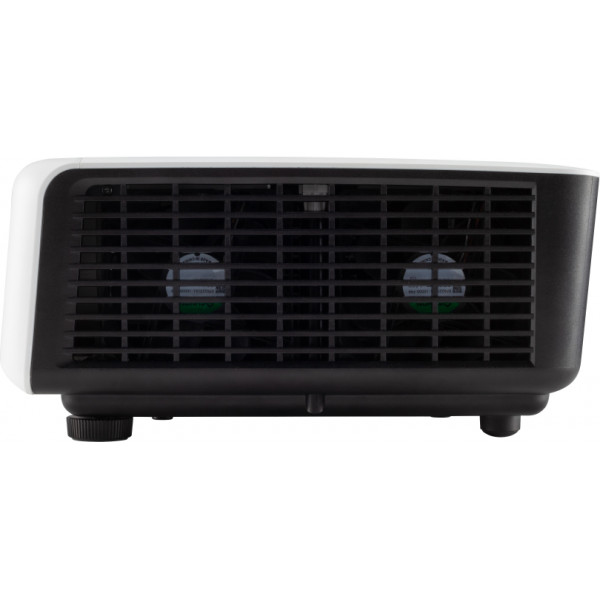

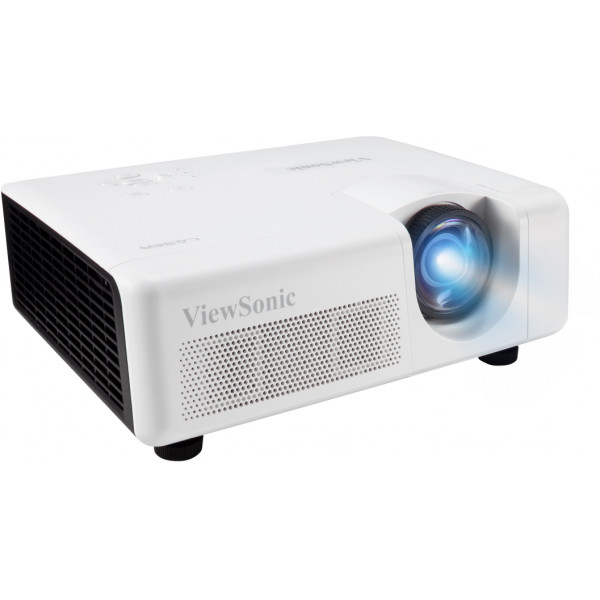

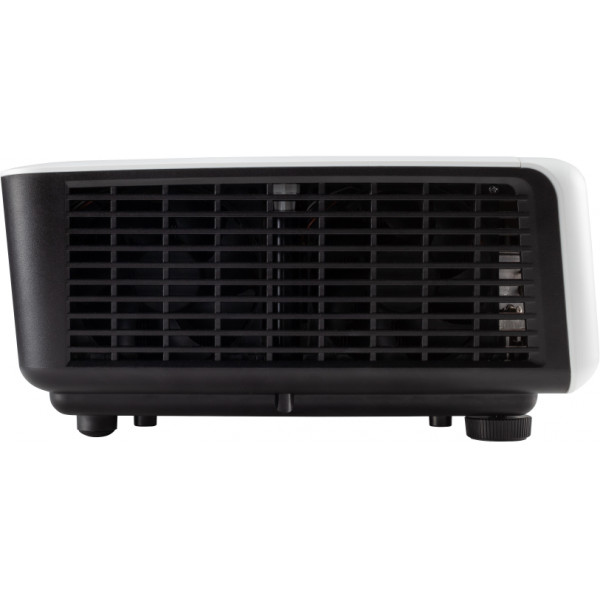

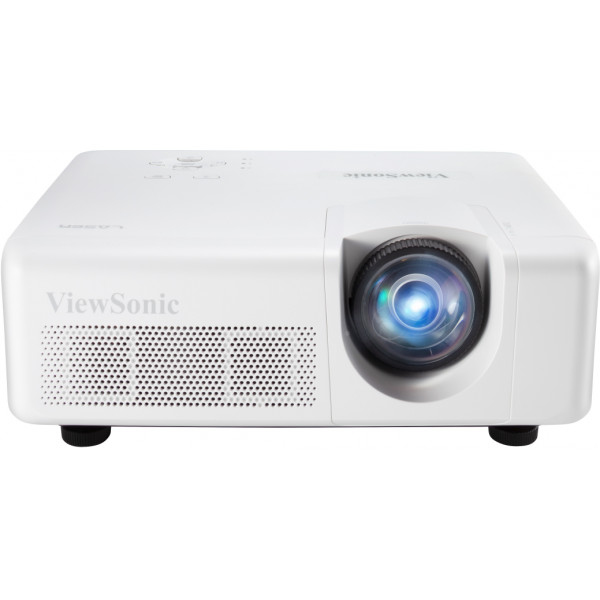

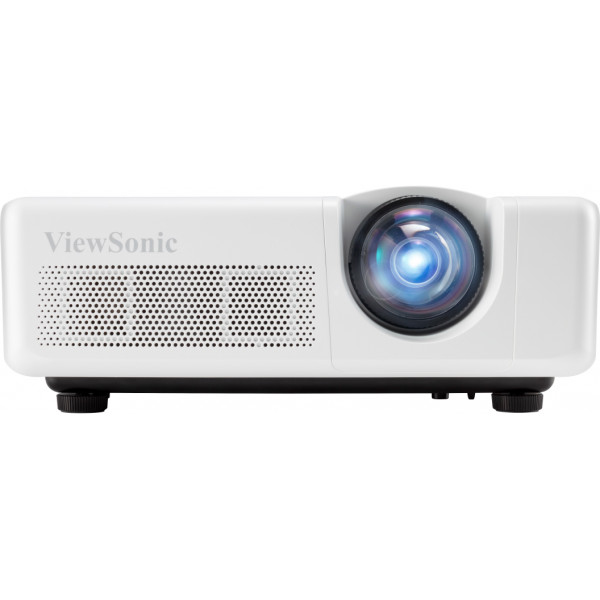

LS625X data projector Short throw projector 3200 ANSI lumens DMD XGA (1024x768) White
Model LS625XEAN 766907979916
74 specifications
- Noise34 dB
- TypeShort throw projector
- Weight6.2 kg
- ColourWhite
- Projector brightness3200 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 34 dB
- Type
- Short throw projector
- Weight
- 6.2 kg
- Colour
- White
- Projector brightness
- 3200 ANSI lumens
- Light source type
- Lamp
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- LS625X
- Part number
- LS625X
- EAN / UPC
- 766907979916
- Also known as
- Viewsonic LS625X data projector Short throw projector 3200 ANSI lumens DMD XGA (1024x768) White
Specifications
74 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3200 ANSI lumens |
| Projection technology | DMD |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 100000:1 |
| Screen size compatibility | 1524 - 7620 mm (60 - 300") |
| Projection distance | 0.6 - 3.17 m |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
| Matrix size | 1.4 cm (0.55") |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Fixed focal length | 5.42 mm |
| Aperture range (F-F) | 2.47 - 2.47 |
| Zoom capability | Yes |
| Zoom ratio | 2.0:1 |
| Throw ratio | 0.49 |
| Offset | 118% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

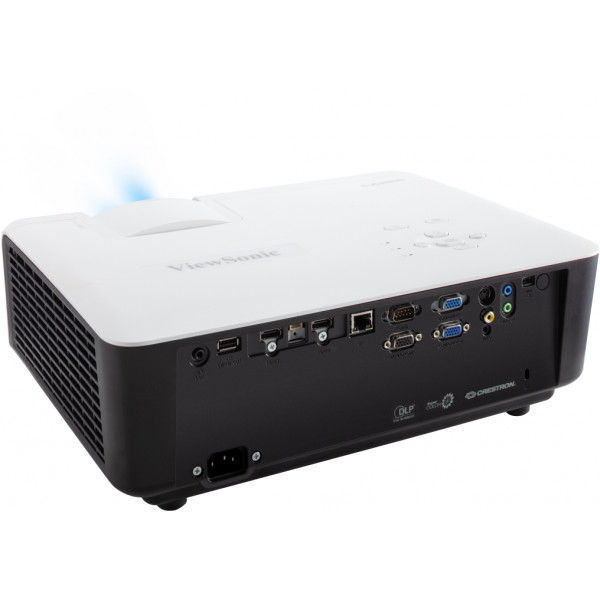

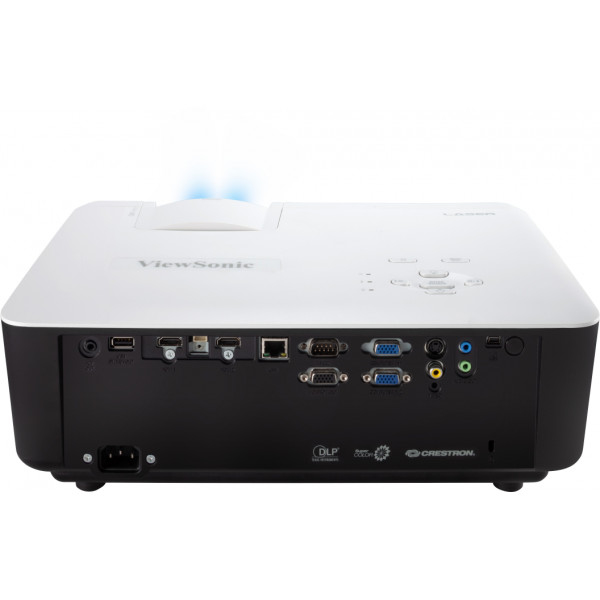

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 1.4 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 34 dB |
| Noise level (economic mode) | 28 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 22 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Desktop, Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 305 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.2 kg |
| Width | 384 mm |
| Depth | 292 mm |
| Height | 148 mm |
| Package width | 490 mm |
| Package depth | 395 mm |
| Package height | 238 mm |
| Package weight | 8.07 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
