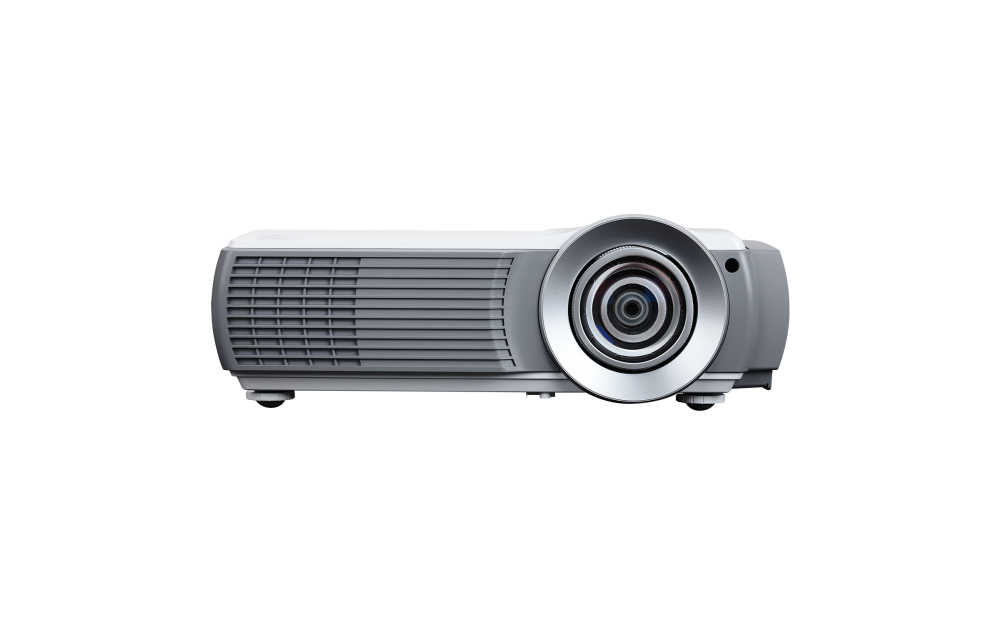

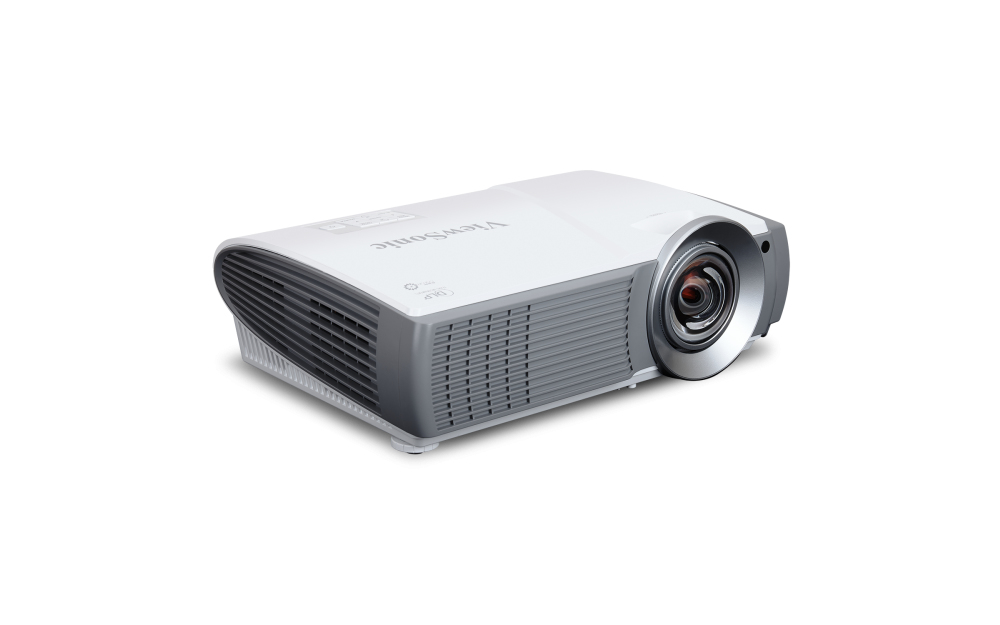

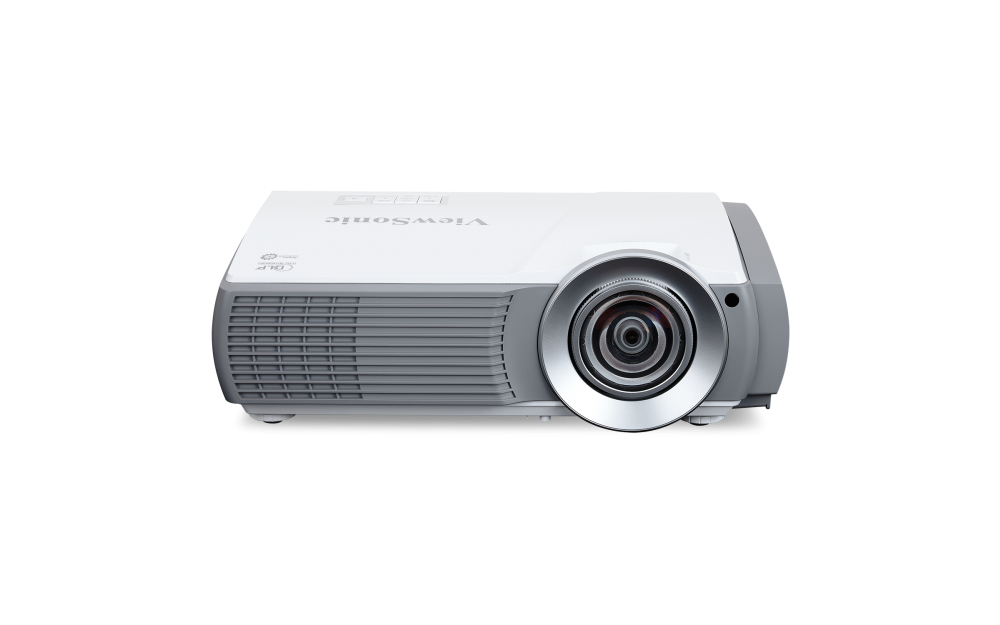

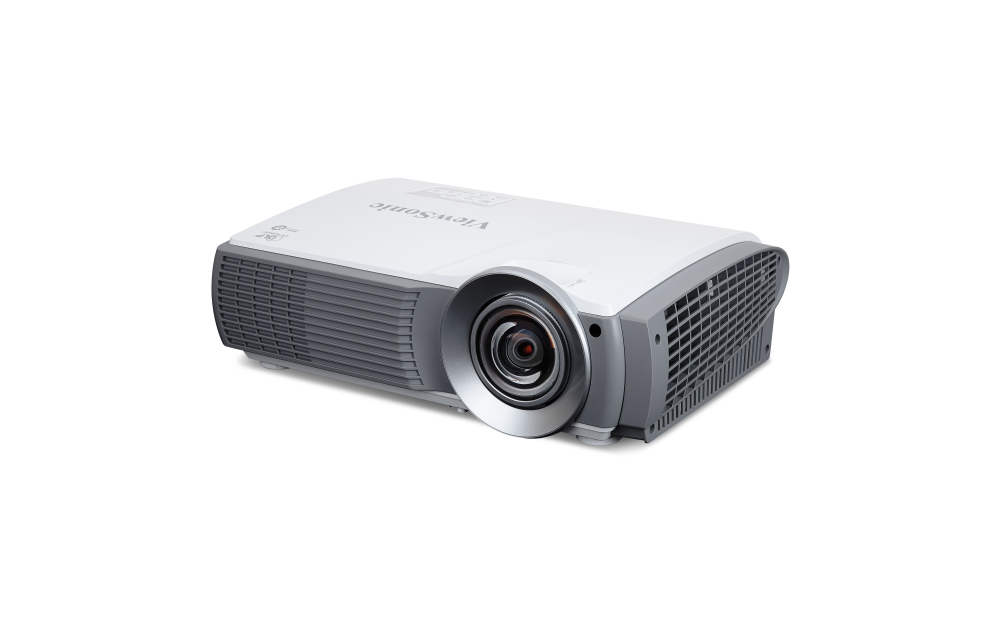

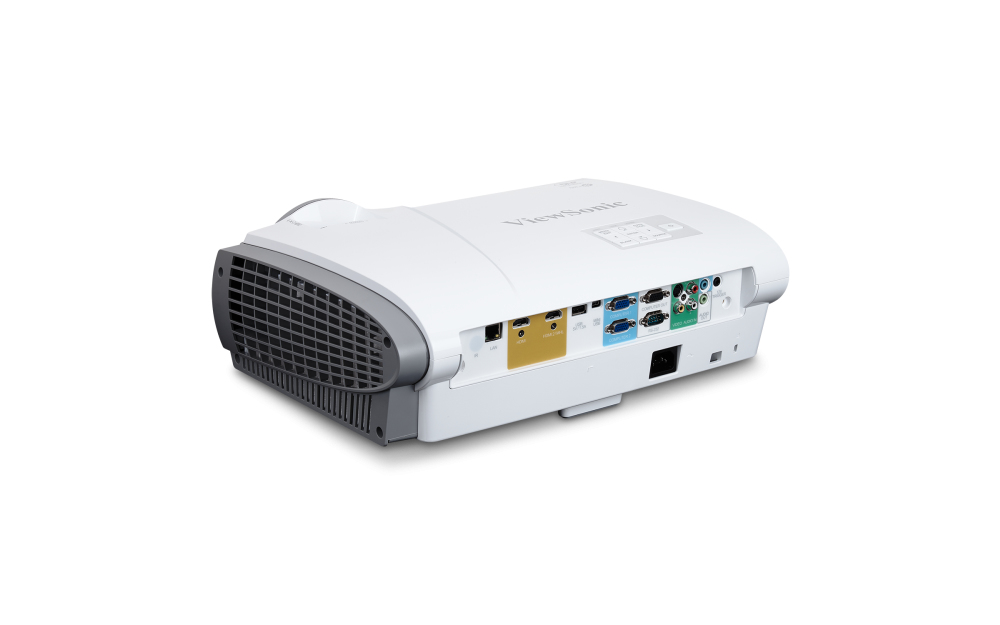

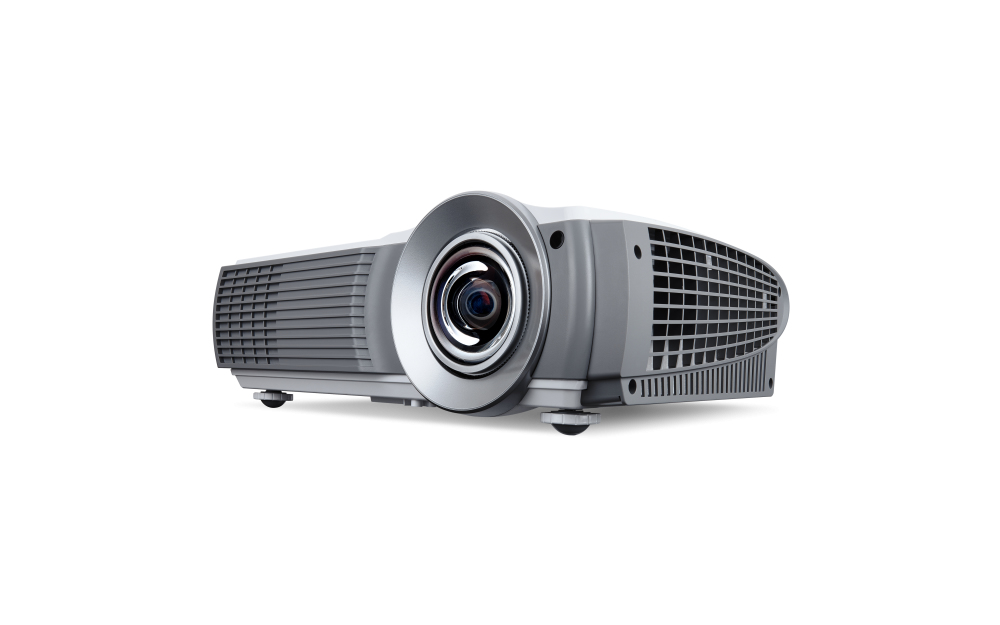

Viewsonic LS620X data projector Short throw projector 3200 ANSI lumens DLP XGA (1024x768) Grey

Viewsonic LS620X data projector Short throw projector 3200 ANSI lumens DLP XGA (1024x768) Grey

Model LS620XEAN 766907911312

71 specifications
  • TypeShort throw projector
  • Weight5.5 kg
  • ColourGrey
  • Projector brightness3200 ANSI lumens
  • Light source typeLamp
  • Throw ratio0.61:1
See all specifications

Overview

Type
Short throw projector
Weight
5.5 kg
Colour
Grey
Projector brightness
3200 ANSI lumens
Light source type
Lamp
Throw ratio
0.61:1
Brand
Viewsonic
Model
LS620X
Part number
LS620X
EAN / UPC
766907911312
Also known as
Viewsonic LS620X data projector Short throw projector 3200 ANSI lumens DLP XGA (1024x768) Grey

Specifications

71 specifications in 16 groups

Projector

Projector brightness3200 ANSI lumens
Projection technologyDLP
Projector native resolutionXGA (1024x768)
Native aspect ratio4:3
Supported aspect ratios4:3, 16:10, 16:9
Screen size compatibility1524 - 3810 mm (60 - 150")
Projection distance0.74 - 1.85 m
Contrast ratio (dynamic)100000:1
Number of colours1.073 billion colours
Horizontal scan range15 - 102 kHz
Vertical scan range48 - 120 Hz
Keystone correction, vertical-40 - 40°

Light source

Light source typeLamp
Service life of light source20000 h
Service life of light source (economic mode)25000 h
Lamp power260 W
Lamps quantity1 lamp(s)

Lens system

Throw ratio0.61:1

Video

Analog signal format systemNTSC, PAL, PAL 60, SECAM
3D ReadyYes
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1152 x 870, 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p

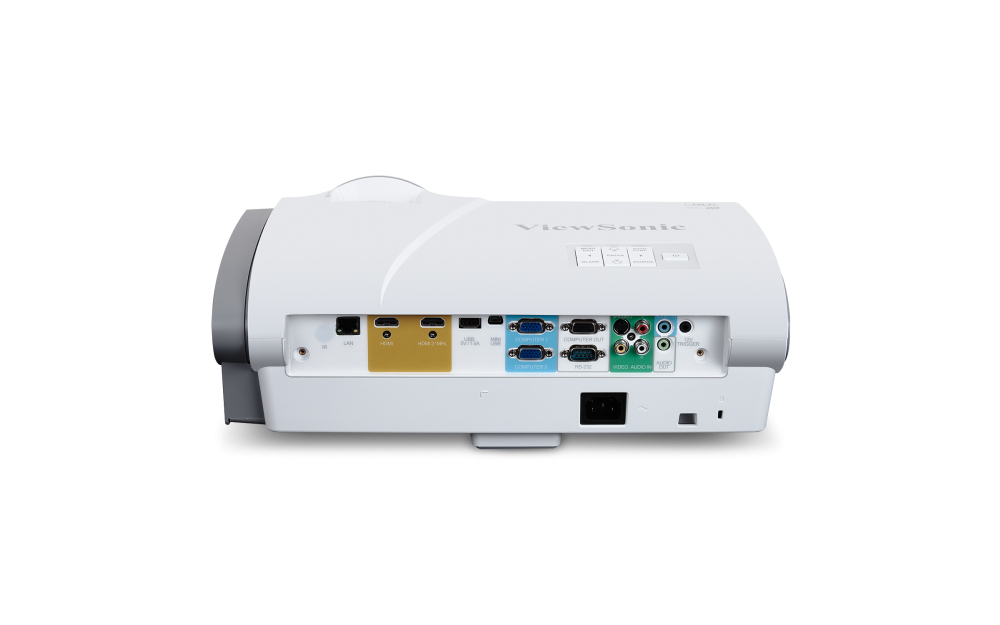

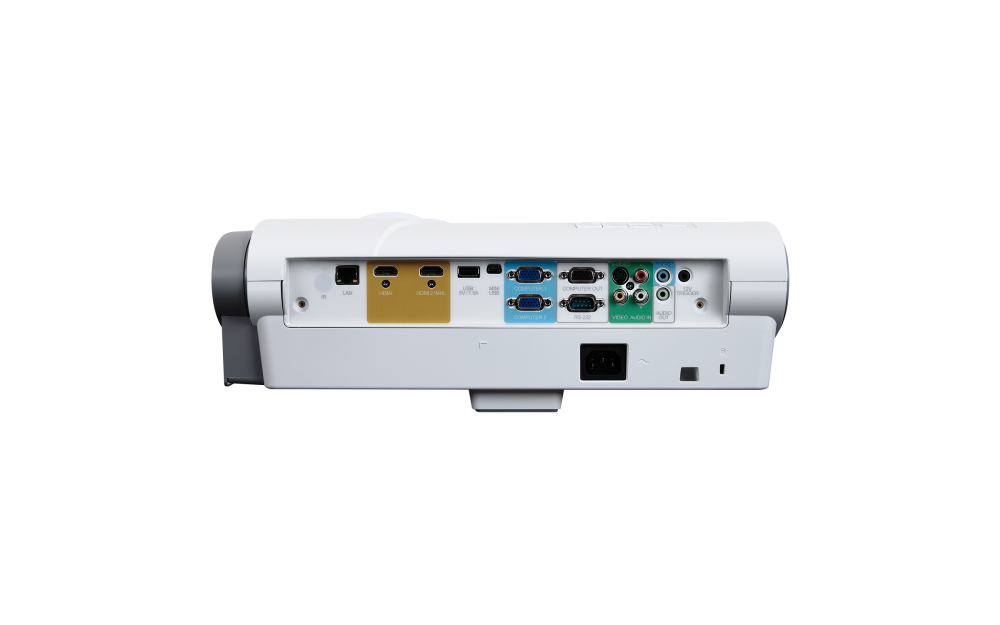

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity2
HDMI connector typeFull-size
HDMI version1.4
Component video (YPbPr/YCbCr) in0
Composite video in0
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity1
Audio (L/R) in0
Microphone inYes
Serial interface typeRS-232
Remote (IR) output2
12V triggerYes
MHL version2.0
Mobile High-Definition Link (MHL)Yes
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Features

On Screen Display (OSD)Yes
CertificationEAC, TUV-S, BIS, FCC, CE, EMC, CB, CCC, REACH, SVHC, WEEE, ErP, NOM, cTUVus, PSB, RCM, CECP

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers2
RMS rated power10 W

Design

Product typeShort throw projector
Market positioningShort throw
Product colourGrey
PlacementDesktop, Ceiling

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (standby)0.5 W
Power consumption (max)360 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Operating altitude0 - 1499 m

Weight & dimensions

Weight5.5 kg
Width415 mm
Depth146 mm
Height298 mm
Package width491 mm
Package depth280 mm
Package height391 mm
Package weight7.4 kg

Packaging content

Cables includedAC

Technical details

Compliance certificatesRoHS

Other features

RS-232 ports1
