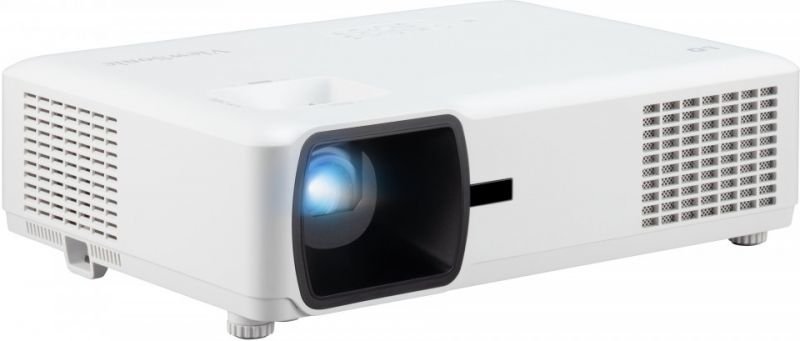

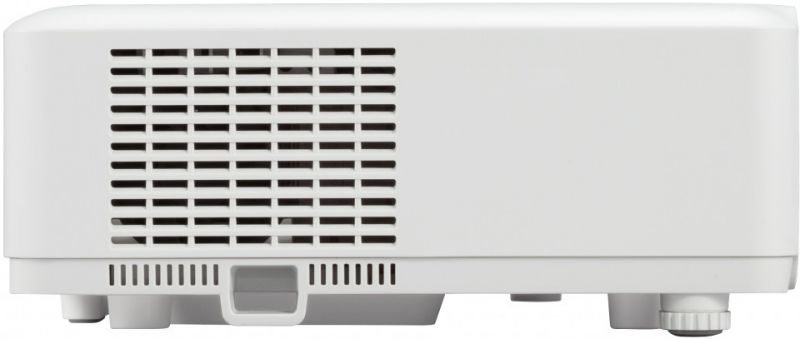

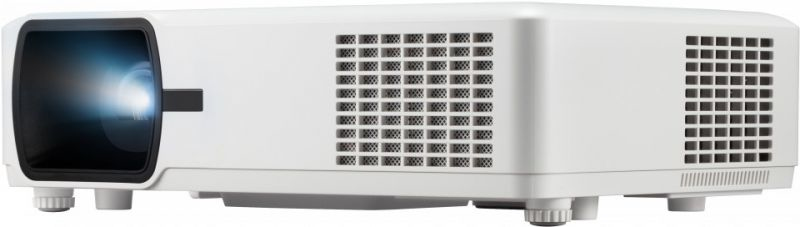

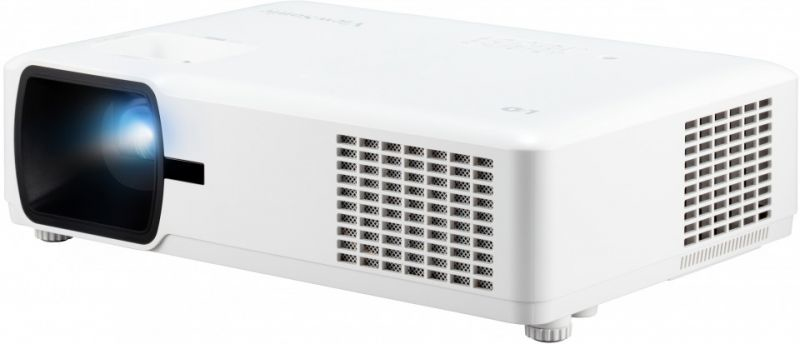

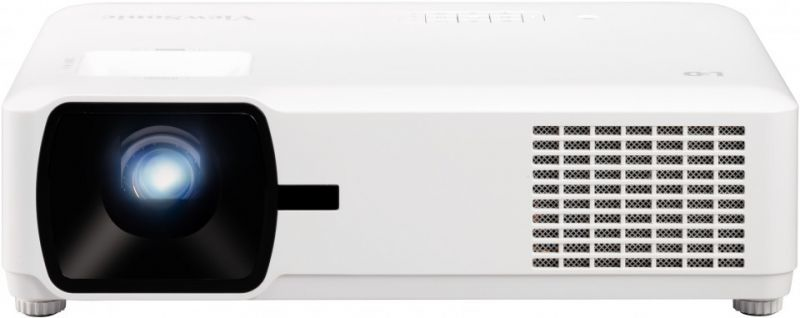

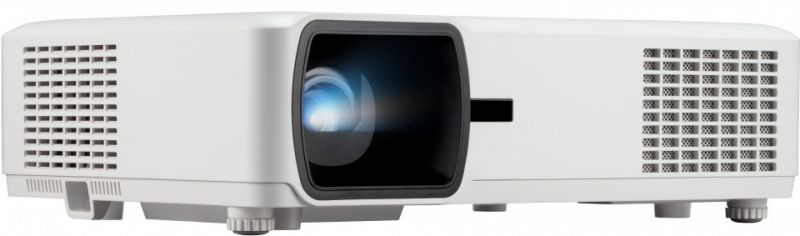

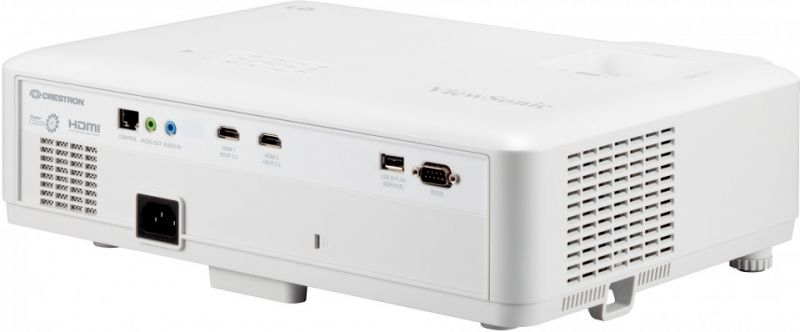

LS610HDH data projector Short throw projector 4000 ANSI lumens DMD 1080p (1920x1080) White
Model LS610HDHEAN 766907018158
70 specifications
- Noise32 dB
- TypeShort throw projector
- Weight5 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Light source typeLED
Overview
- Noise
- 32 dB
- Type
- Short throw projector
- Weight
- 5 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Light source type
- LED
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- LS610HDH
- Part number
- LS610HDH
- EAN / UPC
- 766907018158, 5704174956952
- Also known as
- Viewsonic LS610HDH data projector Short throw projector 4000 ANSI lumens DMD 1080p (1920x1080) White
Specifications
70 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DMD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 3000000:1 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.87 - 10.38 m |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, horizontal | -40 - 40° |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | LED |
| Service life of light source | 60000 h |

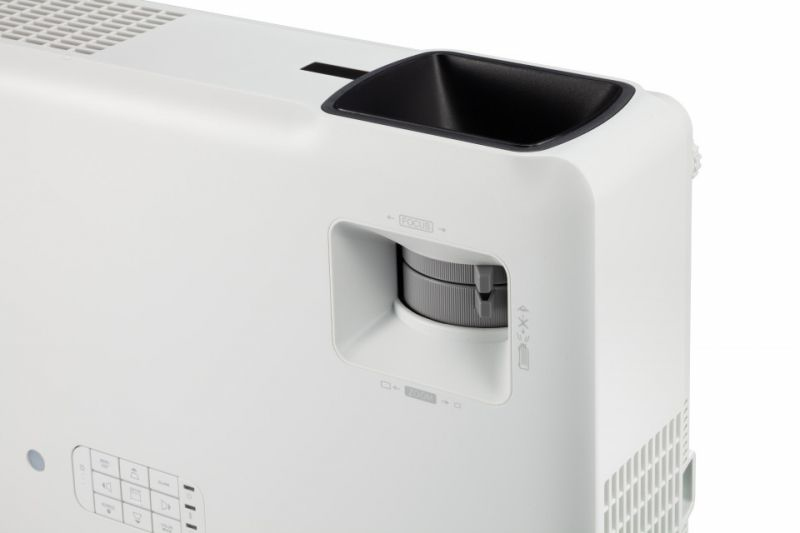

Lens system
| Specification | Value |
|---|---|
| Fixed focal length | 19.2 mm |
| Aperture range (F-F) | 1.6 - 1.75 |
| Zoom capability | Yes |
| Throw ratio | 1.3-1.56 |
| Offset | 83% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 3840 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

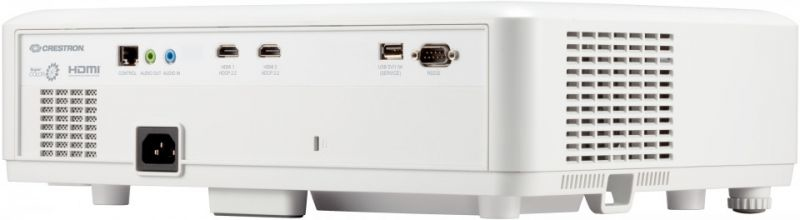

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 1.4 |
| Component video (YPbPr/YCbCr) in | 0 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 32 dB |
| Noise level (economic mode) | 27 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 20 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Ceiling, Desktop |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 330 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5 kg |
| Width | 386 mm |
| Depth | 276 mm |
| Height | 116 mm |
| Package width | 490 mm |
| Package depth | 376 mm |
| Package height | 268 mm |
| Package weight | 7 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8528620000 |
| Pallet gross height | 2 m |
| Pallet gross length | 98 cm |
| Pallet gross width | 113 cm |
| Products per master (outer) case | 1 pc(s) |
