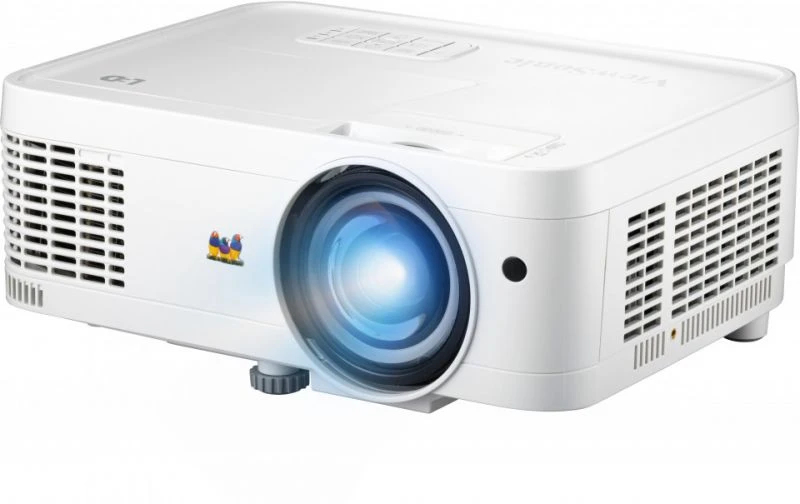

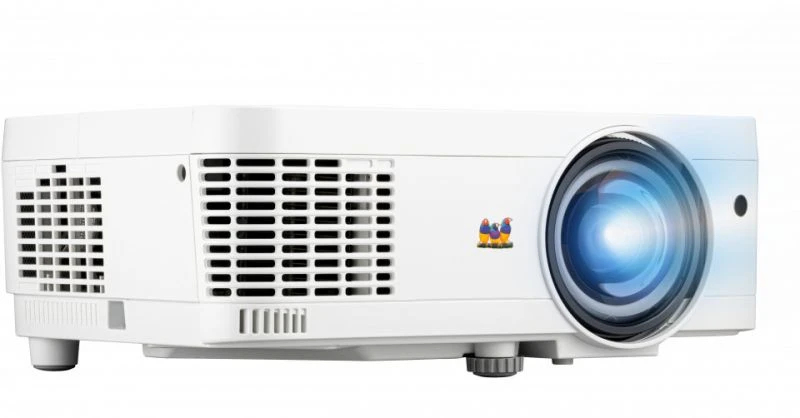

LS560WH data projector Standard throw projector 3000 ANSI lumens LED WXGA (1200x800) White
Model LS560WHEAN 766907018127
69 specifications
- Noise34 dB
- TypeStandard throw projector
- Weight2.85 kg
- ColourWhite
- Projector brightness3000 ANSI lumens
- Light source typeLED
Overview
- Noise
- 34 dB
- Type
- Standard throw projector
- Weight
- 2.85 kg
- Colour
- White
- Projector brightness
- 3000 ANSI lumens
- Light source type
- LED
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- LS560WH
- Part number
- LS560WH
- EAN / UPC
- 766907018127
- Also known as
- Viewsonic LS560WH data projector Standard throw projector 3000 ANSI lumens LED WXGA (1200x800) White
Specifications
69 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3000 ANSI lumens |
| Projection technology | LED |
| Projector native resolution | WXGA (1200x800) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 3:2 |
| Smart projector | No |
| Screen size compatibility | 1524 - 7620 mm (60 - 300") |
| Projection distance | 0.63 - 1.58 m |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, horizontal | -40 - 40° |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | LED |
| Service life of light source | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 0.8 - 2.0:1 |
| Throw ratio | 0.49 |
| Offset | 110% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | No |
| 3D | No |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

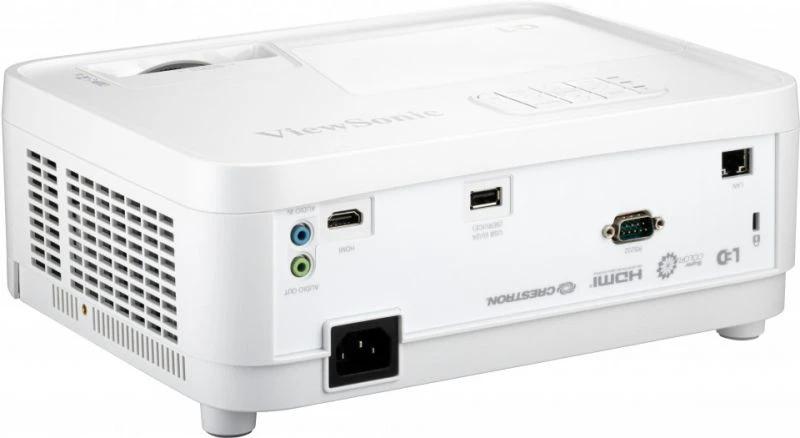

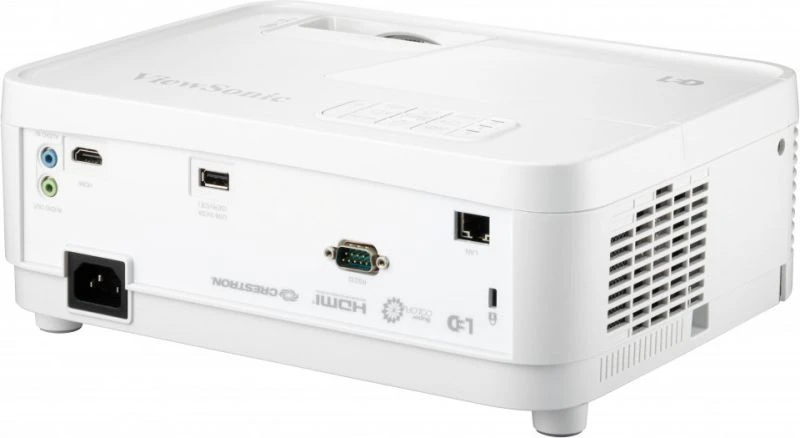

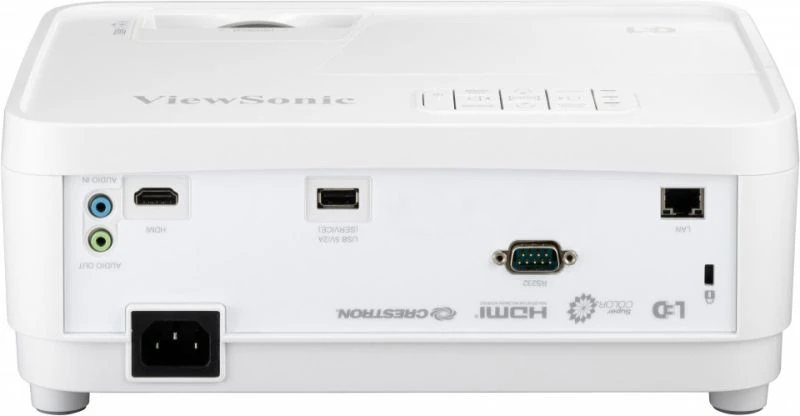

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI connector type | Full-size |
| HDMI version | 1.4 |
| DVI port | No |
| Service port type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 34 dB |
| Noise level (economic mode) | 28 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 24 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 229 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.85 kg |
| Width | 293 mm |
| Depth | 221 mm |
| Height | 115 mm |
| Package width | 365 mm |
| Package depth | 300 mm |
| Package height | 188 mm |
| Package weight | 3.95 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC |
