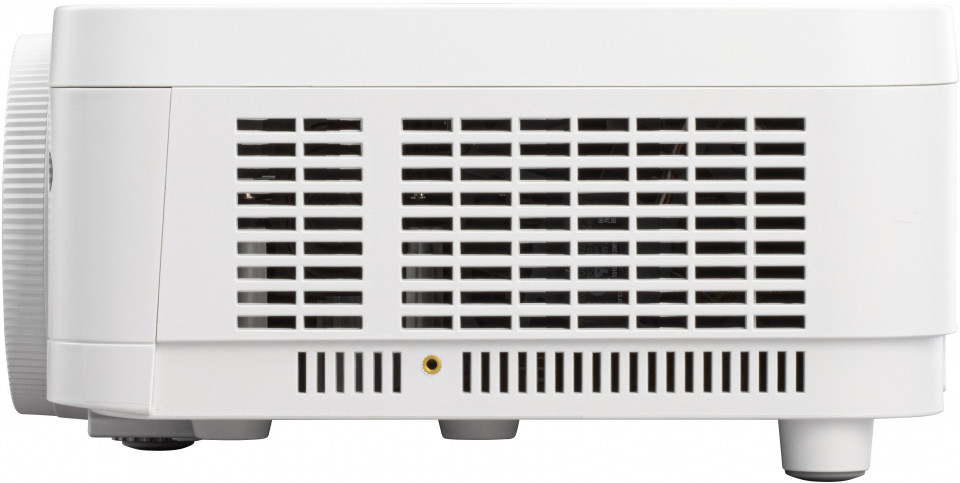

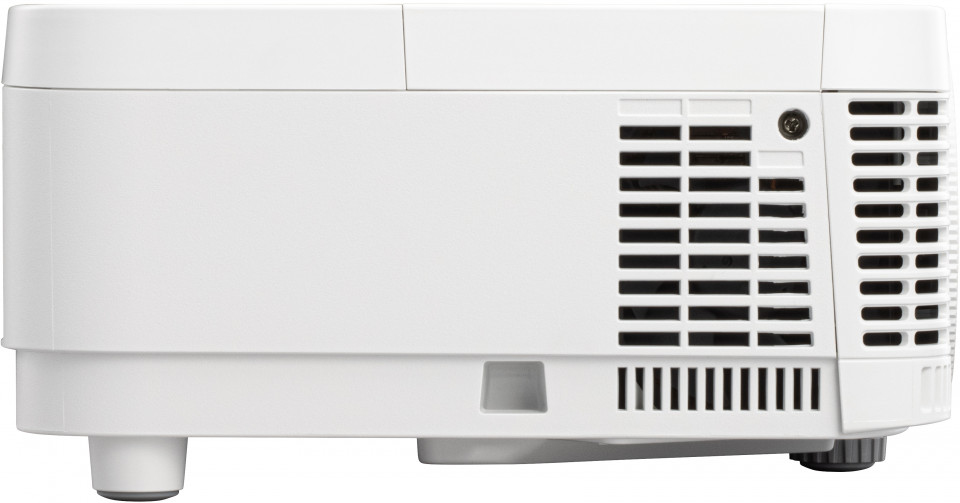

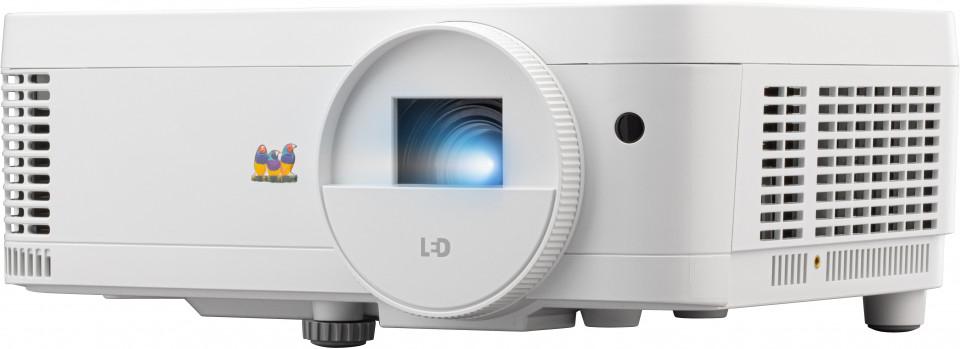

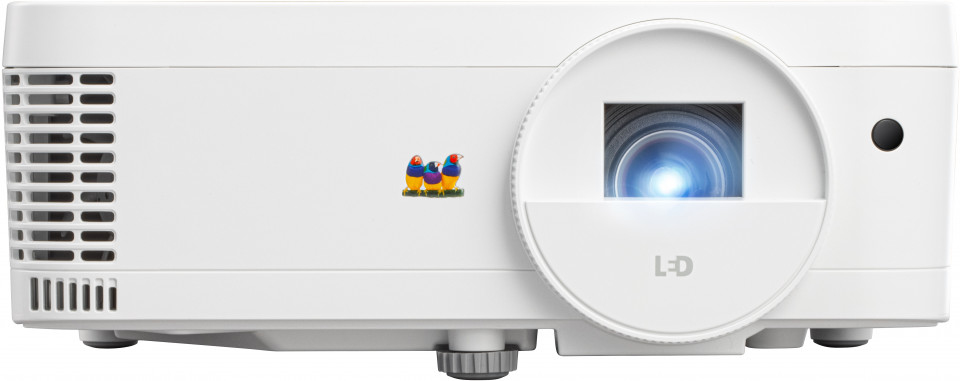

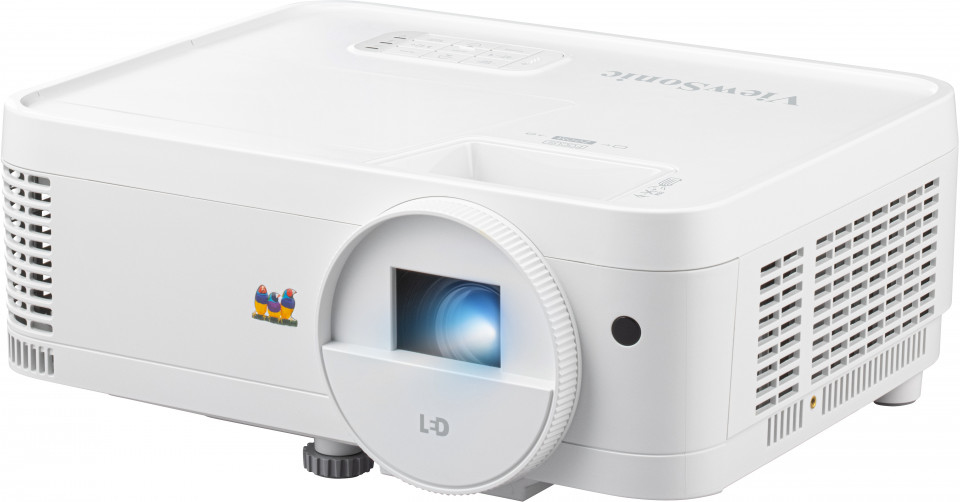

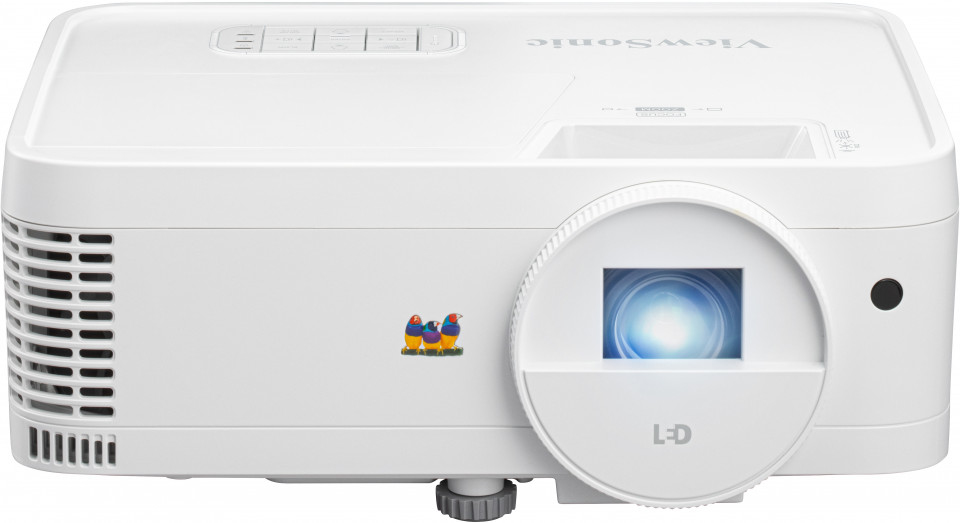

LS500WH data projector Standard throw projector 2000 ANSI lumens WXGA (1280x800) White
Model LS500WHEAN 766907016734
58 specifications
- Noise30 dB
- TypeStandard throw projector
- Weight2.45 kg
- ColourWhite
- Projector brightness2000 ANSI lumens
- Light source typeLED
Overview
- Noise
- 30 dB
- Type
- Standard throw projector
- Weight
- 2.45 kg
- Colour
- White
- Projector brightness
- 2000 ANSI lumens
- Light source type
- LED
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- LS500WH
- Part number
- LS500WH
- EAN / UPC
- 766907016734
- Also known as
- Viewsonic LS500WH data projector Standard throw projector 2000 ANSI lumens WXGA (1280x800) White
Specifications
58 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2000 ANSI lumens |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 3000000:1 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | LED |
| Service life of light source | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Auto |
| Focal length range | 22 - 24.1 mm |
| Aperture range (F-F) | 2.56 - 2.68 |
| Zoom capability | Yes |
| Zoom ratio | 1.1:1 |
| Throw ratio | 1.55 - 1.70 |
| Offset | 100% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Supported graphics resolutions | 640 x 512, 640 x 640, 640 x 160, 640 x 352, 640 x 360, 640 x 400, 640 x 480 (VGA), 640 x 544, 640 x 576, 640 x 960, 704 x 288, 704 x 480, 704 x 576, 720 x 350, 720 x 400, 720 x 480, 720 x 576, 720 x 720, 752 x 582, 768 x 432, 768 x 448, 768 x 494, 768 x 576, 800 x 448, 800 x 450, 800 x 480 (WVGA), 8 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

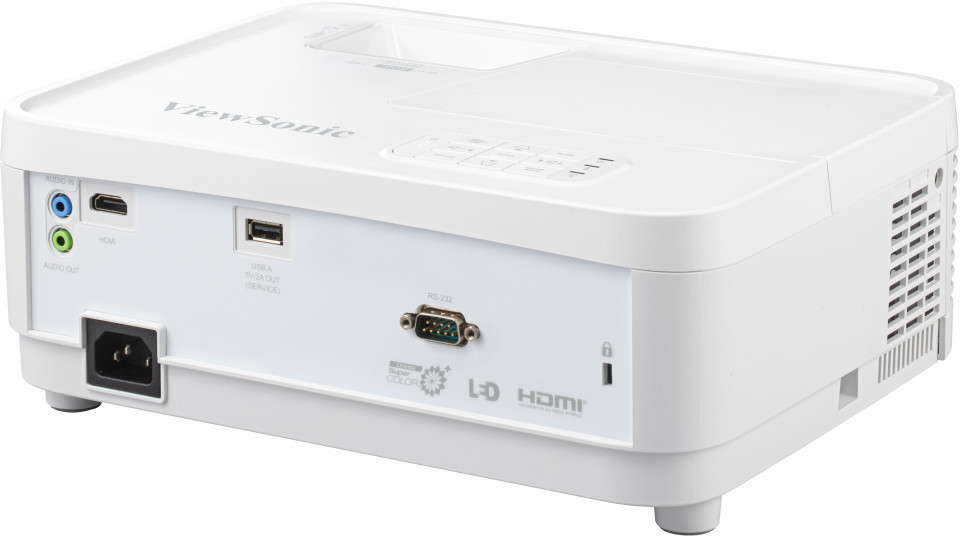

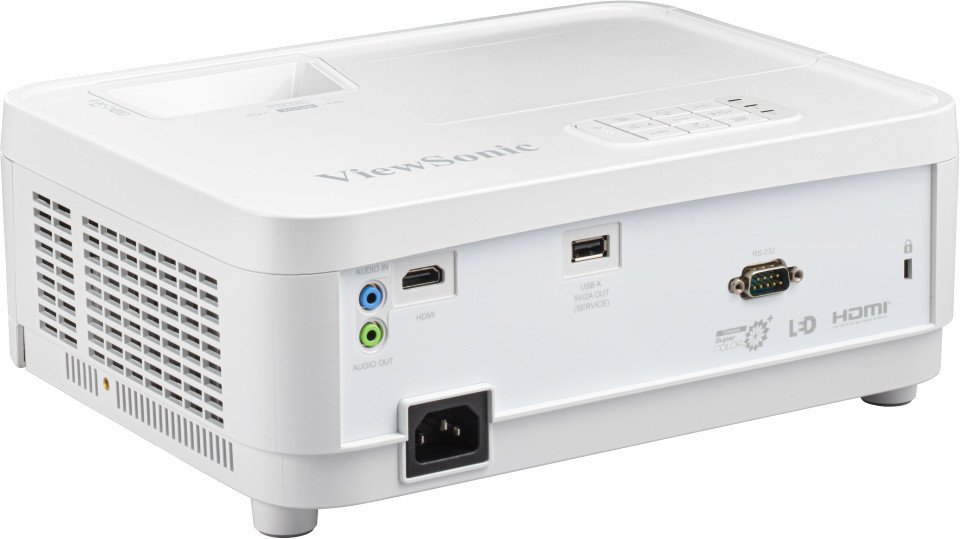

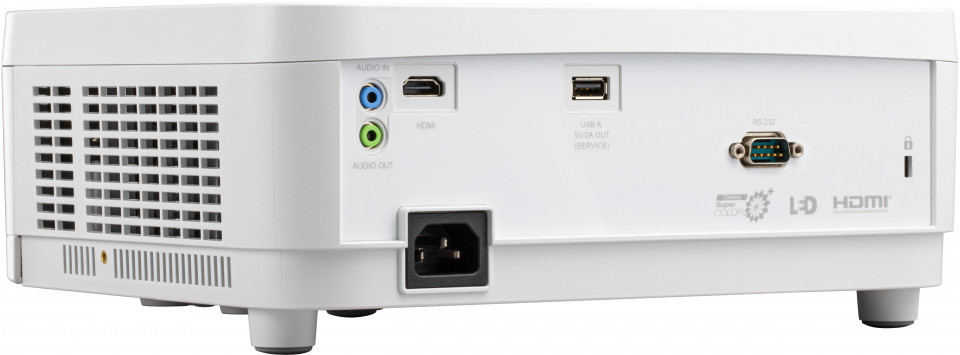

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
Features
| Specification | Value |
|---|---|
| Noise level | 30 dB |
| Noise level (economic mode) | 26 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 24 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Business |
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 156 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.45 kg |
| Width | 293 mm |
| Depth | 221 mm |
| Height | 115 mm |
| Package width | 365 mm |
| Package depth | 300 mm |
| Package height | 188 mm |
| Package weight | 3.55 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8528620000 |
| Pallet gross height | 2 m |
| Pallet gross length | 74 cm |
| Pallet gross width | 90 cm |
| Products per master (outer) case | 1 pc(s) |
