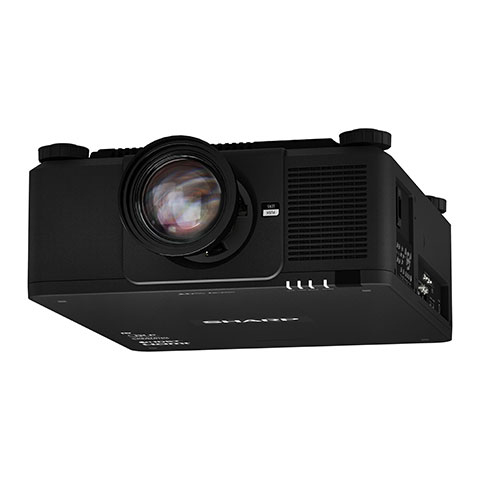

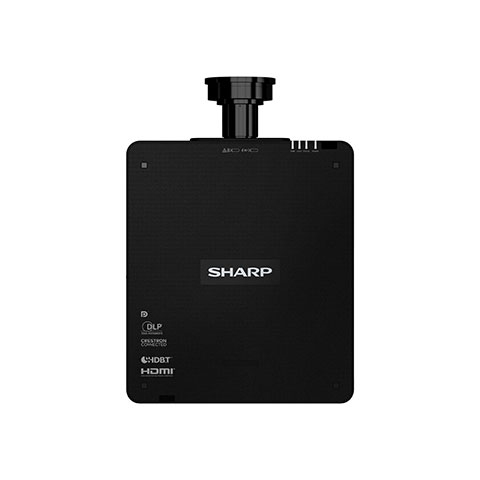

XP-X171Q-B Standard throw projector 16500 ANSI lumens DLP WUXGA (1920x1200) Black
Model XP-X171Q-BPart no. XPX171QEAN 074000703681
59 specifications
- Noise37 dB
- TypeStandard throw projector
- Weight29 kg
- ColourBlack
- Projector brightness16500 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 37 dB
- Type
- Standard throw projector
- Weight
- 29 kg
- Colour
- Black
- Projector brightness
- 16500 ANSI lumens
- Light source type
- Laser
- Brand
- Sharp
- Category
- Data Projector
- Model
- XP-X171Q-B
- Part number
- XPX171Q
- EAN / UPC
- 074000703681, 4550556143295
- Also known as
- Sharp XP-X171Q-B Standard throw projector 16500 ANSI lumens DLP WUXGA (1920x1200) Black
Specifications
59 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 16500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 16:10 |
| Projection distance | 1.09 - 43 m |
| Horizontal scan range | 15 - 153 kHz |
| Vertical scan range | 24 - 120 Hz |
| Keystone correction, horizontal | -36 - 36° |
| Keystone correction, vertical | -36 - 36° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Auto |
| Zoom capability | Yes |
| Zoom type | Auto |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA), 2048 x 1080, 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 35 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| Certification | CE; ErP; TUEV Type Approved |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Business |
| Product colour | Black |
| Placement | Desktop, Ceiling |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 1080 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100/240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 29 kg |
| Width | 500 mm |
| Depth | 606 mm |
| Height | 216 mm |
| Package width | 784 mm |
| Package depth | 699 mm |
| Package height | 445 mm |
| Package weight | 40 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Cables included | AC |
| Manual | Yes |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
