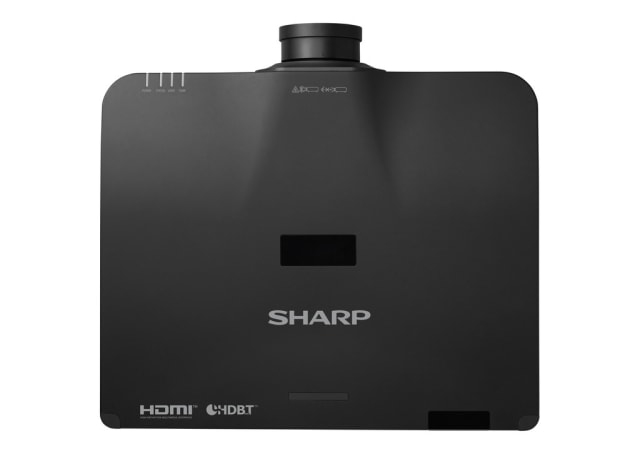

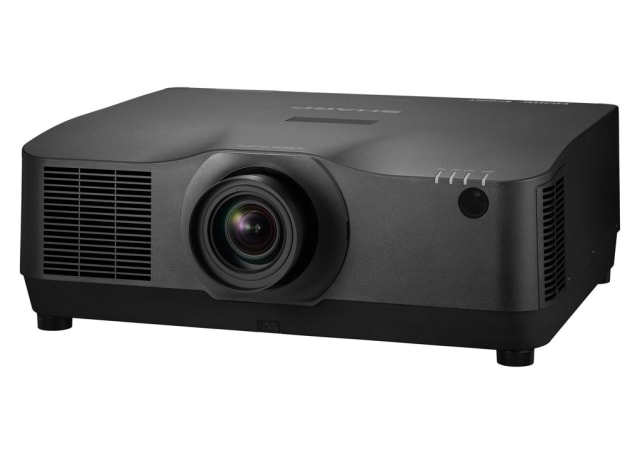

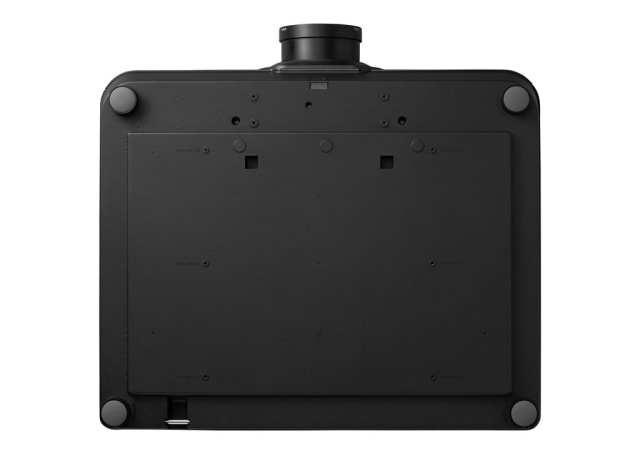

XP-A824U Standard throw projector 7500 ANSI lumens 3LCD WUXGA (1920x1200) 3D Black
Model XP-A824UPart no. XP-A824U-BEAN 074000704589
49 specifications
- Noise34 dB
- TypeStandard throw projector
- Weight24.1 kg
- ColourBlack
- Projector brightness7500 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 34 dB
- Type
- Standard throw projector
- Weight
- 24.1 kg
- Colour
- Black
- Projector brightness
- 7500 ANSI lumens
- Light source type
- Laser
- Brand
- Sharp
- Category
- Data Projector
- Model
- XP-A824U
- Part number
- XP-A824U-B
- EAN / UPC
- 074000704589
- Also known as
- Sharp XP-A824U Standard throw projector 7500 ANSI lumens 3LCD WUXGA (1920x1200) 3D Black
Specifications
49 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 7500 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 16:10 |
| Screen size compatibility | 1016 - 12700 mm (40 - 500") |
| Projection distance | 0.7 - 50.9 m |
| Horizontal scan range | 15 - 153 kHz |
| Vertical scan range | 24 - 120 Hz |
| Keystone correction, horizontal | -40 - 40° |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Motorized |
| Horizontal lens shift range | -20 - 20% |
| Vertical lens shift range | -50 - 10% |
Video
| Specification | Value |
|---|---|
| 3D | Yes |

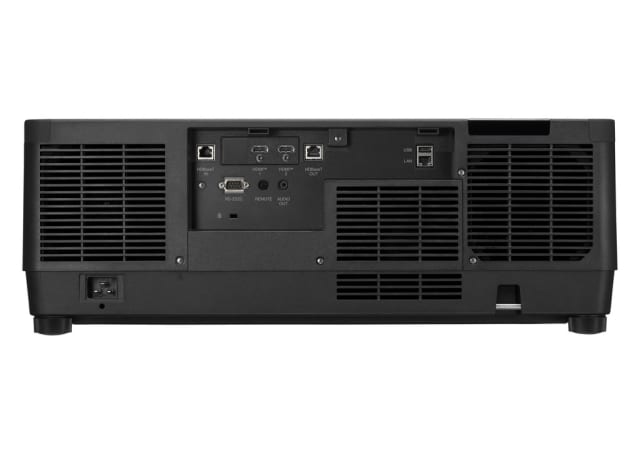

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| USB 2.0 Type-A ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 2 |
| Serial interface type | RS-232 |
| 3G-SDI input | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 34 dB |
| Noise level (economic mode) | 28 dB |
| HDCP | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 615 W |
| Power consumption (standby) | 0.28 W |
| Power consumption (economy mode) | 560 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 24.1 kg |
| Width | 599 mm |
| Depth | 490 mm |
| Height | 208 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Cables included | AC |
