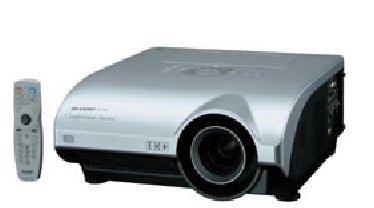

Sharp XG-PH70X data projector 5200 ANSI lumens DLP XGA (1024x768) Grey

Sharp XG-PH70X data projector 5200 ANSI lumens DLP XGA (1024x768) Grey

Model XG-PH70XEAN 4974019535357

67 specifications
  • ConnectivityWired
  • Noise37 dB
  • Weight14.9 kg
  • ColourGrey
  • Projector brightness5200 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Connectivity
Wired
Noise
37 dB
Weight
14.9 kg
Colour
Grey
Projector brightness
5200 ANSI lumens
Light source type
Lamp
Brand
Sharp
Model
XG-PH70X
Part number
XG-PH70X
EAN / UPC
4974019535357
Also known as
Sharp XG-PH70X data projector 5200 ANSI lumens DLP XGA (1024x768) Grey

Specifications

67 specifications in 14 groups

Projector

Projector brightness5200 ANSI lumens
Projection technologyDLP
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)1200:1
Screen size compatibility1016 - 12700 mm (40 - 500")
Projection distance1.5 - 22.4 m
Projector brightness (economic mode)4300 ANSI lumens
Horizontal scan range15 - 126 kHz
Vertical scan range43 - 200 Hz
Matrix size1.78 cm (0.7")

Light source

Light source typeLamp
Service life of light source2000 h
Service life of light source (economic mode)2500 h
Lamp power260 W
Lamps quantity2 lamp(s)

Lens system

Focal length range25.6 - 31.3 mm
Aperture range (F-F)1.8 - 2
Zoom ratio1.2:1
Horizontal lens shift range-15 - 15%
Vertical lens shift range-50 - 50%

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDNo
HD-ReadyNo
Supported graphics resolutions1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes1035i, 1080i, 480i, 480p, 540p, 576i, 576p, 720p

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity0
Composite video in1
DVI portYes
DisplayPorts quantity0
S-Video inputs quantity1
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Headphone outputs1
Serial interface typeRS-232
CardBus PCMCIA slot typeNo
CardBus PCMCIA slots quantity0
Digital audio optical out0

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo
Optical disc player typeNot included

Features

Noise level37 dB
Noise level (economic mode)35 dB
HDCPYes
On Screen Display (OSD)Yes
Dot clock scanning frequency230 MHz
Plug and PlayYes

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers2
RMS rated power6 W

Design

Market positioningPresentation
Product colourGrey

Power

Power sourceAC
Power consumption (typical)650 W
Power consumption (standby)0.8 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Weight & dimensions

Weight14.9 kg
Width410 mm
Depth471 mm
Height180 mm

Packaging content

Remote control includedYes

Other features

Connectivity technologyWired
Horizontal resolution768 lines
RS-232 ports1
