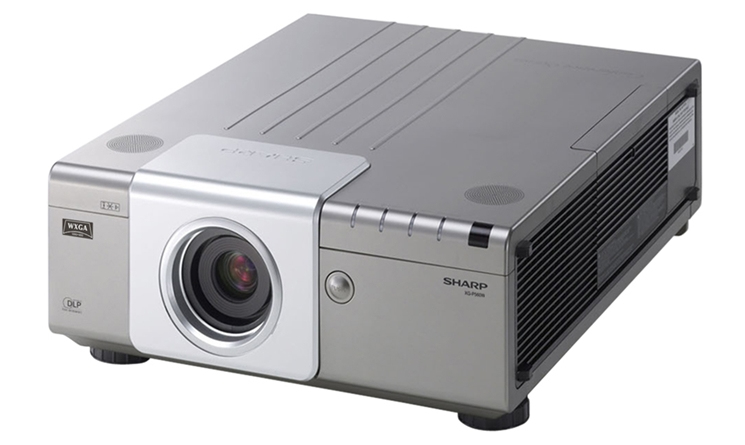

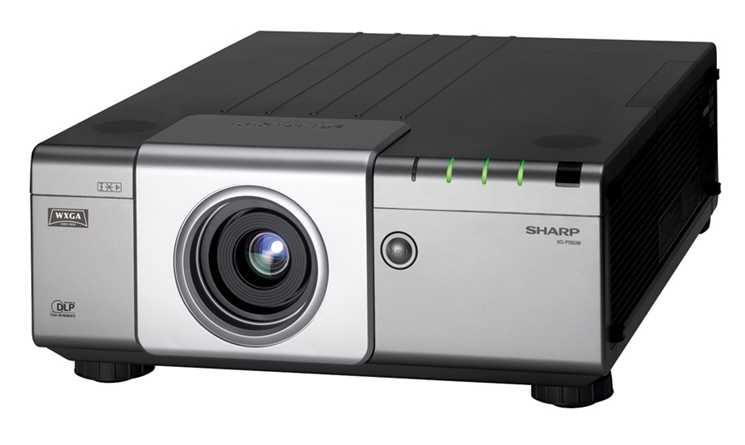

Sharp XG-P560WN data projector 5200 ANSI lumens DLP WXGA (1280x800)

Sharp XG-P560WN data projector 5200 ANSI lumens DLP WXGA (1280x800)

Model XG-P560WNEAN 074000365667

62 specifications
  • Noise37 dB
  • Weight26.5 kg
  • Projector brightness5200 ANSI lumens
  • Light source typeLamp
  • Focal length range25.5 - 32 mm
  • Analog signal format systemNTSC, PAL, SECAM
See all specifications

Overview

Noise
37 dB
Weight
26.5 kg
Projector brightness
5200 ANSI lumens
Light source type
Lamp
Focal length range
25.5 - 32 mm
Analog signal format system
NTSC, PAL, SECAM
Brand
Sharp
Model
XG-P560WN
Part number
XG-P560WN
EAN / UPC
074000365667
Also known as
Sharp XG-P560WN data projector 5200 ANSI lumens DLP WXGA (1280x800)

Specifications

62 specifications in 16 groups

Projector

Projector brightness5200 ANSI lumens
Projection technologyDLP
Projector native resolutionWXGA (1280x800)
Contrast ratio (typical)1800:1
Native aspect ratio16:10
Supported aspect ratios16:10
Screen size compatibility1524 - 7112 mm (60 - 280")
Projection distance2.4 - 13.7 m
Horizontal scan range15 - 230 kHz
Vertical scan range43 - 200 Hz

Light source

Light source typeLamp
Service life of light source2000 h
Service life of light source (economic mode)3000 h
Lamp power280 W
Lamps quantity2 lamp(s)

Lens system

Focal length range25.5 - 32 mm
Zoom ratio1.8:1

Video

Analog signal format systemNTSC, PAL, SECAM
Full HDNo
3DNo
Supported graphics resolutions1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes1035i, 1080i, 1080p, 480p, 540p, 576i, 576p, 720p

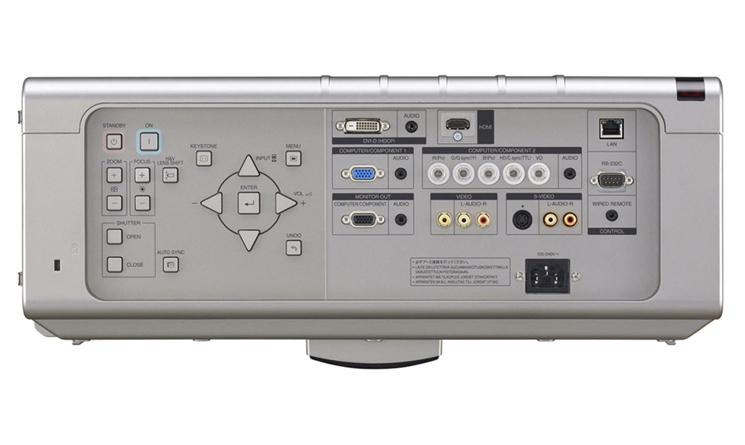

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
Composite video in0
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity0
Audio (L/R) in2
Serial interface typeRS-232
BNC input ports1

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level37 dB
Noise level (economic mode)34 dB
HDCPYes
On Screen Display (OSD)Yes
On Screen Display (OSD) languagesArabic, Simplified Chinese, German, Dutch, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish
Dot clock scanning frequency230 MHz

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers2
RMS rated power6 W

Design

Market positioningPresentation

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)755 W
Power consumption (standby)16.7 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 40 °C

Weight & dimensions

Weight26.5 kg
Width500 mm
Depth637 mm
Height190 mm

Packaging content

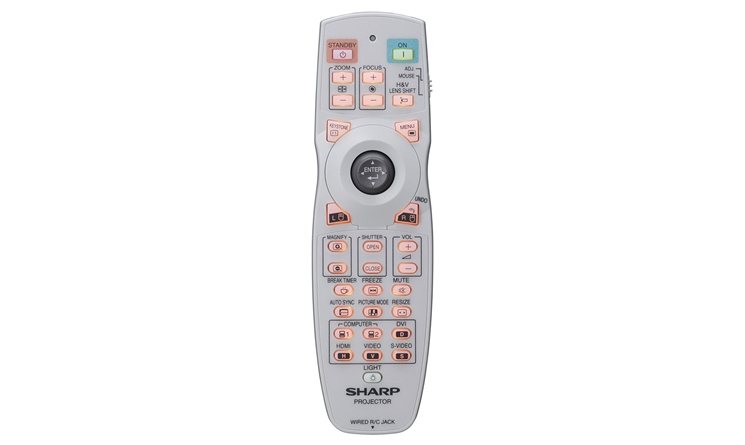

Remote control includedYes
Batteries includedYes
Cables includedAC
ManualYes

Other features

Maximum analog resolution1600 x 1200 pixels
RS-232 ports1
