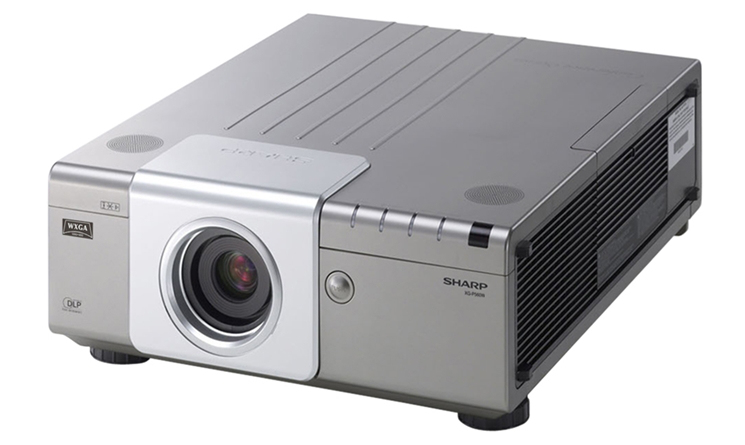

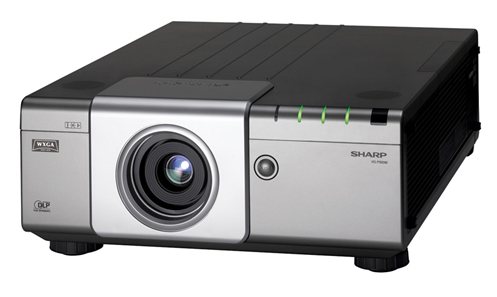

Sharp XG-P560W Large venue projector 5200 ANSI lumens LCD WXGA (1280x800)

Sharp XG-P560W Large venue projector 5200 ANSI lumens LCD WXGA (1280x800)

Model XG-P560WPart no. XG - P560WEAN 4974019588339

63 specifications
  • Noise37 dB
  • TypeLarge venue projector
  • Weight26.5 kg
  • Projector brightness5200 ANSI lumens
  • Light source typeLamp
  • FocusAuto
See all specifications

Overview

Noise
37 dB
Type
Large venue projector
Weight
26.5 kg
Projector brightness
5200 ANSI lumens
Light source type
Lamp
Focus
Auto
Brand
Sharp
Model
XG-P560W
Part numbers
XG - P560W, XG-P560W
EAN / UPC
4974019588339, 8434072769848
Also known as
Sharp XG-P560W Large venue projector 5200 ANSI lumens LCD WXGA (1280x800)

Specifications

63 specifications in 15 groups

Projector

Projector brightness5200 ANSI lumens
Projection technologyLCD
Projector native resolutionWXGA (1280x800)
Contrast ratio (typical)1800:1
Screen size compatibility1524 - 7112 mm (60 - 280")
Projection distance2.4 - 13.71 m
Horizontal scan range15 - 126 kHz
Vertical scan range43 - 200 Hz
Matrix size1.65 cm (0.65")

Light source

Light source typeLamp
Service life of light source2000 h
Service life of light source (economic mode)3000 h
Lamp power280 W
Lamps quantity2 lamp(s)

Lens system

FocusAuto
Focal length range25.5 - 32 mm
Zoom capabilityYes
Zoom ratio1.25:1
Horizontal lens shift range-35 - 35%
Vertical lens shift range-66 - 66%

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL M, SECAM
Full HDNo
3DNo
Supported graphics resolutions1600 x 1200 (UXGA)
Supported video modes1035i, 1080i, 1080p, 480i, 540p, 576p

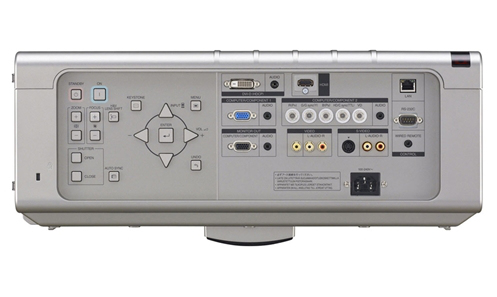

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity1
DVI portYes
S-Video inputs quantity1
Audio (L/R) in5
Serial interface typeRS-232
BNC input ports5

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s

Storage

Card reader integratedNo

Features

Noise level37 dB
Noise level (economic mode)34 dB
On Screen Display (OSD)Yes
Dot clock scanning frequency12 MHz
Noise reductionYes

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers2
RMS rated power6 W

Design

Product typeLarge venue projector
Market positioningPresentation
PlacementDesktop

Power

Power sourceAC
Power consumption (typical)755 W
Power consumption (standby)16.7 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 40 °C

Weight & dimensions

Weight26.5 kg
Width500 mm
Depth637 mm
Height190 mm

Packaging content

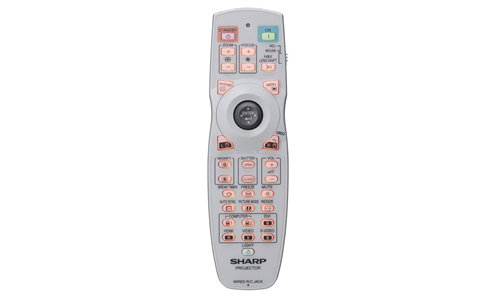

Remote control includedYes
Batteries includedYes
Cables includedAC
ManualYes

Other features

Aspect ratio16:10
RS-232 ports1
