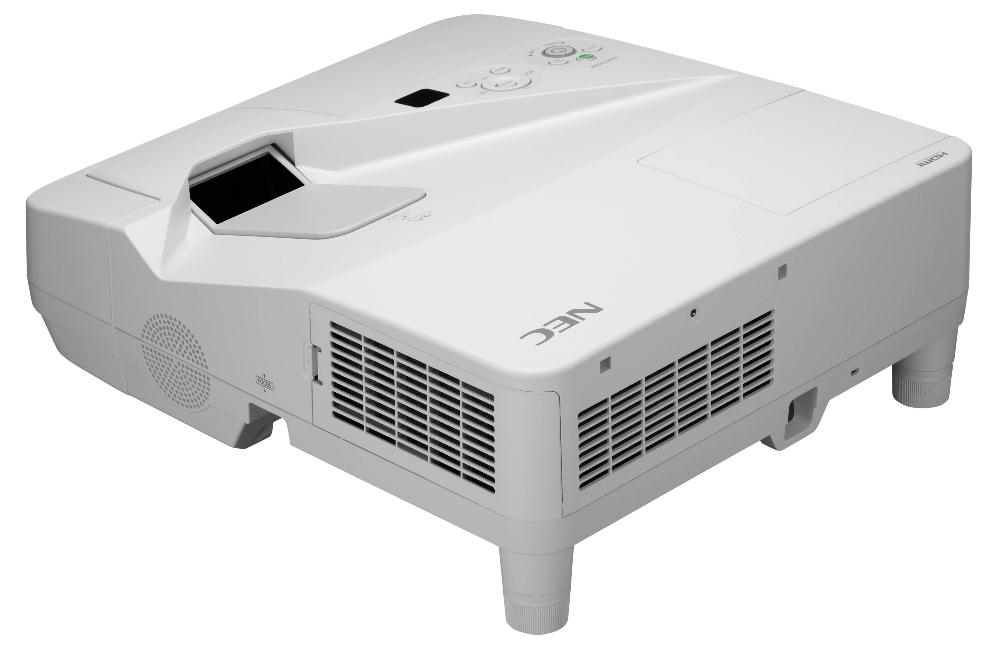

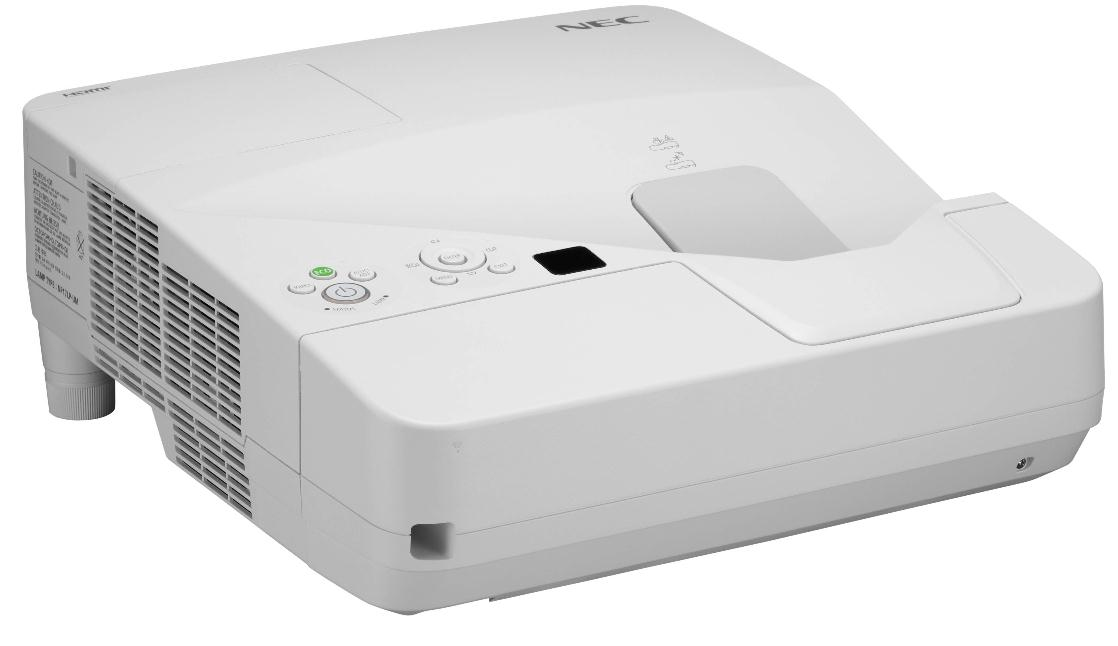

UM280X Ultra short throw projector 2800 ANSI lumens LCD XGA (1024x768) White
Model UM280XPart no. 60003391EAN 5028695609914
64 specifications
- Display1.6 cm (0.63")
- Noise28 dB
- TypeUltra short throw projector
- Weight5.2 kg
- ColourWhite
- Projector brightness2800 ANSI lumens
Overview
- Display
- 1.6 cm (0.63")
- Noise
- 28 dB
- Type
- Ultra short throw projector
- Weight
- 5.2 kg
- Colour
- White
- Projector brightness
- 2800 ANSI lumens
- Brand
- Sharp
- Category
- Data Projector
- Model
- UM280X
- Part number
- 60003391
- EAN / UPC
- 5028695609914
- Also known as
- Sharp UM280X Ultra short throw projector 2800 ANSI lumens LCD XGA (1024x768) White
Specifications
64 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2800 ANSI lumens |
| Projection technology | LCD |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 3000:1 |
| Screen size compatibility | 1524 - 2540 mm (60 - 100") |
| Projection distance | 0.6 - 1.1 m |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 50 - 120 Hz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 8000 h |
| Lamp power | 170 W |
| Lamp power (economic mode) | 140 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Zoom ratio | 1.4:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD | Yes |
| Supported graphics resolutions | 720 x 480, 720 x 576, 832 x 624, 1152 x 870, 1280 x 960, 1600 x 900, 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 108 |
| Supported video modes | 1080i, 480i, 480p, 576i, 576p, 720p |

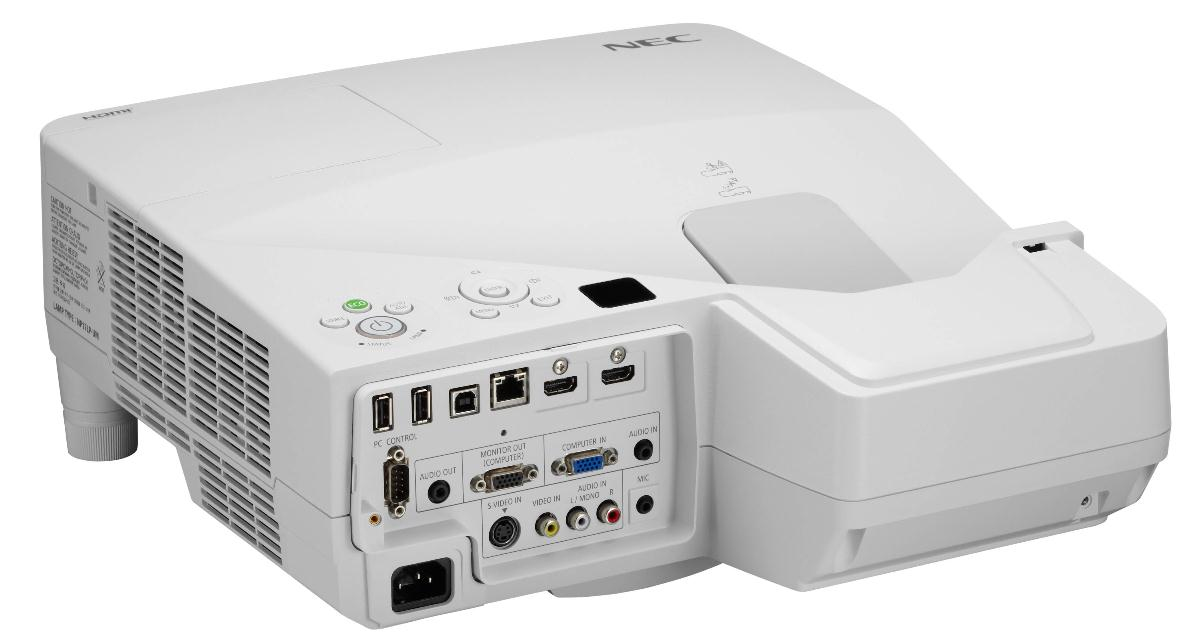

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 3 |
| Audio (L/R) in | 1 |
| Headphone outputs | 1 |
| Serial interface type | RS-232 |
| USB connector type | USB Type-A, USB Type-B |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 28 dB |
| Noise level (economic mode) | 28 dB |
| Certification | CE; TÜV GS; TCO; Gost-R |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 16 W |
Design
| Specification | Value |
|---|---|
| Product type | Ultra short throw projector |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 1.6 cm (0.63") |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 235 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (PowerSave) | 212 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5.2 kg |
| Width | 378 mm |
| Depth | 428 mm |
| Height | 112 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, VGA |

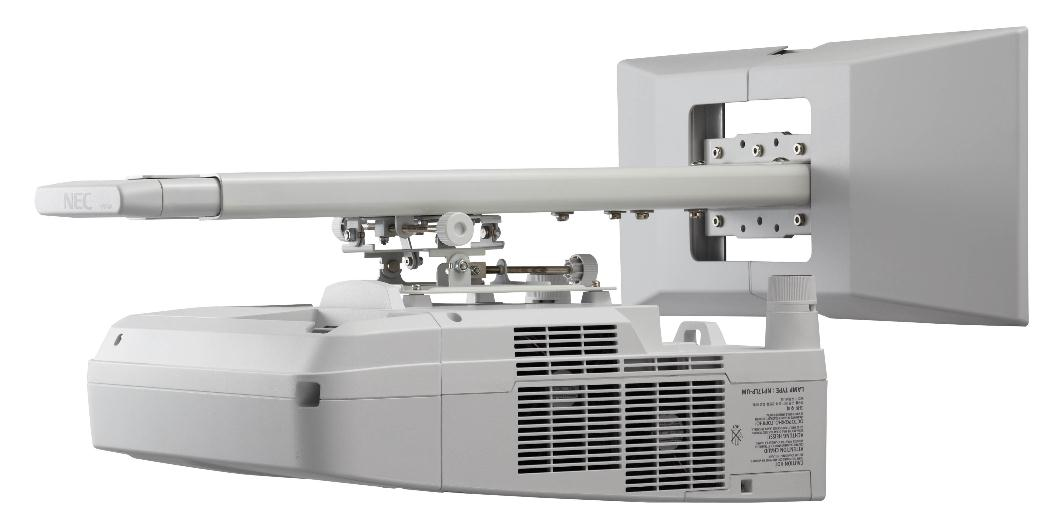

| Mounting brackets included | Yes |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Other features
| Specification | Value |
|---|---|
| Aspect ratio | 4:3 |
| RS-232 ports | 1 |
