MODEL XP-V731U-W, Installation Projector, WUXGA, 7100Lm, LCD, Laser Light Source, white cabinet
Model MODEL XP-V731U-W, Installation Projector, WUXGA, 7100Lm, LCD, Laser Light Source, white cabinetPart no. XP-V731U-WEAN 074000705876
69 specifications
- Noise40 dB
- TypeStandard throw projector
- Weight11.2 kg
- ColourWhite
- Projector brightness7300 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 40 dB
- Type
- Standard throw projector
- Weight
- 11.2 kg
- Colour
- White
- Projector brightness
- 7300 ANSI lumens
- Light source type
- Laser
- Brand
- Sharp
- Category
- Data Projector
- Model
- MODEL XP-V731U-W, Installation Projector, WUXGA, 7100Lm, LCD, Laser Light Source, white cabinet
- Part number
- XP-V731U-W
- EAN / UPC
- 074000705876
- Also known as
- Sharp MODEL XP-V731U-W, Installation Projector, WUXGA, 7100Lm, LCD, Laser Light Source, white cabinet Standard throw projector 7300 ANSI lumens 3LCD WUXGA (1920
Specifications
69 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 7300 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 16:10 |
| Smart projector | Yes |
| Screen size compatibility | 1016 - 12700 mm (40 - 500") |
| Projection distance | 0.7 - 50.9 m |
| Horizontal scan range | 24 - 153 kHz |
| Vertical scan range | 50 - 120 Hz |
| Keystone correction, horizontal | 30° |
| Keystone correction, vertical | 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Motorized |
| Zoom capability | Yes |
| Zoom type | Auto/Manual |
| Horizontal lens shift range | 0 - 20% |
| Vertical lens shift range | 0 - 50% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 1280 x 768, 1920 x 1200 (WUXGA), 3840 x 2160 |
| Supported video modes | 480p, 576p, 720p, 1080i, 1080p |
| Video colour modes | DICOM simulation mode |

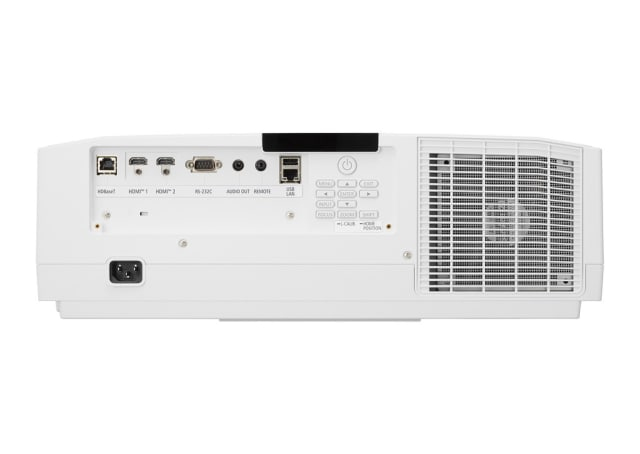

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDBaseT port | Yes |
| USB 2.0 Type-A ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 40 dB |
| Noise level (economic mode) | 31 dB |
| HDCP | Yes |
| Test patterns | Yes |
| Sleep timer | Yes |
| Standby timer | Yes |
| Air filter | Yes |
| Password protection | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Housing material | Plastic |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 434 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 403 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 11.2 kg |
| Width | 499 mm |
| Depth | 407 mm |
| Height | 164 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Cables included | Power |
| Manual | Yes |
| Mounting brackets included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, EAC, RoHS |
| Sustainability certificates | ErP |
| Warranty period | 3 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
