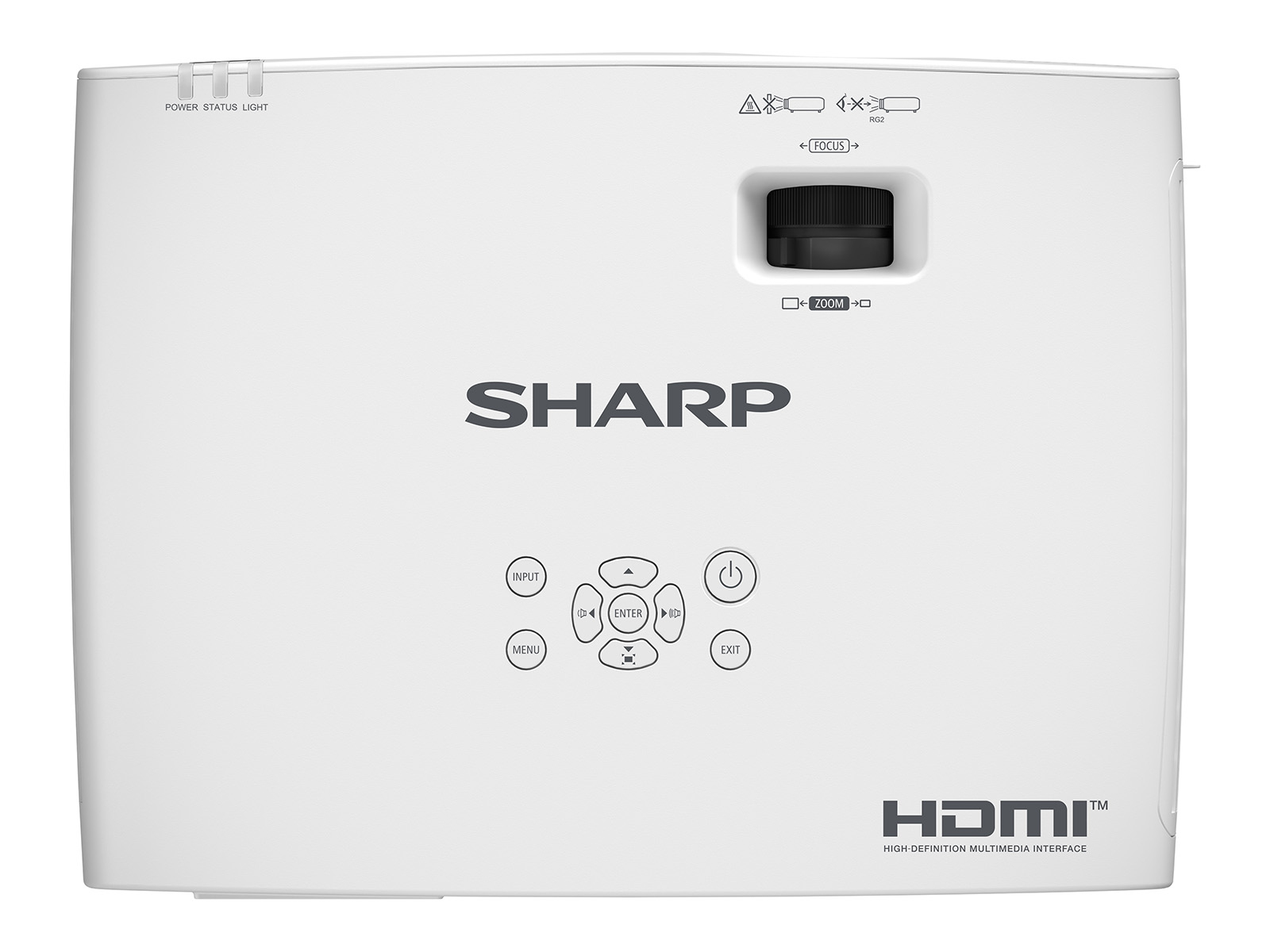

E501U 5000 ANSI lumens 3LCD WUXGA (1920x1200) White
Model E501UPart no. XPE501UEAN 4550556180122
43 specifications
- Weight5 kg
- ColourWhite
- Projector brightness5000 ANSI lumens
- Light source typeLaser
- FocusManual
- Full HDYes
Overview
- Weight
- 5 kg
- Colour
- White
- Projector brightness
- 5000 ANSI lumens
- Light source type
- Laser
- Focus
- Manual
- Full HD
- Yes
- Brand
- Sharp
- Category
- Data Projector
- Model
- E501U
- Part number
- XPE501U
- EAN / UPC
- 4550556180122
- Also known as
- Sharp E501U 5000 ANSI lumens 3LCD WUXGA (1920x1200) White
Specifications
43 specifications in 12 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 5000000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 16:10 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.85 - 11 m |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 19.16 - 23.02 mm |
| Aperture range (F-F) | 1.6 - 1.76 |
| Zoom capability | Yes |
| Zoom ratio | 1.2:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 1 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 1.6 W |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 310 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 155 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5 kg |
| Width | 390 mm |
| Depth | 128 mm |
| Height | 294 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
