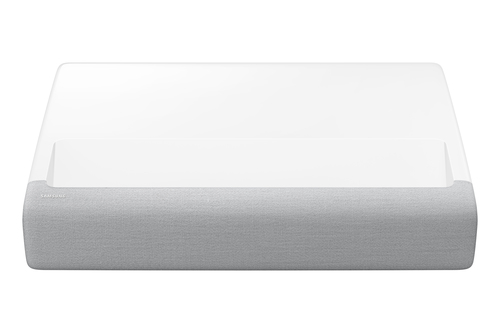

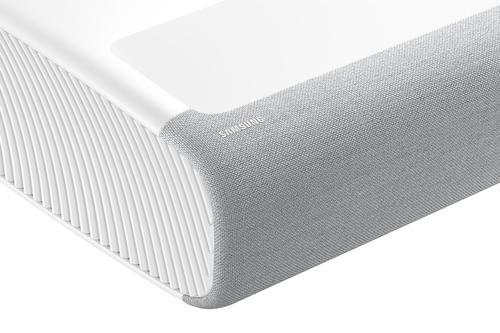

SP-LSP9TFAXXU data projector Ultra short throw projector 2800 ANSI lumens DLP UHD 4K (3840x2160) White
Model SP-LSP9TFAXXUEAN 8806090679209
79 specifications
- Resolution3840 x 2160 pixels
- Noise32 dB
- TypeUltra short throw projector
- OSTizen
- Weight11.5 kg
- ColourWhite
Overview
- Resolution
- 3840 x 2160 pixels
- Noise
- 32 dB
- Type
- Ultra short throw projector
- OS
- Tizen
- Weight
- 11.5 kg
- Colour
- White
- Brand
- Samsung
- Category
- Data Projector
- Model
- SP-LSP9TFAXXU
- Part number
- SP-LSP9TFAXXU
- EAN / UPC
- 8806090679209
- Also known as
- Samsung SP-LSP9TFAXXU data projector Ultra short throw projector 2800 ANSI lumens DLP UHD 4K (3840x2160) White
Specifications
79 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2800 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 1500:1 |
| Smart projector | Yes |
| Screen size compatibility | 2540 - 3302 mm (100 - 130") |
| Contrast ratio (dynamic) | 2000000:1 |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Throw ratio | 0.189 |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| HDMI connector type | Full-size |
| HDMI Quick Switch | Yes |
| USB 2.0 ports quantity | 1 |
| RF input | 1 |
| Digital audio optical out | 1 |
| Consumer Electronics Control (CEC) | Anynet+ |
| Audio Return Channel (ARC) | Yes |
| Enhanced Audio Return Channel (eARC) | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi Direct | Yes |
| Web browser | Yes |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 4.2 |
Features
| Specification | Value |
|---|---|
| Noise level | 32 dB |
| Preset modes | Game |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 27 |
| Screen mirroring | Yes |
| ConnectShare (HDD) | Yes |
| ConnectShare (USB) | Yes |
| Electronic Programme Guide (EPG) | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG) |
| Hybrid Broadcast Broadband TV (HbbTV) | Yes |
| Hybrid Broadcast Broadband TV (HbbTV) version | 2.0.1(IT,GB,DE,CZ,SK,ES)/1.5(AT,FR,FI,EE,GR,SI,HR,BE,NL,LU)/1.0(PL,HU,CH,PT,DK)/ MHEG 5(GB,IE) |
| Multi View | Yes |
| SmartThings app support | Yes |
| Teletext function | Yes |
| Video apps | All 4, Amazon Prime Video, Apple TV, BBC iPlayer, BritBox, Disney+, ITV Hub, My5, NOW TV, Netflix, Rakuten TV, Samsung TV Plus, YouTube |
| Eye protection | Yes |
| Compatible operating systems | Tizen |
| Operating system installed | Tizen |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 40 W |
| Audio output channels | 4.2 channels |
| Audio decoders | Dolby Digital Plus |
| Sound mirroring | Yes |
| TV tuner type | DVB-C, DVB-S2, DVB-T2 |
Design
| Specification | Value |
|---|---|
| Product type | Ultra short throw projector |
| Market positioning | Ulta short throw |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| Display resolution | 3840 x 2160 pixels |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 410 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Auto power off | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 11.5 kg |
| Width | 550 mm |
| Depth | 367 mm |
| Height | 151 mm |
| Package width | 670 mm |
| Package depth | 507 mm |
| Package height | 314 mm |
| Package weight | 15 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Security update term | December 31, 2025 |
Other features
| Specification | Value |
|---|---|
| HDMI | Yes |
| USB port | Yes |
| Digital keystone correction | Yes |
