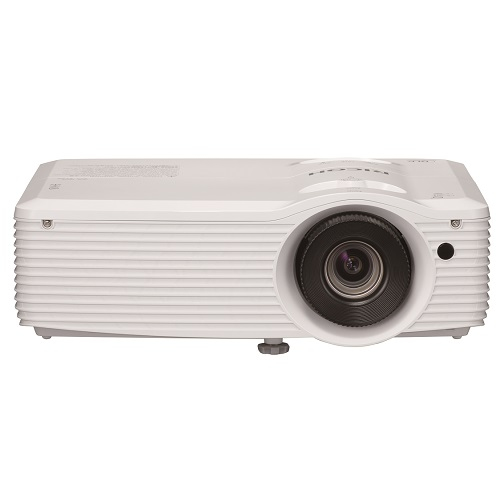

PJ X5770
Model PJ X5770
66 specifications
- TypeStandard throw projector
- Weight4.7 kg
- ColourWhite
- Projector brightness5000 ANSI lumens
- Service life of light source3000 h
- Zoom capabilityYes
Overview
- Type
- Standard throw projector
- Weight
- 4.7 kg
- Colour
- White
- Projector brightness
- 5000 ANSI lumens
- Service life of light source
- 3000 h
- Zoom capability
- Yes
- Brand
- Ricoh
- Category
- Data Projector
- Model
- PJ X5770
- Part number
- PJ X5770
- Also known as
- Ricoh PJ X5770 data projector Standard throw projector 5000 ANSI lumens XGA (1024x768) 3D White
Specifications
66 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 2000:1 |
| Native aspect ratio | 4:3 |
| Supported aspect ratios | 4:3 |
| Screen size compatibility | 558.8 - 7620 mm (22 - 300") |
| Projection distance | 1.3 - 11.2 m |
| Number of colours | 1.073 billion colours |
| Keystone correction, horizontal | 30° |
| Keystone correction, vertical | 30° |
Light source
| Specification | Value |
|---|---|
| Service life of light source | 3000 h |
| Service life of light source (economic mode) | 4000 h |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.6:1 |
Video
| Specification | Value |
|---|---|
| Full HD | No |
| 3D | Yes |
| Supported graphics resolutions | 1280 x 768 (WXGA) |
| Supported video modes | 720p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Mini-USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Headphone outputs | 1 |
| Serial interface type | RJ-45, RS-232C |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Password protection | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 12 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Housing material | Plastic |
| Product colour | White |
| Placement | Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 479 W |
| Power consumption (max) | 503 W |
| Power consumption (economy mode) | 399 W |
| AC input voltage | 110 - 220 V |
| AC input frequency | 50 - 60 Hz |
| Auto power off | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.7 kg |
| Width | 369 mm |
| Depth | 294 mm |
| Height | 132 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| AC adapter included | Yes |
| Cables included | VGA |
| Manual | Yes |
