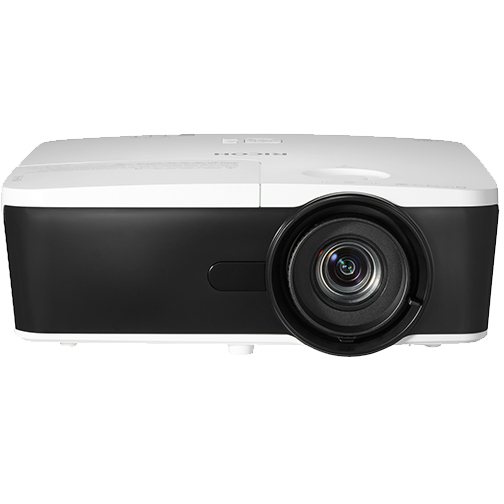

Ricoh PJ X5580

Ricoh PJ X5580

Model PJ X5580Part no. 432045EAN 4961311902703

75 specifications
  • Noise35 dB
  • TypeStandard throw projector
  • Weight6.35 kg
  • ColourBlack, White
  • Projector brightness6000 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
35 dB
Type
Standard throw projector
Weight
6.35 kg
Colour
Black, White
Projector brightness
6000 ANSI lumens
Light source type
Lamp
Brand
Ricoh
Model
PJ X5580
Part numbers
432045, 512898, PJ X5580
EAN / UPC
4961311902703, 4961311902819
Also known as
Ricoh PJ X5580 Standard throw projector 6000 ANSI lumens DLP XGA (1024x768) Black, White

Specifications

75 specifications in 15 groups

Projector

Projector brightness6000 ANSI lumens
Projection technologyDLP
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)9000:1
Native aspect ratio4:3
Screen size compatibility762 - 76200 mm (30 - 3000")
Projection distance1 - 13.5 m
Keystone correction, horizontal-30 - 30°
Keystone correction, vertical-30 - 30°

Light source

Light source typeLamp
Service life of light source3000 h
Service life of light source (economic mode)4000 h
Lamp typeMercury lamp
Lamp power365 W
Lamp power (economic mode)292 W

Lens system

FocusManual
Focal length range17.63 - 31.36 mm
Aperture range (F-F)2.3 - 3.45
Zoom capabilityYes
Zoom typeManual
Zoom ratio1.8:1
Throw ratio1.241 - 2.222
Horizontal lens shift range-10 - 10%
Vertical lens shift range95 - 105%

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Supported video modes480i, 480p, 525i, 540p, 720p, 1080i, 1080p

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity1
Composite video in1
DisplayPorts quantity1
S-Video inputs quantity1
Service port typeUSB Type-B
Audio (L/R) in1
Microphone inYes
AUX inYes
PC in (D-Sub)Yes
3D sync portYes
Mobile High-Definition Link (MHL)Yes
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1

Features

Noise level35 dB
Noise level (economic mode)32 dB
Projection modesCeiling, Front, Rear

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers2
RMS rated power20 W

Design

Product typeStandard throw projector
Market positioningBusiness
Product colourBlack, White
Cable lock slotYes
Cable lock slot typeKensington

Power

Power sourceAC
Power consumption (typical)425 W
Power consumption (standby)0.5 W
Power consumption (economy mode)350 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)20 - 80%

Weight & dimensions

Weight6.35 kg
Width424 mm
Depth356 mm
Height150 mm

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC
Carrying caseNo
ManualYes

Technical details

Compliance certificatesEuP, REACH, RoHS, WEEE

Other features

Audio input2
Audio output1
Display scanning frequencyHorizontal: 24 - 100 KHz, Vertical: 50 - 120 Hz
