Ricoh PJ WU5570

Ricoh PJ WU5570

Model PJ WU5570Part no. 432047EAN 4961311902796

70 specifications
  • Noise35 dB
  • TypeStandard throw projector
  • Weight6.35 kg
  • ColourBlack, White
  • Projector brightness5500 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
35 dB
Type
Standard throw projector
Weight
6.35 kg
Colour
Black, White
Projector brightness
5500 ANSI lumens
Light source type
Lamp
Brand
Ricoh
Model
PJ WU5570
Part numbers
432047, 432048, 512896
EAN / UPC
4961311902796, 026649320477, 4961311902710
Also known as
Ricoh PJ WU5570 Standard throw projector 5500 ANSI lumens DLP WUXGA (1920x1200) 3D Black, White

Specifications

70 specifications in 17 groups

Projector

Projector brightness5500 ANSI lumens
Projection technologyDLP
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)9000:1
Native aspect ratio16:10
Supported aspect ratios16:10
Screen size compatibility762 - 7620 mm (30 - 300")
Projection distance1 - 13.5 m
Horizontal scan range30 - 100 kHz
Vertical scan range50 - 85 Hz
Matrix size1.7 cm (0.67")

Light source

Light source typeLamp
Service life of light source3000 h
Service life of light source (economic mode)4000 h
Lamp power365 W
Lamp power (economic mode)292 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Zoom capabilityYes
Zoom typeManual
Zoom ratio1.8:1
Throw ratio1.2 - 2.1:1

Video

Analog signal format systemNTSC, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDNo
3DYes
3D ReadyYes
Supported video modes480p, 576i, 576p, 720p, 1080i, 1080p

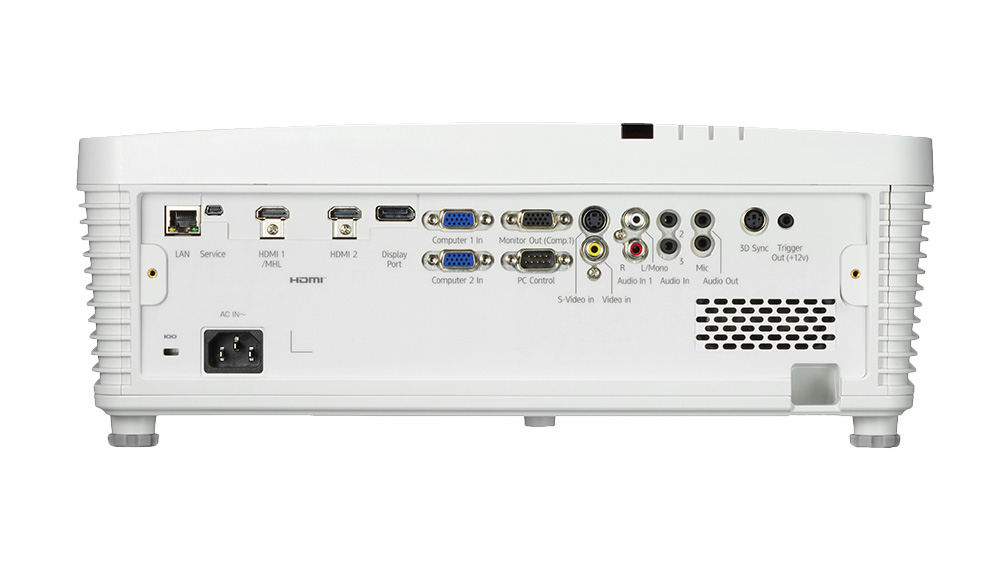

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
Composite video in1
DVI portNo
DisplayPorts quantity1
S-Video inputs quantity1
Audio (L/R) in1
Audio (L/R) out1
Headphone outputs1
Serial interface typeRS-232C
PC in (D-Sub)Yes
USB connector typeMini-USB B
12V triggerYes
Mobile High-Definition Link (MHL)Yes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level35 dB
Noise level (economic mode)32 dB

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers2
RMS rated power10 W

Design

Product typeStandard throw projector
Product colourBlack, White
PlacementDesktop

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)450 W
Power consumption (standby)0.5 W
Power consumption (max)495 W
Power consumption (PowerSave)360 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Software

Windows operating systems supportedYes

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage relative humidity (H-H)20 - 80%

Weight & dimensions

Weight6.35 kg
Width424 mm
Depth365 mm
Height150 mm

Packaging content

Remote control includedNo

Other features

RS-232CYes
