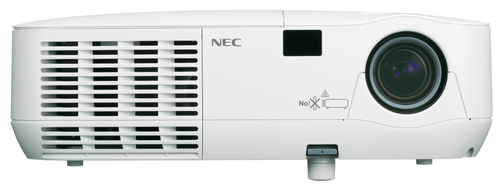

NEC V230X Standard throw projector 2300 ANSI lumens DLP XGA (1024x768) 3D White

NEC V230X Standard throw projector 2300 ANSI lumens DLP XGA (1024x768) 3D White

Model V230XPart no. 60003177EAN 4053162595507

71 specifications
  • ConnectivityWired
  • Noise34 dB
  • TypeStandard throw projector
  • Weight2.5 kg
  • ColourWhite
  • Projector brightness2300 ANSI lumens
See all specifications

Overview

Connectivity
Wired
Noise
34 dB
Type
Standard throw projector
Weight
2.5 kg
Colour
White
Projector brightness
2300 ANSI lumens
Brand
NEC
Model
V230X
Part number
60003177
EAN / UPC
4053162595507, 5028695608634, 5052883716337, 5055067321495
Also known as
NEC V230X Standard throw projector 2300 ANSI lumens DLP XGA (1024x768) 3D White

Specifications

71 specifications in 14 groups

Projector

Projector brightness2300 ANSI lumens
Projection technologyDLP
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)2000:1
Native aspect ratio4:3
Screen size compatibility762 - 7620 mm (30 - 300")
Projection distance1.2 - 13 m
Horizontal scan range15 - 100 kHz
Vertical scan range50 - 120 Hz
Keystone correction, vertical-40 - 40°
Matrix size1.4 cm (0.55")

Light source

Light source typeLamp
Service life of light source3500 h
Service life of light source (economic mode)5000 h
Lamp power180 W

Lens system

FocusManual
Zoom capabilityYes
Zoom typeManual
Throw ratio1.95 - 2.15:1

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Full HDNo
HD-ReadyNo
3DYes
Supported graphics resolutions832 x 624, 1280 x 960, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)

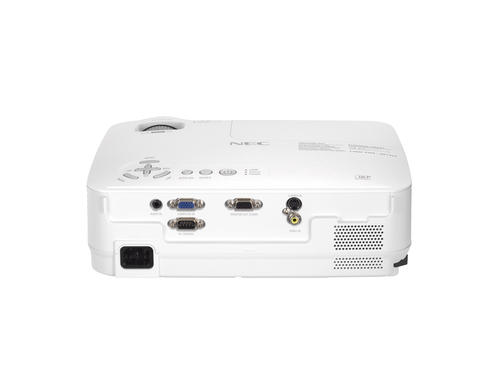

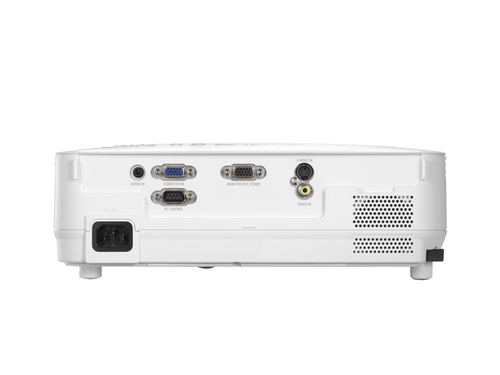

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity0
Component video (YPbPr/YCbCr) in1
Composite video in0
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity0
Audio (L/R) in0
Headphone outputs2
Serial interface typeRS-232
AC (power) inYes

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0
Wi-FiNo

Features

Noise level34 dB
Noise level (economic mode)31 dB
Plug and PlayYes
CertificationCE; ErP; TÜV GS

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power7 W

Design

Product typeStandard throw projector
Product colourWhite
PlacementDesktop

Power

Power sourceAC
Power consumption (standby)0.8 W
Power consumption (max)233 W
Power consumption (economy mode)210 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Weight & dimensions

Weight2.5 kg
Width310 mm
Depth247 mm
Height95 mm
Package width425 mm
Package depth355 mm
Package height180 mm
Package weight4.1 kg

Packaging content

Remote control includedYes
Remote control typeIR
Batteries includedYes
Cables includedAC, VGA

Technical details

Compliance certificatesRoHS

Other features

Aspect ratio4:3
Connectivity technologyWired
Maximum analog resolution1920 x 1080 pixels
RS-232 ports1
