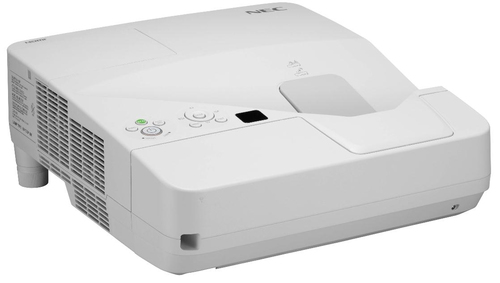

NEC UM330X Ultra short throw projector 3300 ANSI lumens LCD XGA (1024x768) White

NEC UM330X Ultra short throw projector 3300 ANSI lumens LCD XGA (1024x768) White

Model UM330XPart no. 60003393EAN 549963934279

70 specifications
  • Display1.6 cm (0.63")
  • Noise28 dB
  • TypeUltra short throw projector
  • Weight5.2 kg
  • ColourWhite
  • Projector brightness3300 ANSI lumens
See all specifications

Overview

Display
1.6 cm (0.63")
Noise
28 dB
Type
Ultra short throw projector
Weight
5.2 kg
Colour
White
Projector brightness
3300 ANSI lumens
Brand
NEC
Model
UM330X
Part number
60003393
EAN / UPC
549963934279, 4053162595552, 5028695609884, 5499639342790
Also known as
NEC UM330X Ultra short throw projector 3300 ANSI lumens LCD XGA (1024x768) White

Specifications

70 specifications in 16 groups

Projector

Projector brightness3300 ANSI lumens
Projection technologyLCD
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)3000:1
Screen size compatibility1524 - 2540 mm (60 - 100")
Projection distance0.46 - 0.77 m
Horizontal scan range15 - 100 kHz
Vertical scan range50 - 120 Hz

Light source

Light source typeLamp
Service life of light source3500 h
Service life of light source (economic mode)6000 h
Lamp power195 W
Lamp power (economic mode)160 W

Lens system

FocusManual
Zoom capabilityYes
Zoom ratio1.4:1

Video

Analog signal format systemNTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDNo
3DNo
Supported graphics resolutions720 x 480, 720 x 576, 832 x 624, 1280 x 960, 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes1080i, 480i, 480p, 576i, 576p, 720p

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
Component video (YPbPr/YCbCr) in1
Composite video in0
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity3
Audio (L/R) in1
Headphone outputs1
Serial interface typeRS-232
PC Audio inYes
USB connector typeUSB Type-A, USB Type-B

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level28 dB
Noise level (economic mode)28 dB
CertificationCE; TÜV GS; RoHS ; Gost-R

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power16 W

Design

Product typeUltra short throw projector
Product colourWhite

Display

Built-in displayYes
DisplayLCD
Display diagonal1.6 cm (0.63")

Power

Power sourceAC
Power consumption (typical)263 W
Power consumption (standby)0.4 W
Power consumption (PowerSave)233 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)20 - 80%

Weight & dimensions

Weight5.2 kg
Width3780 mm
Depth428 mm
Height112 mm

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC, VGA
ManualYes
Mounting brackets includedYes
Quick start guideYes

Other features

Aspect ratio4:3
RS-232 ports1
