NEC UM301Xi (Multi-Pen)

NEC UM301Xi (Multi-Pen)

Model UM301Xi (Multi-Pen)Part no. 60004206EAN 5028695612617

91 specifications
  • Noise27 dB
  • TypeUltra short throw projector
  • Weight5.5 kg
  • ColourWhite
  • Projector brightness3000 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
27 dB
Type
Ultra short throw projector
Weight
5.5 kg
Colour
White
Projector brightness
3000 ANSI lumens
Light source type
Lamp
Brand
NEC
Model
UM301Xi (Multi-Pen)
Part number
60004206
EAN / UPC
5028695612617
Also known as
NEC UM301Xi (Multi-Pen) Ultra short throw projector 3000 ANSI lumens 3LCD XGA (1024x768) White

Specifications

91 specifications in 17 groups

Projector

Projector brightness3000 ANSI lumens
Projection technology3LCD
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)6000:1
Native aspect ratio4:3
Supported aspect ratios4:3, 16:10, 16:9
Screen size compatibility1562.1 - 2946.4 mm (61.5 - 116")
Projection distance0.1 - 0.51 m
Horizontal scan range15 - 100 kHz
Vertical scan range50 - 120 Hz
Keystone correction, horizontal-10 - 10°
Keystone correction, vertical-10 - 10°
Matrix size1.5 cm (0.59")
Matrix type3-panel (p-Si TFT active)

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)8000 h
Lamp power170 W
Lamp power (economic mode)140 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Fixed focal length4.78 mm
Aperture range (F-F)1.8 - 1.8
Zoom capabilityYes
Zoom typeManual
Zoom ratio1.4:1
Digital zoom1.4x
Throw ratio0.36:1
Offset75%

Video

Analog signal format systemNTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM B
Full HDNo
Supported graphics resolutions640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x

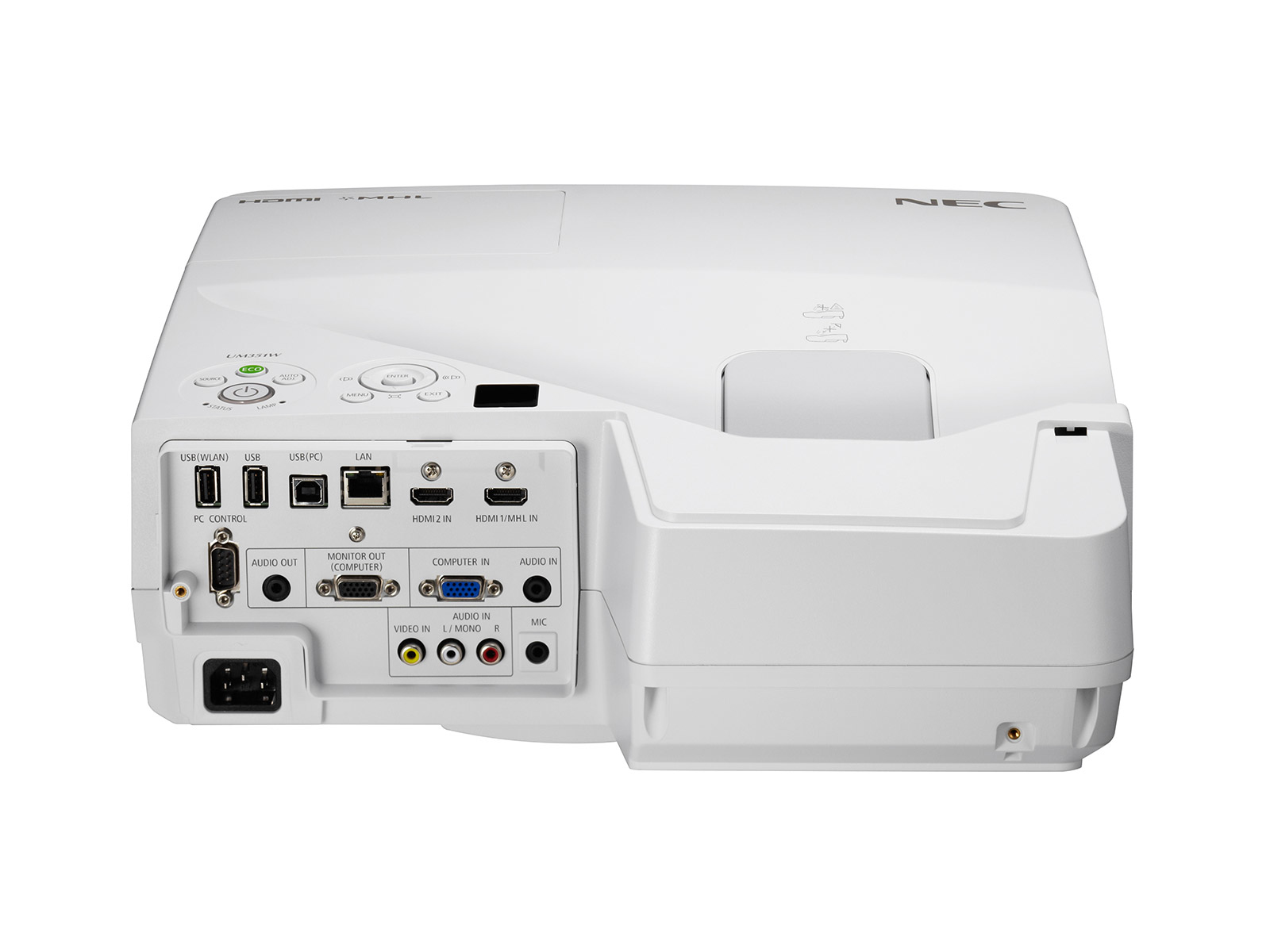

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity0
USB 2.0 ports quantity3
Audio (L/R) in1
Headphone outputs1
Microphone inYes
Serial interface typeRS-232
PC Audio inYes
Mobile High-Definition Link (MHL)Yes
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1

Storage

Card reader integratedNo

Features

Noise level27 dB
Noise level (economic mode)27 dB
On Screen Display (OSD)Yes
Password protectionYes
CertificationCE, Gost-R, TÜV GS

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power20 W

Design

Product typeUltra short throw projector
Product colourWhite
PlacementDesktop
Cable lock slotYes
Cable lock slot typeKensington
LED indicatorsYes

Power

Power sourceAC
Power consumption (typical)227 W
Power consumption (standby)0.5 W
Power consumption (max)285 W
Power consumption (network standby)3 W
Power consumption (economy mode)190 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Auto power offYes

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)20 - 80%

Weight & dimensions

Weight5.5 kg
Width378 mm
Depth428 mm
Height112 mm

Packaging content

Remote control includedYes
Remote control typeIR
Cables includedAC, VGA
ManualYes
Mounting brackets includedYes
Quick start guideYes

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code85286200

Other features

Maximum digital resolution1920 x 1200 pixels
RS-232 ports1
