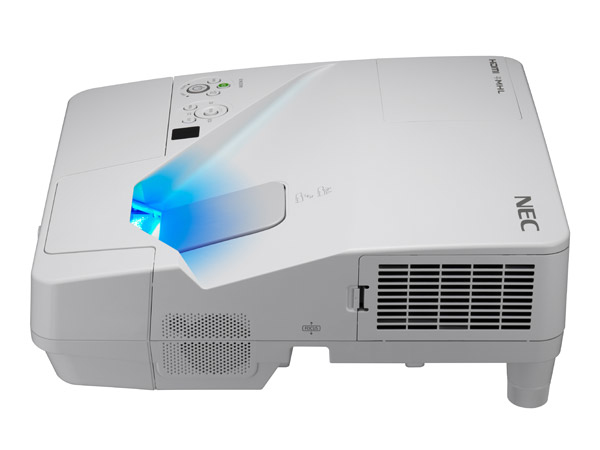

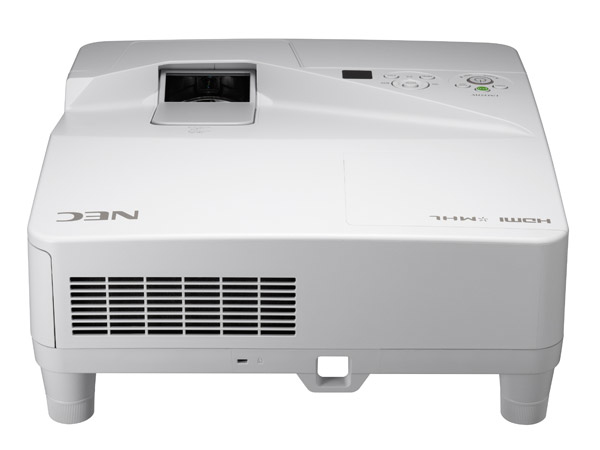

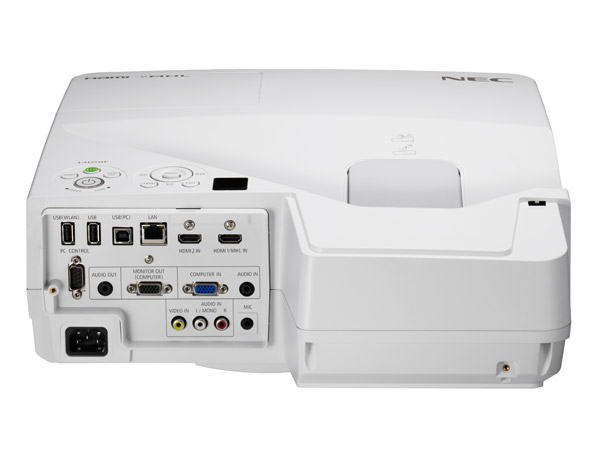

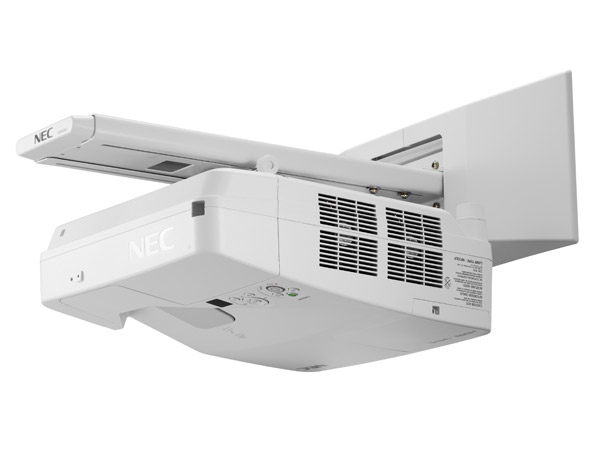

NEC UM301X Ultra short throw projector 3000 ANSI lumens 3LCD XGA (1024x768) White

NEC UM301X Ultra short throw projector 3000 ANSI lumens 3LCD XGA (1024x768) White

Model UM301XPart no. 60003802EAN 5054629685112

87 specifications
  • Noise27 dB
  • TypeUltra short throw projector
  • Weight5.5 kg
  • ColourWhite
  • Projector brightness3000 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
27 dB
Type
Ultra short throw projector
Weight
5.5 kg
Colour
White
Projector brightness
3000 ANSI lumens
Light source type
Lamp
Brand
NEC
Model
UM301X
Part numbers
60003802, 60003841
EAN / UPC
5054629685112, 4058154034125, 5028695611429, 5028695611382
Also known as
NEC UM301X Ultra short throw projector 3000 ANSI lumens 3LCD XGA (1024x768) White

Specifications

87 specifications in 15 groups

Projector

Projector brightness3000 ANSI lumens
Projection technology3LCD
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)6000:1
Native aspect ratio4:3
Supported aspect ratios4:3, 16:10, 16:9
Screen size compatibility1562.1 - 2946.4 mm (61.5 - 116")
Projection distance0.1 - 0.51 m
Horizontal scan range15 - 100 kHz
Vertical scan range50 - 120 Hz
Keystone correction, horizontal-10 - 10°
Keystone correction, vertical-10 - 10°
Matrix size1.5 cm (0.59")
Matrix type3-panel (p-Si TFT active)

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)8000 h
Lamp power170 W
Lamp power (economic mode)140 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Fixed focal length4.78 mm
Aperture range (F-F)1.8 - 1.8
Zoom ratio1.4:1
Digital zoom1.4x
Throw ratio0.36:1
Offset75%

Video

Analog signal format systemNTSC, NTSC 3.58, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Full HDNo
Supported graphics resolutions720 x 480, 720 x 576, 832 x 624, 1152 x 870, 1280 x 960, 1440 x 900, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in0
DVI portNo
S-Video inputs quantity0
USB 2.0 ports quantity3
Audio (L/R) in1
Headphone outputs1
Microphone inYes
Serial interface typeRS-232
PC Audio inYes
USB connector typeUSB Type-A, USB Type-B
CardBus PCMCIA slot typeNo
Mobile High-Definition Link (MHL)Yes
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1

Storage

Card reader integratedNo

Features

Noise level27 dB
Noise level (economic mode)27 dB
On Screen Display (OSD)Yes
Password protectionYes
CertificationCE, Gost-R, TÜV GS

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power20 W

Design

Product typeUltra short throw projector
Product colourWhite
PlacementDesktop
Cable lock slotYes
Cable lock slot typeKensington
LED indicatorsYes

Power

Power sourceAC
Power consumption (typical)227 W
Power consumption (standby)0.4 W
Power consumption (max)285 W
Power consumption (economy mode)190 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Auto power offYes

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)20 - 80%

Weight & dimensions

Weight5.5 kg
Width378 mm
Depth428 mm
Height112 mm

Packaging content

Remote control includedYes
Remote control typeIR
Cables includedAC, VGA
ManualYes
Mounting brackets includedYes
Quick start guideYes

Other features

Maximum digital resolution1920 x 1200 pixels
RS-232 ports1
