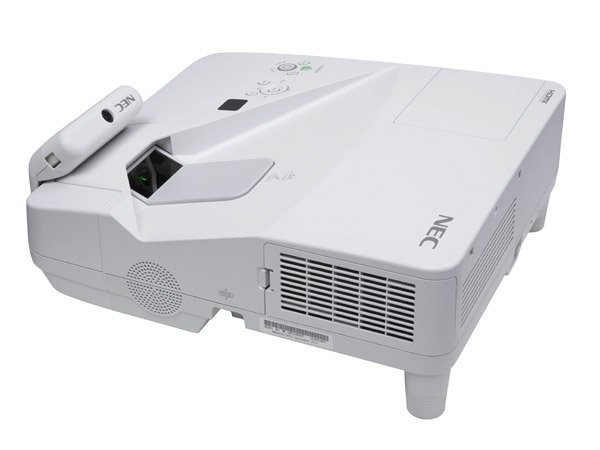

NEC UM301Wi Interactive Multi-Pen Whiteboard Kit

NEC UM301Wi Interactive Multi-Pen Whiteboard Kit

Model UM301WiPart no. 60004208EAN 502869561260

88 specifications
  • Noise27 dB
  • TypeUltra short throw projector
  • Weight5.5 kg
  • ColourWhite
  • Projector brightness3000 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
27 dB
Type
Ultra short throw projector
Weight
5.5 kg
Colour
White
Projector brightness
3000 ANSI lumens
Light source type
Lamp
Brand
NEC
Model
UM301Wi
Part numbers
60004208, 40000901, 60004207
EAN / UPC
502869561260, 3540260141039, 5028695611610, 8032976099971 +2 more
Also known as
NEC UM301Wi Interactive Multi-Pen Whiteboard Kit

Specifications

88 specifications in 17 groups

Projector

Projector brightness3000 ANSI lumens
Projection technology3LCD
Projector native resolutionWXGA (1280x800)
Contrast ratio (typical)6000:1
Native aspect ratio16:10
Supported aspect ratios16:10, 16:9
Screen size compatibility1473.2 - 2794 mm (58 - 110")
Projection distance0.1 - 0.51 m
Horizontal scan range15 - 100 kHz
Vertical scan range50 - 120 Hz
Keystone correction, horizontal-10 - 10°
Keystone correction, vertical-10 - 10°
Matrix size1.5 cm (0.59")
Matrix type3-panel (p-Si TFT active)

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)8000 h
Lamp power170 W

Lens system

FocusManual
Fixed focal length4.78 mm
Aperture range (F-F)1.8 - 1.8
Zoom capabilityYes
Zoom typeManual
Zoom ratio1.4:1
Digital zoom1.4x
Throw ratio0.36:1
Offset81%

Video

Analog signal format systemNTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDYes
3DNo
Supported graphics resolutions640 x 480 (VGA), 720 x 480, 720 x 576, 1152 x 864 (XGA+), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity0
USB 2.0 ports quantity3
Headphone outputs1
Microphone inYes
Serial interface typeRS-232
USB connector typeUSB Type-A, USB Type-B
Mobile High-Definition Link (MHL)Yes
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level27 dB
Noise level (economic mode)27 dB
On Screen Display (OSD)Yes
Password protectionYes
CertificationCE; Gost-R; TÜV GS

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power20 W

Design

Product typeUltra short throw projector
Product colourWhite
PlacementDesktop
Cable lock slotYes
Cable lock slot typeKensington

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)227 W
Power consumption (standby)0.5 W
Power consumption (max)285 W
Power consumption (economy mode)190 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Auto power offYes

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)20 - 80%

Weight & dimensions

Weight5.5 kg
Width378 mm
Depth428 mm
Height112 mm

Packaging content

Remote control includedYes
Remote control typeIR
Cables includedAC, VGA
ManualYes
Mounting brackets includedYes
Quick start guideYes

Technical details

Compliance certificatesRoHS

Other features

RS-232 ports1
