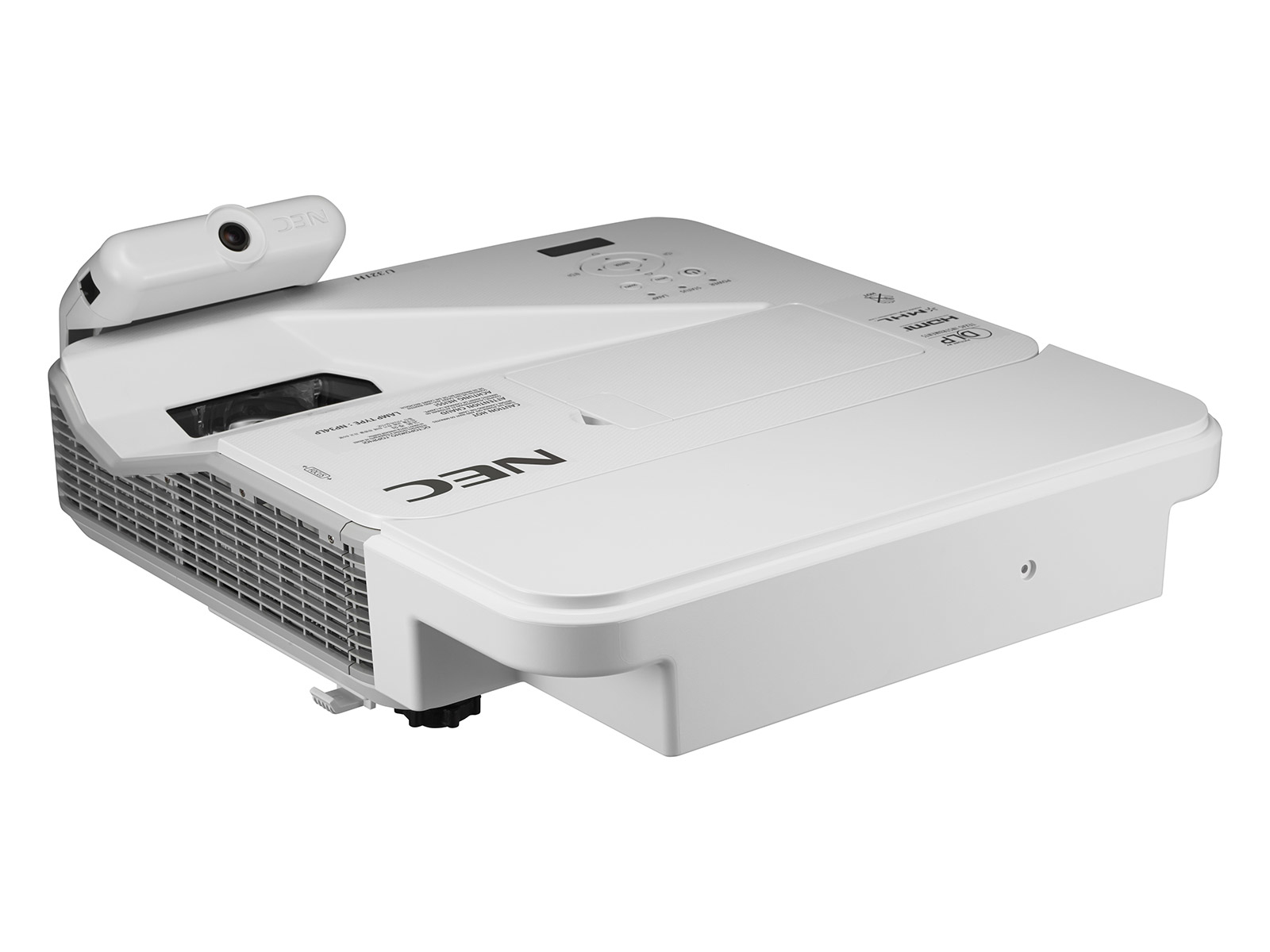

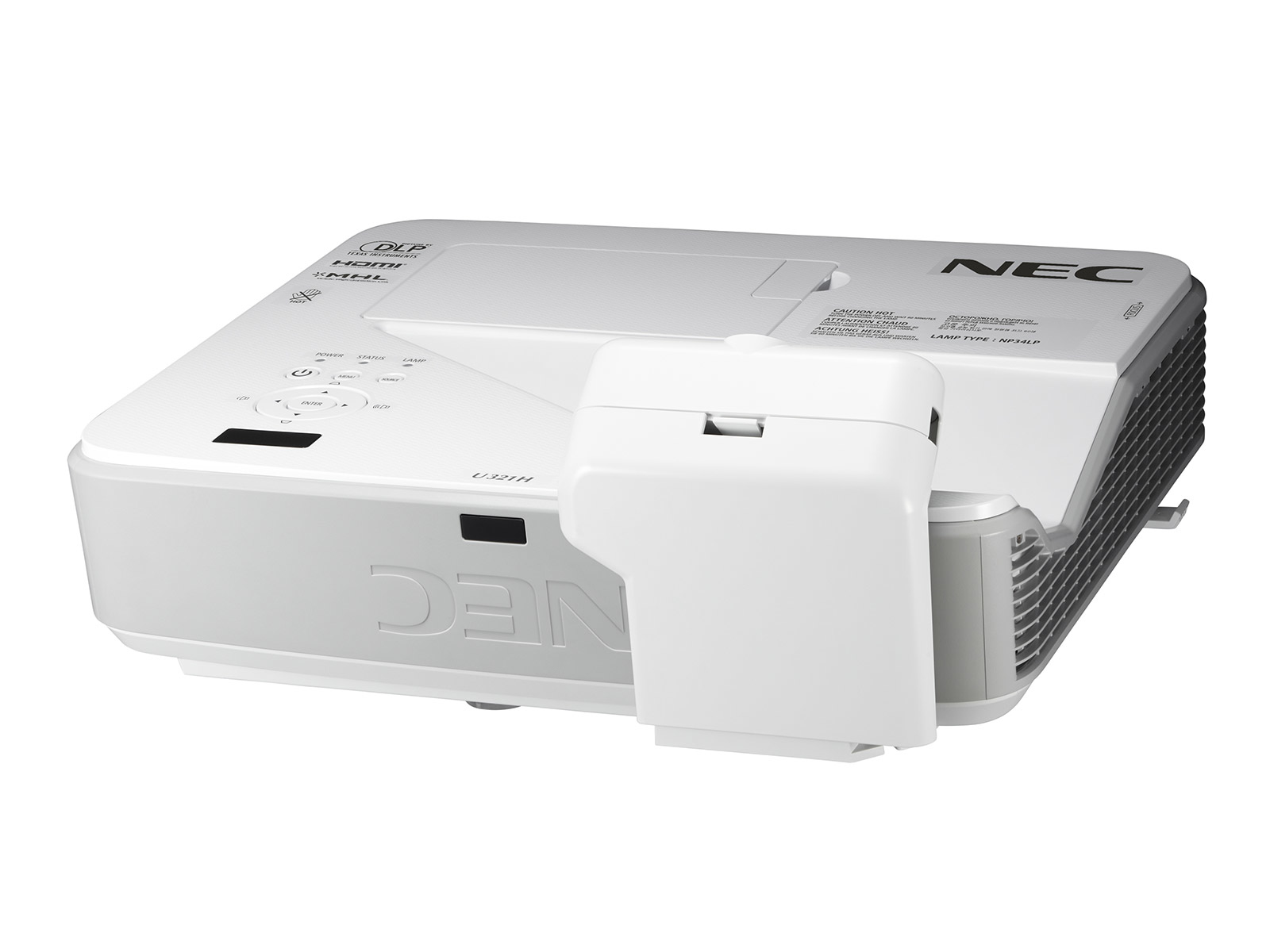

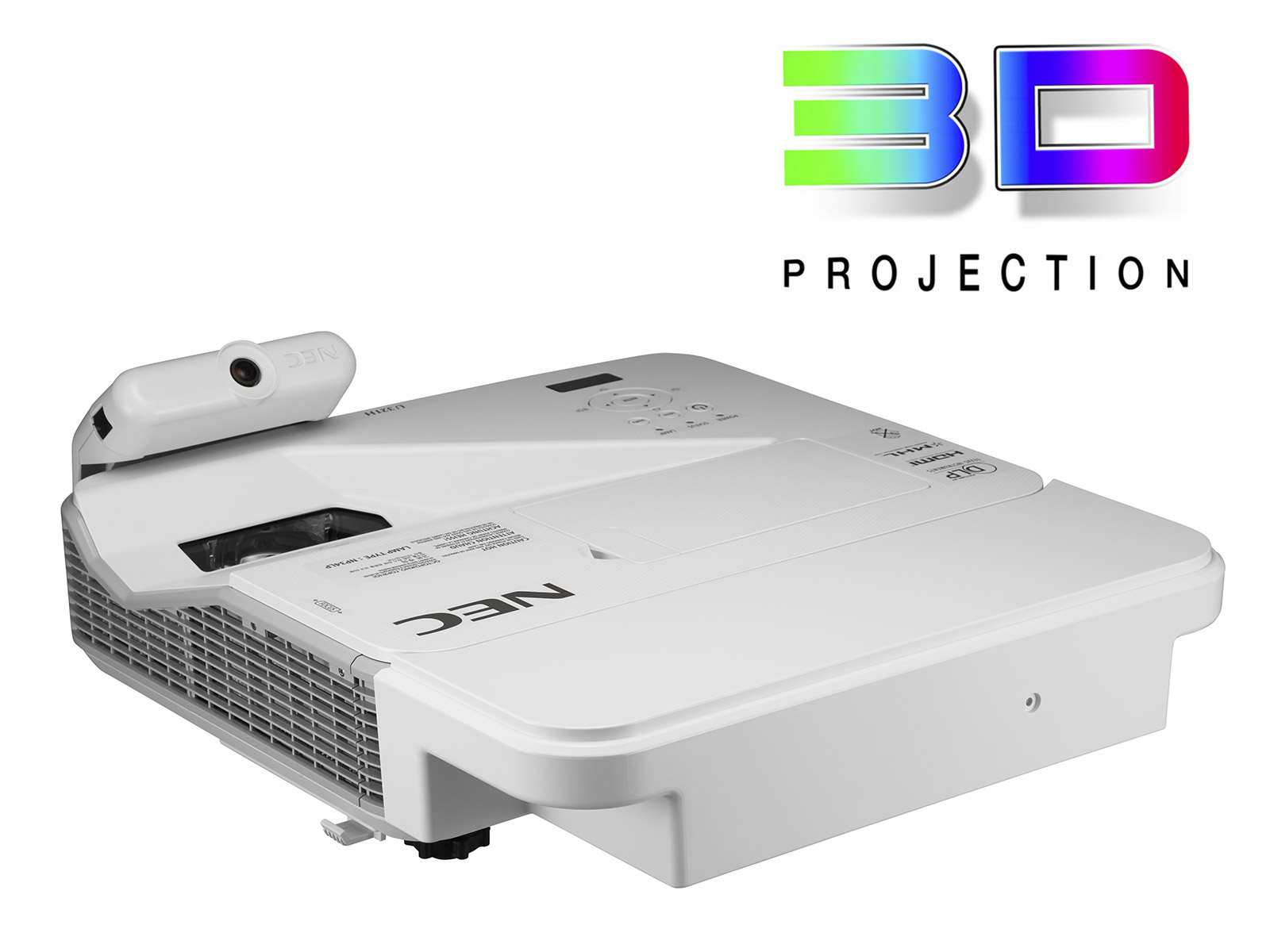

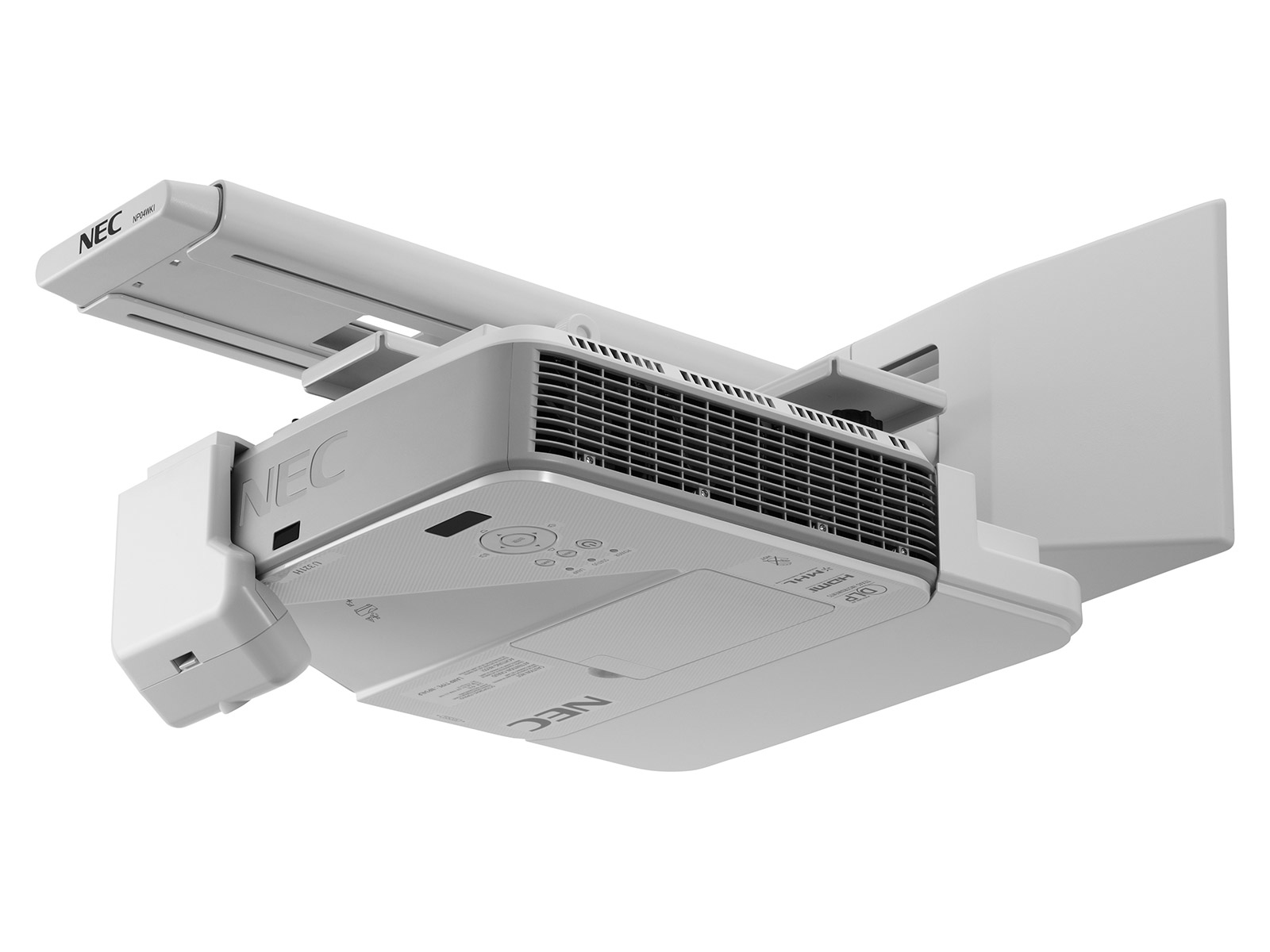

NEC U321Hi-MP + NP01SW2

NEC U321Hi-MP + NP01SW2

Model U321Hi-MP + NP01SW2Part no. 40001057

87 specifications
  • Noise34 dB
  • TypeUltra short throw projector
  • Weight4.7 kg
  • ColourWhite
  • Projector brightness3200 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
34 dB
Type
Ultra short throw projector
Weight
4.7 kg
Colour
White
Projector brightness
3200 ANSI lumens
Light source type
Lamp
Brand
NEC
Model
U321Hi-MP + NP01SW2
Part number
40001057
Also known as
NEC U321Hi-MP + NP01SW2 Ultra short throw projector 3200 ANSI lumens DLP 1080p (1920x1080) White

Specifications

87 specifications in 17 groups

Projector

Projector brightness3200 ANSI lumens
Projection technologyDLP
Projector native resolution1080p (1920x1080)
Contrast ratio (typical)10000:1
Native aspect ratio16:9
Supported aspect ratios16:9
Screen size compatibility2159 - 2540 mm (85 - 100")
Projection distance0.195 - 0.306 m
Horizontal scan range15 - 100 kHz
Vertical scan range50 - 120 Hz
Keystone correction, vertical-5 - 5°

Light source

Light source typeLamp
Service life of light source3000 h
Service life of light source (economic mode)4000 h
Lamp power260 W
Lamp power (economic mode)220 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Fixed focal length3.72 mm
Aperture range (F-F)2.4 - 2.4
Zoom capabilityYes
Zoom typeManual
Throw ratio0.25:1
Offset65%

Video

Analog signal format systemNTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDYes
3D ReadyYes
Supported graphics resolutions640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 9
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p

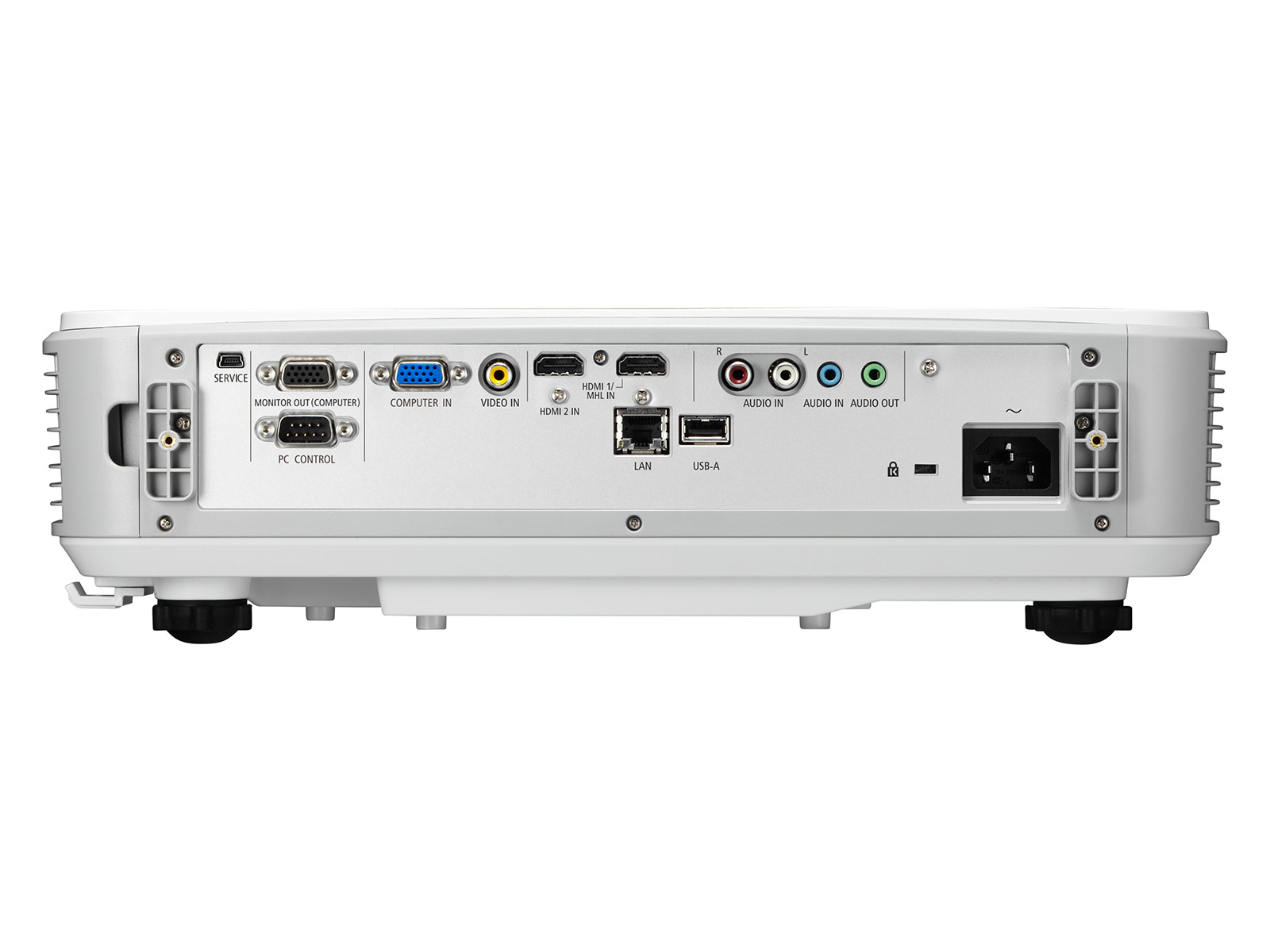

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in0
Composite video in0
DVI portNo
S-Video inputs quantity0
USB 2.0 ports quantity2
Audio (L/R) in1
Headphone outputs1
Microphone inYes
Serial interface typeRS-232
AUX inYes
PC in (D-Sub)Yes
Mobile High-Definition Link (MHL)Yes
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level34 dB
Noise level (economic mode)29 dB
On Screen Display (OSD)Yes
Password protectionYes
CertificationCE; Gost-R; RoHS; TüV GS

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power8 W

Design

Product typeUltra short throw projector
Product colourWhite
PlacementDesktop
Cable lock slotYes
Cable lock slot typeKensington

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)312 W
Power consumption (standby)0.3 W
Power consumption (network standby)2.2 W
Power consumption (economy mode)264 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Auto power offYes

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)20 - 90%

Weight & dimensions

Weight4.7 kg
Width383 mm
Depth308 mm
Height85 mm

Packaging content

Remote control includedYes
Remote control typeIR
Cables includedAC, VGA
ManualYes
Mounting brackets includedYes
Quick start guideYes

Technical details

Compliance certificatesRoHS

Other features

RS-232 ports1
