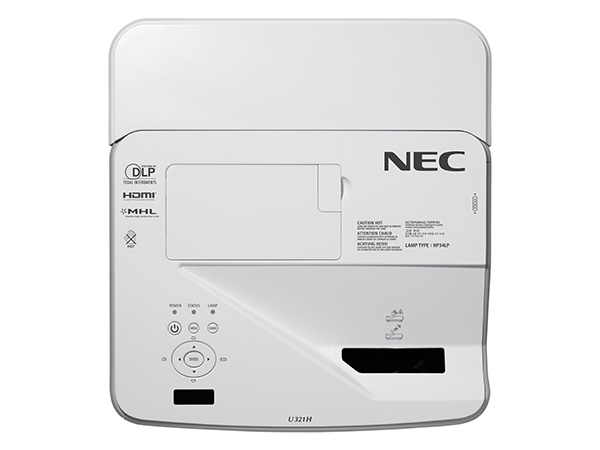

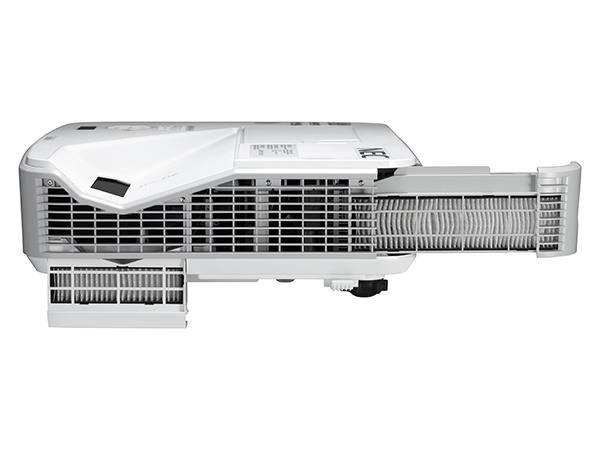

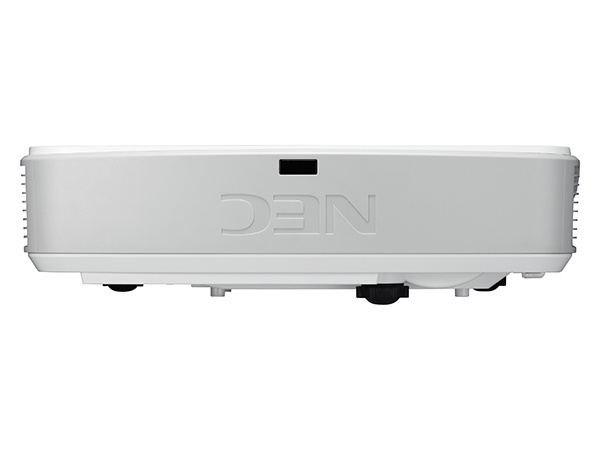

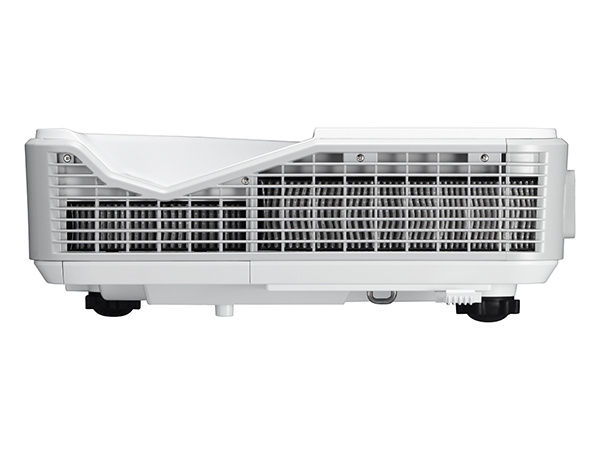

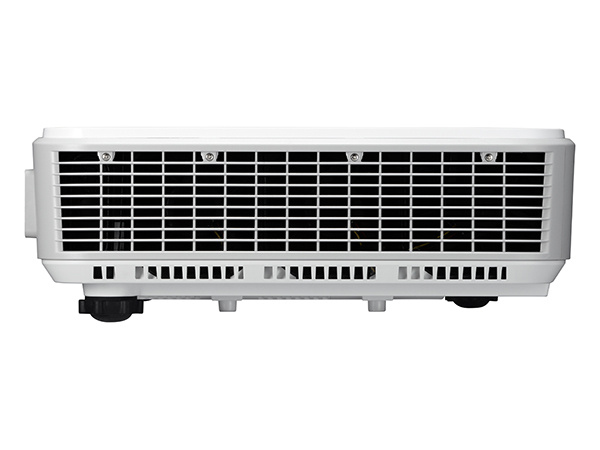

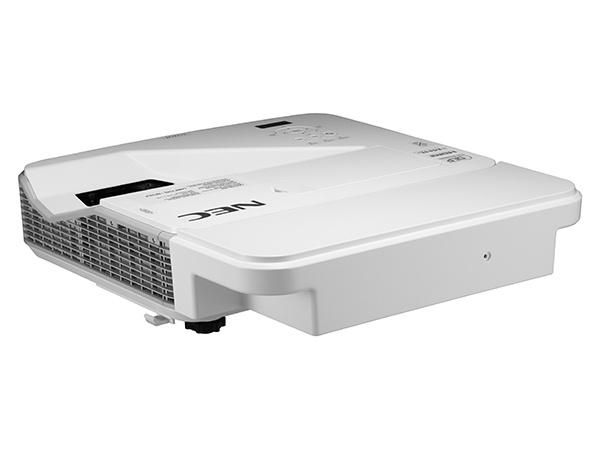

NEC U321H Ultra short throw projector 3200 ANSI lumens DLP 1080p (1920x1080) 3D White

NEC U321H Ultra short throw projector 3200 ANSI lumens DLP 1080p (1920x1080) 3D White

Model U321HPart no. 60003890EAN 5028695611757

87 specifications
  • Noise34 dB
  • TypeUltra short throw projector
  • Weight4.7 kg
  • ColourWhite
  • Projector brightness3200 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
34 dB
Type
Ultra short throw projector
Weight
4.7 kg
Colour
White
Projector brightness
3200 ANSI lumens
Light source type
Lamp
Brand
NEC
Model
U321H
Part numbers
60003890, 60003952
EAN / UPC
5028695611757, 4053162959255, 5028695611856, 5054629893456 +1 more
Also known as
NEC U321H Ultra short throw projector 3200 ANSI lumens DLP 1080p (1920x1080) 3D White

Specifications

87 specifications in 17 groups

Projector

Projector brightness3200 ANSI lumens
Projection technologyDLP
Projector native resolution1080p (1920x1080)
Contrast ratio (typical)10000:1
Native aspect ratio16:9
Supported aspect ratios16:9
Screen size compatibility2159 - 2540 mm (85 - 100")
Projection distance0.195 - 0.306 m
Horizontal scan range15 - 100 kHz
Vertical scan range50 - 120 Hz
Horizontal synchronization (max)100 kHz
Horizontal synchronization (min)15 kHz
Keystone correction, vertical-5 - 5°
Vertical synchronization (max)120 kHz
Vertical synchronization (min)50 kHz

Light source

Light source typeLamp
Service life of light source3000 h
Service life of light source (economic mode)4000 h
Lamp power260 W
Lamp power (economic mode)220 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Fixed focal length3.72 mm
Aperture range (F-F)2.4 - 2.4
Zoom typeAuto
Throw ratio0.25:1
Offset65%

Video

Analog signal format systemNTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDYes
3DYes
Supported graphics resolutions640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA),
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i

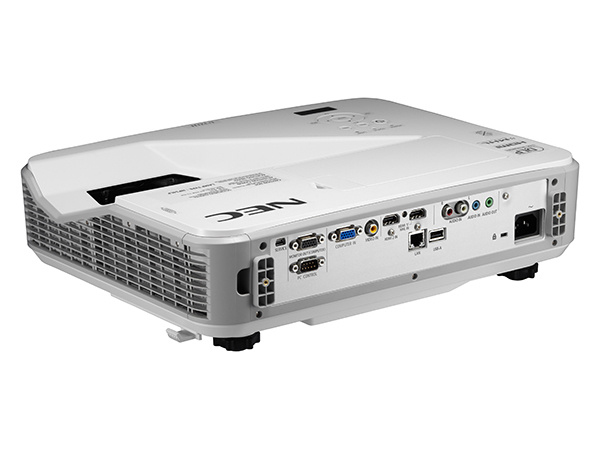

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in0
DVI portYes
S-Video inputs quantity0
USB 2.0 ports quantity2
Audio (L/R) in1
Headphone outputs1
Microphone inYes
Serial interface typeRS-232
USB connector typeMini-USB, USB Type-A
Mobile High-Definition Link (MHL)Yes
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1

Storage

Card reader integratedNo

Features

Noise level34 dB
Noise level (economic mode)29 dB
HDCPNo
On Screen Display (OSD)Yes
CertificationCE; Gost-R; TÜV GS

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power8 W

Design

Product typeUltra short throw projector
Product colourWhite

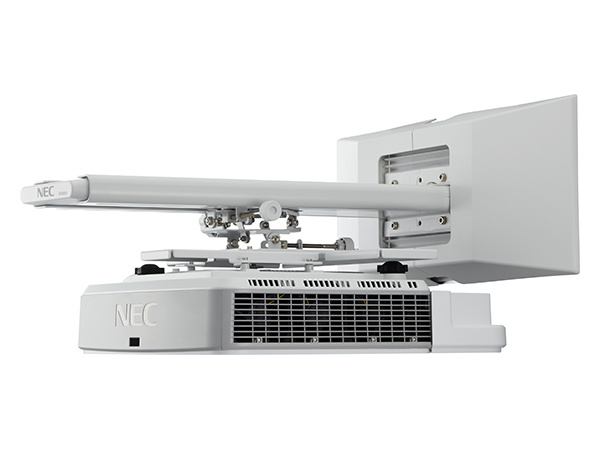

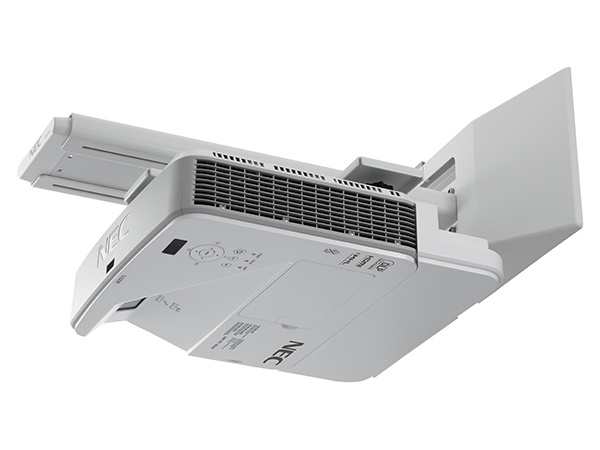

PlacementDesktop, Ceiling
Cable lock slotYes
Cable lock slot typeKensington

Display

Built-in displayYes

Power

Power sourceAC
Power consumption (typical)312 W
Power consumption (standby)0.3 W
Power consumption (network standby)2.2 W
Power consumption (economy mode)264 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Auto power offYes

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)20 - 90%

Weight & dimensions

Weight4.7 kg
Width383 mm
Depth308 mm
Height85 mm

Packaging content

Remote control includedYes
Remote control typeIR
Cables includedAC, VGA
ManualYes
Quick start guideYes

Technical details

Compliance certificatesRoHS

Other features

Maximum digital resolution1920 x 1080 pixels
RS-232 ports1
