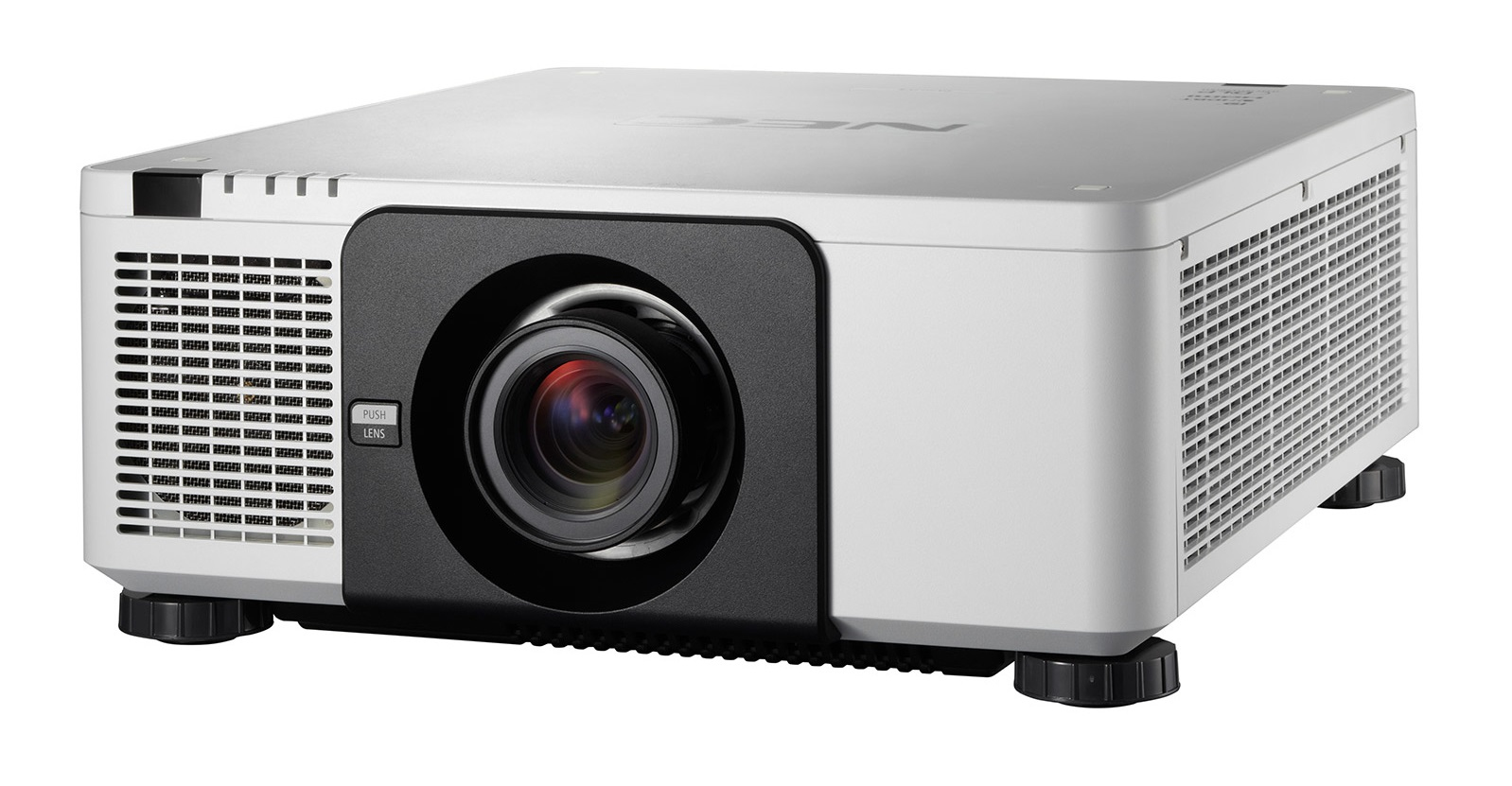

NEC PX803UL Large venue projector 8000 ANSI lumens DLP WUXGA (1920x1200) 3D White

NEC PX803UL Large venue projector 8000 ANSI lumens DLP WUXGA (1920x1200) 3D White

Model PX803ULPart no. 40001153EAN 5028695613492

66 specifications
  • Noise40 dB
  • TypeLarge venue projector
  • Weight28 kg
  • ColourWhite
  • Projector brightness8000 ANSI lumens
  • Light source typeLaser
See all specifications

Overview

Noise
40 dB
Type
Large venue projector
Weight
28 kg
Colour
White
Projector brightness
8000 ANSI lumens
Light source type
Laser
Brand
NEC
Model
PX803UL
Part numbers
40001153, 60004010, 60004009, 40001154
EAN / UPC
5028695613492, 5028695612259, 5028695612266, 5028695613508
Also known as
NEC PX803UL Large venue projector 8000 ANSI lumens DLP WUXGA (1920x1200) 3D White

Specifications

66 specifications in 17 groups

Projector

Projector brightness8000 ANSI lumens
Projection technologyDLP
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)10000:1
Native aspect ratio16:10
Supported aspect ratios4:3, 5:4, 15:9, 16:10, 16:9, 17:9
Screen size compatibility1016 - 12700 mm (40 - 500")
Projection distance0.86 - 118 m
Horizontal scan range15 - 100 kHz
Vertical scan range48 - 120 Hz
Keystone correction, horizontal-40 - 40°
Keystone correction, vertical-40 - 40°
Matrix size1.7 cm (0.67")

Light source

Light source typeLaser
Service life of light source20000 h

Lens system

FocusAuto

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDYes
3DYes
Supported graphics resolutions640 x 480 (VGA), 1920 x 1200 (WUXGA), 2048 x 1080, 2560 x 1600 (WQXGA), 4096 x 2160
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p

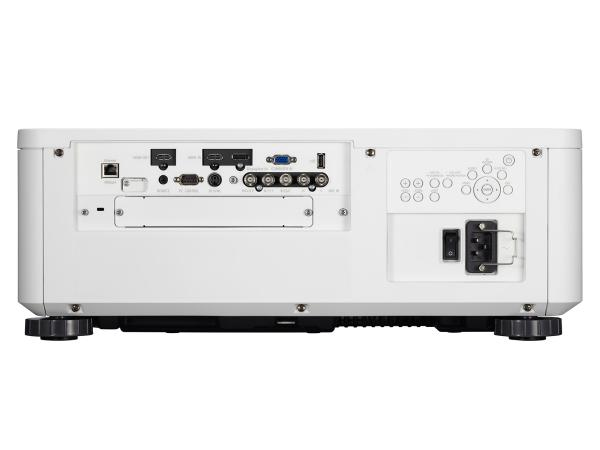

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity2
DVI portNo
DisplayPorts quantity1
USB 2.0 ports quantity1
Audio (L/R) in0
Microphone inYes
Serial interface typeRS-232
BNC input ports5
CardBus PCMCIA slot typeNo
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo
Optical disc player typeNot included

Features

Noise level40 dB
Noise level (economic mode)35 dB
HDCPYes
CertificationCE, ErP, TÜV GS

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1

Design

Product typeLarge venue projector
Product colourWhite
PlacementDesktop, Ceiling
LED indicatorsYes

Power

Power sourceAC
Power consumption (typical)850 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Weight28 kg
Width500 mm
Depth577 mm
Height211 mm

Packaging content

Remote control includedYes
Remote control typeIR
Cables includedAC
ManualYes
Quick start guideYes

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code85286200

Other features

Maximum analog resolution1920 x 1200 pixels
Maximum digital resolution4096 x 2160 pixels
