NEC PX602WL Large venue projector 6000 ANSI lumens DLP WXGA (1280x800) 3D Black

NEC PX602WL Large venue projector 6000 ANSI lumens DLP WXGA (1280x800) 3D Black

Model PX602WLPart no. 60003794EAN 5028695611207

91 specifications
  • Noise39 dB
  • TypeLarge venue projector
  • Weight18.5 kg
  • ColourBlack
  • Projector brightness6000 ANSI lumens
  • Light source typeLaser
See all specifications

Overview

Noise
39 dB
Type
Large venue projector
Weight
18.5 kg
Colour
Black
Projector brightness
6000 ANSI lumens
Light source type
Laser
Brand
NEC
Model
PX602WL
Part numbers
60003794, 60003696
EAN / UPC
5028695611207, 5028695611214
Also known as
NEC PX602WL Large venue projector 6000 ANSI lumens DLP WXGA (1280x800) 3D Black

Specifications

91 specifications in 19 groups

Projector

Projector brightness6000 ANSI lumens
Projection technologyDLP
Projector native resolutionWXGA (1280x800)
Contrast ratio (typical)10000:1
Native aspect ratio16:10
Supported aspect ratios16:10, 16:9
Screen size compatibility1270 - 7620 mm (50 - 300")
Projection distance1.02 - 19.39 m
Horizontal synchronization (max)153 kHz
Horizontal synchronization (min)15 kHz
Keystone correction, horizontal-40 - 40°
Keystone correction, vertical-40 - 40°
Matrix size1.65 cm (0.65")
Matrix typeDMD
Vertical synchronization (max)0.12 kHz
Vertical synchronization (min)0.024 kHz

Light source

Light source typeLaser
Service life of light source20000 h

Lens system

FocusAuto
Zoom capabilityYes
Zoom typeAuto
Horizontal lens shift range-15 - 15%
Vertical lens shift range-50 - 50%
Number of optional lenses supported5

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDNo
HD-ReadyYes
3DYes
3D ReadyYes
Supported graphics resolutions2048 x 1080, 4096 x 2160, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p

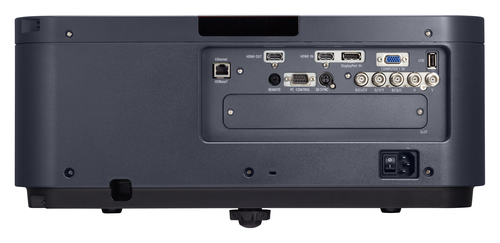

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity2
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in1
Composite video in0
DVI portNo
DisplayPorts quantity1
S-Video inputs quantity1
HDBaseT portYes
USB 2.0 ports quantity1
Audio (L/R) in0
Serial interface typeRS-232
PC in (D-Sub)Yes
Remote (IR) output1
USB connector typeUSB Type-A
BNC input ports5
AC (power) inYes

Network

Ethernet LANYes
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level39 dB
Noise level (economic mode)34 dB
HDCPYes
On Screen Display (OSD)Yes
Composite syncYes
Separate H/V syncYes
Sync-on-green (SOG)Yes
Password protectionYes
CertificationUSA UL 1950 FCC, CSA 950 (C-UL), NOM

Multimedia

Built-in speaker(s)No

Design

Product typeLarge venue projector
Product colourBlack
PlacementDesktop
LED indicatorsYes

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)550 W
Power consumption (standby)0.5 W
Power consumption (PowerSave)6 W
Power consumption (economy mode)270 W
AC input voltage100 - 240 V

Software

Mac compatibilityYes

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Weight18.5 kg
Width484 mm
Depth575 mm
Height217 mm

Packaging content

Remote control includedYes
Remote control typeIR
Batteries includedYes
Cables includedAC
ManualYes
Quick start guideYes

Technical details

Compliance certificatesRoHS
Current6.8 A

Logistics data

Harmonized System (HS) code85286200

Other features

Maximum digital resolution4096 x 2160 pixels
RS-232 ports1
