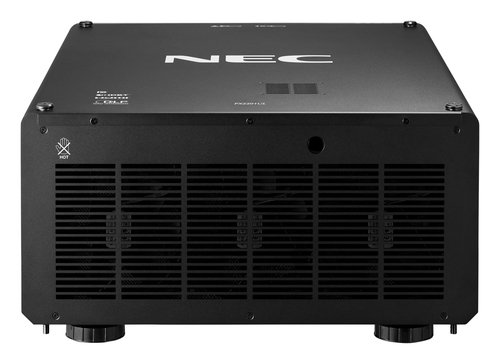

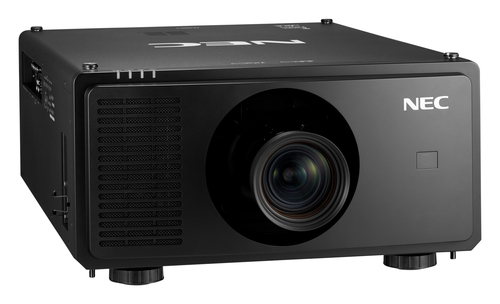

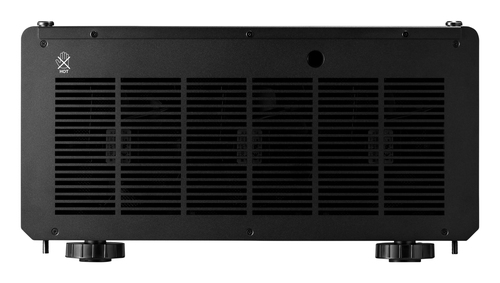

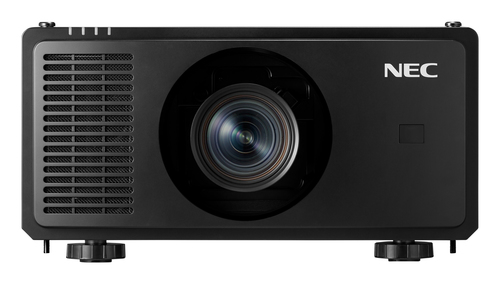

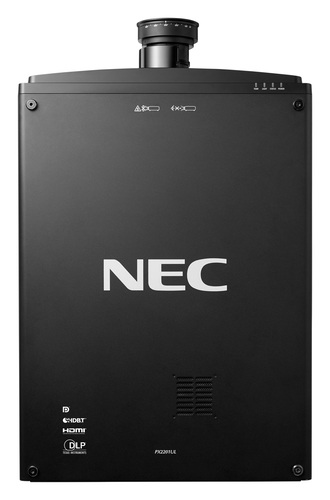

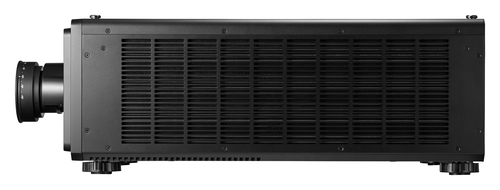

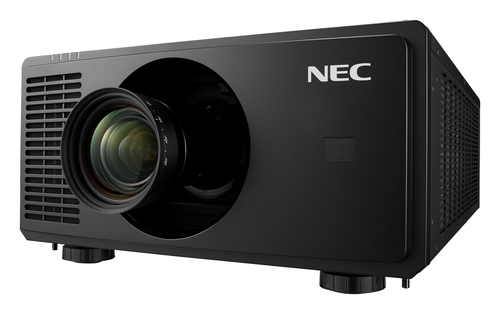

PX2201UL 20500 ANSI lumens DLP WUXGA (1920x1200) 3D Black
Model PX2201ULPart no. 60005581EAN 5028695614741
54 specifications
- Noise48 dB
- Weight51 kg
- ColourBlack
- Projector brightness20500 ANSI lumens
- Light source typeLaser
- FocusMotorized
Overview
- Noise
- 48 dB
- Weight
- 51 kg
- Colour
- Black
- Projector brightness
- 20500 ANSI lumens
- Light source type
- Laser
- Focus
- Motorized
- Brand
- NEC
- Category
- Data Projector
- Model
- PX2201UL
- Part number
- 60005581
- EAN / UPC
- 5028695614741
- Also known as
- NEC PX2201UL 20500 ANSI lumens DLP WUXGA (1920x1200) 3D Black
Specifications
54 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 20500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 1016 - 12700 mm (40 - 500") |
| Projection distance | 0.81 - 84 m |
| Keystone correction, horizontal | +/- 60° |
| Keystone correction, vertical | +/- 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Motorized |
| Zoom capability | Yes |
| Horizontal lens shift range | -15 - 15% |
| Vertical lens shift range | -50 - 50% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720i, 720p, 1080i, 1080p, 1600i, 1600p |
| Video colour modes | DICOM simulation mode |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| DVI port | Yes |
| DisplayPorts quantity | 1 |
| HDBaseT port | Yes |
| Serial interface type | RS-232 |
| AUX in | Yes |
| 3D sync port | Yes |
| BNC input ports | 1 |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 48 dB |
| Noise level (economic mode) | 46 dB |
| HDCP | Yes |
| Certification | CE; EAC; ErP; RoHS |
Design
| Specification | Value |
|---|---|
| Market positioning | Education |
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 1775 W |
| AC input voltage | 200-240 V |
| AC input frequency | 50-60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 51 kg |
| Width | 530 mm |
| Depth | 745 mm |
| Height | 248 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Cables included | AC |
| Manual | Yes |
