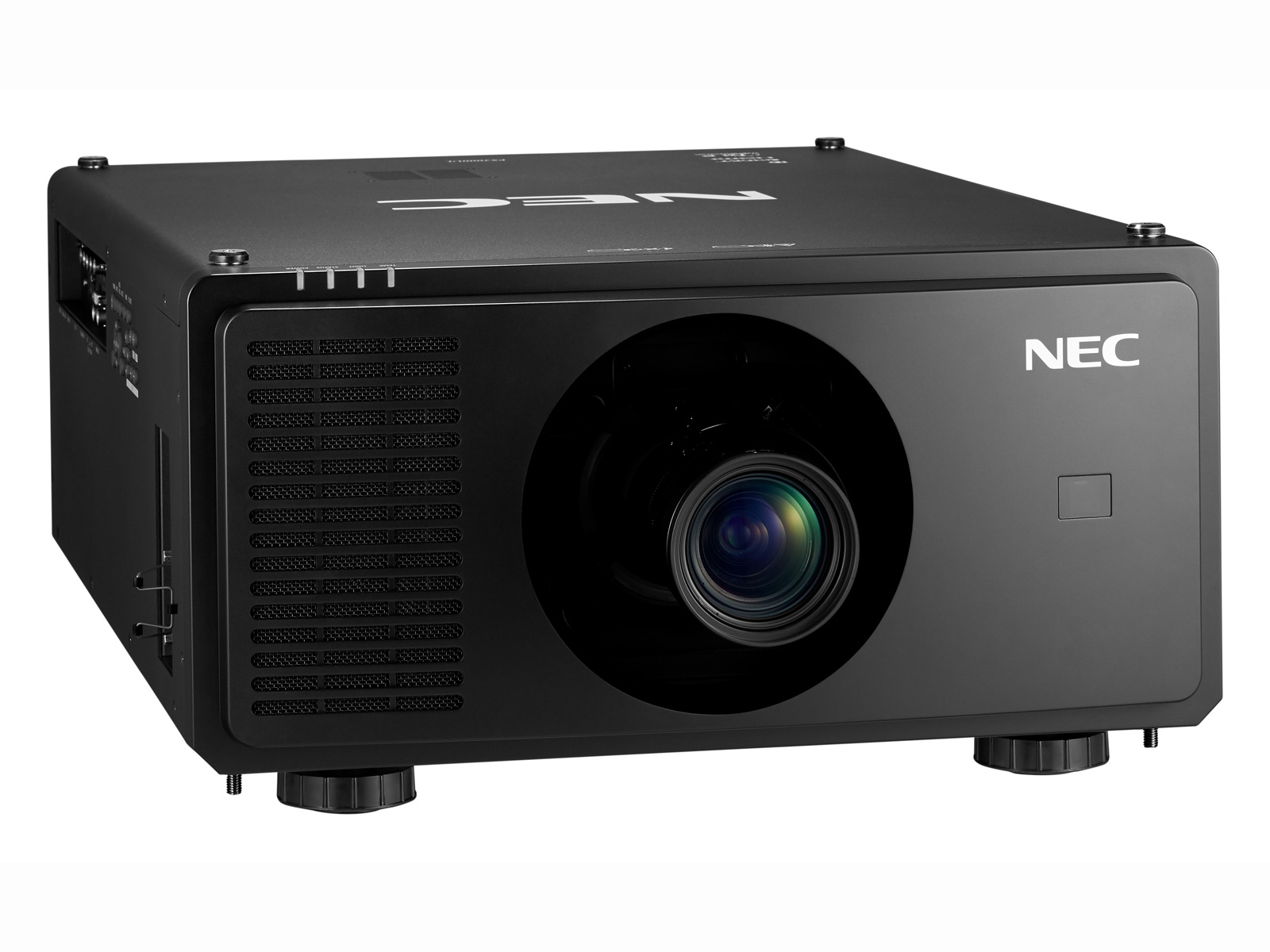

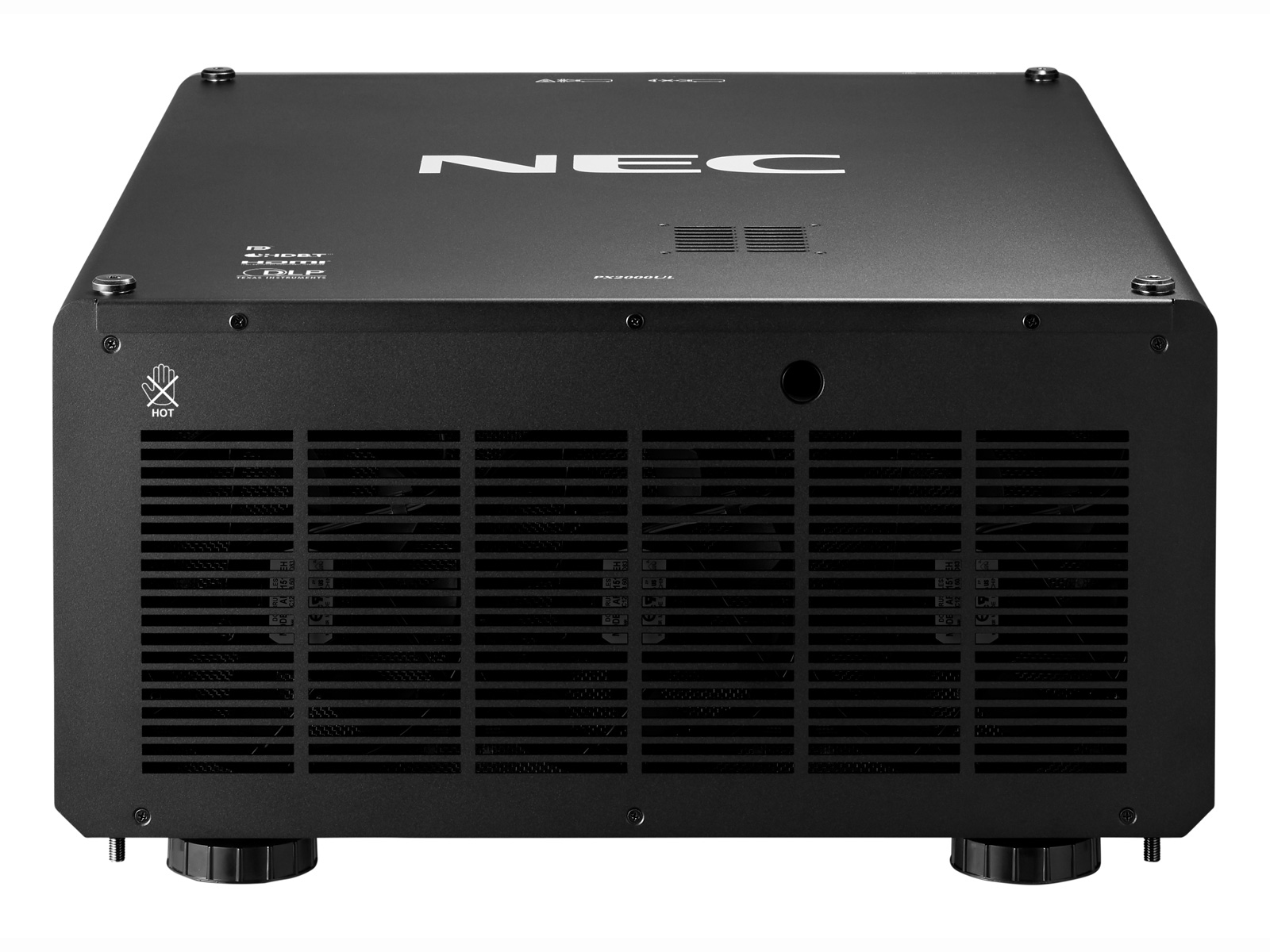

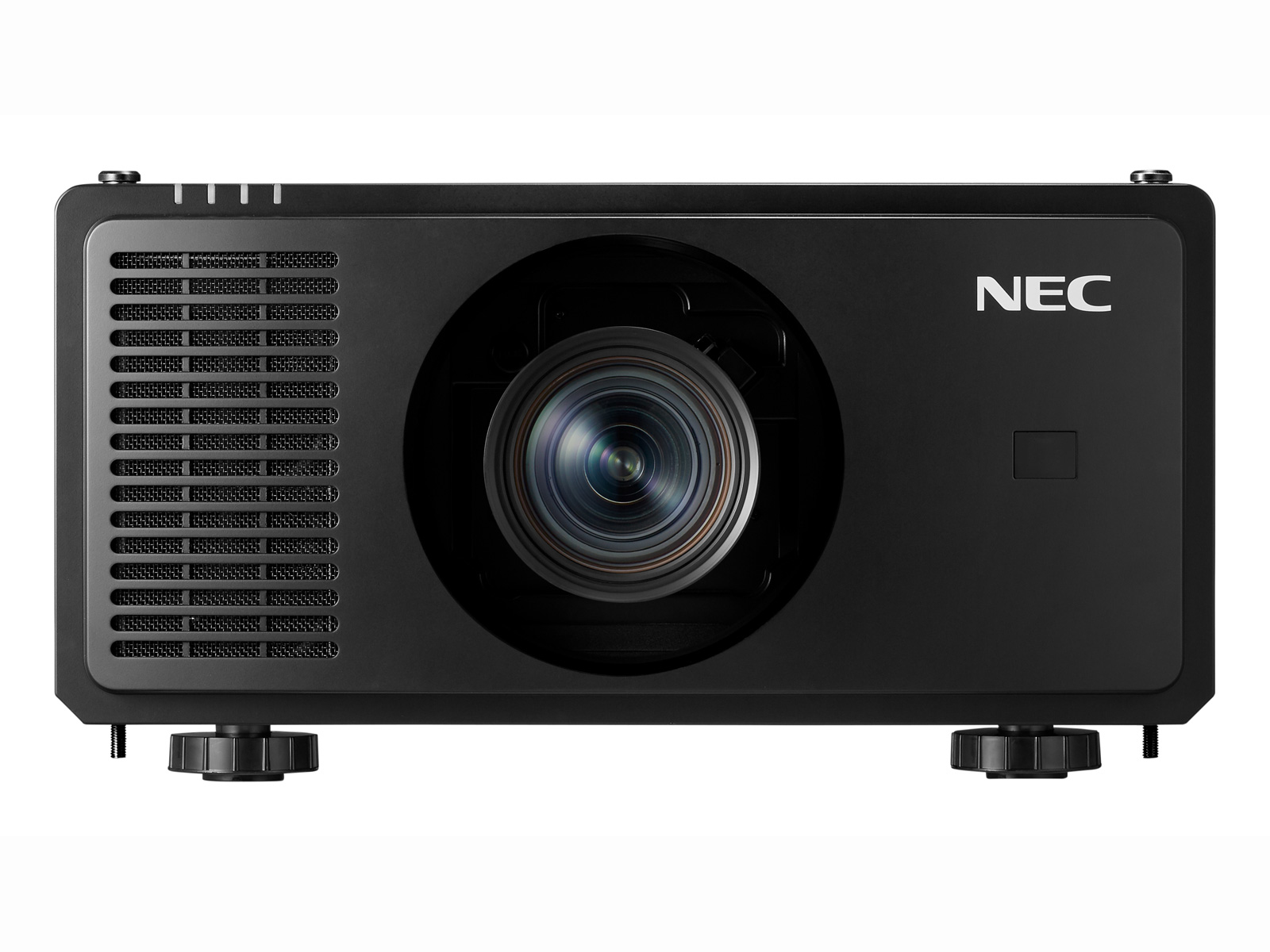

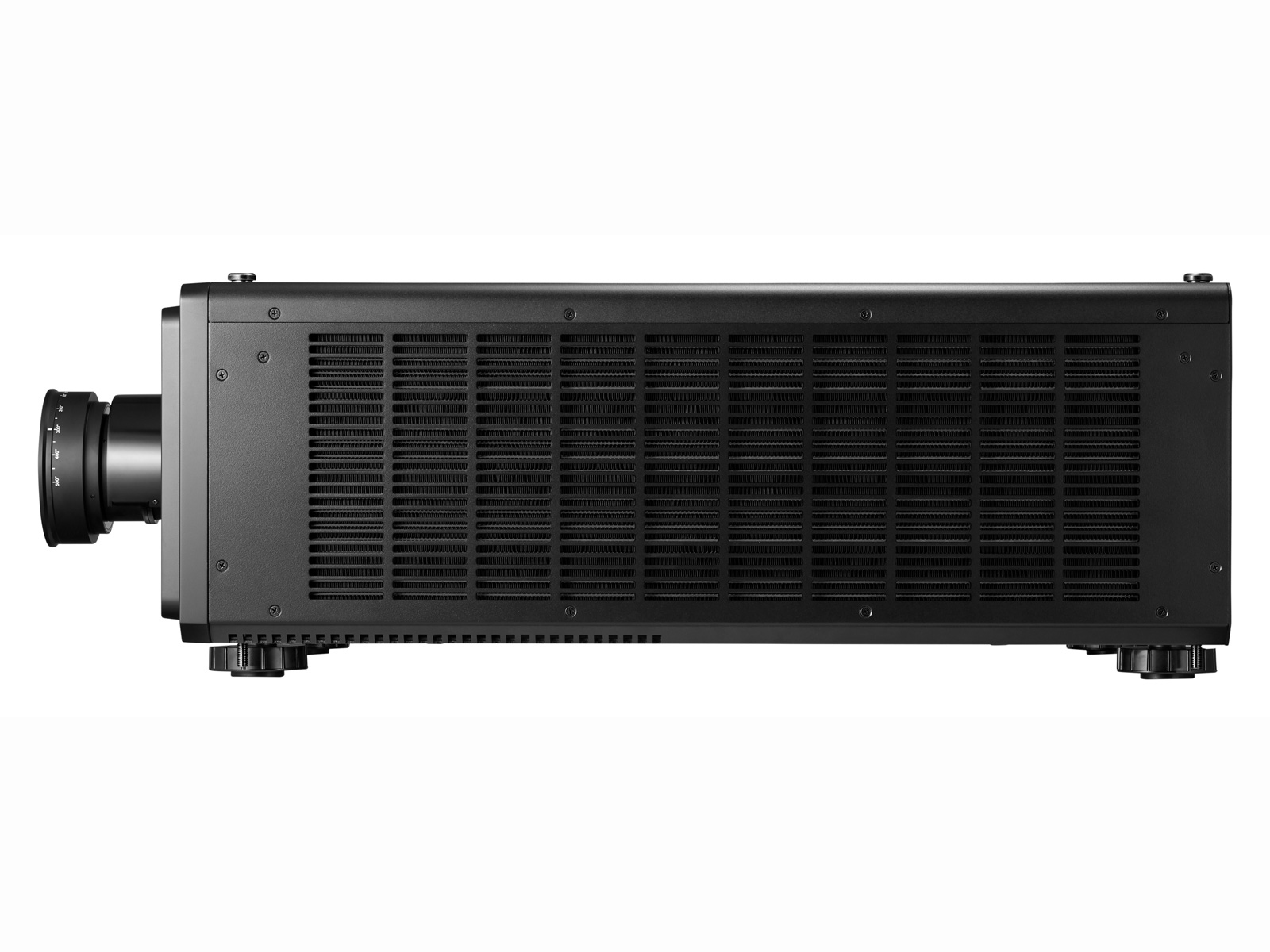

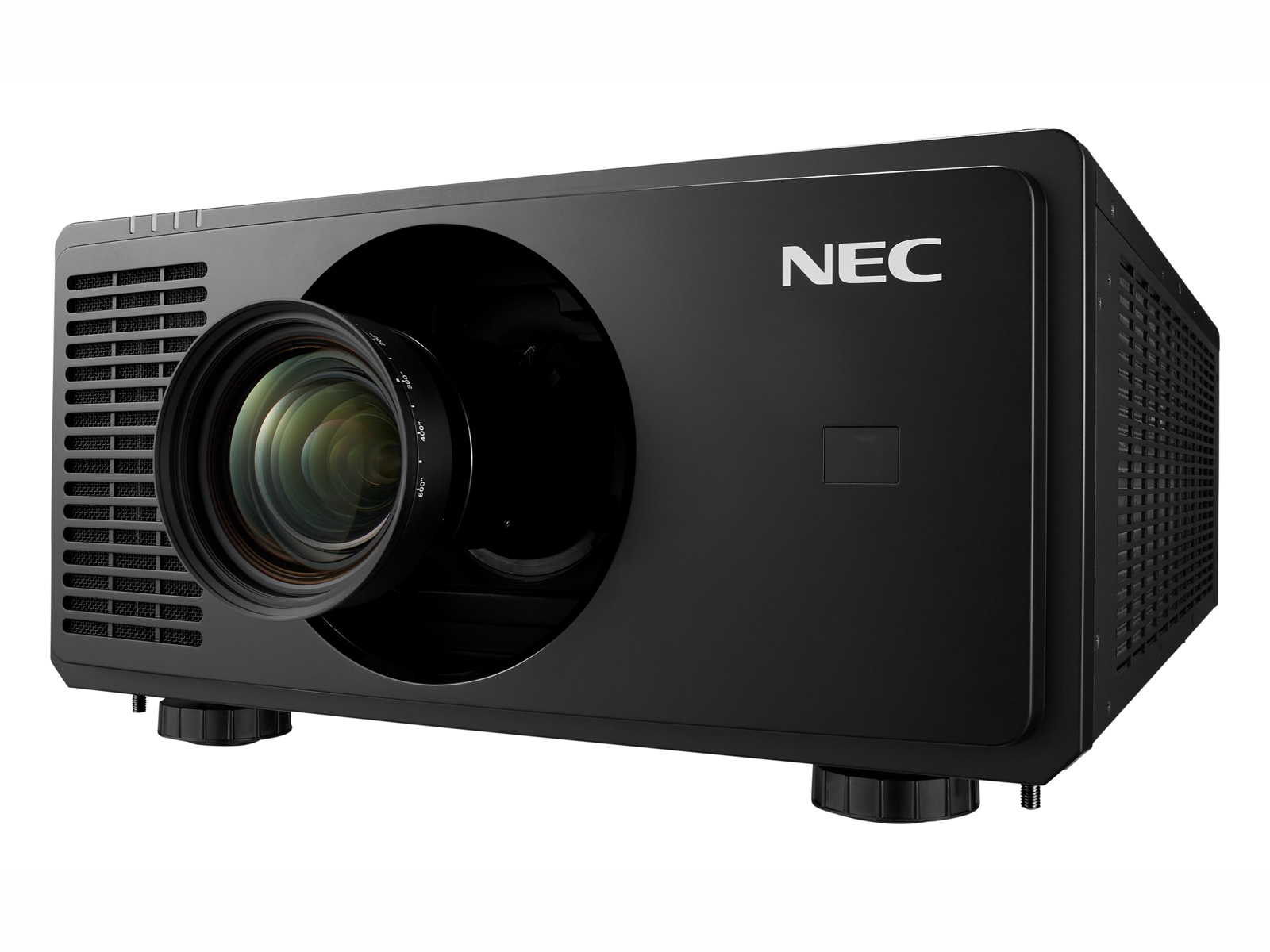

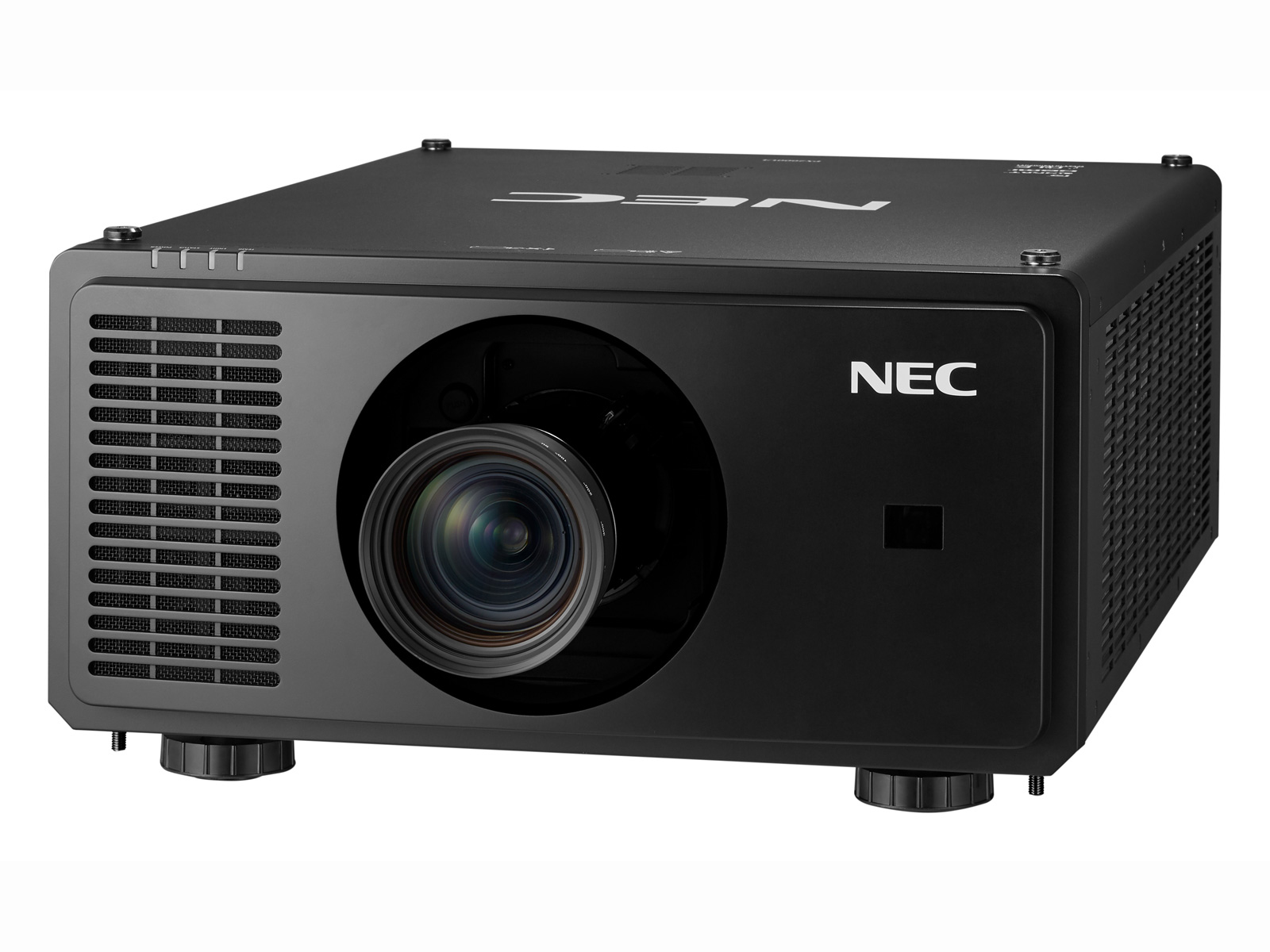

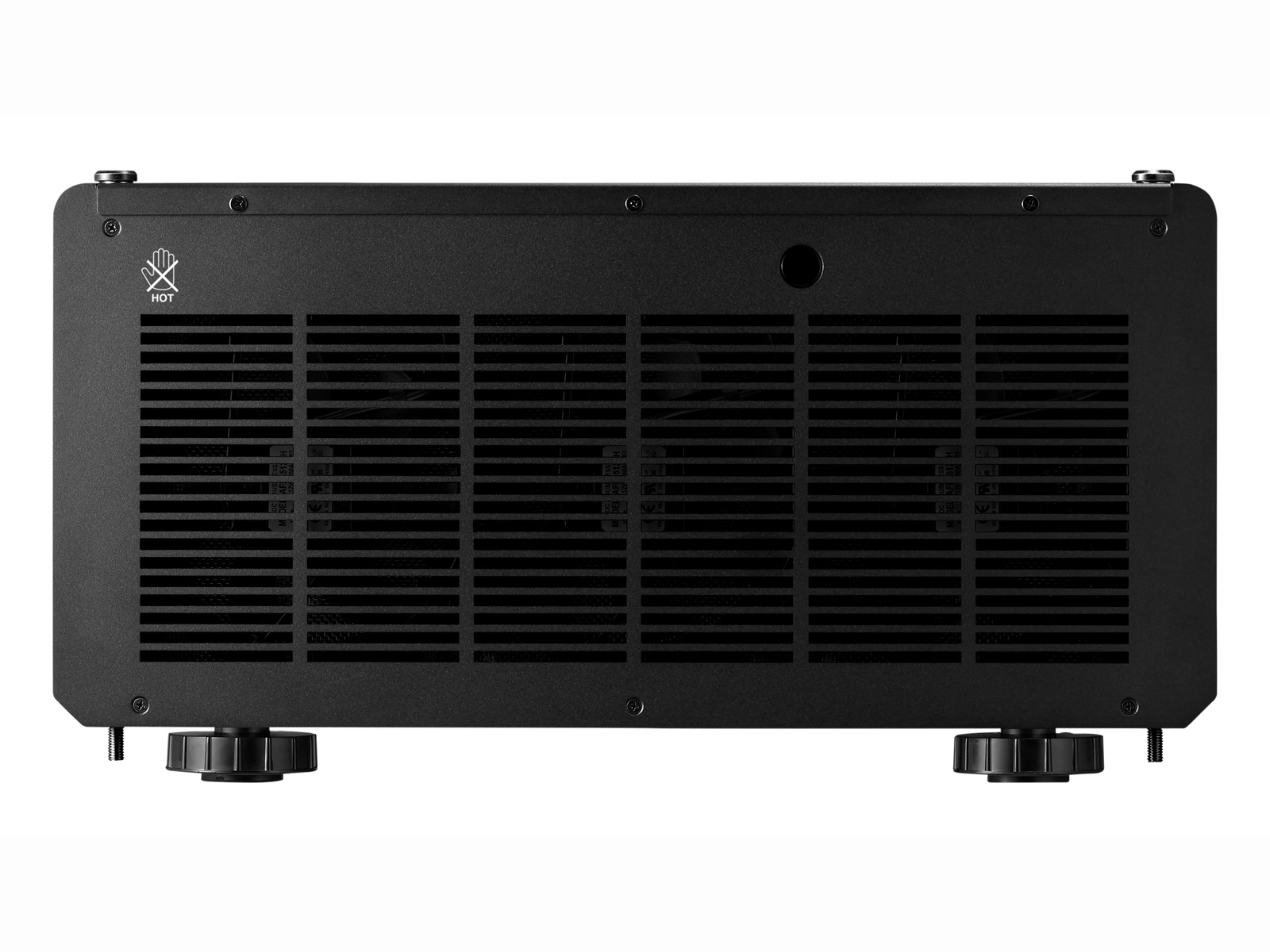

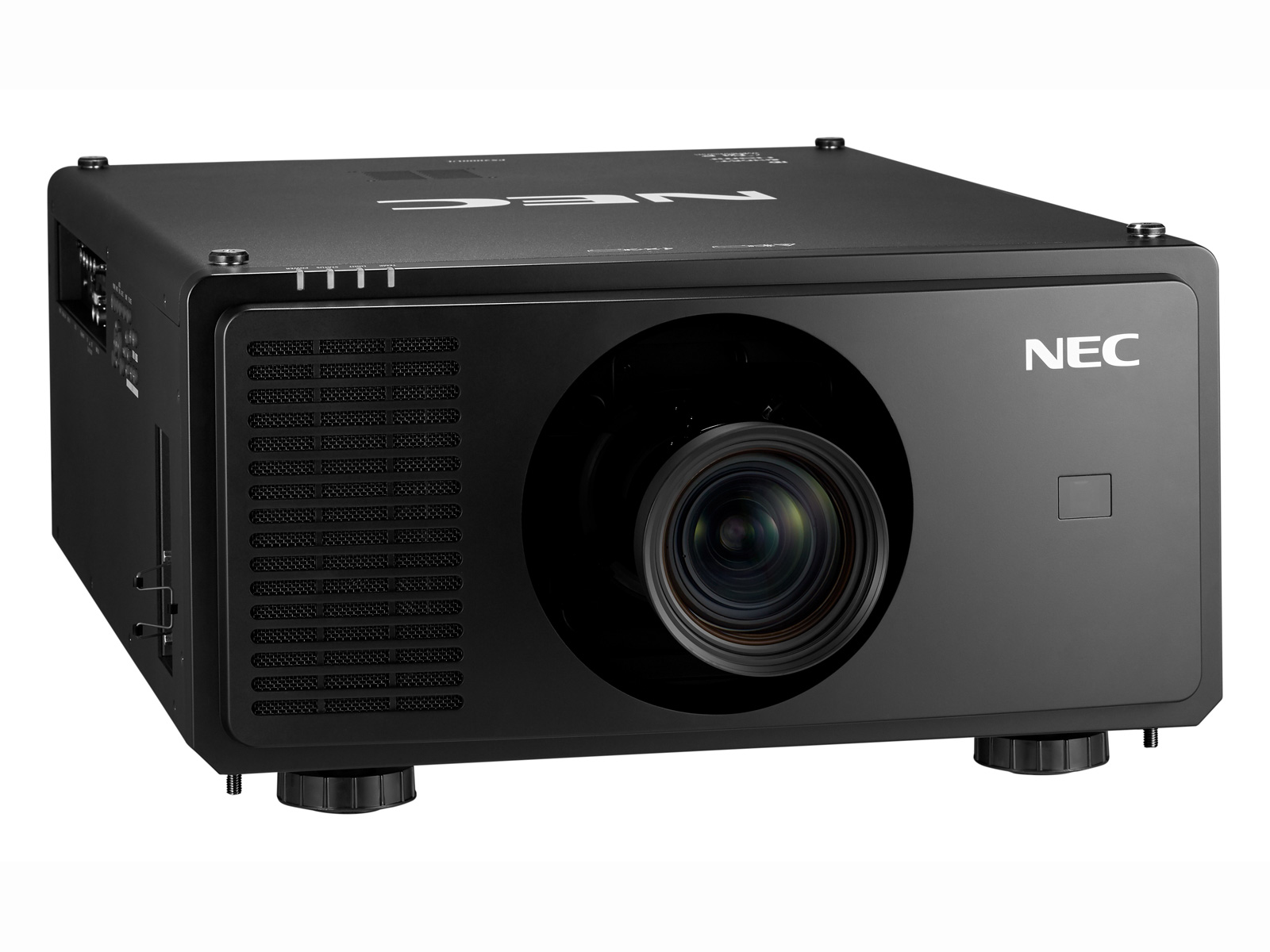

PX2000UL Large venue projector 20000 ANSI lumens DLP WUXGA (1920x1200) Black
Model PX2000ULPart no. 60004511EAN 5028695614000
68 specifications
- Noise45 dB
- TypeLarge venue projector
- Weight51 kg
- ColourBlack
- Projector brightness20000 ANSI lumens
- Service life of light source20000 h
Overview
- Noise
- 45 dB
- Type
- Large venue projector
- Weight
- 51 kg
- Colour
- Black
- Projector brightness
- 20000 ANSI lumens
- Service life of light source
- 20000 h
- Brand
- NEC
- Category
- Data Projector
- Model
- PX2000UL
- Part number
- 60004511
- EAN / UPC
- 5028695614000
- Also known as
- NEC PX2000UL Large venue projector 20000 ANSI lumens DLP WUXGA (1920x1200) Black
Specifications
68 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 20000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 1016 - 12700 mm (40 - 500") |
| Projection distance | 0.81 - 84 m |
| Projector brightness (economic mode) | 14400 ANSI lumens |
| Keystone correction, horizontal | -60 - 60° |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Auto |
| Zoom capability | Yes |
| Zoom type | Auto |
| Horizontal lens shift range | -15 - 15% |
| Vertical lens shift range | -50 - 50% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD | Yes |
| Supported graphics resolutions | 2560 x 1600 (WQXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

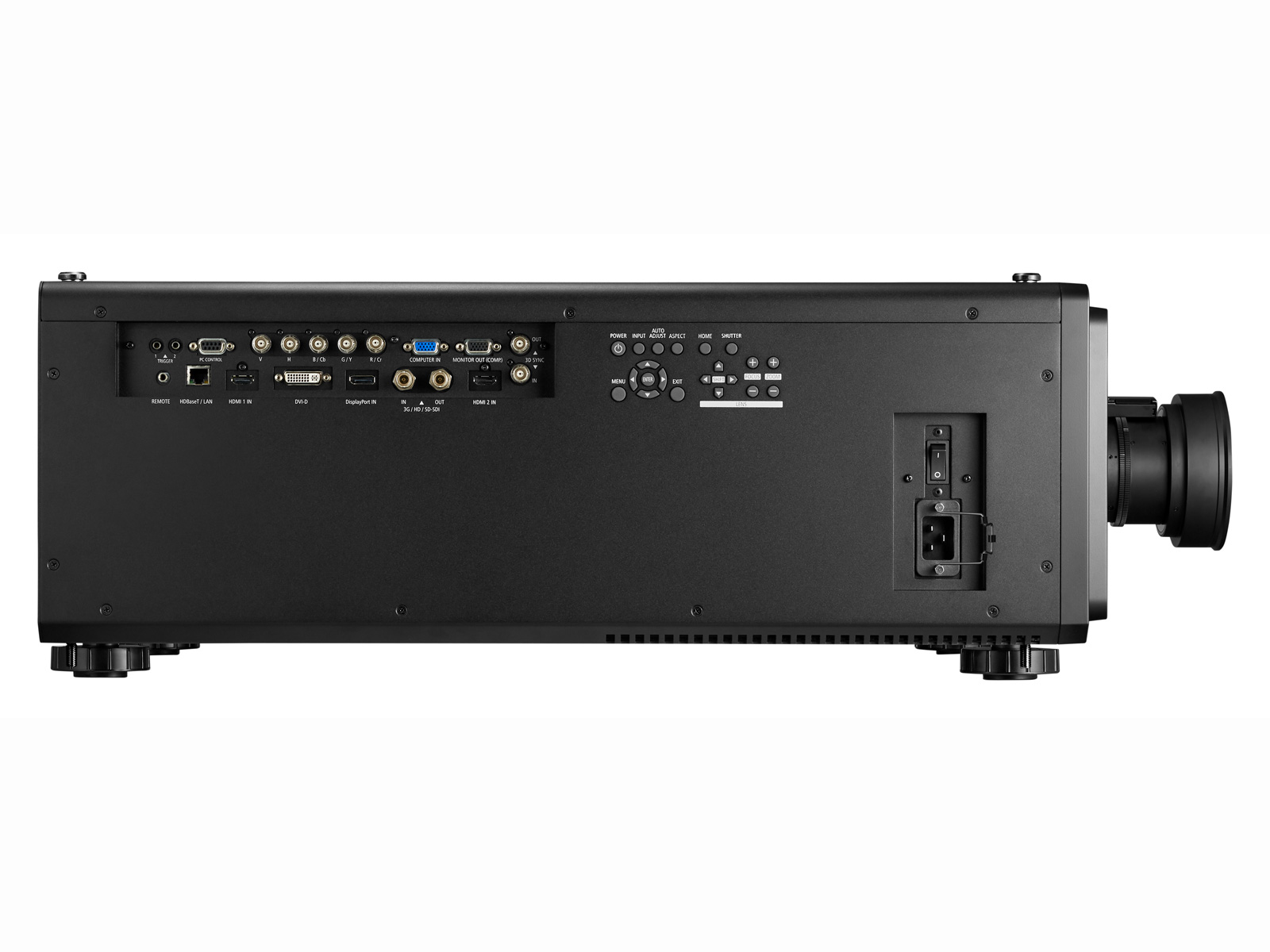

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| S-Video inputs quantity | 0 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 0 |
| Audio (L/R) in | 0 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| BNC input ports | 1 |
| Mobile High-Definition Link (MHL) | No |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 45 dB |
| Noise level (economic mode) | 43 dB |
| HDCP | Yes |
| Certification | CE; EAC; ErP |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Design
| Specification | Value |
|---|---|
| Product type | Large venue projector |
| Market positioning | Business |
| Product colour | Black |
| Placement | Desktop |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 1779 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 51 kg |
| Width | 530 mm |
| Depth | 745 mm |
| Height | 248 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Cables included | AC |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
