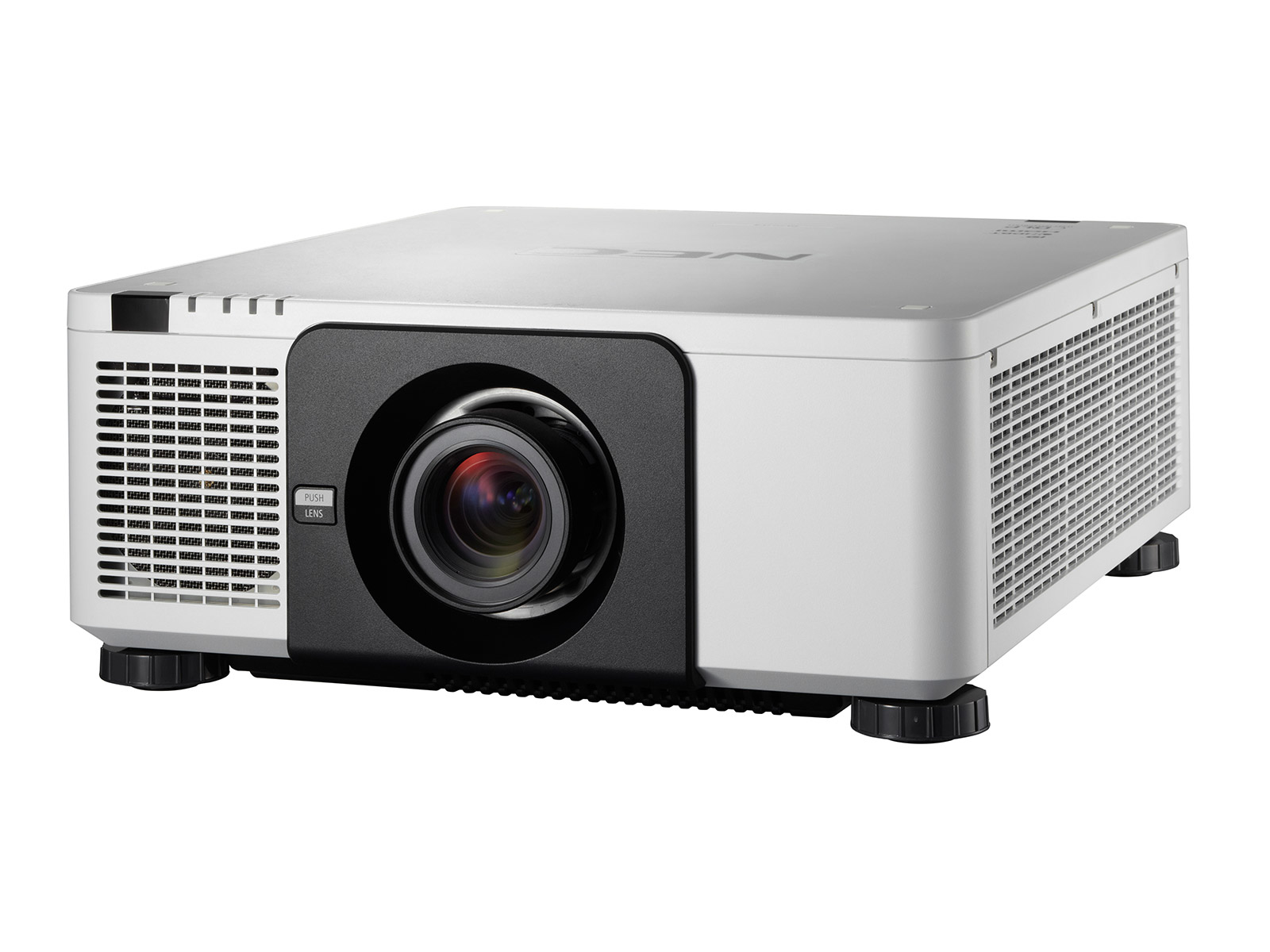

NEC PX1004UL Large venue projector 10000 ANSI lumens DLP WUXGA (1920x1200) White

NEC PX1004UL Large venue projector 10000 ANSI lumens DLP WUXGA (1920x1200) White

Model PX1004ULPart no. 40001152EAN 5706998661111

78 specifications
  • Noise40 dB
  • TypeLarge venue projector
  • Weight28 kg
  • ColourWhite
  • Projector brightness10000 ANSI lumens
  • Light source typeLaser
See all specifications

Overview

Noise
40 dB
Type
Large venue projector
Weight
28 kg
Colour
White
Projector brightness
10000 ANSI lumens
Light source type
Laser
Brand
NEC
Model
PX1004UL
Part numbers
40001152, 60004077, 60004235, NP-PX1004UL-B-18, NP-PX1004UL-BK, NP-PX1004UL-W-18 +2 more
EAN / UPC
5706998661111, 5028695612747, 528695612730, 5028695612730 +6 more
Also known as
NEC PX1004UL Large venue projector 10000 ANSI lumens DLP WUXGA (1920x1200) White

Specifications

78 specifications in 17 groups

Projector

Projector brightness10000 ANSI lumens
Projection technologyDLP
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)10000:1
Native aspect ratio16:10
Supported aspect ratios16:10
Screen size compatibility1016 - 12700 mm (40 - 500")
Projection distance0.86 - 118 m
Horizontal scan range15 - 153 kHz
Vertical scan range24 - 120 Hz
Keystone correction, horizontal-40 - 40°
Keystone correction, vertical-40 - 40°

Light source

Light source typeLaser
Service life of light source20000 h
Lamps quantity1 lamp(s)

Lens system

FocusAuto
Zoom capabilityYes
Zoom typeAuto
Horizontal lens shift range-0.15 - 0.15°
Vertical lens shift range-0.3 - 0.5°
Number of optional lenses supported8

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDYes
3D ReadyYes
Supported graphics resolutions640 x 480 (VGA), 1920 x 1200 (WUXGA), 2048 x 1080, 2560 x 1600 (WQXGA), 4096 x 2160
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in1
Composite video in0
DVI portNo
DisplayPorts quantity1
S-Video inputs quantity0
USB 2.0 ports quantity1
Audio (L/R) in1
Headphone outputs1
Microphone inYes
Serial interface typeRS-232
BNC input ports1
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level40 dB
Noise level (economic mode)35 dB
HDCPYes
On Screen Display (OSD)Yes
Password protectionYes
CertificationCE; ErP; RoHS; TUEV

Design

Product typeLarge venue projector
Product colourWhite
PlacementDesktop
LED indicatorsYes

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)1400 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Auto power offYes

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Weight28 kg
Width500 mm
Depth577 mm
Height211 mm

Packaging content

Remote control includedYes
Remote control typeIR
Cables includedAC
ManualYes
Quick start guideYes

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code85286200

Other features

Maximum digital resolution4096 x 2160 pixels
RS-232 ports1
