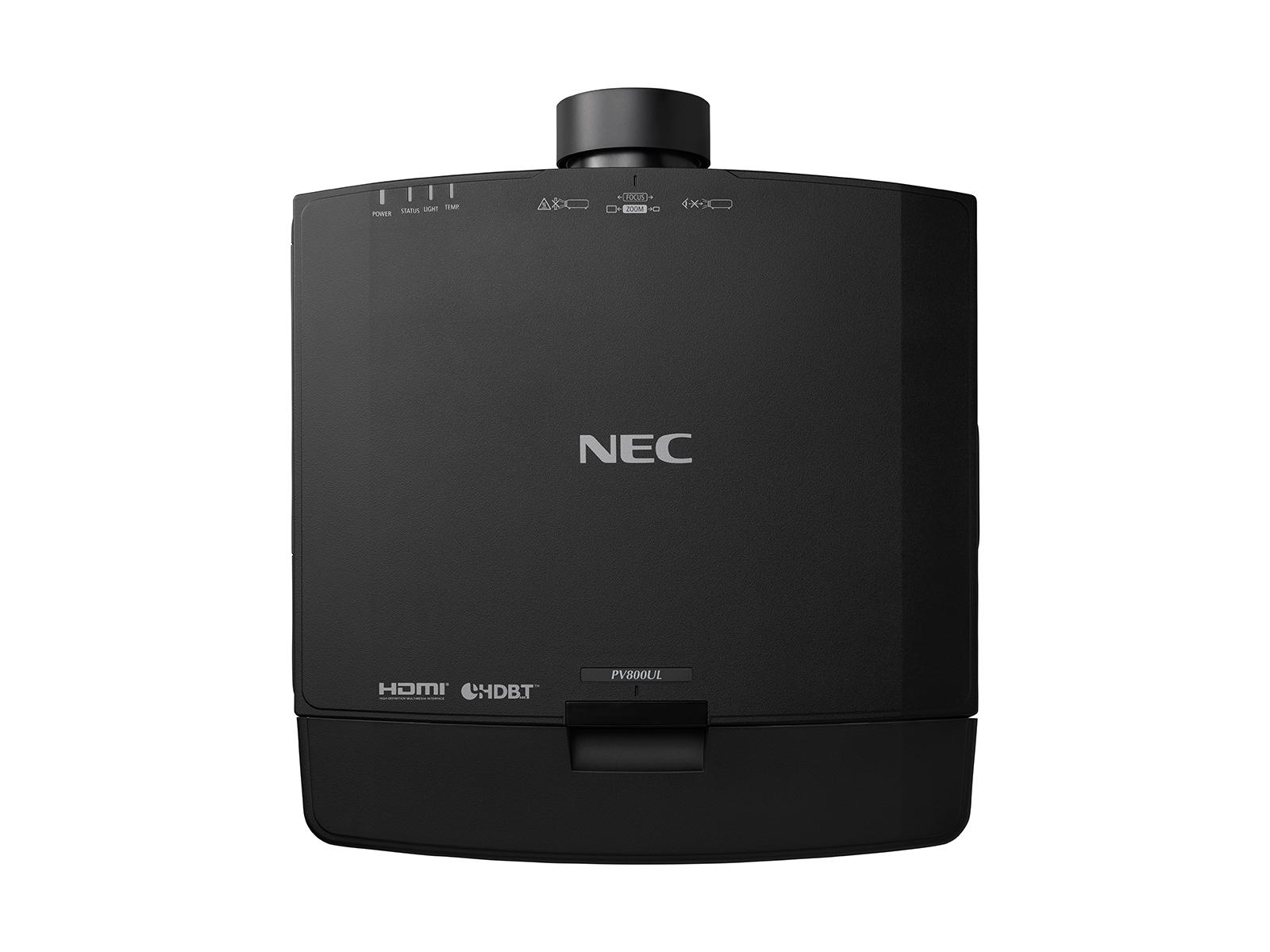

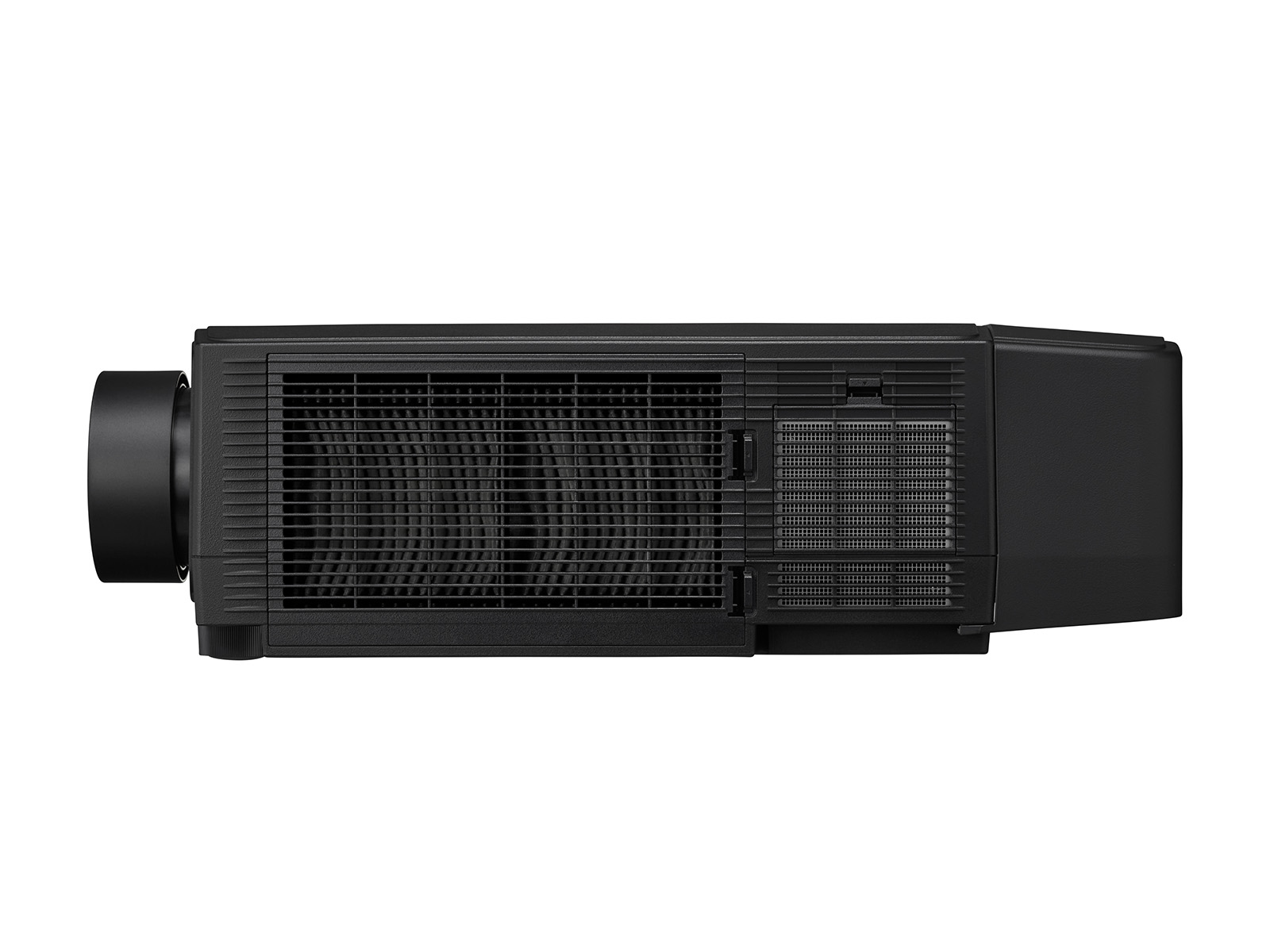

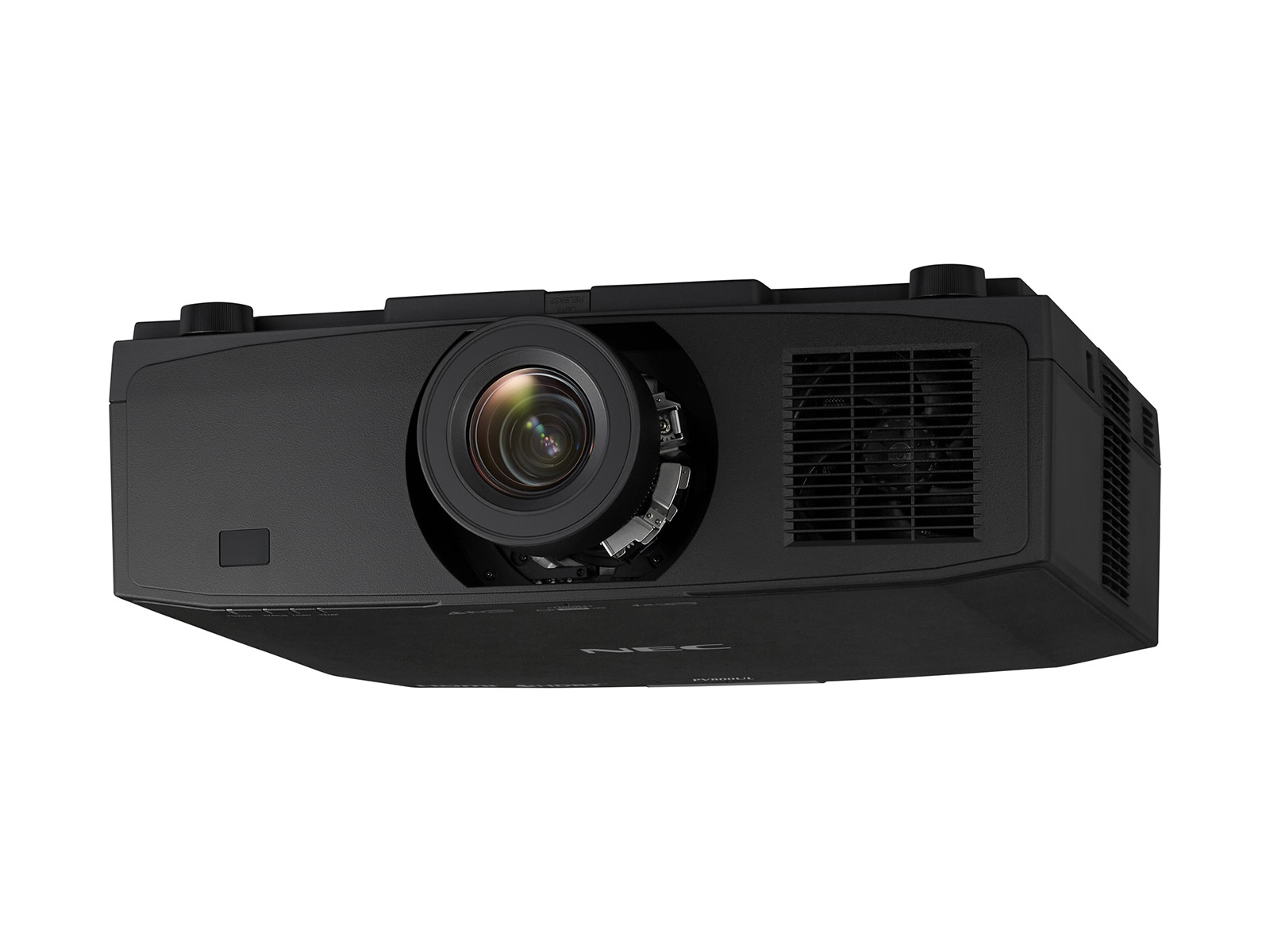

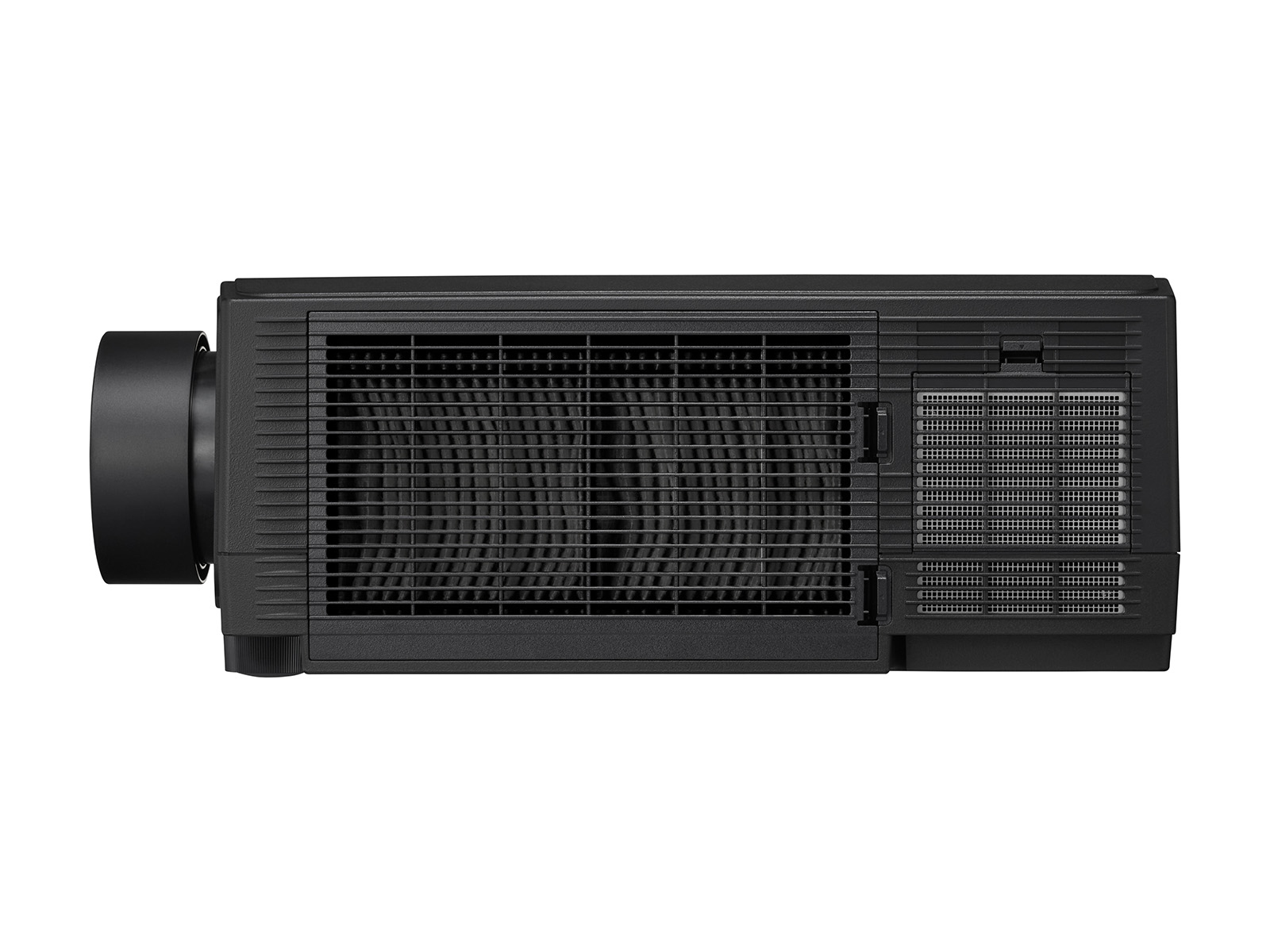

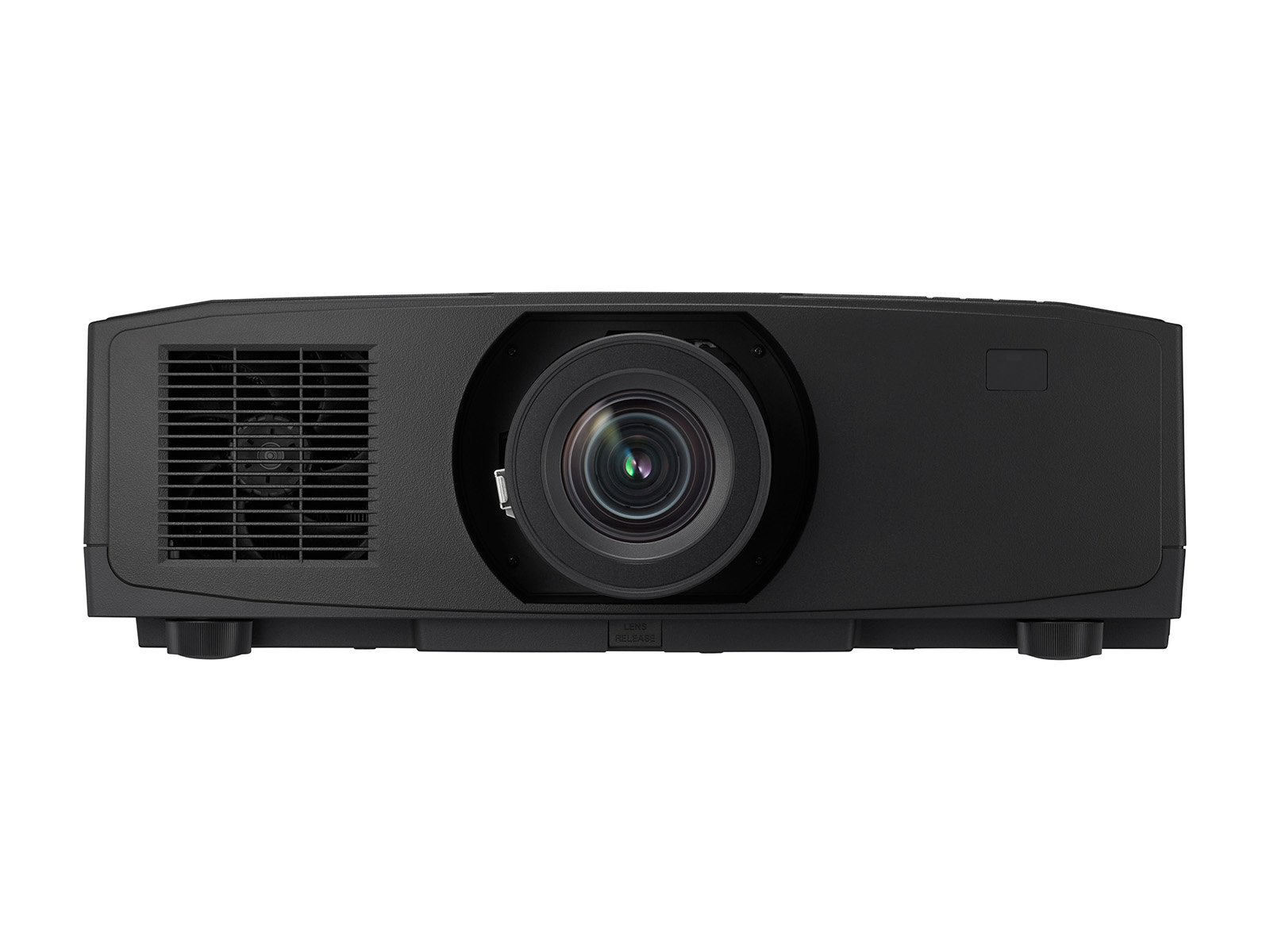

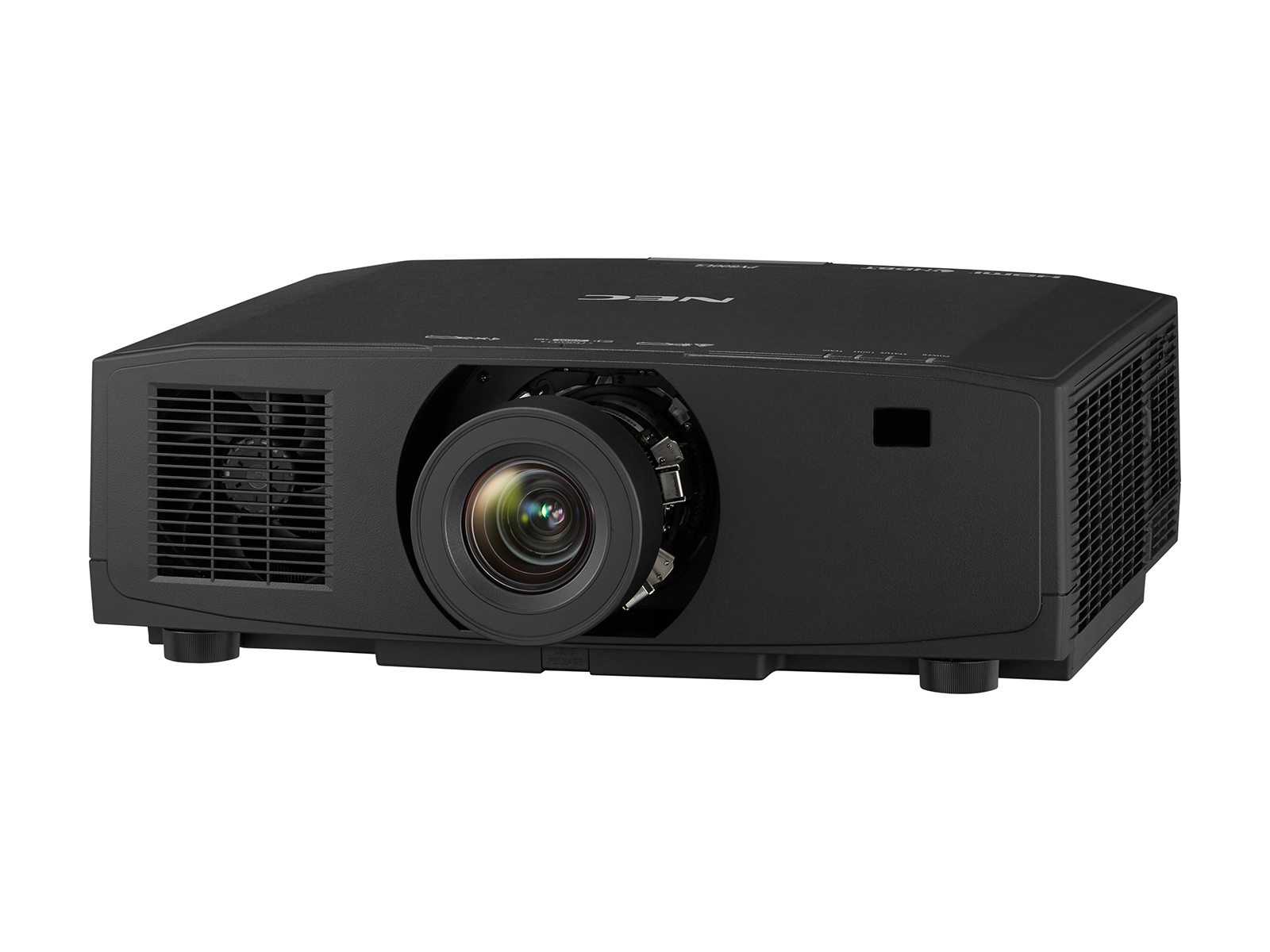

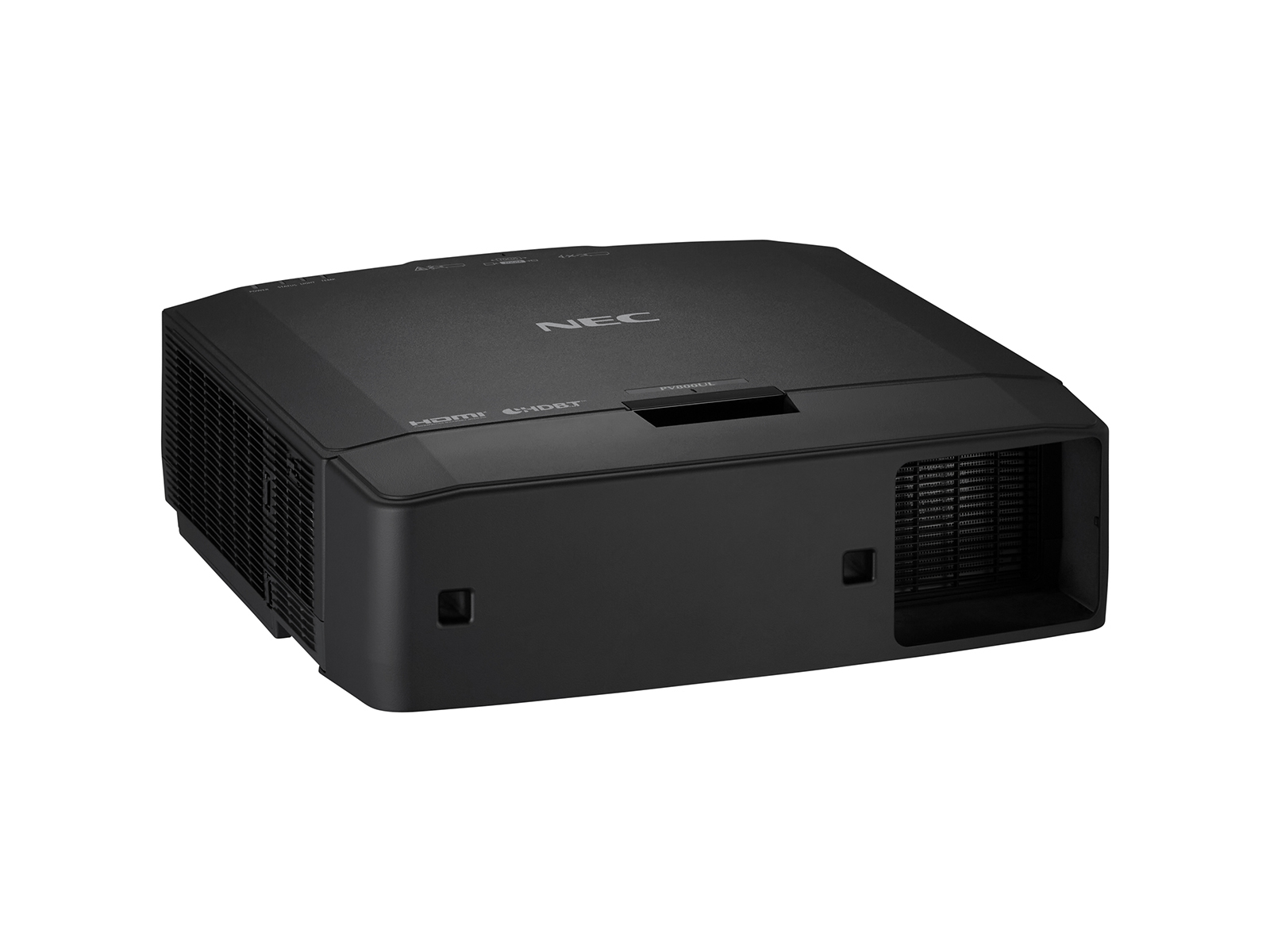

PV800UL Standard throw projector 8000 ANSI lumens 3LCD WUXGA (1920x1200) Black
Model PV800ULPart no. 60005601EAN 5028695614796
71 specifications
- Noise42 dB
- TypeStandard throw projector
- Weight11.2 kg
- ColourBlack
- Projector brightness8000 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 42 dB
- Type
- Standard throw projector
- Weight
- 11.2 kg
- Colour
- Black
- Projector brightness
- 8000 ANSI lumens
- Light source type
- Lamp
- Brand
- NEC
- Category
- Data Projector
- Model
- PV800UL
- Part numbers
- 60005601, 60005578
- EAN / UPC
- 5028695614796, 5028695614789
- Also known as
- NEC PV800UL Standard throw projector 8000 ANSI lumens 3LCD WUXGA (1920x1200) Black
Specifications
71 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 8000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 16:10 |
| Smart projector | No |
| Screen size compatibility | 1016 - 12700 mm (40 - 500") |
| Projection distance | 0.7 - 50.9 m |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Vertical synchronization (max) | 120000 kHz |
| Vertical synchronization (min) | 50000 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 20000 h |
| Light source brightness | 8300 lm |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Zoom capability | Yes |
| Zoom type | Manual |
| Horizontal lens shift range | -20 - 20% |
| Vertical lens shift range | -50 - 10% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | No |
| 3D | No |
| Supported graphics resolutions | 1280 x 768 (WXGA), 1920 x 1200 (WUXGA), 3840 x 2160 |

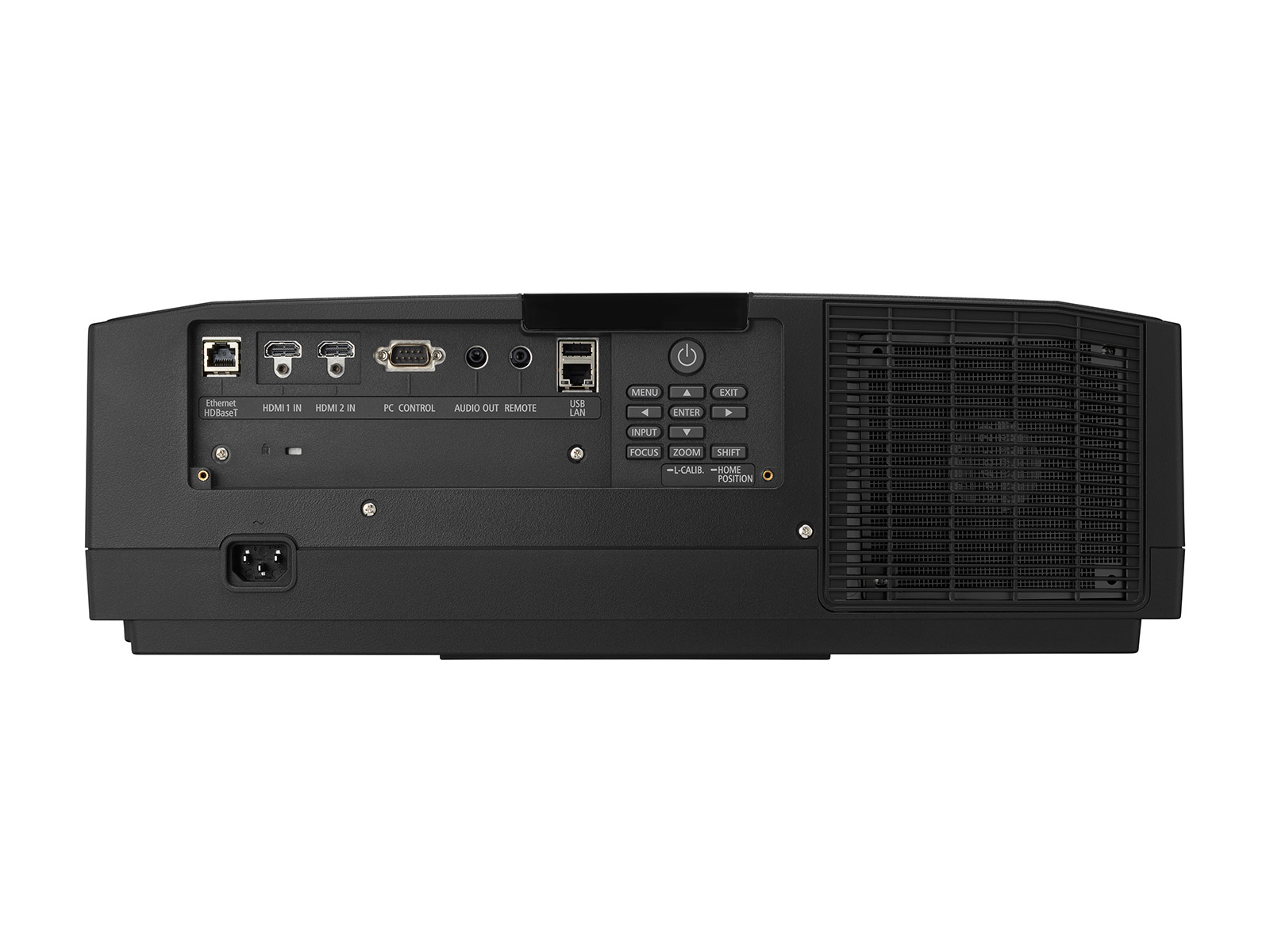

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 4 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| Audio (L/R) in | 0 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| PC in (D-Sub) | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 42 dB |
| HDCP | Yes |
| Certification | CE; EAC; ErP; RoHS; TUEV Type Approved |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 467 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 11.2 kg |
| Width | 499 mm |
| Depth | 407 mm |
| Height | 164 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Cables included | Power |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
