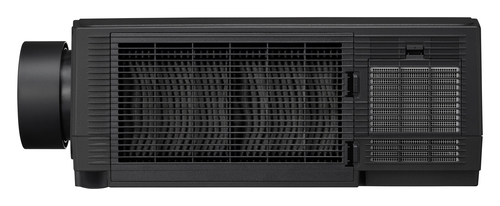

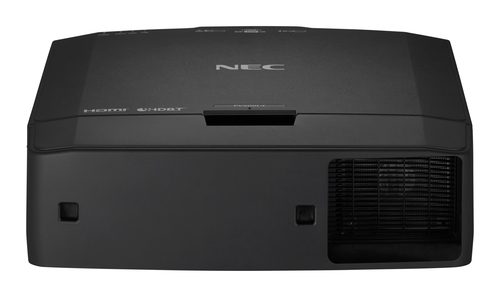

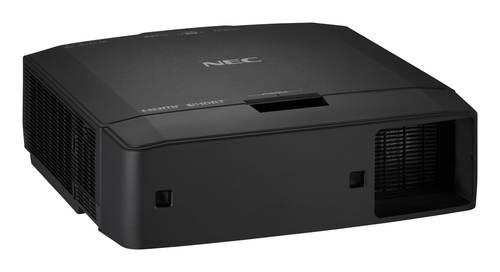

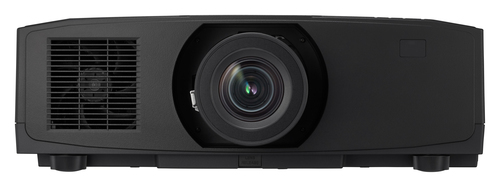

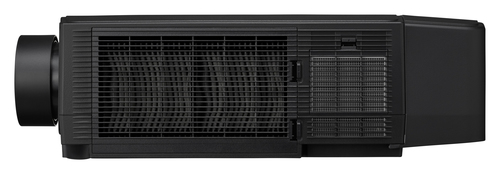

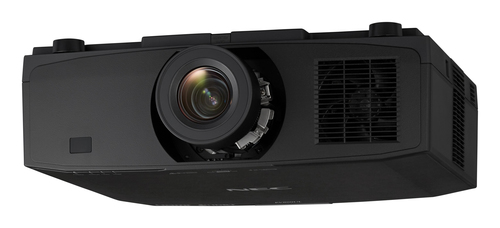

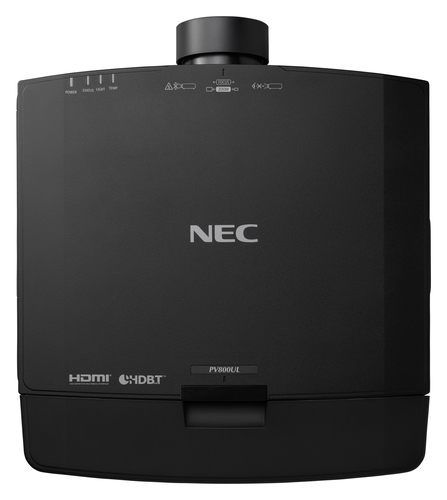

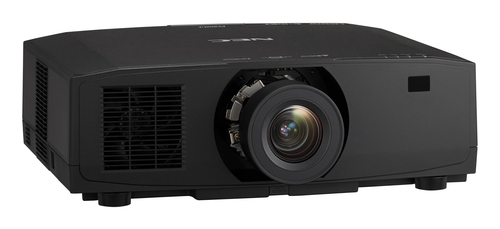

PV710UL-B Standard throw projector 7100 ANSI lumens 3LCD WUXGA (1920x1200) Black
Model PV710UL-BPart no. 40001625EAN 5028695614987
46 specifications
- TypeStandard throw projector
- Weight11.2 kg
- ColourBlack
- Projector brightness7100 ANSI lumens
- Light source typeLaser
- FocusAuto/Manual
Overview
- Type
- Standard throw projector
- Weight
- 11.2 kg
- Colour
- Black
- Projector brightness
- 7100 ANSI lumens
- Light source type
- Laser
- Focus
- Auto/Manual
- Brand
- NEC
- Category
- Data Projector
- Model
- PV710UL-B
- Part number
- 40001625
- EAN / UPC
- 5028695614987
- Also known as
- NEC PV710UL-B Standard throw projector 7100 ANSI lumens 3LCD WUXGA (1920x1200) Black
Specifications
46 specifications in 12 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 7100 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 1016 - 12700 mm (40 - 500") |
| Projection distance | 0.7 - 50.9 m |
| Vertical scan range | 50 - 120 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Auto/Manual |
| Zoom capability | Yes |
| Zoom type | Auto/Manual |
| Horizontal lens shift range | -20 - 20% |
| Vertical lens shift range | -50 - 10% |
Video
| Specification | Value |
|---|---|
| Supported graphics resolutions | 1280 x 768 (WXGA), 1280 x 768, 1920 x 1200 (WUXGA), 3840 x 2160 |
| Supported video modes | 480p, 576p, 720p, 1080i, 1080p |

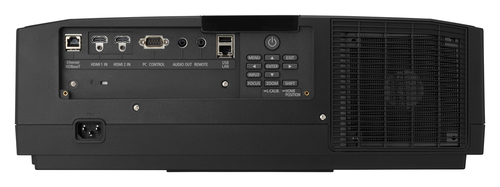

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Headphone outputs | 1 |
| Serial interface type | RJ-45, RS-232 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Certification | CE; EAC; ErP; RoHS; TUEV Type Approved |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Portable |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 434 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 11.2 kg |
| Width | 499 mm |
| Depth | 407 mm |
| Height | 164 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Cables included | AC |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
