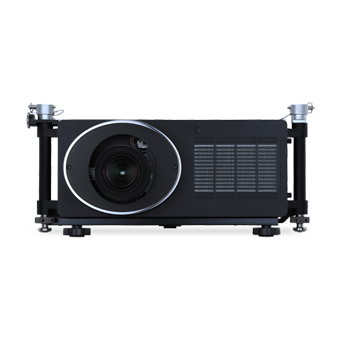

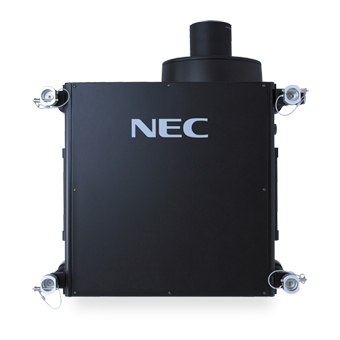

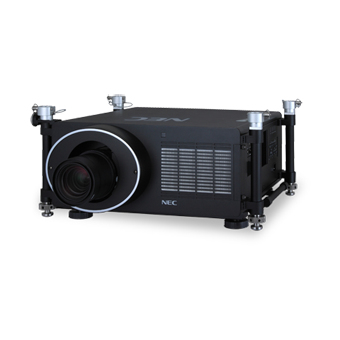

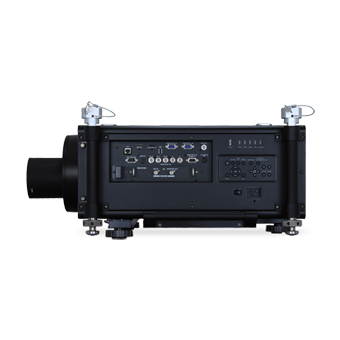

NEC PH1400U Large venue projector 135000 ANSI lumens DLP WUXGA (1920x1200) 3D Black

NEC PH1400U Large venue projector 135000 ANSI lumens DLP WUXGA (1920x1200) 3D Black

Model PH1400UPart no. 60003442EAN 5028695610378

84 specifications
  • Noise45 dB
  • TypeLarge venue projector
  • Weight39 kg
  • ColourBlack
  • Projector brightness135000 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
45 dB
Type
Large venue projector
Weight
39 kg
Colour
Black
Projector brightness
135000 ANSI lumens
Light source type
Lamp
Brand
NEC
Model
PH1400U
Part number
60003442
EAN / UPC
5028695610378
Also known as
NEC PH1400U Large venue projector 135000 ANSI lumens DLP WUXGA (1920x1200) 3D Black

Specifications

84 specifications in 17 groups

Projector

Projector brightness135000 ANSI lumens
Projection technologyDLP
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)2000:1
Native aspect ratio16:9
Supported aspect ratios16:10, 16:9
Screen size compatibility2032 - 12700 mm (80 - 500")
Projection distance1.1 - 74 m
Horizontal scan range15 - 108 kHz
Vertical scan range48 - 120 Hz
Keystone correction, horizontal-40 - 40°
Keystone correction, vertical-30 - 30°
Matrix size2.44 cm (0.96")
Matrix typeDMD

Light source

Light source typeLamp
Service life of light source2500 h
Service life of light source (economic mode)3000 h
Lamp power465 W
Lamp power (economic mode)372 W
Lamps quantity2 lamp(s)

Lens system

FocusAuto
Zoom capabilityYes
Zoom typeAuto
Horizontal lens shift range-20 - 20%
Vertical lens shift range-40 - 50%
Number of optional lenses supported6

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDYes
HD-ReadyYes
3DYes
Supported graphics resolutions1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity1
Component video (YPbPr/YCbCr) in1
Composite video in0
DVI portYes
DisplayPorts quantity1
S-Video inputs quantity1
USB 2.0 ports quantity2
Audio (L/R) in0
Headphone outputs1
Serial interface typeRS-232
BNC input ports1

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level45 dB
Noise level (economic mode)39 dB
HDCPYes
On Screen Display (OSD)Yes
Composite syncYes
Separate H/V syncYes
Sync-on-green (SOG)Yes
Password protectionYes
CertificationCE; Er; TÜV GS

Multimedia

Built-in speaker(s)No

Design

Product typeLarge venue projector
Product colourBlack
PlacementDesktop, Ceiling
LED indicatorsYes

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)1215 W
Power consumption (standby)90 W
Power consumption (PowerSave)0.5 W
Power consumption (economy mode)985 W
AC input voltage200 - 240 V

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Weight39 kg
Width578 mm
Depth235 mm
Height558 mm

Packaging content

Remote control includedYes
Remote control typeIR
Batteries includedYes
Cables includedAC
ManualYes

Technical details

Compliance certificatesRoHS

Other features

Maximum digital resolution1920 x 1200 pixels
RS-232 ports1
