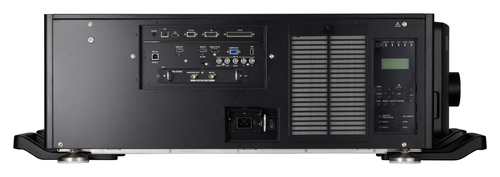

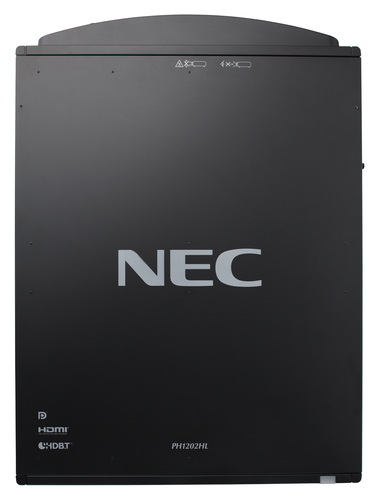

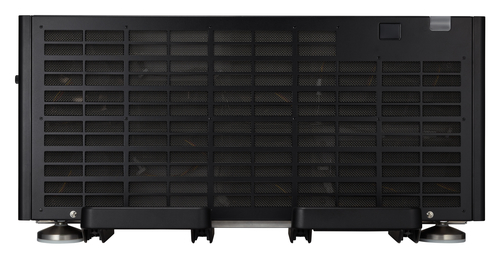

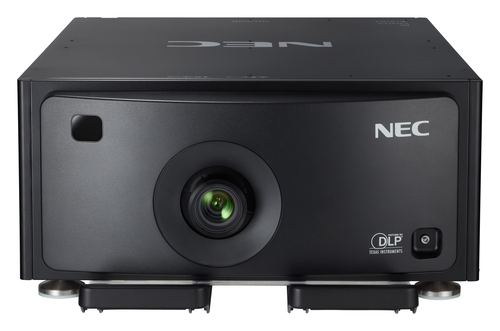

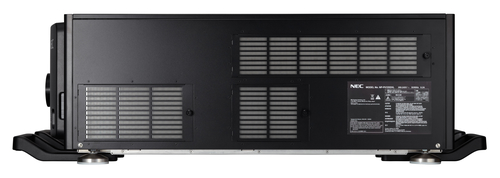

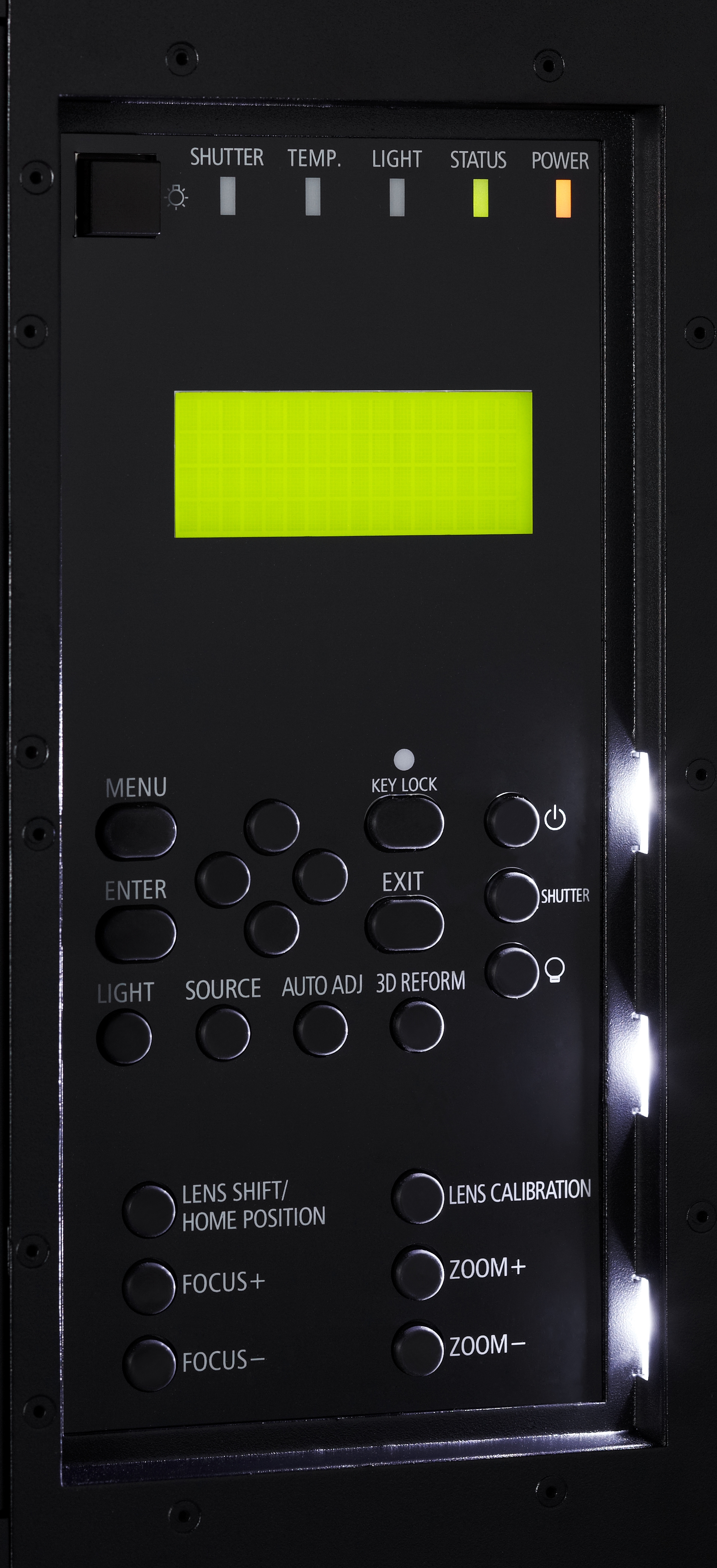

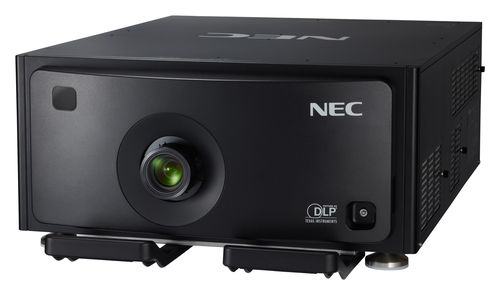

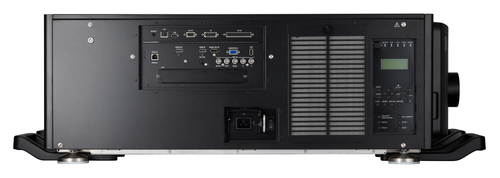

NEC PH1202HL Large venue projector 12000 ANSI lumens DLP 1080p (1920x1080) 3D Black

NEC PH1202HL Large venue projector 12000 ANSI lumens DLP 1080p (1920x1080) 3D Black

Model PH1202HLPart no. 60003902EAN 5028695611795

67 specifications
  • Noise47 dB
  • TypeLarge venue projector
  • Weight68 kg
  • ColourBlack
  • Projector brightness12000 ANSI lumens
  • Light source typeLaser
See all specifications

Overview

Noise
47 dB
Type
Large venue projector
Weight
68 kg
Colour
Black
Projector brightness
12000 ANSI lumens
Light source type
Laser
Brand
NEC
Model
PH1202HL
Part number
60003902
EAN / UPC
5028695611795
Also known as
NEC PH1202HL Large venue projector 12000 ANSI lumens DLP 1080p (1920x1080) 3D Black

Specifications

67 specifications in 15 groups

Projector

Projector brightness12000 ANSI lumens
Projection technologyDLP
Projector native resolution1080p (1920x1080)
Contrast ratio (typical)10000:1
Native aspect ratio16:9
Supported aspect ratios16:9
Screen size compatibility1524 - 15240 mm (60 - 600")
Projection distance1.4 - 74.7 m
Horizontal scan range15 - 100 kHz
Vertical scan range24 - 120 Hz
Keystone correction, horizontal-40 - 40°
Keystone correction, vertical-40 - 40°

Light source

Light source typeLaser
Service life of light source20000 h
Service life of light source (economic mode)30000 h

Lens system

FocusManual
Zoom capabilityYes
Number of optional lenses supported6

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDYes
3DYes
Supported graphics resolutions2048 x 1080, 4096 x 2160, 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 640 x 480 (VGA)
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720i, 720p

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI connector typeFull-size
DVI portNo
DisplayPorts quantity1
S-Video inputs quantity1
HDBaseT portYes
USB 2.0 ports quantity1
Serial interface typeRS-232
PC in (D-Sub)Yes
Remote (IR) output1
USB connector typeUSB Type-A
BNC input ports5
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1

Storage

Card reader integratedNo

Features

Noise level47 dB
Noise level (economic mode)43 dB
HDCPYes
On Screen Display (OSD)Yes
Password protectionYes
CertificationCE; ErP; TÜV GS

Design

Product typeLarge venue projector
Product colourBlack
PlacementDesktop

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)1392 W
Power consumption (economy mode)752 W
AC input voltage200 - 240 V
AC input frequency50 - 60 Hz

Weight & dimensions

Weight68 kg
Width680 mm
Depth860 mm
Height333 mm

Packaging content

Remote control includedYes
Remote control typeIR
Cables includedAC
ManualYes
Quick start guideYes

Technical details

Compliance certificatesRoHS

Other features

Maximum digital resolution4096 x 2160 pixels
RS-232 ports1
