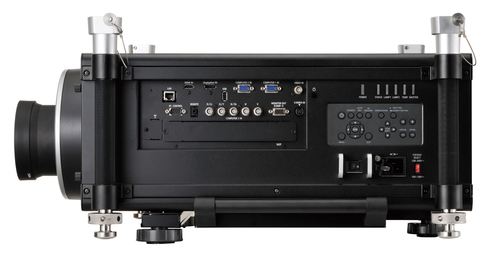

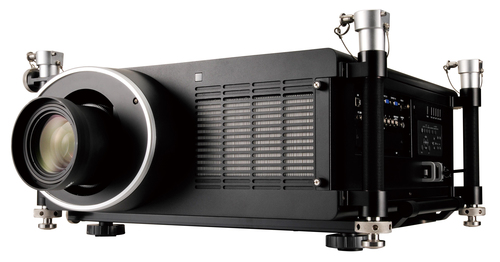

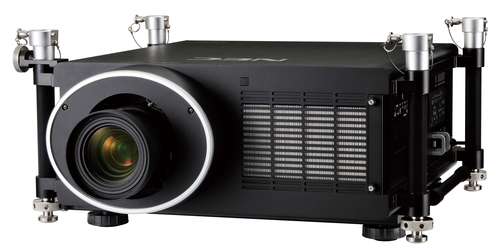

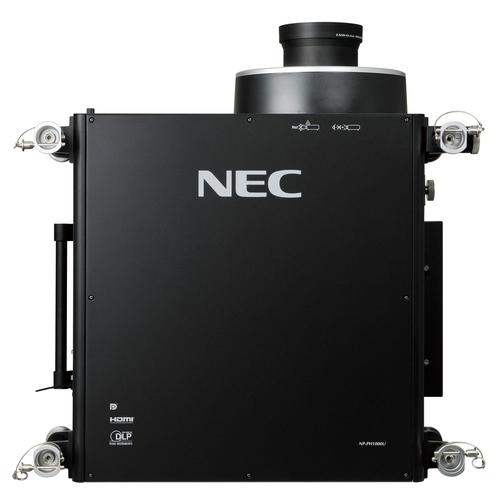

NEC PH1000U 11000 ANSI lumens DLP WUXGA (1920x1200) Black

NEC PH1000U 11000 ANSI lumens DLP WUXGA (1920x1200) Black

Model PH1000UPart no. 60003275EAN 5028695609358

81 specifications
  • ConnectivityWired
  • Noise45 dB
  • Weight39 kg
  • ColourBlack
  • Projector brightness11000 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Connectivity
Wired
Noise
45 dB
Weight
39 kg
Colour
Black
Projector brightness
11000 ANSI lumens
Light source type
Lamp
Brand
NEC
Model
PH1000U
Part number
60003275
EAN / UPC
5028695609358
Also known as
NEC PH1000U 11000 ANSI lumens DLP WUXGA (1920x1200) Black

Specifications

81 specifications in 17 groups

Projector

Projector brightness11000 ANSI lumens
Projection technologyDLP
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)2000:1
Native aspect ratio16:10
Supported aspect ratios16:10, 16:9
Screen size compatibility2032 - 12700 mm (80 - 500")
Projection distance1.1 - 74 m
Horizontal scan range15 - 108 kHz
Vertical scan range48 - 120 Hz
Keystone correction, horizontal-40 - 40°
Keystone correction, vertical-30 - 30°
Matrix size2.44 cm (0.96")

Light source

Light source typeLamp
Service life of light source2000 h
Service life of light source (economic mode)2500 h
Lamp typeAC HID
Lamp power400 W
Lamps quantity2 lamp(s)

Lens system

Zoom capabilityYes
Horizontal lens shift range-0.2 - 0.2°
Vertical lens shift range-0.4 - 0.55°
Number of optional lenses supported6

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDYes
HD-ReadyYes
3D ReadyYes
Supported graphics resolutions720 x 480, 720 x 576, 832 x 624, 1152 x 870, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes1080i, 480p, 720p

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity1
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in1
Composite video in1
DVI portNo
DisplayPorts quantity1
S-Video inputs quantity1
USB 2.0 ports quantity2
Serial interface typeRS-232
USB connector typeUSB Type-A
BNC input ports5
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Features

Noise level45 dB
HDCPYes
On Screen Display (OSD)Yes
Air filterYes
Plug and PlayYes
CertificationCE; ErP; TÜV GS

Multimedia

TV tuner integratedNo
Image formats supportedJPG
Document formats supportedPDF

Design

Product colourBlack
PlacementCeiling

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)1050 W
Power consumption (standby)90 W
Power consumption (PowerSave)0.5 W
Power consumption (economy mode)840 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Software

Windows operating systems supportedWindows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64

Weight & dimensions

Weight39 kg
Width558 mm
Depth578 mm
Height235 mm

Packaging content

Remote control includedYes
Remote control typeIR
ManualYes
Quick start guideYes

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code85286200

Other features

Aspect ratio16:10
Connectivity technologyWired
Maximum analog resolution1920 x 1200 pixels
Maximum digital resolution1920 x 1080 pixels
RS-232 ports1
USB mass storageYes
