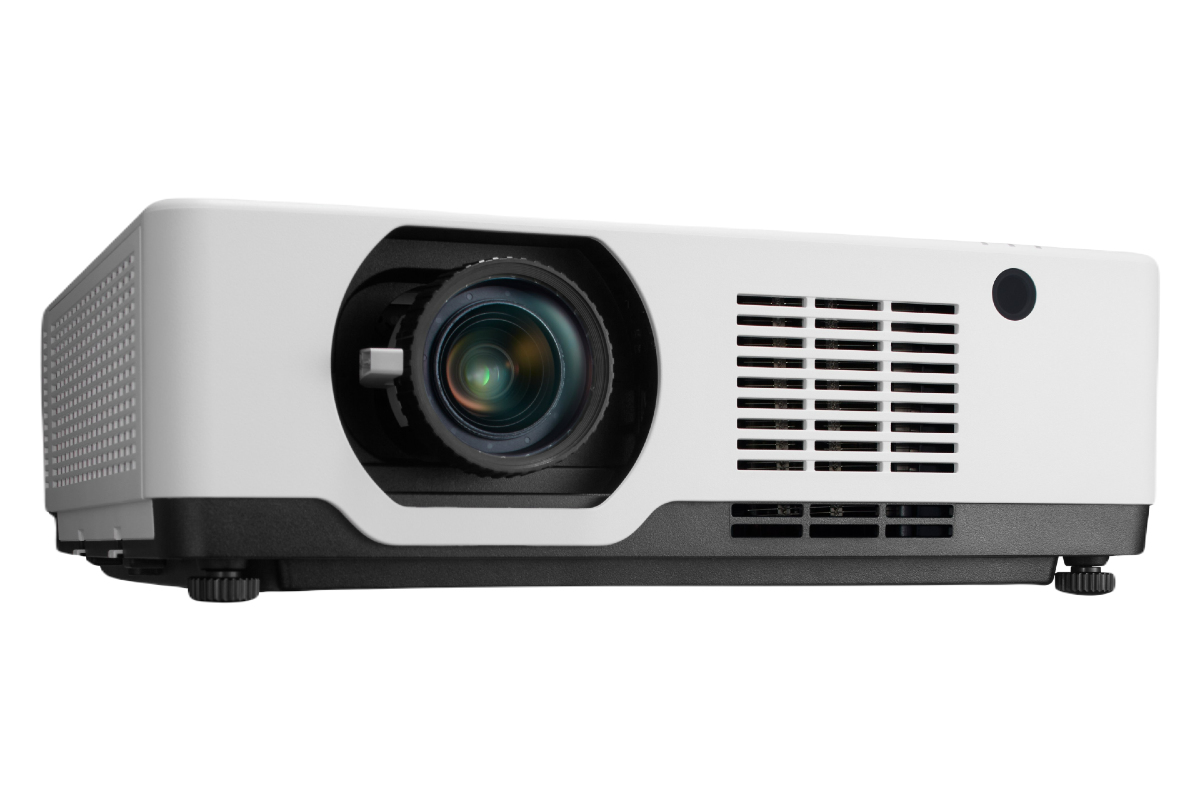

PE506ULG data projector Large venue projector 5200 ANSI lumens 3LCD WUXGA (1920x1200) Black, White
Model PE506ULG
56 specifications
- Noise27 dB
- TypeLarge venue projector
- Weight7.95 kg
- ColourBlack, White
- Projector brightness5200 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 27 dB
- Type
- Large venue projector
- Weight
- 7.95 kg
- Colour
- Black, White
- Projector brightness
- 5200 ANSI lumens
- Light source type
- Laser
- Brand
- NEC
- Category
- Data Projector
- Model
- PE506ULG
- Part number
- PE506ULG
- Also known as
- NEC PE506ULG data projector Large venue projector 5200 ANSI lumens 3LCD WUXGA (1920x1200) Black, White
Specifications
56 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5200 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:10 |
| Projection distance | 0.8 - 13.5 m |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Zoom capability | Yes |
| Zoom type | Manual |
| Throw ratio | 1.22 - 1.98:1 |
| Horizontal lens shift range | -29 - 29% |
| Vertical lens shift range | 0 - 60% |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial interface type | RJ-45, RS-232 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 27 dB |
| Noise level (economic mode) | 37 dB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 16 W |
Design
| Specification | Value |
|---|---|
| Product type | Large venue projector |
| Market positioning | Presentation |
| Product colour | Black, White |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 352 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 228 W |
| AC input voltage | 120 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 88% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7.95 kg |
| Width | 405 mm |
| Depth | 373 mm |
| Height | 137 mm |
| Package width | 510 mm |
| Package depth | 260 mm |
| Package height | 500 mm |
| Package weight | 9.95 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Batteries included | Yes |
| Manual | Yes |
