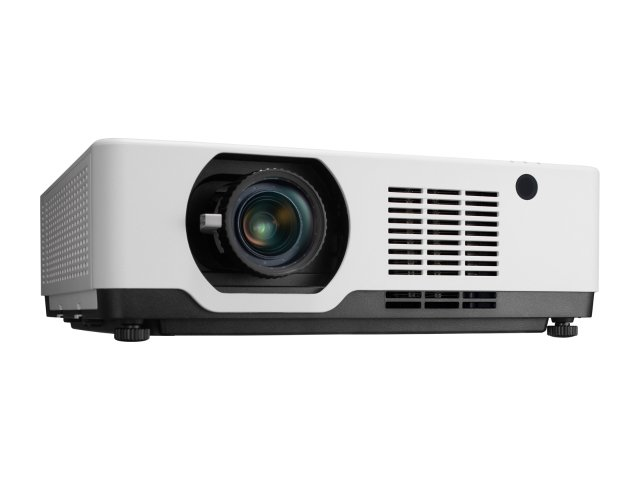

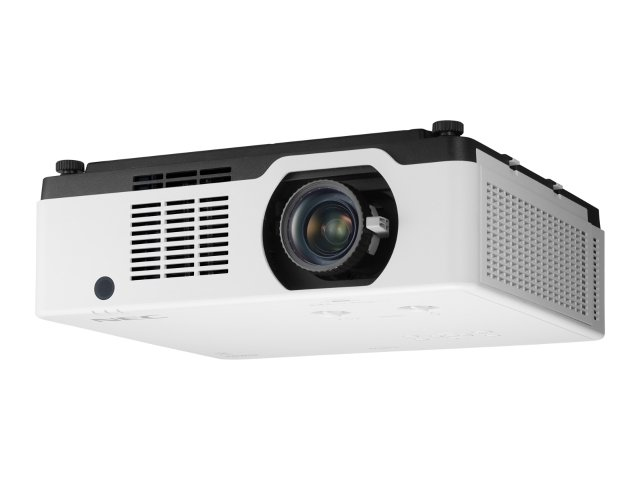

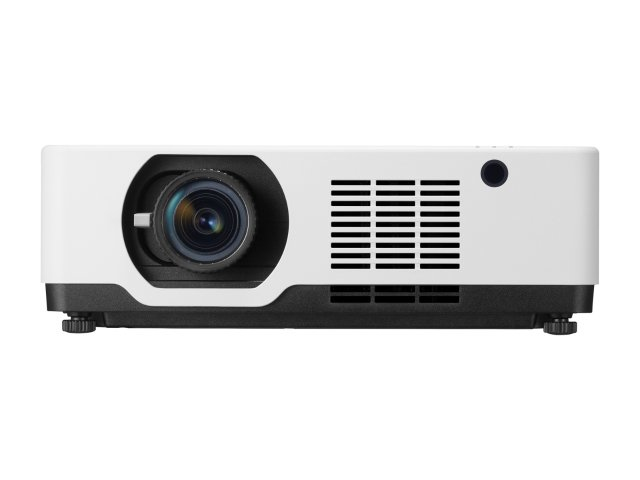

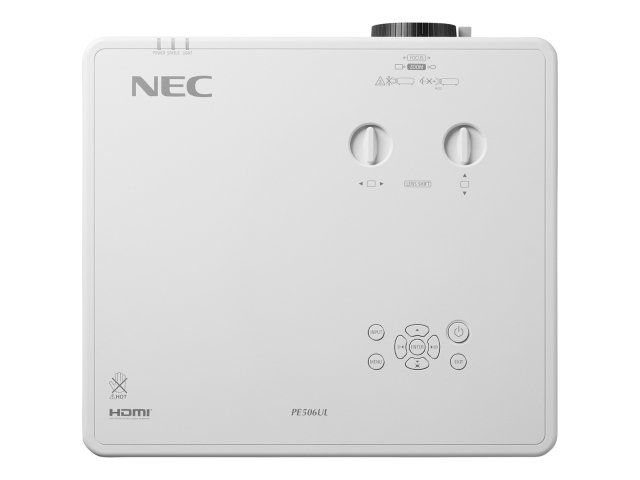

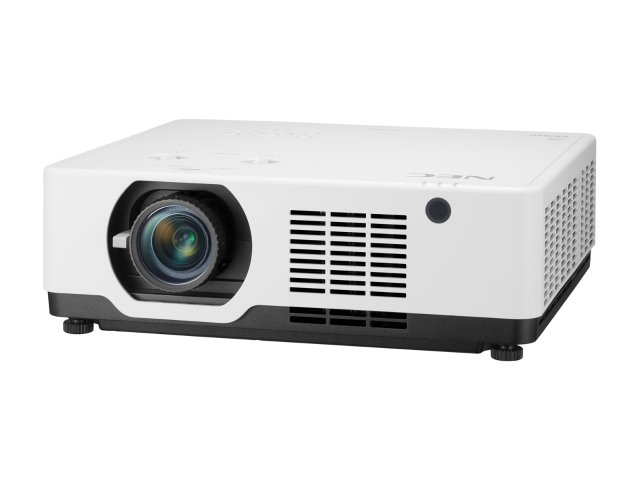

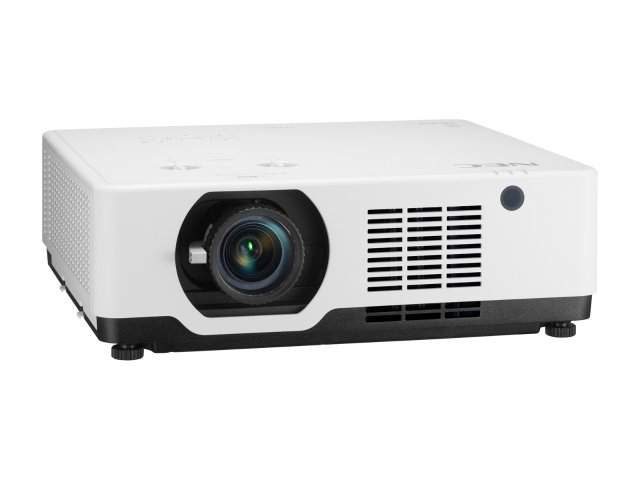

PE506UL Standard throw projector 5200 ANSI lumens LCD WUXGA (1920x1200) White
Model PE506ULPart no. 60005463EAN 5028695614628
49 specifications
- Noise37 dB
- TypeStandard throw projector
- Weight7.95 kg
- ColourWhite
- Projector brightness5200 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 37 dB
- Type
- Standard throw projector
- Weight
- 7.95 kg
- Colour
- White
- Projector brightness
- 5200 ANSI lumens
- Light source type
- Laser
- Brand
- NEC
- Category
- Data Projector
- Model
- PE506UL
- Part number
- 60005463
- EAN / UPC
- 5028695614628
- Also known as
- NEC PE506UL Standard throw projector 5200 ANSI lumens LCD WUXGA (1920x1200) White
Specifications
49 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5200 ANSI lumens |
| Projection technology | LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:10 |
| Projection distance | 0.75 - 13 m |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Zoom capability | Yes |
| Horizontal lens shift range | -29 - 29% |
| Vertical lens shift range | 0 - 60% |

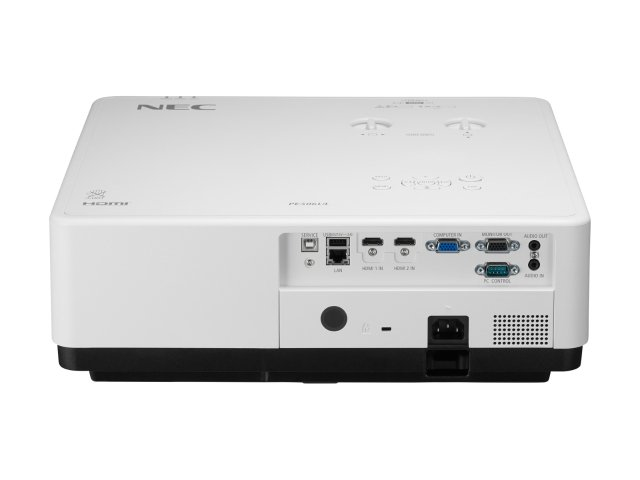

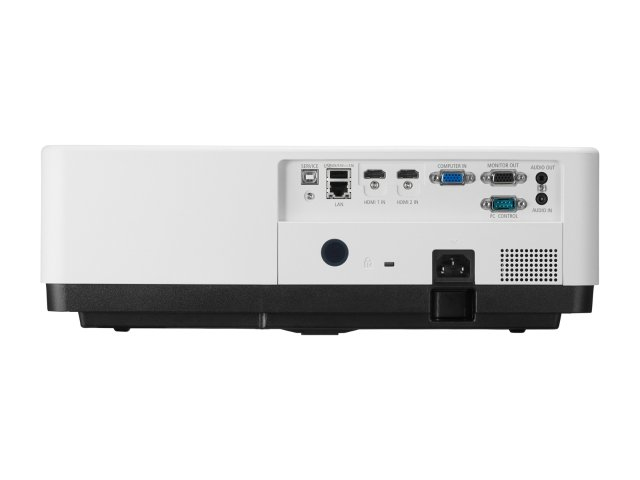

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 1 |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 27 dB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 16 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 335 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 177 W |
| AC input voltage | 120 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 88% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7.95 kg |
| Width | 405 mm |
| Depth | 358 mm |
| Height | 137 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | VGA |
| Manual | Yes |
