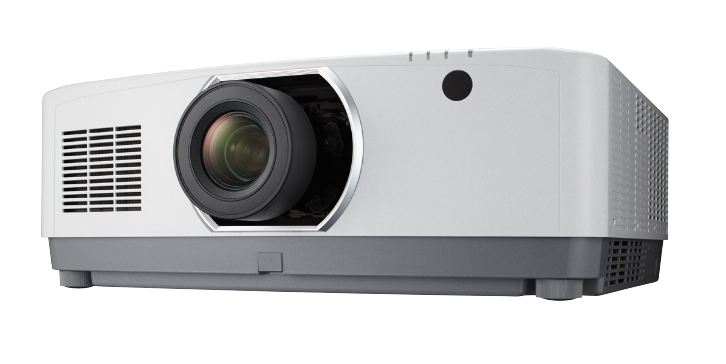

PA703ULG Large venue projector 7000 ANSI lumens 3LCD WUXGA (1920x1200) 3D Grey, White
Model PA703ULGPart no. NP-PA703ULG
48 specifications
- Noise39 dB
- TypeLarge venue projector
- Weight18.2 kg
- ColourGrey, White
- Projector brightness7000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 39 dB
- Type
- Large venue projector
- Weight
- 18.2 kg
- Colour
- Grey, White
- Projector brightness
- 7000 ANSI lumens
- Light source type
- Laser
- Brand
- NEC
- Category
- Data Projector
- Model
- PA703ULG
- Part number
- NP-PA703ULG
- Also known as
- NEC PA703ULG Large venue projector 7000 ANSI lumens 3LCD WUXGA (1920x1200) 3D Grey, White
Specifications
48 specifications in 12 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 7000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Projection distance | 0.7 - 50.9 m |
| Keystone correction, horizontal | -40 - 40° |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Horizontal lens shift range | -20 - 20% |
| Vertical lens shift range | -50 - 10% |
Video
| Specification | Value |
|---|---|
| 3D | Yes |

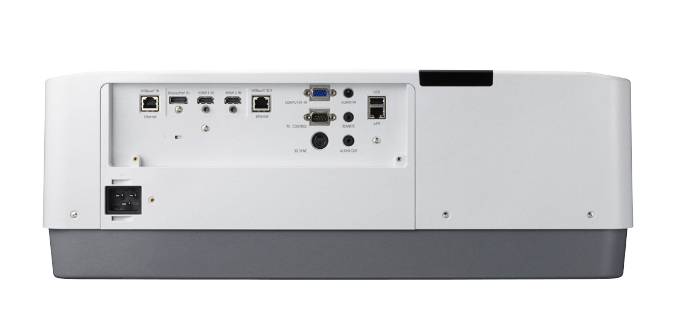

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 2 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 39 dB |
| Noise level (economic mode) | 33 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Password protection | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Large venue projector |
| Product colour | Grey, White |
| Placement | Desktop |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 613 W |
| Power consumption (economy mode) | 566 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 18.2 kg |
| Width | 580 mm |
| Depth | 494 mm |
| Height | 208 mm |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability certificates | ErP |
