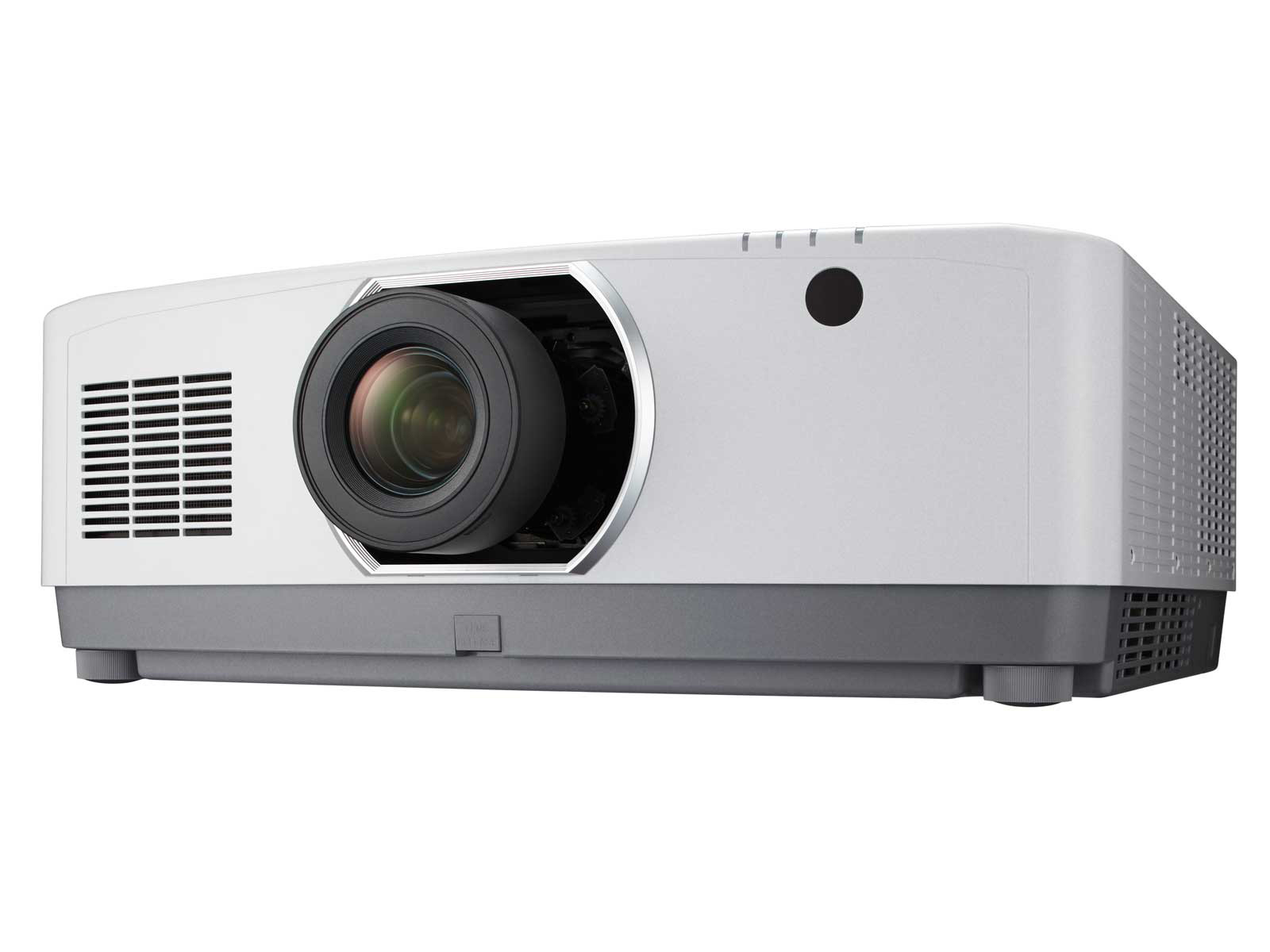

PA703UL Large venue projector 7000 ANSI lumens 3LCD WUXGA (1920x1200) White
Model PA703ULPart no. 60004921EAN 5028695613836
47 specifications
- TypeLarge venue projector
- Weight18.2 kg
- ColourWhite
- Projector brightness7000 ANSI lumens
- Light source typeLaser
- FocusAuto
Overview
- Type
- Large venue projector
- Weight
- 18.2 kg
- Colour
- White
- Projector brightness
- 7000 ANSI lumens
- Light source type
- Laser
- Focus
- Auto
- Brand
- NEC
- Category
- Data Projector
- Model
- PA703UL
- Part numbers
- 60004921, 40001330
- EAN / UPC
- 5028695613836, 5028695613942, 8592978357726
- Also known as
- NEC PA703UL Large venue projector 7000 ANSI lumens 3LCD WUXGA (1920x1200) White
Specifications
47 specifications in 11 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 7000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 1270 - 12700 mm (50 - 500") |
| Projection distance | 0.7 - 50.9 m |
| Contrast ratio (dynamic) | 2500000:1 |
| Keystone correction, horizontal | -40 - 40° |
| Keystone correction, vertical | -40 - 40° |
| Matrix size | 1.93 cm (0.76") |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Auto |
| Zoom capability | Yes |
| Zoom type | Auto |

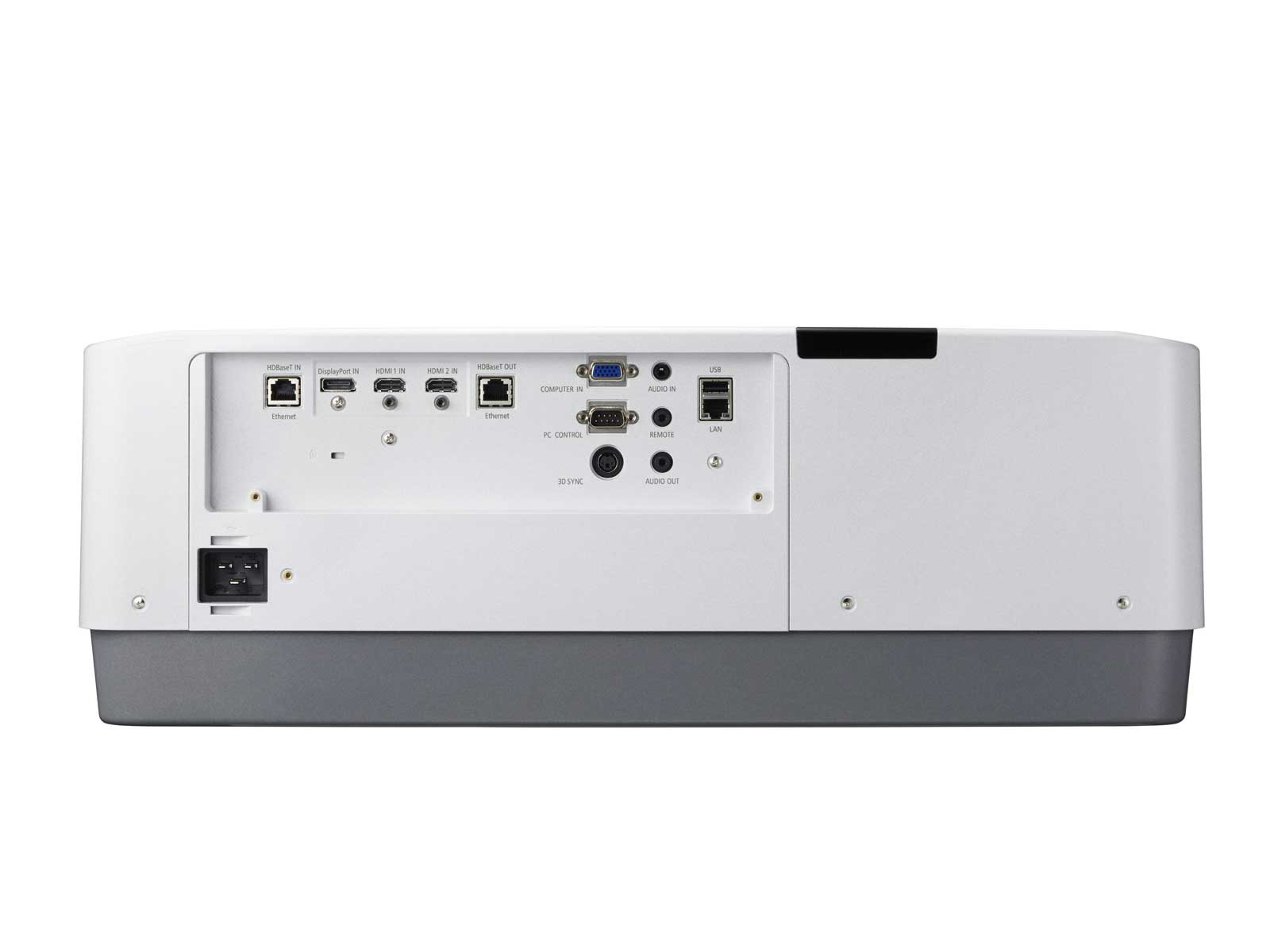

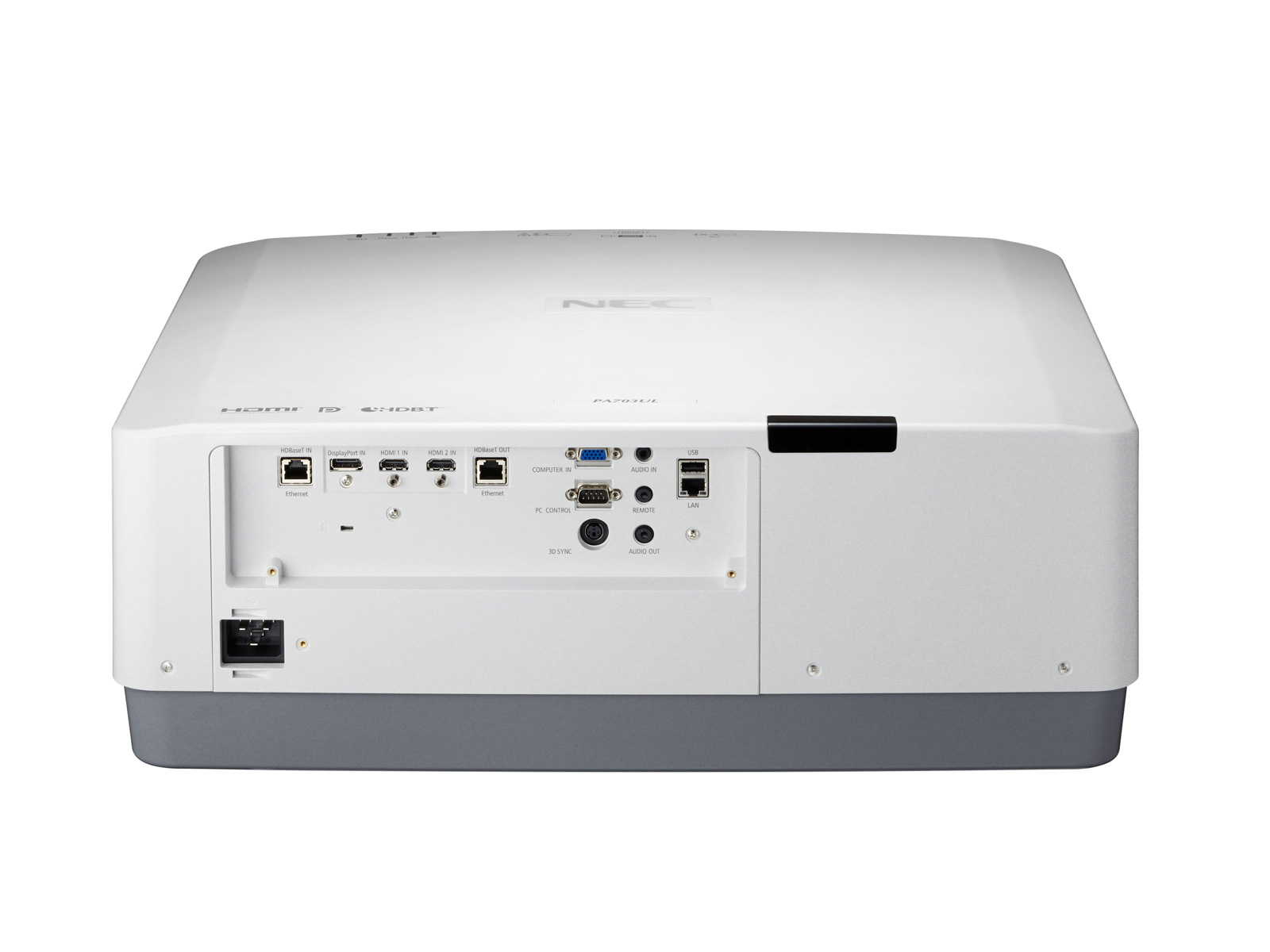

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
Features
| Specification | Value |
|---|---|
| HDCP | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Large venue projector |
| Product colour | White |
| Placement | Desktop |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 613 W |
| Power consumption (PowerSave) | 0.16 W |
| Power consumption (economy mode) | 556 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3650 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 18.2 kg |
| Width | 580 mm |
| Depth | 494 mm |
| Height | 208 mm |
| Package width | 909 mm |
| Package depth | 731 mm |
| Package height | 322 mm |
| Package weight | 24.4 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
