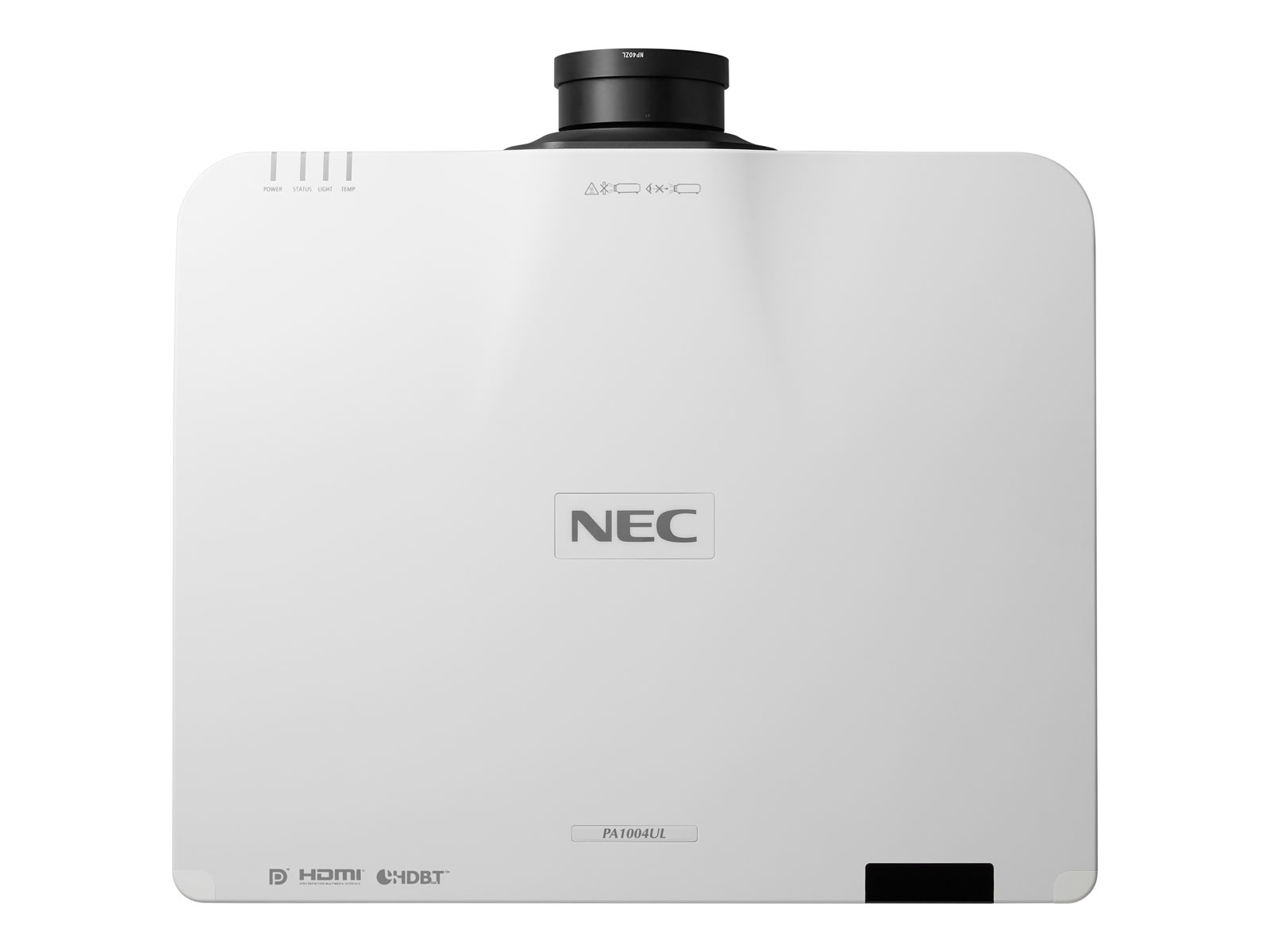

PA1004UL Large venue projector 10000 ANSI lumens 3LCD WUXGA (1920x1200) 3D White
Model PA1004ULPart no. 60004512EAN 5028695614130
54 specifications
- Noise35 dB
- TypeLarge venue projector
- Weight24.4 kg
- ColourWhite
- Projector brightness10000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 35 dB
- Type
- Large venue projector
- Weight
- 24.4 kg
- Colour
- White
- Projector brightness
- 10000 ANSI lumens
- Light source type
- Laser
- Brand
- NEC
- Category
- Data Projector
- Model
- PA1004UL
- Part numbers
- 60004512, 60005160
- EAN / UPC
- 5028695614130, 5028695614147
- Also known as
- NEC PA1004UL Large venue projector 10000 ANSI lumens 3LCD WUXGA (1920x1200) 3D White
Specifications
54 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 10000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 1016 - 12700 mm (40 - 500") |
| Projection distance | 0.7 - 50.9 m |
| Projector brightness (economic mode) | 9000 ANSI lumens |
| Keystone correction, horizontal | -40 - 40° |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Auto/Manual |
| Zoom capability | Yes |
| Zoom type | Auto/Manual |
| Horizontal lens shift range | 0 - 20% |
| Vertical lens shift range | -50 - 10% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 2048 x 1080, 2560 x 1600 (WQXGA), 4096 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| Serial interface type | RJ-45 |
| AUX in | Yes |
Features
| Specification | Value |
|---|---|
| Noise level | 35 dB |
| Noise level (economic mode) | 32 dB |
| HDCP | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Large venue projector |
| Product colour | White |
| Placement | Ceiling, Floor |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 725 W |
| Power consumption (standby) | 0.28 W |
| Power consumption (economy mode) | 395 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 24.4 kg |
| Width | 599 mm |
| Depth | 490 mm |
| Height | 208 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Cables included | AC |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ErP |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
