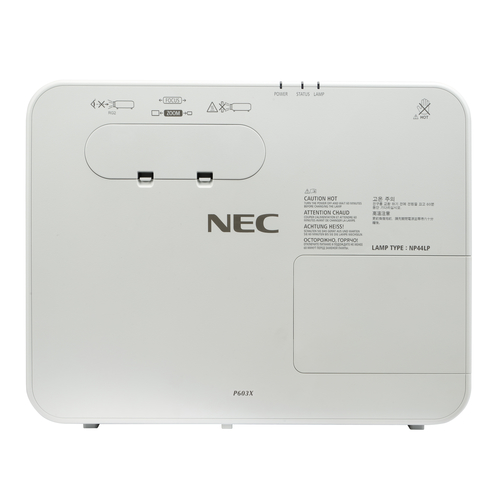

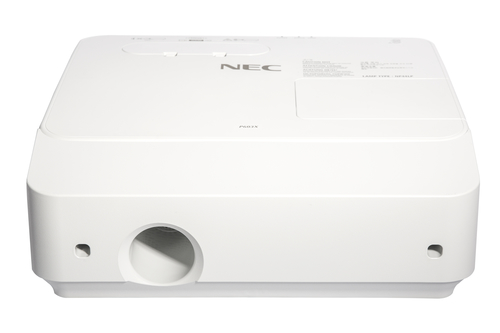

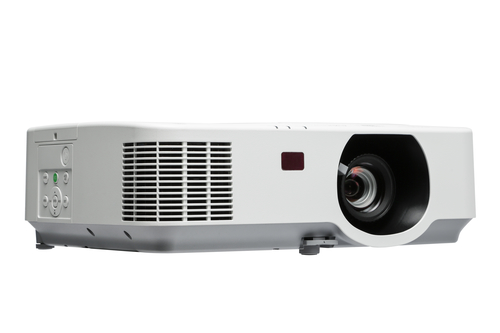

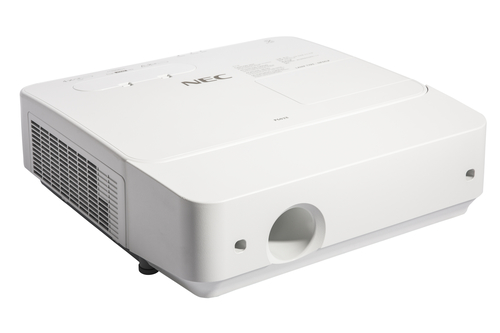

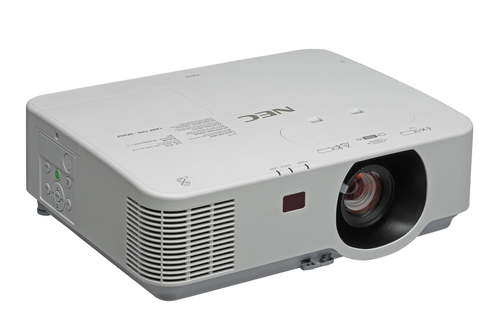

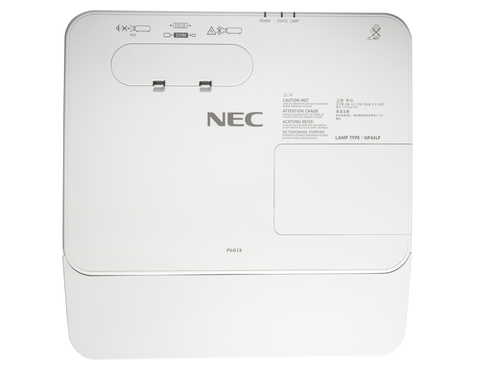

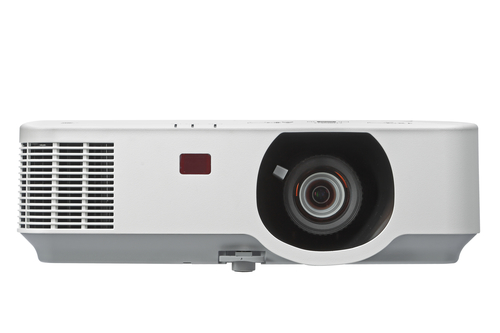

NEC P603X Standard throw projector 6000 ANSI lumens 3LCD XGA (1024x768) White

NEC P603X Standard throw projector 6000 ANSI lumens 3LCD XGA (1024x768) White

Model P603XPart no. 60004331EAN 5028695613201

82 specifications
  • Noise37 dB
  • TypeStandard throw projector
  • Weight4.7 kg
  • ColourWhite
  • Projector brightness6000 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
37 dB
Type
Standard throw projector
Weight
4.7 kg
Colour
White
Projector brightness
6000 ANSI lumens
Light source type
Lamp
Brand
NEC
Model
P603X
Part number
60004331
EAN / UPC
5028695613201
Also known as
NEC P603X Standard throw projector 6000 ANSI lumens 3LCD XGA (1024x768) White

Specifications

82 specifications in 17 groups

Projector

Projector brightness6000 ANSI lumens
Projection technology3LCD
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)20000:1
Supported aspect ratios4:3, 15:9, 16:10, 16:9
Screen size compatibility762 - 7620 mm (30 - 300")
Projection distance0.8 - 13.5 m
Projector brightness (economic mode)3600 ANSI lumens
Horizontal scan range15 - 100 kHz
Vertical scan range50 - 120 Hz
Keystone correction, horizontal-20 - 20°
Keystone correction, vertical-30 - 30°

Light source

Light source typeLamp
Service life of light source4000 h
Service life of light source (economic mode)8000 h
Lamp typeUHP
Lamp power330 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Focal length range17.4 - 29 mm
Aperture range (F-F)1.7 - 2.2
Zoom capabilityYes
Zoom typeManual
Zoom ratio1.7:1
Throw ratio1.3 - 2.2:1
Horizontal lens shift range-0.15 - 0.15°
Vertical lens shift range0 - 50°

Video

Analog signal format systemNTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
3DNo
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1400 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes480i, 480p, 576i, 576p, 1080i, 1080p

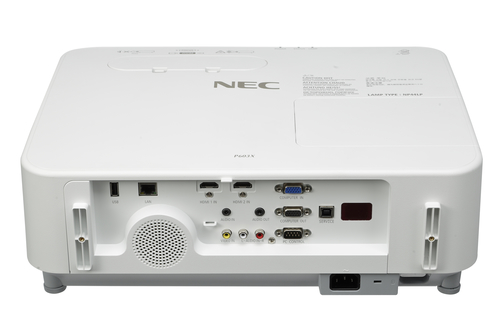

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity0
USB 2.0 ports quantity1
USB 2.0 Type-B ports quantity1
Audio (L/R) in1
Serial interface typeRS-232
PC Audio inYes
PC Audio outYes
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level37 dB
Noise level (economic mode)34 dB
HDCPYes
CertificationCE; ErP; RoHS; TüV GS

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power20 W

Design

Product typeStandard throw projector
Product colourWhite
PlacementDesktop

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)414 W
Power consumption (standby)0.2 W
Power consumption (network standby)2 W
Power consumption (economy mode)258 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)20 - 80%

Weight & dimensions

Weight4.7 kg
Width420 mm
Depth322 mm
Height133 mm

Packaging content

Remote control includedYes
Remote control typeIR
Cables includedAC, VGA
ManualYes
Quick start guideYes

Logistics data

Harmonized System (HS) code85286200

Other features

RS-232 ports1
