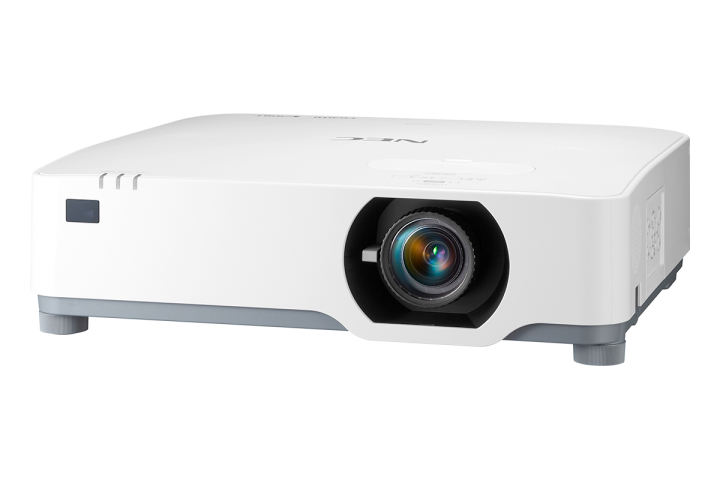

P547ULG data projector Standard throw projector 5400 ANSI lumens 3LCD WUXGA (1920x1200) White
Model P547ULG
61 specifications
- Noise26 dB
- TypeStandard throw projector
- Weight9.7 kg
- ColourWhite
- Projector brightness5400 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 26 dB
- Type
- Standard throw projector
- Weight
- 9.7 kg
- Colour
- White
- Projector brightness
- 5400 ANSI lumens
- Light source type
- Laser
- Brand
- NEC
- Category
- Data Projector
- Model
- P547ULG
- Part number
- P547ULG
- Also known as
- NEC P547ULG data projector Standard throw projector 5400 ANSI lumens 3LCD WUXGA (1920x1200) White
Specifications
61 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5400 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 500000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.8 - 12.9 m |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 50 - 120 Hz |
| Keystone correction, horizontal | +/- 30° |
| Keystone correction, vertical | +/- 30° |
| Matrix size | 1.63 cm (0.64") |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Aperture range (F-F) | 1.5 - 2.1 |
| Zoom capability | Yes |
| Zoom type | Manual |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M |
| Full HD | No |
| 3D | No |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| Serial interface type | RJ-45 |
| PC Audio in | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 26 dB |
| Noise level (economic mode) | 22 dB |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | White |
| Placement | Desktop |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 293 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (max) | 400 W |
| Power consumption (economy mode) | 220 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Auto power off | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 9.7 kg |
| Width | 480 mm |
| Depth | 407 mm |
| Height | 122 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability certificates | ErP |
