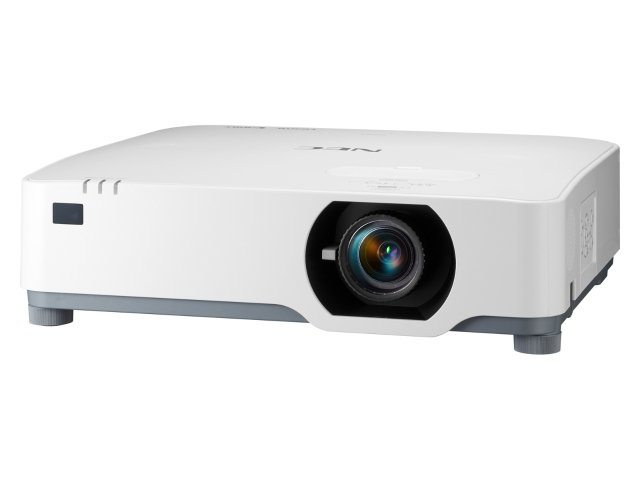

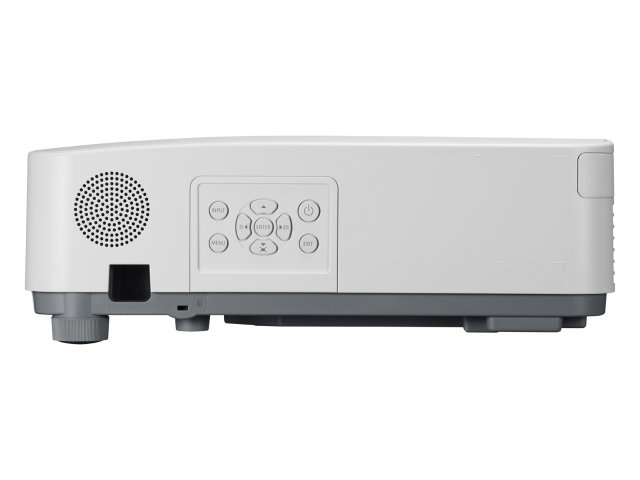

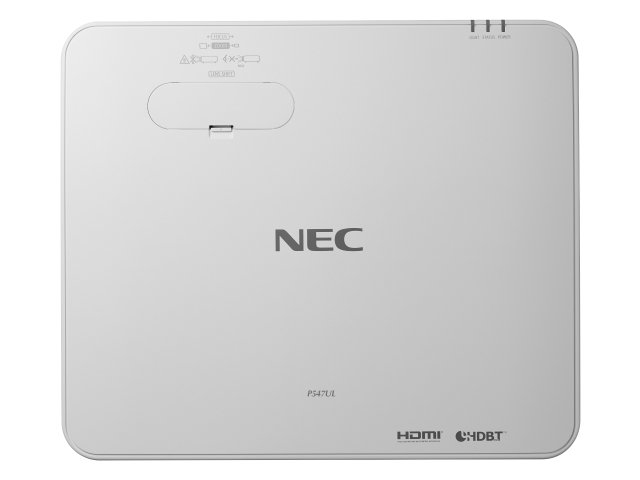

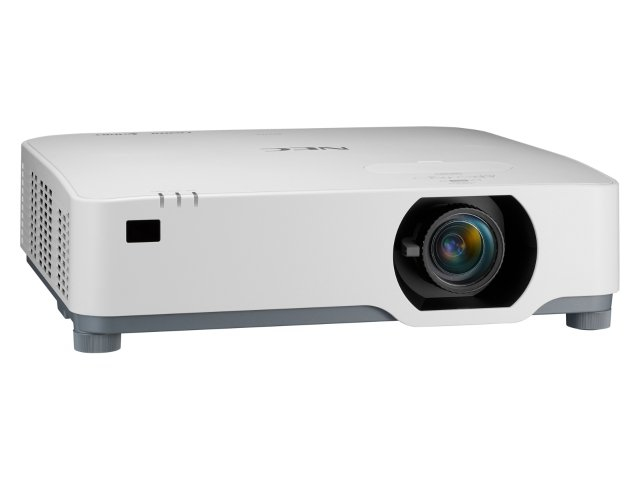

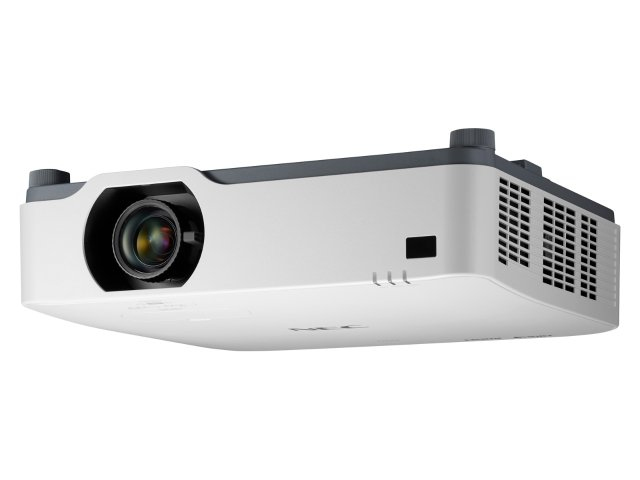

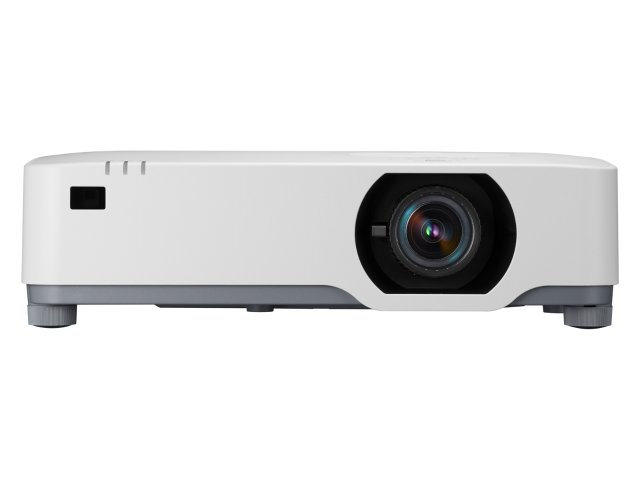

P547UL Standard throw projector 3240 ANSI lumens 3LCD WUXGA (1920x1200) White
Model P547ULPart no. 60005761EAN 5028695614819
85 specifications
- Noise26 dB
- TypeStandard throw projector
- Weight9.7 kg
- ColourWhite
- Projector brightness3240 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 26 dB
- Type
- Standard throw projector
- Weight
- 9.7 kg
- Colour
- White
- Projector brightness
- 3240 ANSI lumens
- Light source type
- Laser
- Brand
- NEC
- Category
- Data Projector
- Model
- P547UL
- Part number
- 60005761
- EAN / UPC
- 5028695614819
- Also known as
- NEC P547UL Standard throw projector 3240 ANSI lumens 3LCD WUXGA (1920x1200) White
Specifications
85 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3240 ANSI lumens |
| Projector brightness | 5700 LED lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 500000:1 |
| Native aspect ratio | 16:10 |
| Smart projector | Yes |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.8 - 12.9 m |
| Projector brightness (economic mode) | 3240 ANSI lumens |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 17.2 - 27.7 mm |
| Aperture range (F-F) | 1.5 - 2.1 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.6:1 |
| Horizontal lens shift range | -29 - 29% |
| Vertical lens shift range | 0 - 60% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M |
| Full HD | Yes |
| 3D | No |
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 3840 x 2160 |
| Video colour modes | Presentation |

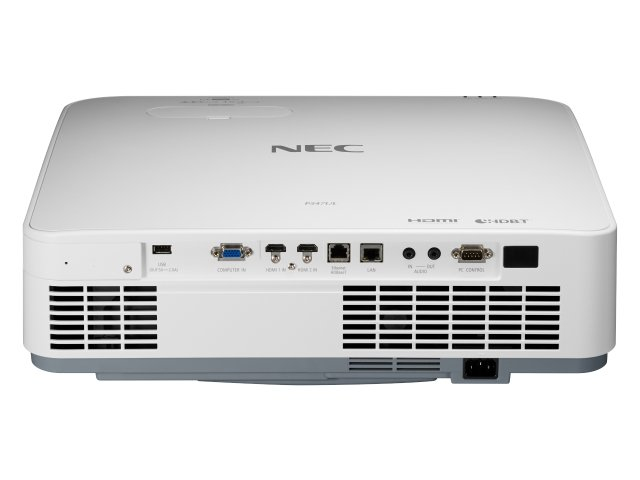

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| HDBaseT port | Yes |
| Service port type | USB Type-B |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 2 |
| Serial interface type | RJ-45, RS-232 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 26 dB |
| Noise level (economic mode) | 22 dB |
| HDCP | Yes |
| Projection modes | Ceiling, Front |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 30 |
| HID support | Yes |
| Certification | CE; EAC; ErP; RoHS; TUEV, TÜV |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 20 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 293 W |
| Power consumption (standby) | 1.6 W |
| Power consumption (max) | 293 W |
| Power consumption (economy mode) | 220 W |
Supplier features
| Specification | Value |
|---|---|
| Recommended gender | Any gender |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 9.7 kg |
| Width | 480 mm |
| Depth | 407 mm |
| Height | 122 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
| Number of batteries supported | 2 |
