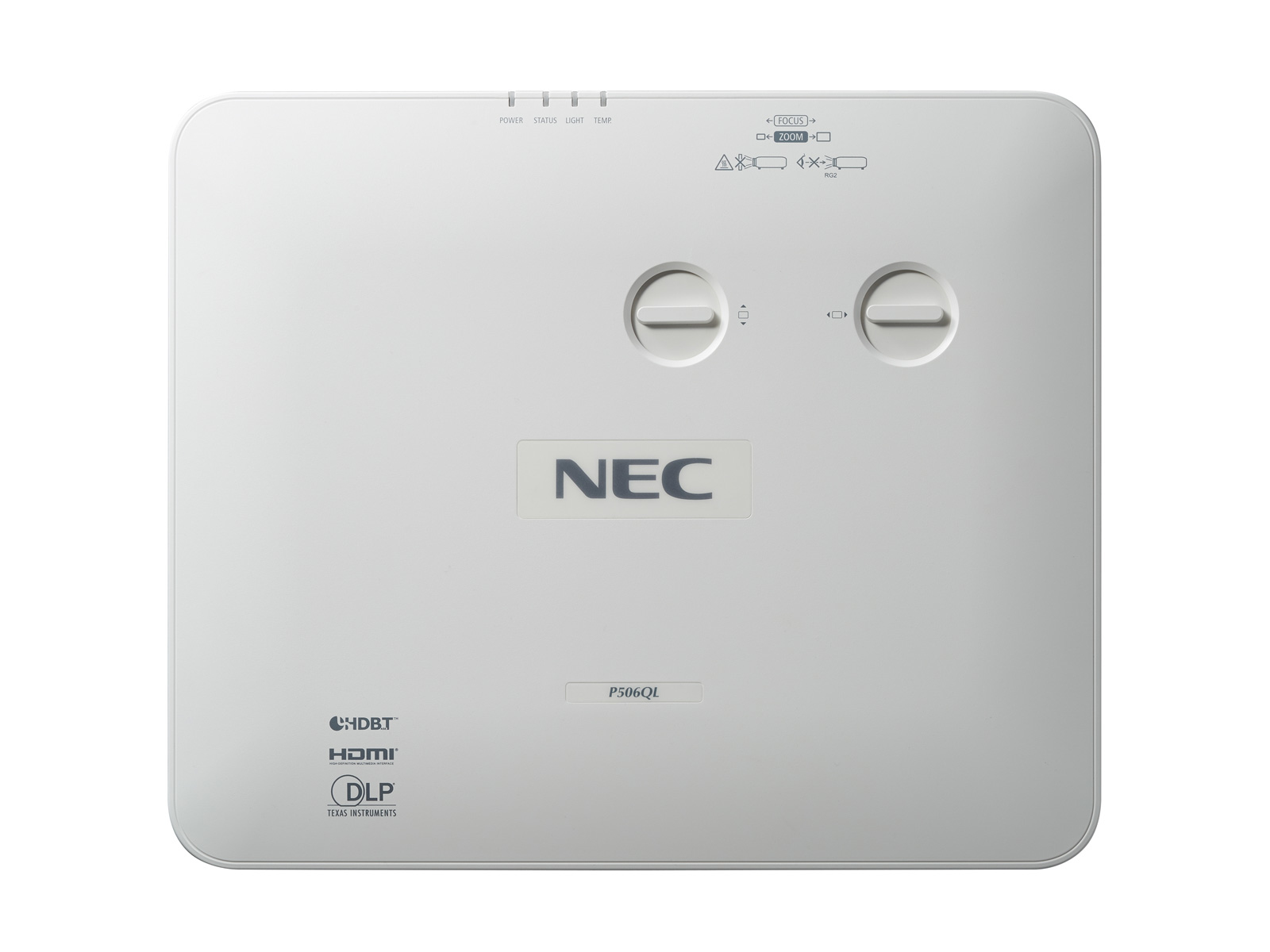

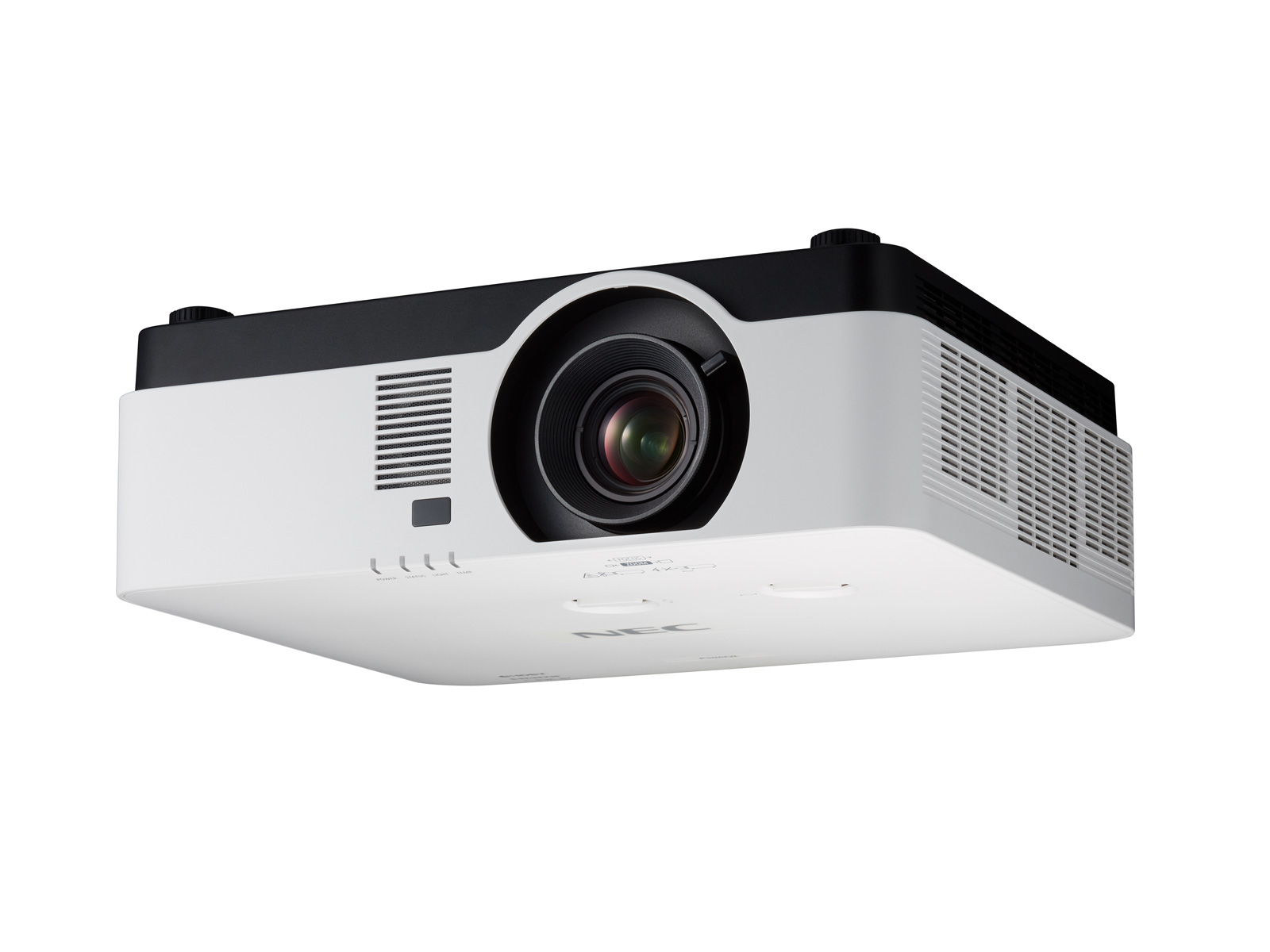

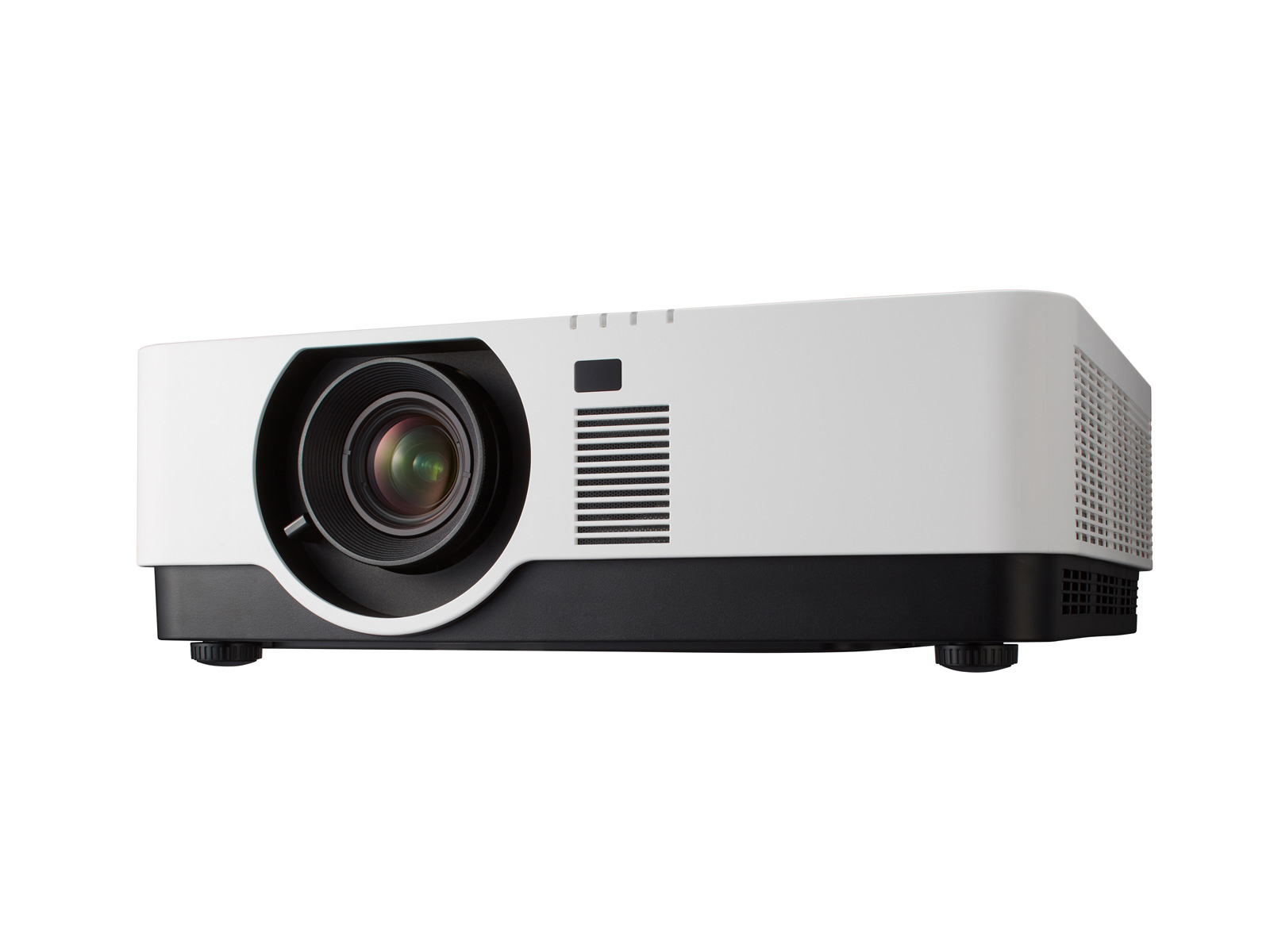

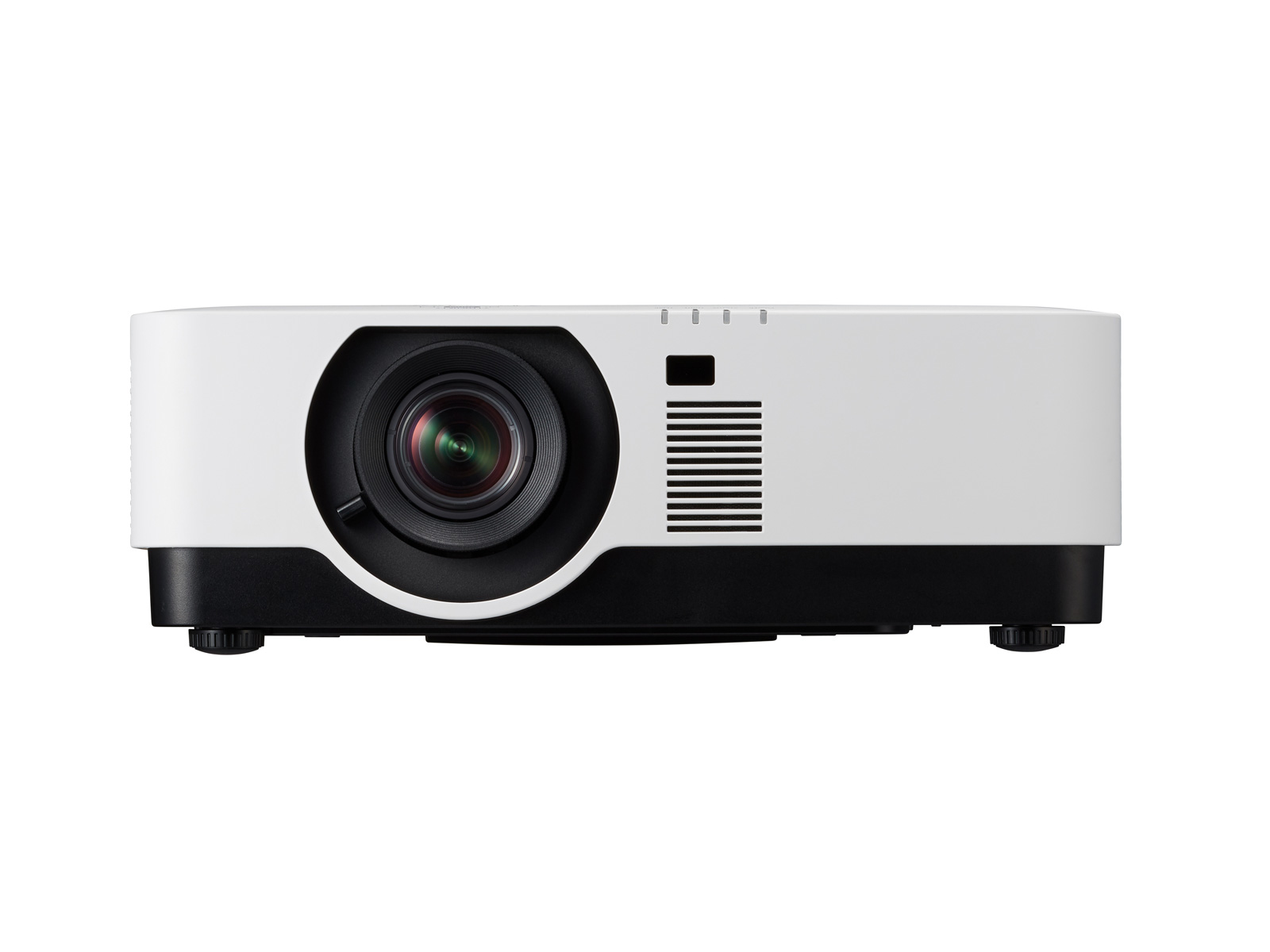

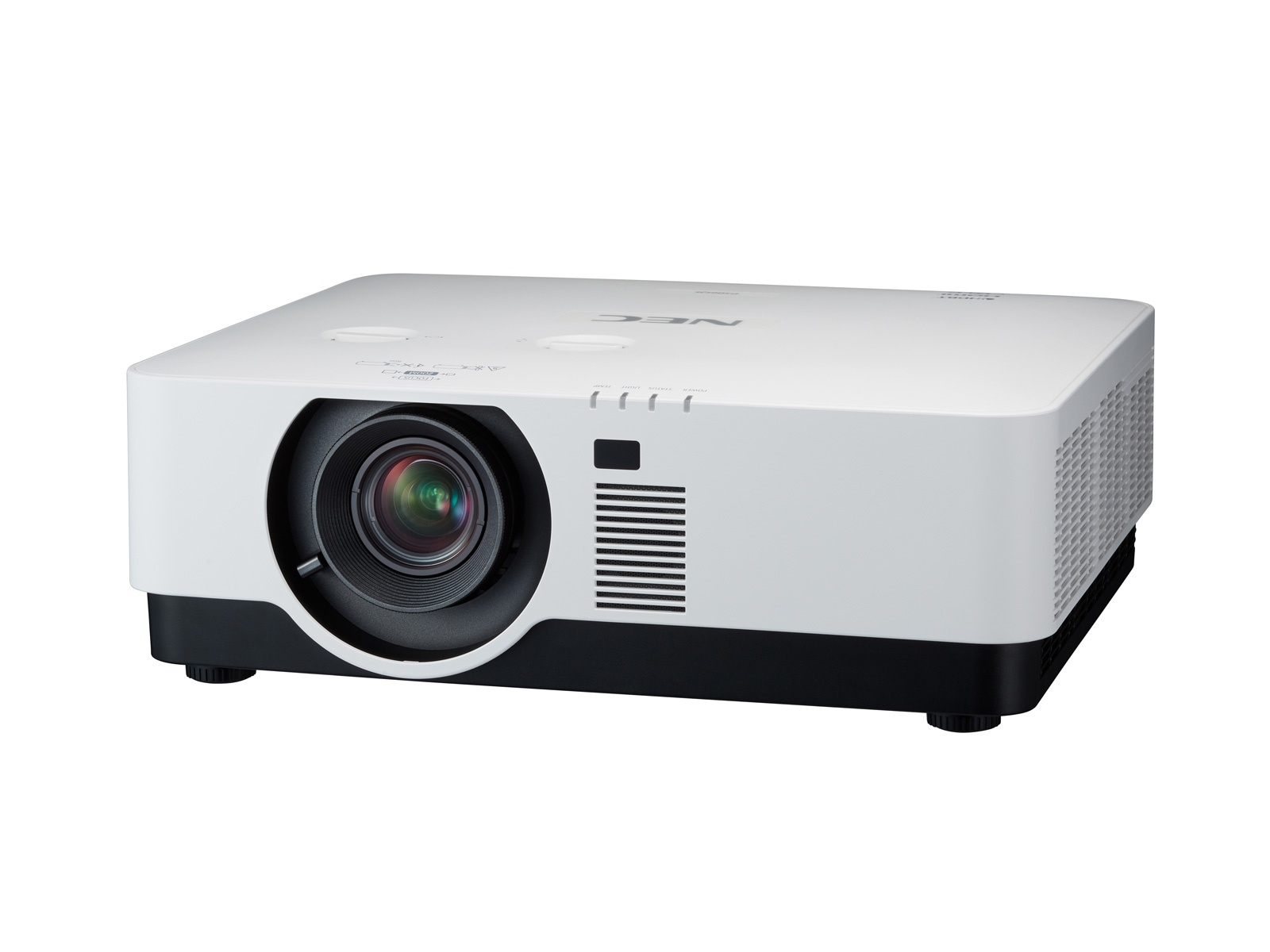

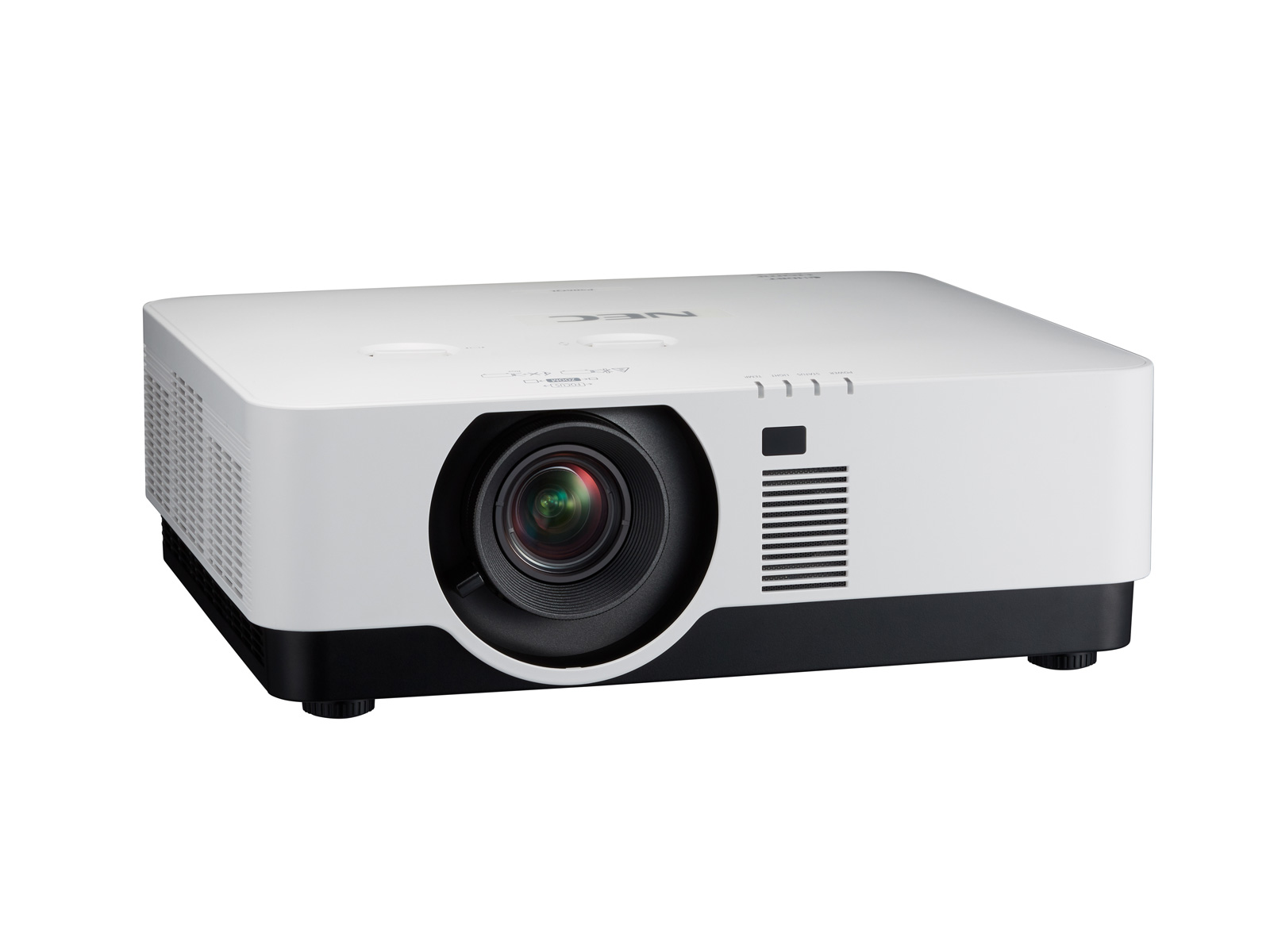

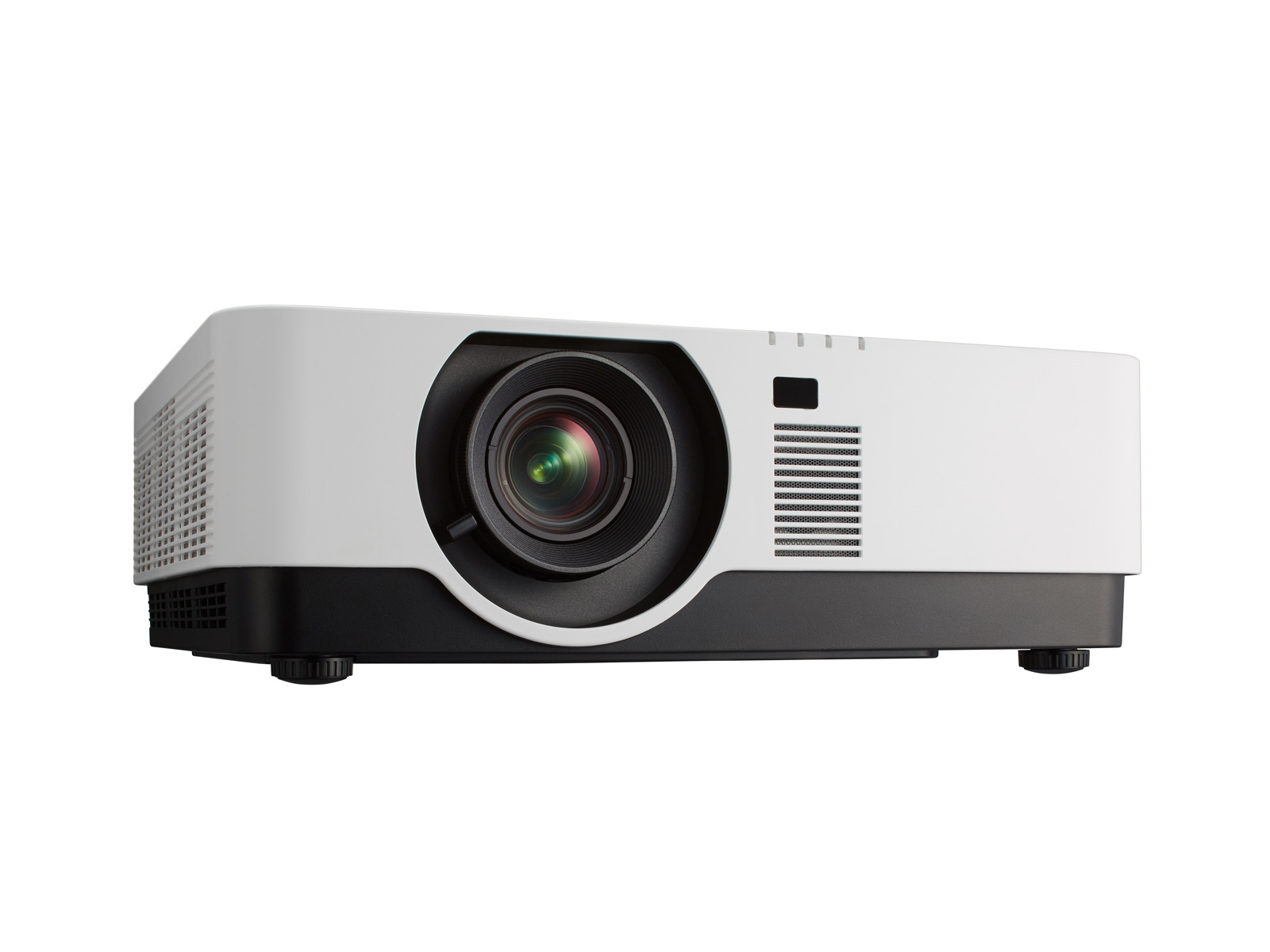

P506QL Standard throw projector 5000 ANSI lumens DLP UHD 4K (3840x2160) 3D White
Model P506QLPart no. 60004812EAN 5028695614161
64 specifications
- Noise35 dB
- TypeStandard throw projector
- Weight11.5 kg
- ColourWhite
- Projector brightness5000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 35 dB
- Type
- Standard throw projector
- Weight
- 11.5 kg
- Colour
- White
- Projector brightness
- 5000 ANSI lumens
- Light source type
- Laser
- Brand
- NEC
- Category
- Data Projector
- Model
- P506QL
- Part number
- 60004812
- EAN / UPC
- 5028695614161
- Also known as
- NEC P506QL Standard throw projector 5000 ANSI lumens DLP UHD 4K (3840x2160) 3D White
Specifications
64 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 500000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 1270 - 7874 mm (50 - 310") |
| Projection distance | 1.6 - 8 m |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 12.1 - 18.1 mm |
| Aperture range (F-F) | 1.8 - 2.43 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.5:1 |
| Throw ratio | 1.13 – 1.7:1 |
| Horizontal lens shift range | -20 - 20% |
| Vertical lens shift range | -60 - 60% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 3840 x 2160 |

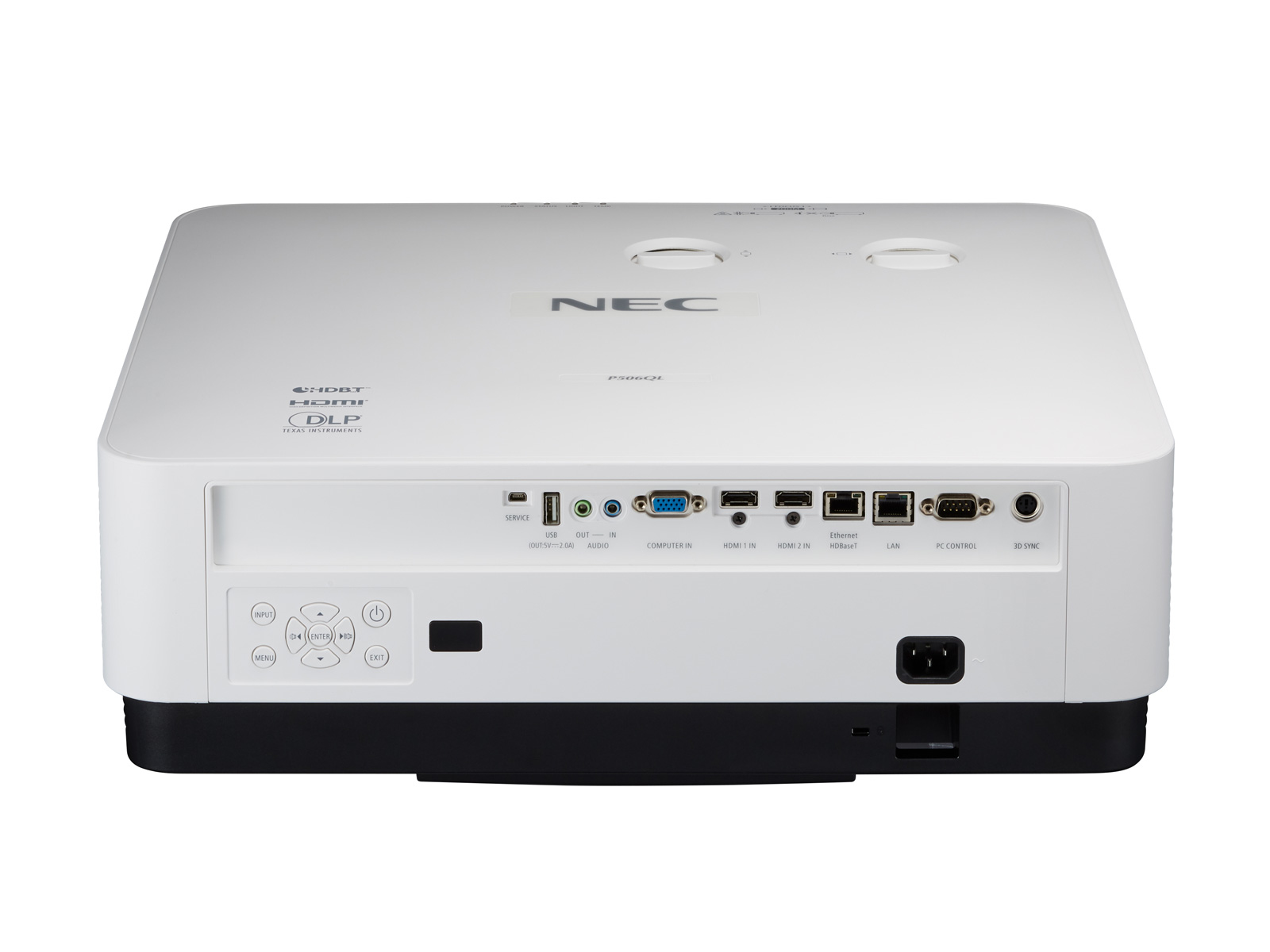

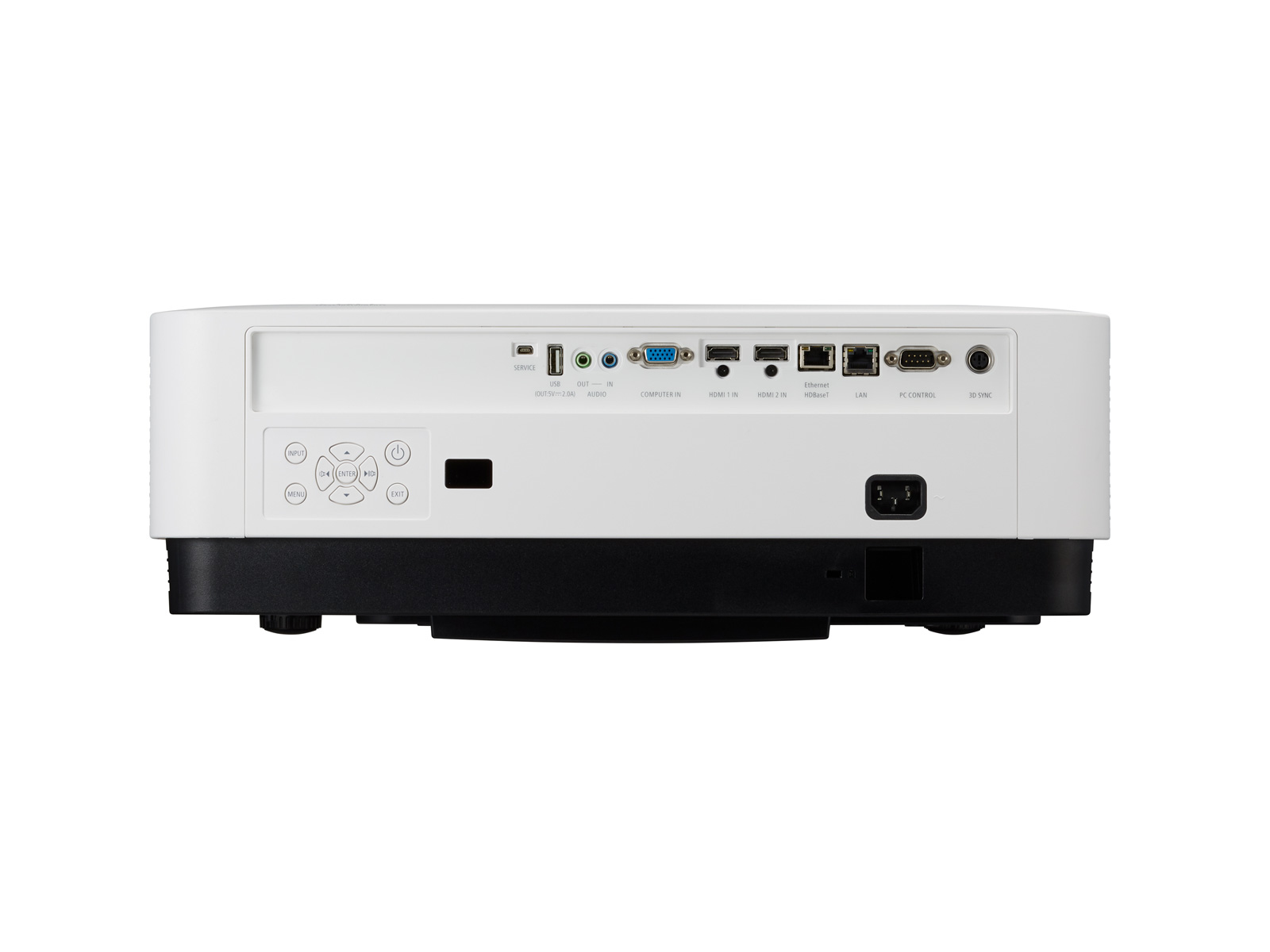

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RJ-45, RS-232 |
Features
| Specification | Value |
|---|---|
| Noise level | 35 dB |
| Noise level (economic mode) | 32 dB |
| HDCP | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | White |
| Placement | Ceiling, Floor |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 580 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 330 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Auto power off | Yes |
| Cord length | 1.8 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 11.5 kg |
| Width | 480 mm |
| Depth | 400 mm |
| Height | 158 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Batteries included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Sustainability certificates | ErP |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
