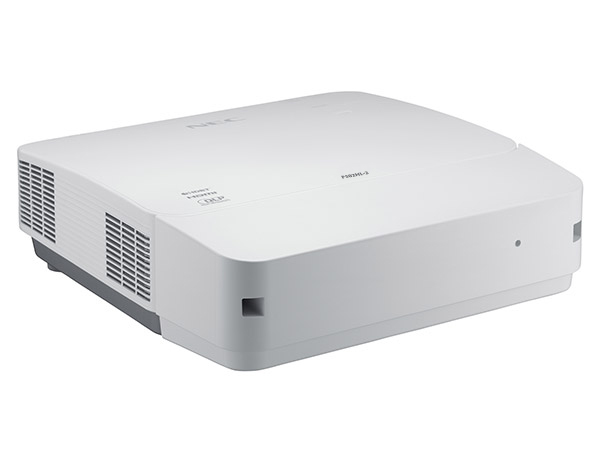

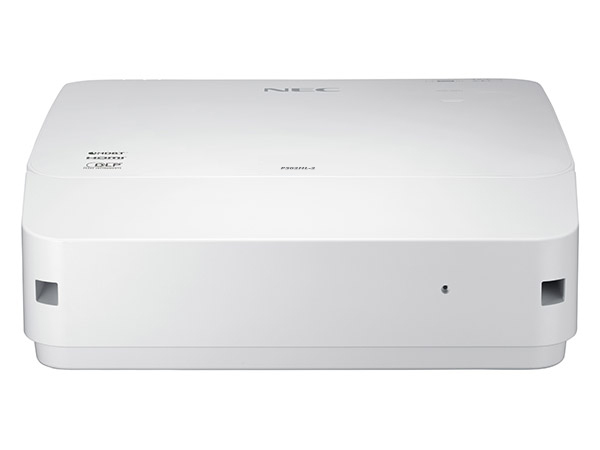

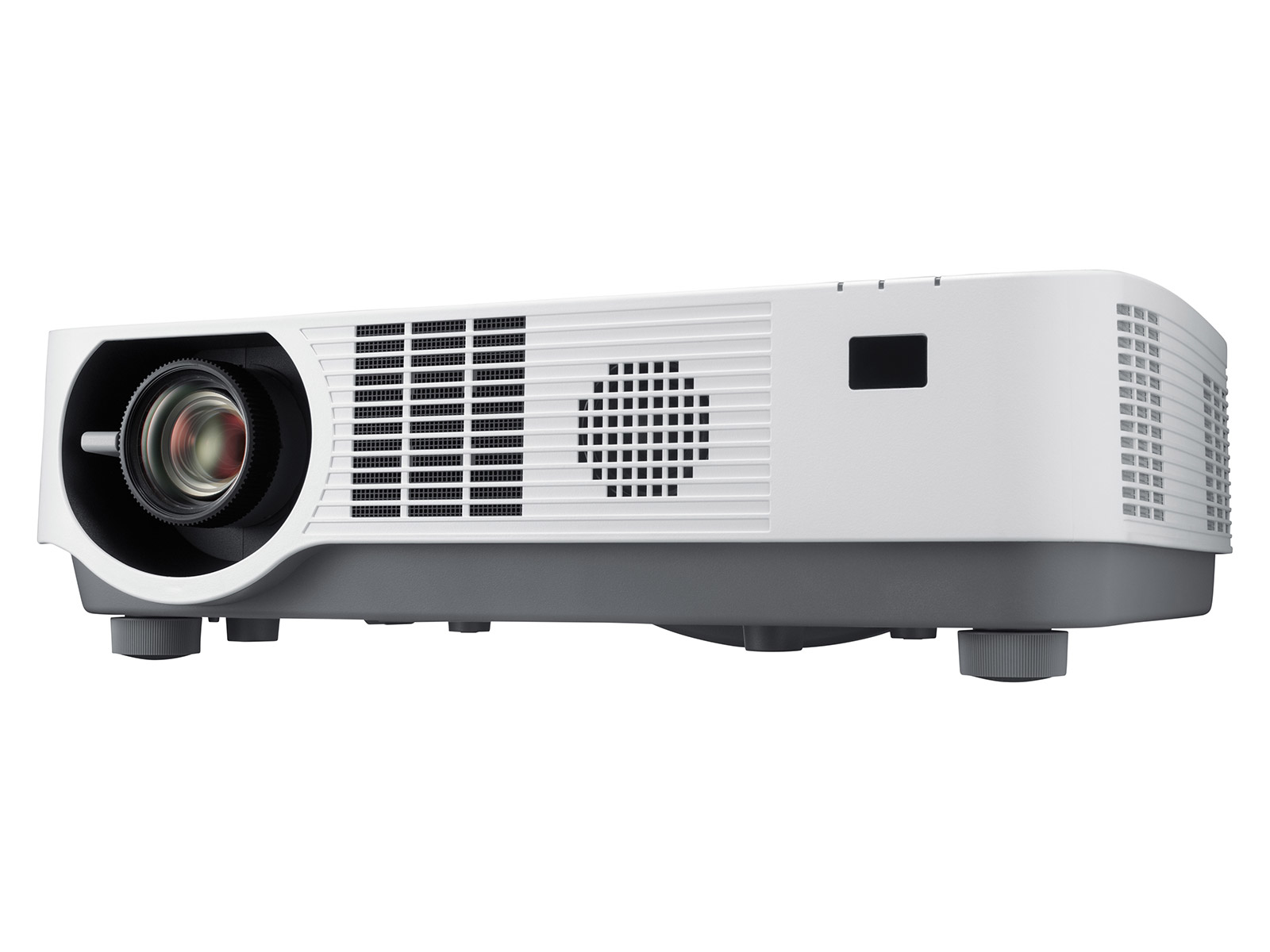

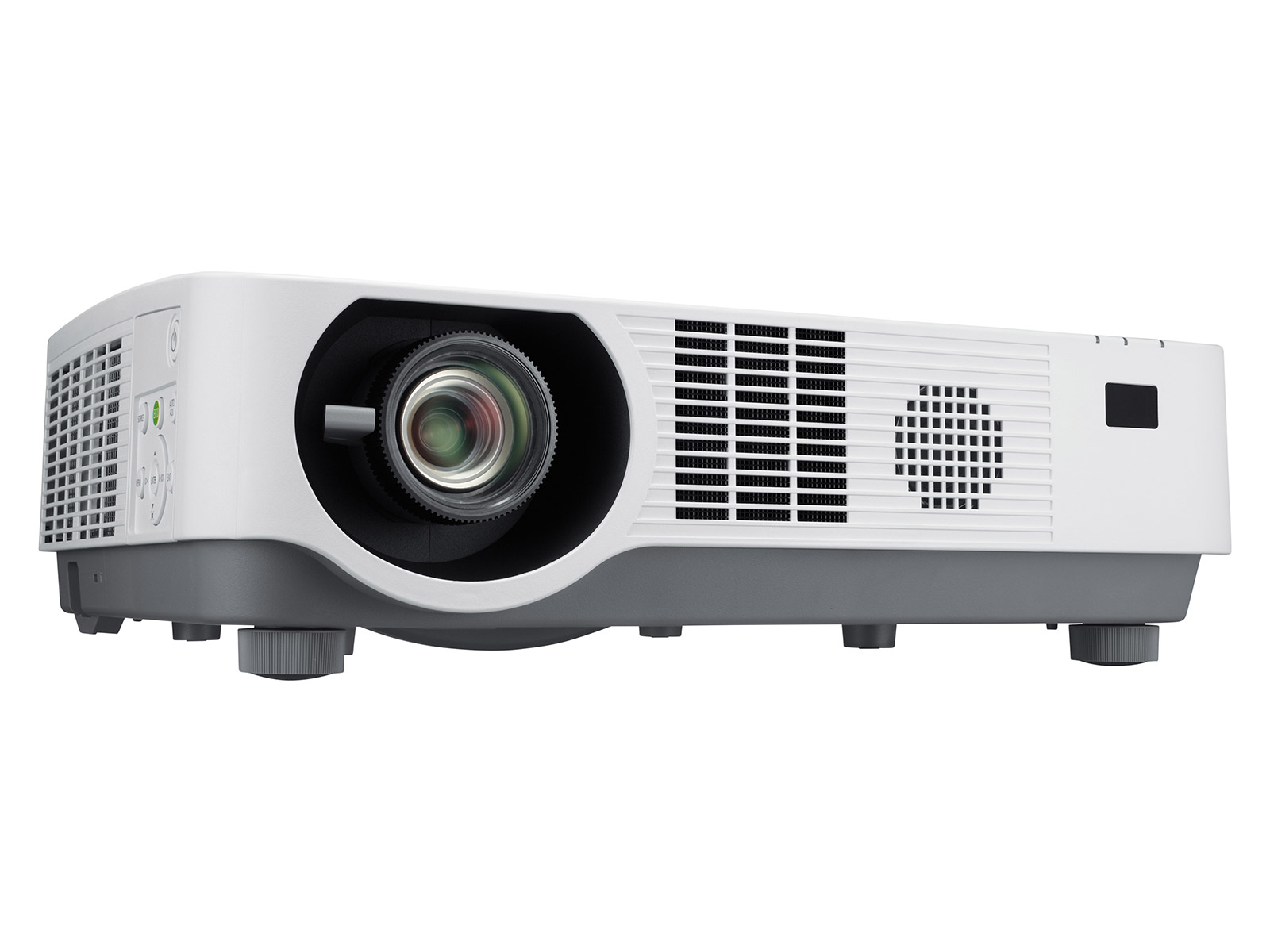

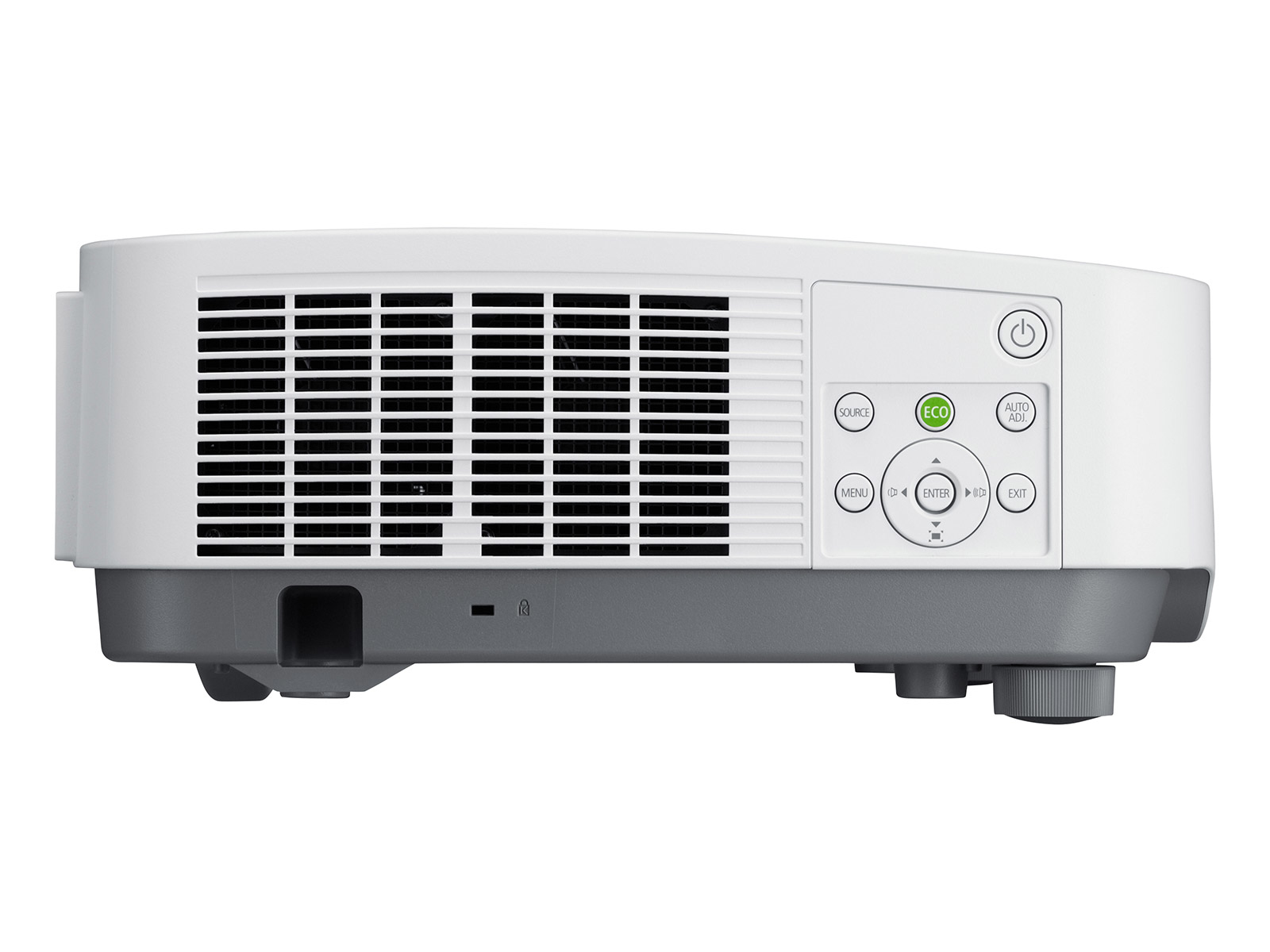

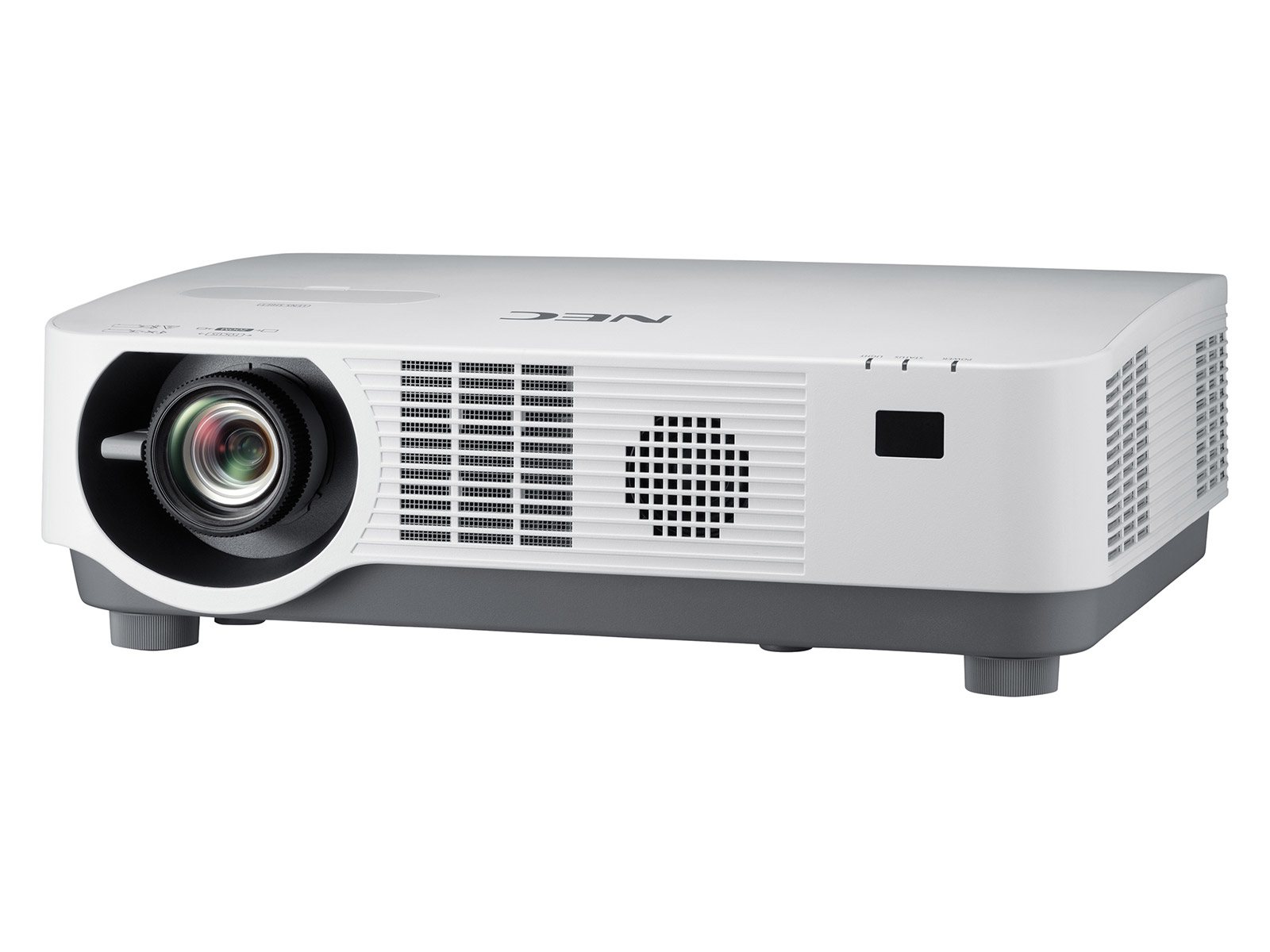

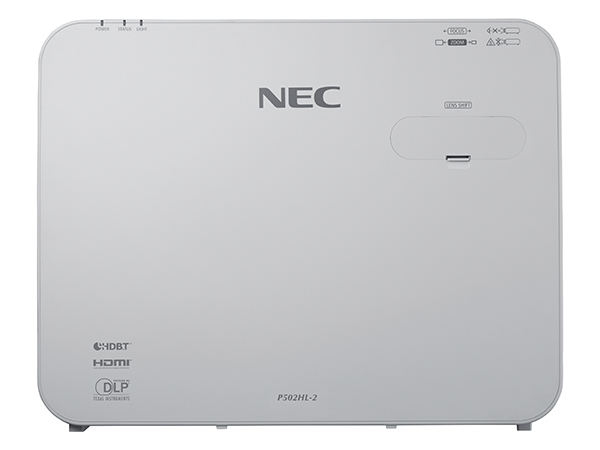

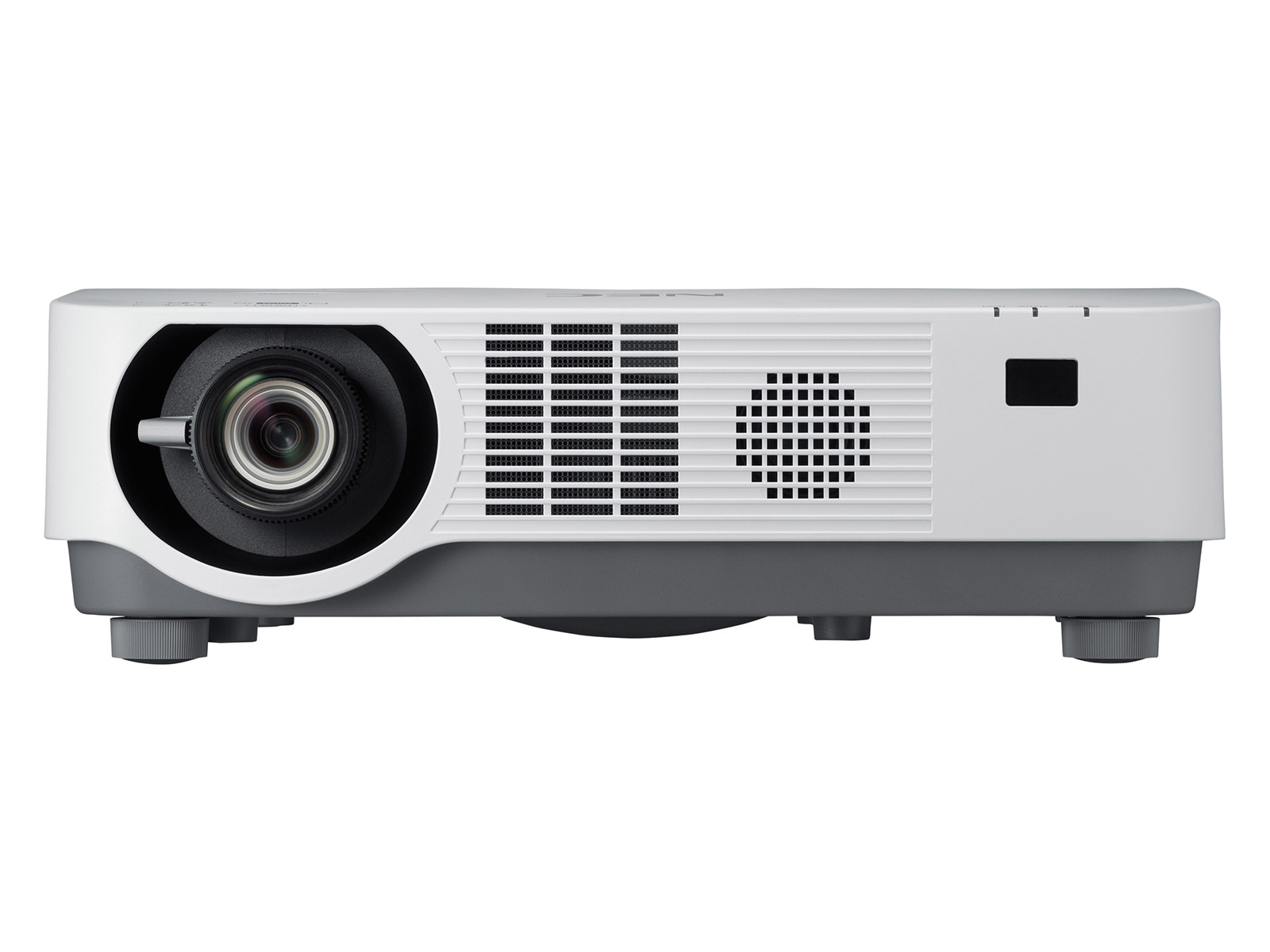

NEC P502HL-2 Standard throw projector 5000 ANSI lumens DLP 1080p (1920x1080) White

NEC P502HL-2 Standard throw projector 5000 ANSI lumens DLP 1080p (1920x1080) White

Model P502HL-2Part no. 60004400EAN 4058154218792

83 specifications
  • Noise39 dB
  • TypeStandard throw projector
  • Weight8.8 kg
  • ColourWhite
  • Projector brightness5000 ANSI lumens
  • Light source typeLaser
See all specifications

Overview

Noise
39 dB
Type
Standard throw projector
Weight
8.8 kg
Colour
White
Projector brightness
5000 ANSI lumens
Light source type
Laser
Brand
NEC
Model
P502HL-2
Part number
60004400
EAN / UPC
4058154218792, 5028695613010
Also known as
NEC P502HL-2 Standard throw projector 5000 ANSI lumens DLP 1080p (1920x1080) White

Specifications

83 specifications in 17 groups

Projector

Projector brightness5000 ANSI lumens
Projection technologyDLP
Projector native resolution1080p (1920x1080)
Contrast ratio (typical)15000:1
Native aspect ratio16:9
Supported aspect ratios4:3, 5:4, 16:10, 16:9
Screen size compatibility762 - 7620 mm (30 - 300")
Projection distance0.8 - 14.2 m
Horizontal scan range15 - 100 kHz
Vertical scan range50 - 120 Hz
Keystone correction, horizontal-25 - 25°
Keystone correction, vertical-30 - 30°
Matrix size1.65 cm (0.65")

Light source

Light source typeLaser
Service life of light source20000 h

Lens system

FocusManual
Focal length range18.2 - 31.1 mm
Aperture range (F-F)2 - 2.5
Zoom capabilityYes
Zoom typeManual
Zoom ratio1.7:1
Throw ratio1.24 - 2.11:1
Horizontal lens shift range-0.25 - 0.25°
Vertical lens shift range-0.62 - 0.62°
Offset62%

Video

Analog signal format systemNTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDYes
3D ReadyYes
Supported graphics resolutions640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p

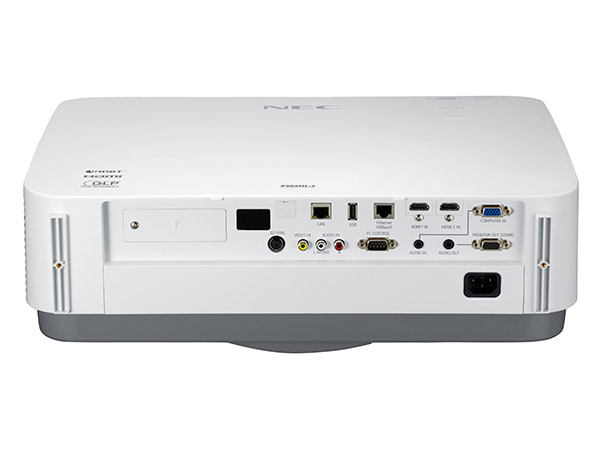

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity0
HDBaseT portYes
USB 2.0 ports quantity2
USB 2.0 Type-B ports quantity1
Audio (L/R) in1
Serial interface typeRS-232
PC Audio inYes
PC in (D-Sub)Yes
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level39 dB
Noise level (economic mode)31 dB
HDCPYes
CertificationCE; ErP; TUEV

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power20 W

Design

Product typeStandard throw projector
Product colourWhite
PlacementDesktop, Ceiling

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)442 W
Power consumption (standby)0.3 W
Power consumption (network standby)2 W
Power consumption (economy mode)347 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Auto power offYes

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)20 - 80%

Weight & dimensions

Weight8.8 kg
Width469 mm
Depth365 mm
Height137 mm

Packaging content

Remote control includedYes
Remote control typeIR
Cables includedAC
ManualYes
Quick start guideYes

Technical details

Compliance certificatesRoHS

Other features

RS-232 ports1
