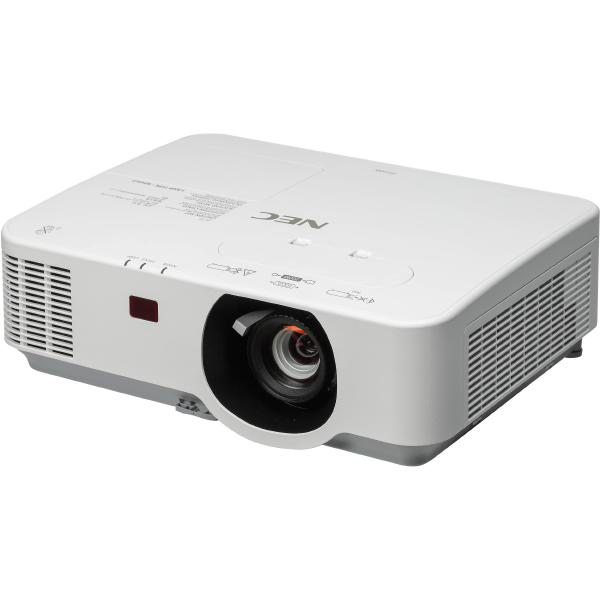

P474WG Standard throw projector 4700 ANSI lumens 3LCD WXGA (1280x800) White
Model P474WGPart no. NP-P474WG
72 specifications
- Noise37 dB
- TypeStandard throw projector
- Weight4.8 kg
- ColourWhite
- Projector brightness4700 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 37 dB
- Type
- Standard throw projector
- Weight
- 4.8 kg
- Colour
- White
- Projector brightness
- 4700 ANSI lumens
- Light source type
- Lamp
- Brand
- NEC
- Category
- Data Projector
- Model
- P474WG
- Part number
- NP-P474WG
- Also known as
- NEC P474WG Standard throw projector 4700 ANSI lumens 3LCD WXGA (1280x800) White
Specifications
72 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4700 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 18000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.8 - 12.9 m |
| Projector brightness (economic mode) | 3050 ANSI lumens |
| Horizontal synchronization (max) | 100 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, horizontal | -20 - 20° |
| Keystone correction, vertical | -30 - 30° |
| Vertical synchronization (max) | 120 kHz |
| Vertical synchronization (min) | 50 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 8000 h |
| Lamp type | UHP |
| Lamp power | 305 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 17.4 - 29 mm |
| Aperture range (F-F) | 1.7 - 2.2 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.7:1 |
| Throw ratio | 1.2 - 2.1 |
| Horizontal lens shift range | -15 - 15% |
| Vertical lens shift range | 0 - 55% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| Composite video in | 1 |
| DVI port | No |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 1 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 34 dB |
| Certification | CE, ErP, RoHS, TŸV GS, RCM |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 20 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Desktop |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 418 W |
| Power consumption (standby) | 0.16 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 2700 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.8 kg |
| Width | 420 mm |
| Depth | 322 mm |
| Height | 133 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Cables included | AC, VGA |
| Manual | Yes |
