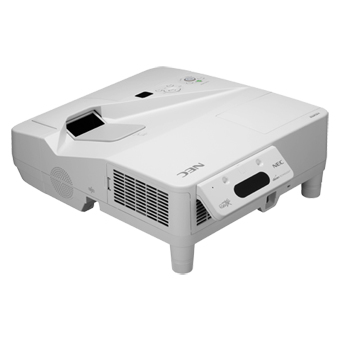

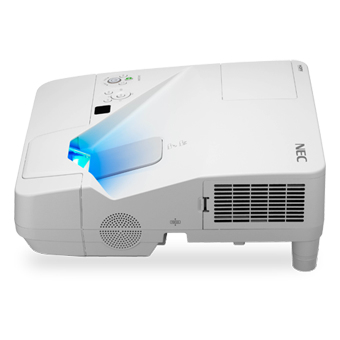

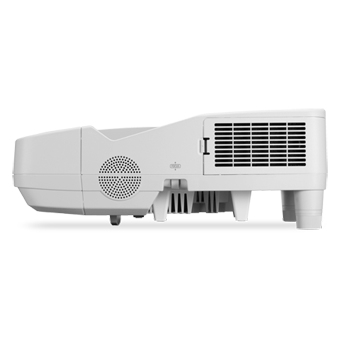

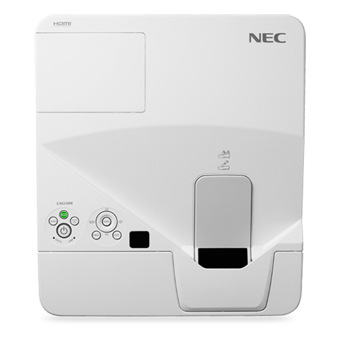

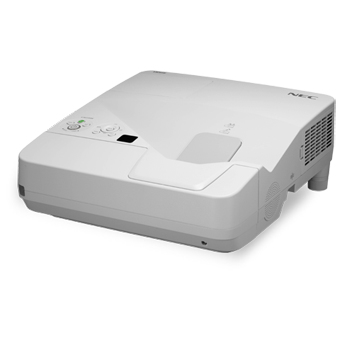

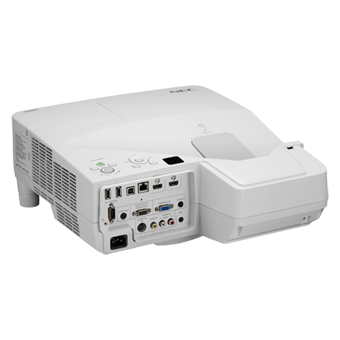

NEC NP-UM330X-WK1 data projector 3300 ANSI lumens LCD XGA (1024x768) White

NEC NP-UM330X-WK1 data projector 3300 ANSI lumens LCD XGA (1024x768) White

Model NP-UM330X-WK1

63 specifications
  • Noise35 dB
  • Weight5.7 kg
  • ColourWhite
  • Projector brightness3300 ANSI lumens
  • Light source typeLamp
  • FocusManual
See all specifications

Overview

Noise
35 dB
Weight
5.7 kg
Colour
White
Projector brightness
3300 ANSI lumens
Light source type
Lamp
Focus
Manual
Brand
NEC
Model
NP-UM330X-WK1
Part number
NP-UM330X-WK1
Also known as
NEC NP-UM330X-WK1 data projector 3300 ANSI lumens LCD XGA (1024x768) White

Specifications

63 specifications in 15 groups

Projector

Projector brightness3300 ANSI lumens
Projection technologyLCD
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)3000:1
Supported aspect ratios16:9
Screen size compatibility1562.1 - 2961.6 mm (61.5 - 116.6")
Projection distance0.45 - 0.85 m
Horizontal scan range15 - 100 kHz
Vertical scan range50 - 120 Hz
Keystone correction, horizontal-10 - 10°
Keystone correction, vertical-10 - 10°
Matrix size1.6 cm (0.63")

Light source

Light source typeLamp
Service life of light source3000 h
Service life of light source (economic mode)6000 h
Lamp power265 W

Lens system

FocusManual
F-number (relative aperture)1.8
Zoom ratio1.4:1
Throw ratio0.36:1

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDNo
3DNo
Supported graphics resolutions1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p

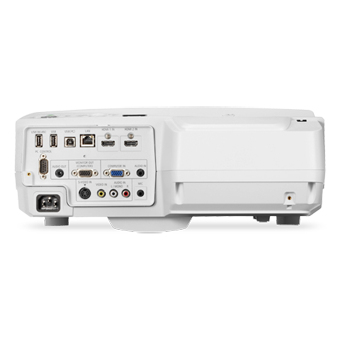

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity1
Microphone inYes
Serial interface typeRS-232
USB connector typeUSB Type-A

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1

Storage

Card reader integratedNo

Features

Noise level35 dB
Noise level (economic mode)28 dB
CertificationUSA UL 60950-1 FCC B, C-UL CSA 60950-1 ICES-003 B

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power16 W

Design

Product colourWhite
PlacementCeiling

Power

Power sourceAC
Power consumption (typical)344 W
Power consumption (standby)8 W
Power consumption (PowerSave)233 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage relative humidity (H-H)-20 - 50%
Operating altitude20 - 80 m

Weight & dimensions

Weight5.7 kg
Width429 mm
Depth592 mm
Height112 mm

Packaging content

Remote control includedYes
Cables includedVGA
ManualYes

Other features

RS-232 ports1
