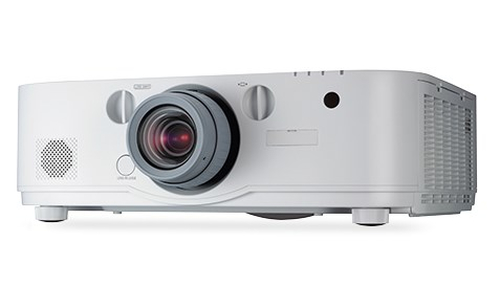

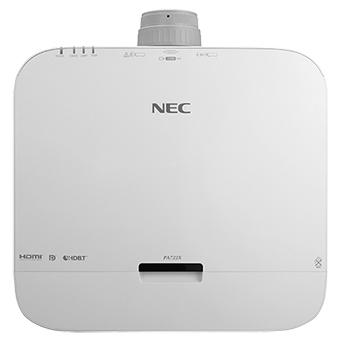

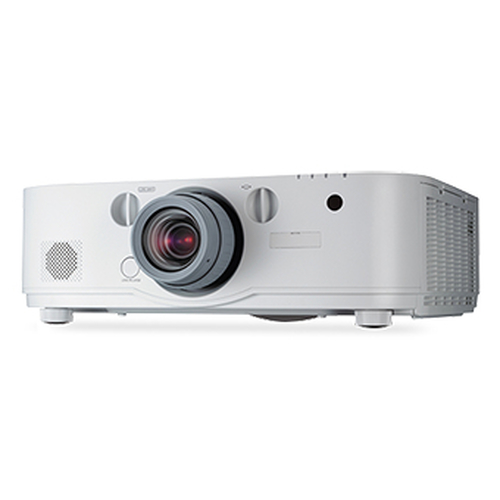

NEC NP-PA672W data projector Large venue projector 6700 ANSI lumens LCD WXGA (1280x800) White

NEC NP-PA672W data projector Large venue projector 6700 ANSI lumens LCD WXGA (1280x800) White

Model NP-PA672WEAN 805736051087

80 specifications
  • Noise39 dB
  • TypeLarge venue projector
  • Weight8.4 kg
  • ColourWhite
  • Projector brightness6700 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
39 dB
Type
Large venue projector
Weight
8.4 kg
Colour
White
Projector brightness
6700 ANSI lumens
Light source type
Lamp
Brand
NEC
Model
NP-PA672W
Part number
NP-PA672W
EAN / UPC
805736051087, 8057360510870
Also known as
NEC NP-PA672W data projector Large venue projector 6700 ANSI lumens LCD WXGA (1280x800) White

Specifications

80 specifications in 15 groups

Projector

Projector brightness6700 ANSI lumens
Projection technologyLCD
Projector native resolutionWXGA (1280x800)
Contrast ratio (typical)6000:1
Screen size compatibility1016 - 12700 mm (40 - 500")
Projection distance0.74 - 20.9 m
Horizontal scan range15 - 108 kHz
Keystone correction, horizontal-40 - 40°
Keystone correction, vertical-30 - 30°
Matrix size1.91 cm (0.75")

Light source

Light source typeLamp
Service life of light source3000 h
Service life of light source (economic mode)4000 h
Lamp power350 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Focal length range24.4 - 48.6 mm
Aperture range (F-F)1.7 - 2.37
Zoom ratio2.01:1
Throw ratio1.5 - 3.02:1

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDNo
Supported graphics resolutions1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
Component video (YPbPr/YCbCr) in0
Composite video in0
DVI portNo
DisplayPorts quantity1
S-Video inputs quantity0
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Audio (L/R) in0
Serial interface typeRS-232
PC in (D-Sub)Yes
BNC input ports5
CardBus PCMCIA slot typeNo
CardBus PCMCIA slots quantity0
AC (power) inYes

Network

Ethernet LANNo

Storage

Card reader integratedNo
Optical disc player typeNot included

Features

Noise level39 dB
Noise level (economic mode)33 dB
HDCPYes
On Screen Display (OSD)Yes
Composite syncYes
Separate H/V syncYes
Sync-on-green (SOG)Yes
CertificationUSA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power10 W

Design

Product typeLarge venue projector
Product colourWhite
PlacementDesktop
LED indicatorsYes

Power

Power sourceAC
Power consumption (typical)460 W
Power consumption (standby)7.4 W
Power consumption (PowerSave)0.11 W
Power consumption (economy mode)362 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Weight8.4 kg
Width499 mm
Depth366 mm
Height164 mm

Packaging content

Remote control includedYes
Remote control typeIR
Batteries includedYes
Cables includedVGA
ManualYes
Quick start guideYes
Warranty cardYes

Other features

RS-232 ports1
